Product Overview

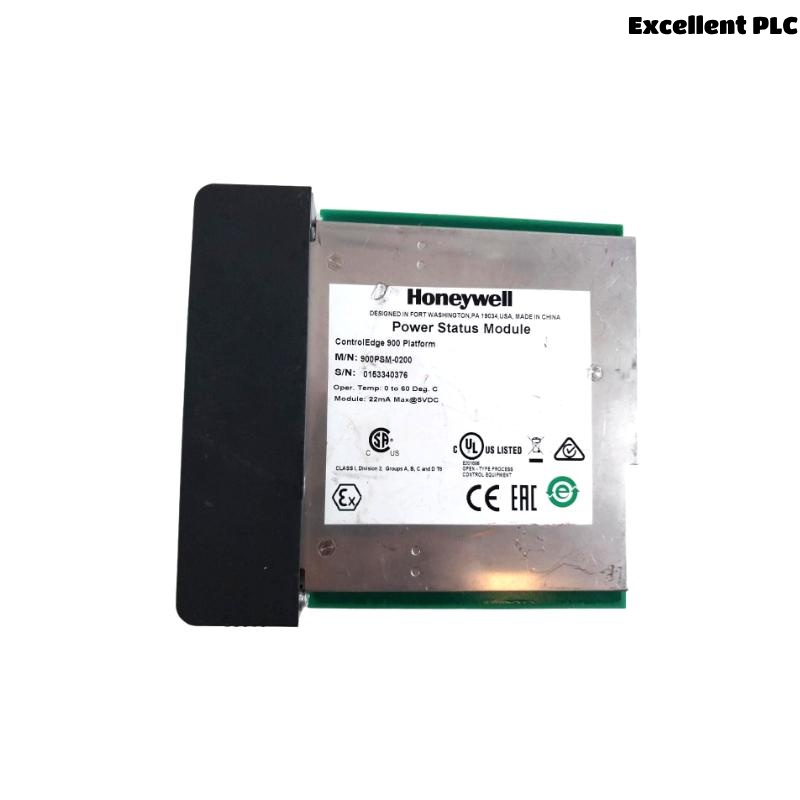

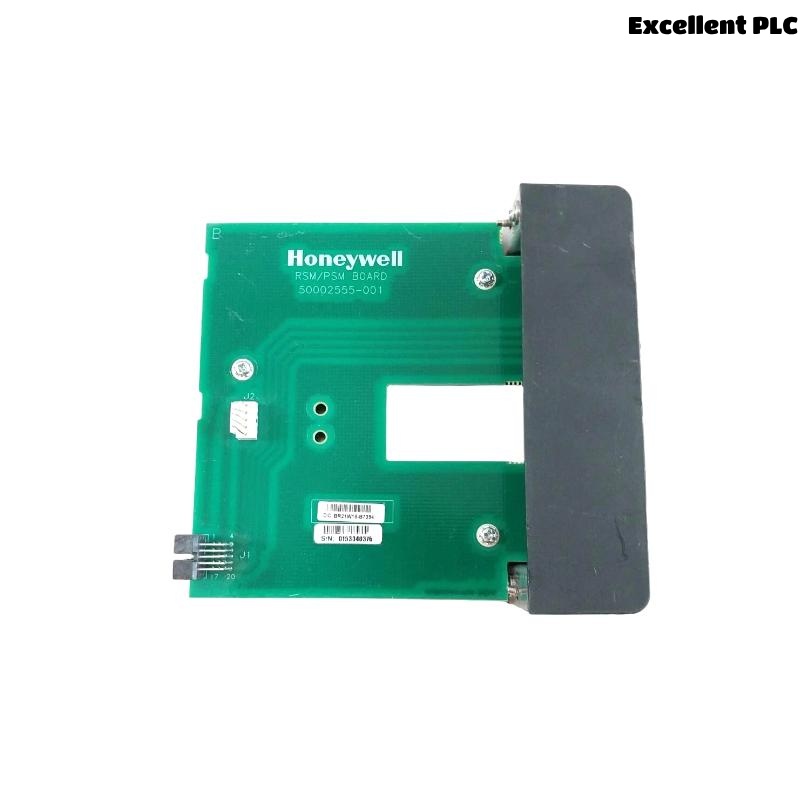

The Honeywell 900PSM-0200 is a Power Status Module designed for the ControlEdge HC900 controller platform. It monitors the power supply status within the HC900 system and supports redundant configurations for critical process control applications. Its primary role is to ensure uninterrupted system operations by signaling faults or power disruptions, helping to maintain system safety and reliability.
Technical Specifications
| Parameter | Specification |
|---|---|
| Model | 900PSM-0200 |
| Function | Power Status Monitoring |
| Application | ControlEdge HC900 redundant configuration |
| Mounting | 35 mm DIN rail |
| Status Indication | Tri-color LED (Green/Amber/Red) |
| Operating Temperature | 0°C to 60°C |
| Storage Temperature | -40°C to 70°C |
| Humidity | 10% to 90% RH (non-condensing) |
| Dimensions (H×W×D) | 137 × 35.6 × 151.7 mm |
| Weight | 0.448 kg |
| Power Consumption | 0.1 W |
| Certifications | CE, UL, CSA, FM, ATEX (T6 classification) |
Applications
-
Redundant power supply status monitoring in ControlEdge HC900 systems
-
Critical safety and process control environments
-
Industrial automation where uninterrupted control is required
-
Monitoring and diagnostics of HC900 backplane power
Product Advantages
-
Redundancy Ready: Designed specifically for use in redundant HC900 system configurations
-
Auto Sensing: Automatically detected and configured by the system upon insertion
-
Live Replacement: Supports hot-swapping for maintenance without system shutdown
-
Status Indication: Tri-color LED indicates module status for rapid diagnostics
-
Compact Design: Space-efficient with DIN rail mounting
-
T6 Certification: Suitable for hazardous environments requiring high safety standards
FAQs
Q1: What is the main function of the 900PSM-0200 module?
A1: It monitors the status of the system’s power supplies in ControlEdge HC900 systems.
Q2: Can this module be used in non-redundant systems?
A2: It is specifically designed for use in redundant configurations.
Q3: Does the module support live replacement?
A3: Yes, it supports removal and insertion under power without system shutdown.
Q4: What is the LED status indication used for?
A4: The tri-color LED shows module health—green (normal), amber (override), red (fault).
Q5: Is it compatible with other HC900 modules?
A5: Yes, it integrates seamlessly with all ControlEdge HC900 I/O and controller modules.
Q6: What are the power requirements of the module?
A6: It consumes only 0.1 W, making it very low-power.
Q7: What environments can it be used in?
A7: It operates in industrial environments from 0°C to 60°C and meets hazardous area certifications.
Q8: Is special software required for configuration?
A8: No, the module is automatically detected and configured by the HC900 system.
Q9: What is the temperature classification?
A9: T6, suitable for environments with low ignition temperature requirements.
Q10: How does it contribute to system reliability?
A10: It ensures uninterrupted operation by monitoring and reporting power supply faults in real time.
Related Models (Same Series)
| Model Number | Description | Dimensions (mm) | Weight |
|---|---|---|---|
| 900R04-0200 | 4-slot I/O Rack | 137 × 266.7 × 151.7 | 2.104 kg |
| 900R08-0200 | 8-slot I/O Rack | 137 × 419.1 × 151.7 | 3.126 kg |
| 900R08R-0200 | 8-slot Redundant Rack | 137 × 530.9 × 151.7 | 4.422 kg |
| 900P01-0301 | 120/240VAC Power Supply (60W) | 137 × 72.6 × 151.7 | 0.820 kg |
| 900P24-0301 | 24VDC Power Supply (60W) | 137 × 72.6 × 151.7 | 0.792 kg |
| 900RR0-0101 | Redundant CPM Rack | 137 × 261.6 × 151.7 | 1.751 kg |
