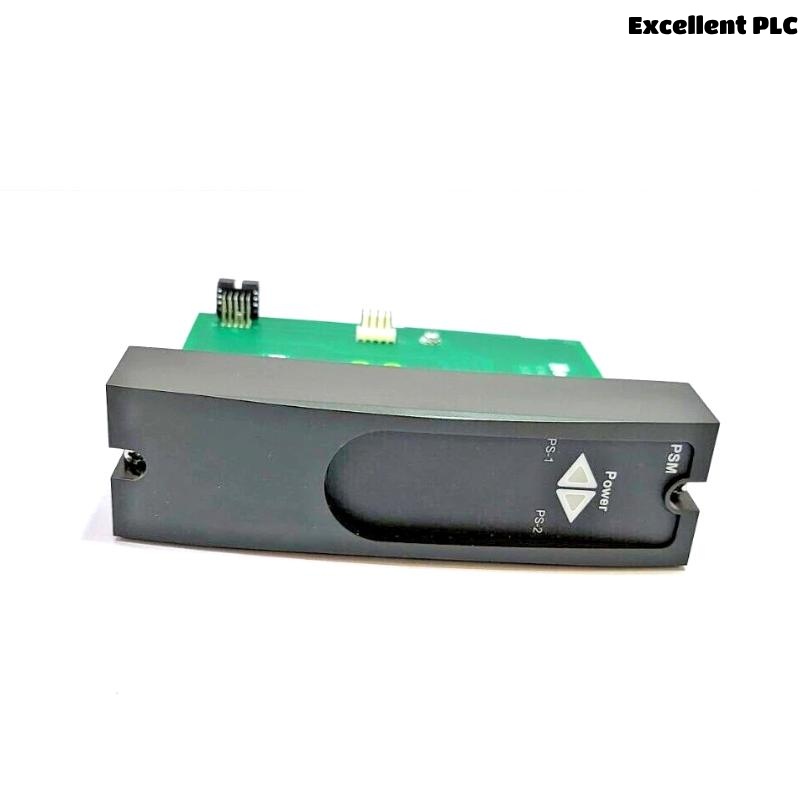

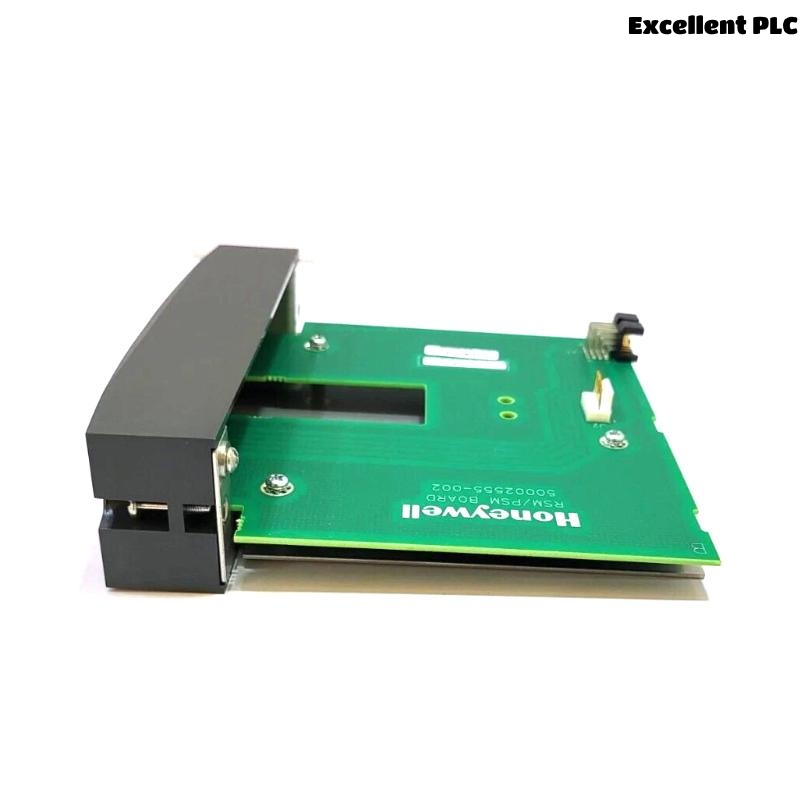

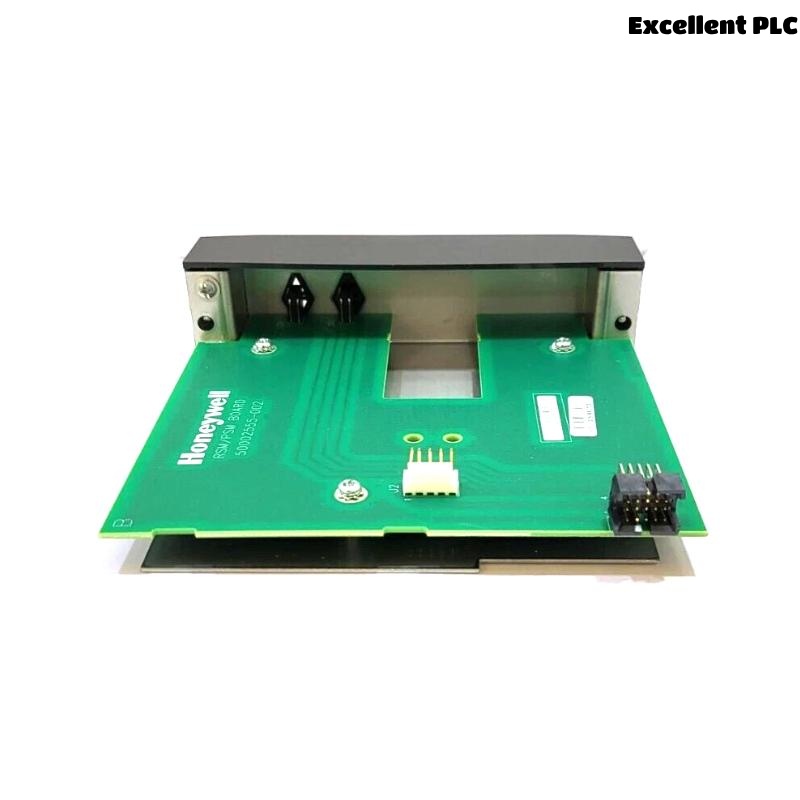

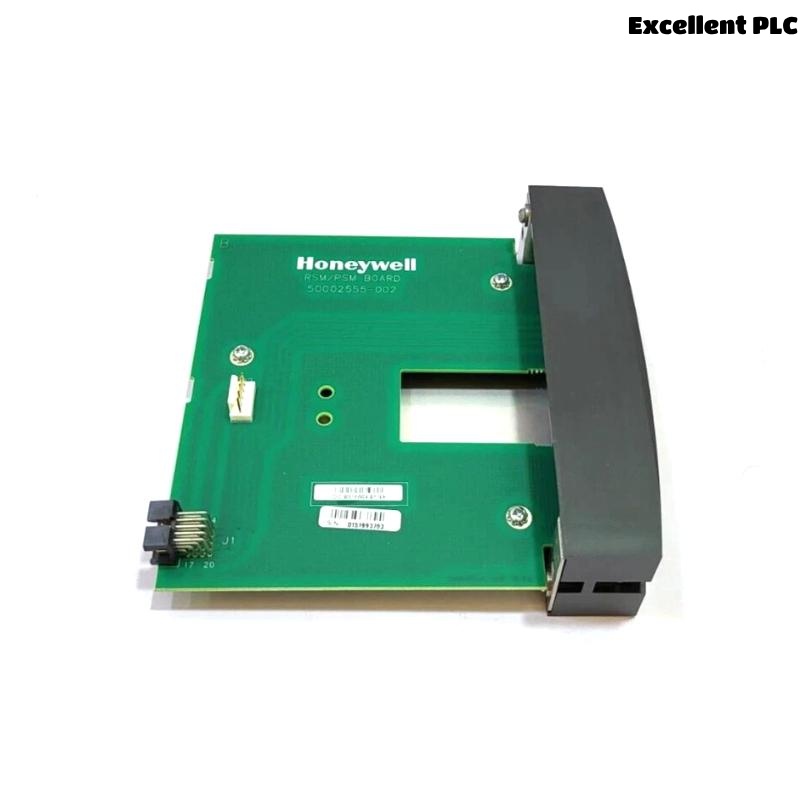

Honeywell 900PSM-0101 ControlEdge HC900 Power Status Module
- Product Details
- FAQs
- Related
- Contact Us
- Packing & Delivery
- Product Ratings
Product Overview
The Honeywell 900PSM-0101 Power Status Module is a key component in the ControlEdge HC900 control platform. It monitors the presence and condition of system power within a redundant power configuration and provides real-time feedback to the controller for fault detection and alarm functions.
Technical Specifications
| Parameter | Specification |
|---|---|
| Model Number | 900PSM-0101 |
| Function | Power Status Monitoring |
| Compatibility | ControlEdge HC900 platform |
| Voltage Monitoring | 5VDC and 24VDC monitored |
| Dimensions | 137 × 35.6 × 151.7 mm |
| Weight | 0.448 kg |
| Mounting | DIN rail |
| Environmental Rating | Conformal coated for G3 harsh environments |
| Operating Temperature | 0°C to 60°C |
| Storage Temperature | -40°C to 70°C |
| Certifications | CE, UL, CSA, ATEX, FM |
| Temperature Rating | T6 |
Applications
-
Industrial Process Control: Ensures continuous monitoring of power supply in critical systems.
-
Redundant Power Systems: Detects and reports power supply failures in redundant configurations.
-
Safety Systems: Supports fail-safe power supervision in safety-critical applications.
-
Power Condition Feedback: Enables automated diagnostics and maintenance alerts.
Advantages
-
Real-Time Monitoring: Constant feedback on power supply health ensures high reliability.
-
Redundancy Support: Enhances system availability in dual power configurations.
-
Compact Design: Saves space in control panels.
-
Status LEDs: Visual diagnostics for quick troubleshooting.
-
Easy Integration: Seamless fit with other HC900 I/O and power modules.
FAQs
Q1: What does the 900PSM-0101 monitor?
A1: It monitors 5VDC and 24VDC power levels for redundancy and fault detection.
Q2: Is it hot-swappable?
A2: Yes, it can be removed or inserted under power with controller support.
Q3: Can it be used in hazardous environments?
A3: Yes, it is certified for Class 1, Div. 2, and ATEX environments.
Q4: What is its mounting type?
A4: Standard 35 mm DIN rail.
Q5: Does it support diagnostics?
A5: Yes, it provides power failure status and is recognized by the controller.
Q6: What is its power consumption?
A6: Very low, at approximately 0.1W.
Q7: What environmental protections does it have?
A7: G3 conformal coating for harsh environments.
Q8: What LED indicators are provided?
A8: Status LEDs indicate module health and power state.
Q9: What is its rated temperature class?
A9: Rated T6 for temperature classification in hazardous areas.
Q10: Can it be used in standalone applications?
A10: No, it is designed to work within the ControlEdge HC900 system.
Related Models (Same Series)
| Model No. | Description | Dimensions (mm) | Weight |
|---|---|---|---|
| 900PSM-0200 | Redundant Power Status Module | 137 × 35.6 × 151.7 | 0.448 kg |
| 900P01-0301 | AC Power Supply Module, 60W | 137 × 72.6 × 151.7 | 0.820 kg |
| 900P24-0301 | DC Power Supply Module, 60W | 137 × 72.6 × 151.7 | 0.792 kg |
| 900R08-0200 | 8-slot I/O Rack | 137 × 419.1 × 151.7 | 3.126 kg |
| 900C30-0460 | Controller CPU Module | 137 × 38.1 × 151.7 | 0.350 kg |
| 900S50-0460 | Single-Port Scanner Module | 137 × 38.1 × 151.7 | 0.360 kg |
Popular Honeywell Models
| Model No. | Description | Dimensions (mm) | Weight |
|---|---|---|---|
| 8C-PCNT02 | Series 8 C300 Controller | 243.8 × 177.8 × 50.8 | ~0.8 kg |
| 8C-PAON01 | Analog Output Module | 200 × 130 × 50 | ~0.5 kg |
| 8C-TAIDA1 | Analog Input IOTA | 200 × 130 × 50 | ~0.4 kg |
| 8C-PDODA1 | Digital Output Module | 200 × 130 × 50 | ~0.45 kg |
| FC-IO-0001 | I/O Extension Module | 180 × 110 × 50 | ~0.4 kg |
| FC-IOCHAS-0001R | Chassis for Redundant I/O Modules | 300 × 220 × 60 | ~1.2 kg |
