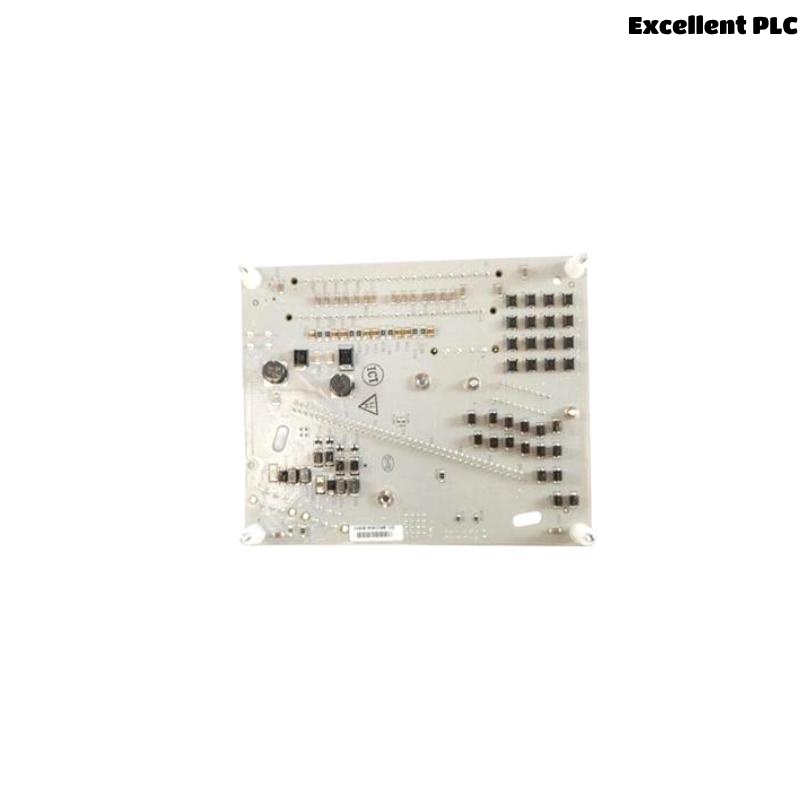

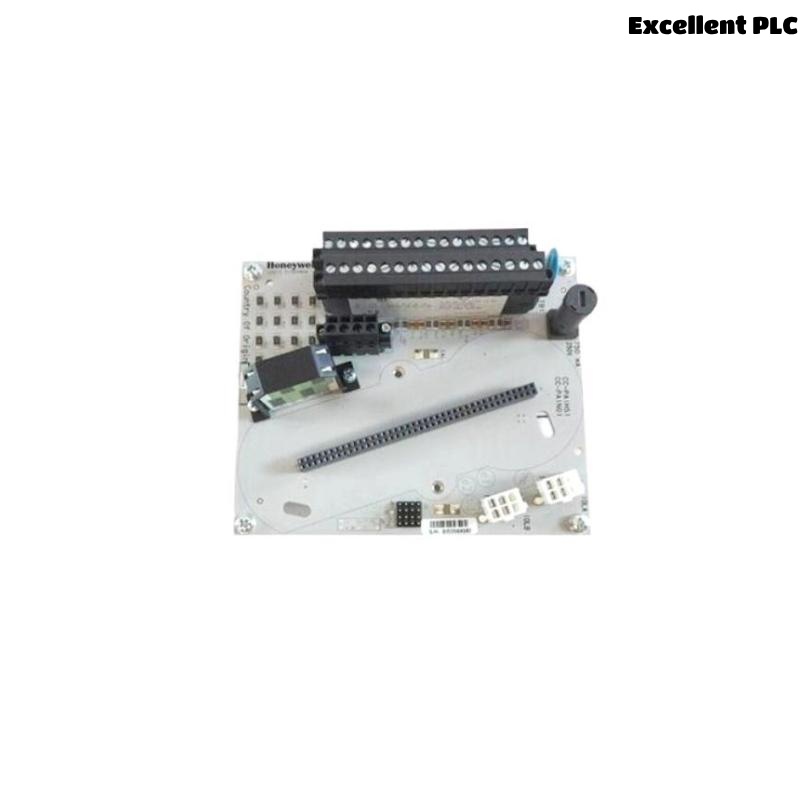

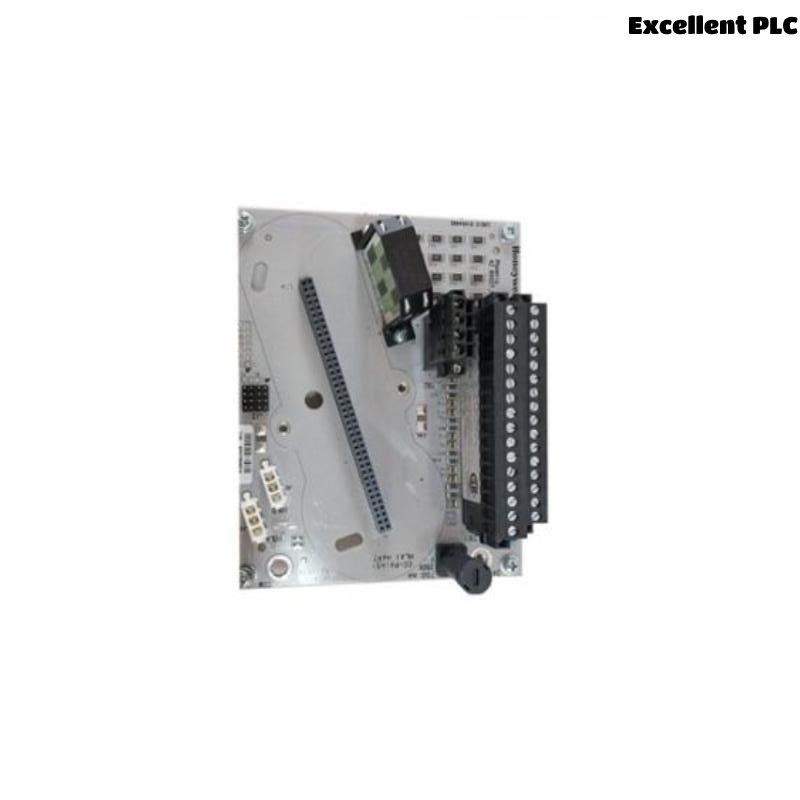

Honeywell DC-TAIX51 Analog Input Module

Product Introduction

The Honeywell DC-TAIX51 is an advanced Analog Input Module designed to deliver accurate and reliable analog signal processing for industrial automation and control systems. Part of Honeywell’s renowned DC-TAI series, this module supports a variety of analog input types, making it ideal for diverse sensor interfacing applications.

Compact and lightweight, the module measures 22 x 124 x 126 mm and weighs only 0.1 kg, allowing for easy integration into control panels with limited space. Despite its small size, the DC-TAIX51 offers robust performance and excellent signal fidelity, enabling precise data acquisition for process monitoring and control.

Product Parameters

Product Applications

The DC-TAIX51 module is widely employed in industrial and infrastructure projects requiring accurate analog input data:

• Process Control
  Interfaces with sensors for temperature, pressure, flow, and level measurement in chemical and manufacturing plants.

• Manufacturing Automation
  Provides real-time data acquisition from production equipment for quality and process control.

• Energy Management
  Monitors analog signals from power generation and distribution systems.

• Building Automation
  Used for environmental monitoring including HVAC systems and lighting controls.

• Water and Wastewater Treatment
  Supports sensor data collection for pumps, valves, and quality measurement.

• Infrastructure Monitoring
  Captures analog inputs from structural and environmental monitoring sensors.

Product Advantages

1. High Accuracy and Precision
   Features 16-bit ADC for detailed and reliable analog signal conversion.

2. Wide Input Compatibility
   Supports multiple input types including 4-20 mA current and 0-10 V voltage signals.

3. Compact and Lightweight
   The module’s small size and light weight (0.1 kg) enable easy installation in tight spaces.

4. Fast Sampling Rate
   Capable of sampling up to 1 kHz per channel, suitable for dynamic process monitoring.

5. Broad Temperature Range
   Operates effectively from -20°C to +70°C to suit various industrial environments.

6. Low Power Consumption
   Runs on a standard 24 VDC power supply, optimizing energy efficiency.

7. Robust Mechanical Design
   Durable construction ensures long-term reliability and minimal maintenance.

8. Flexible Installation
   DIN rail mounting simplifies integration and servicing.

9. Reliable Signal Integrity
   Provides stable and interference-resistant analog input processing.

10. Seamless Integration
    Compatible with Honeywell automation platforms and control systems.

Frequently Asked Questions (FAQ)

1. Q: How many analog input channels does the DC-TAIX51 have?
   A: It has 8 analog input channels.

2. Q: What types of input signals does it support?
   A: Voltage (0-10V, ±10V) and current (4-20 mA, 0-20 mA) inputs.

3. Q: What is the resolution of the analog-to-digital converter?
   A: It uses a 16-bit ADC.

4. Q: What are the module’s physical dimensions?
   A: The module measures 22 x 124 x 126 mm.

5. Q: What is the weight of the DC-TAIX51?
   A: The module weighs 0.1 kg.

6. Q: What temperature range can the module operate in?
   A: From -20°C up to +70°C.

7. Q: How is the module mounted?
   A: It is mounted on a DIN rail.

8. Q: What power supply does it require?
   A: The module requires a 24 VDC power supply.

9. Q: Can the module be used in harsh industrial environments?
   A: Yes, it is designed for reliable operation under such conditions.

10. Q: Is the DC-TAIX51 compatible with Honeywell control systems?
    A: Yes, it integrates seamlessly with Honeywell automation platforms.
