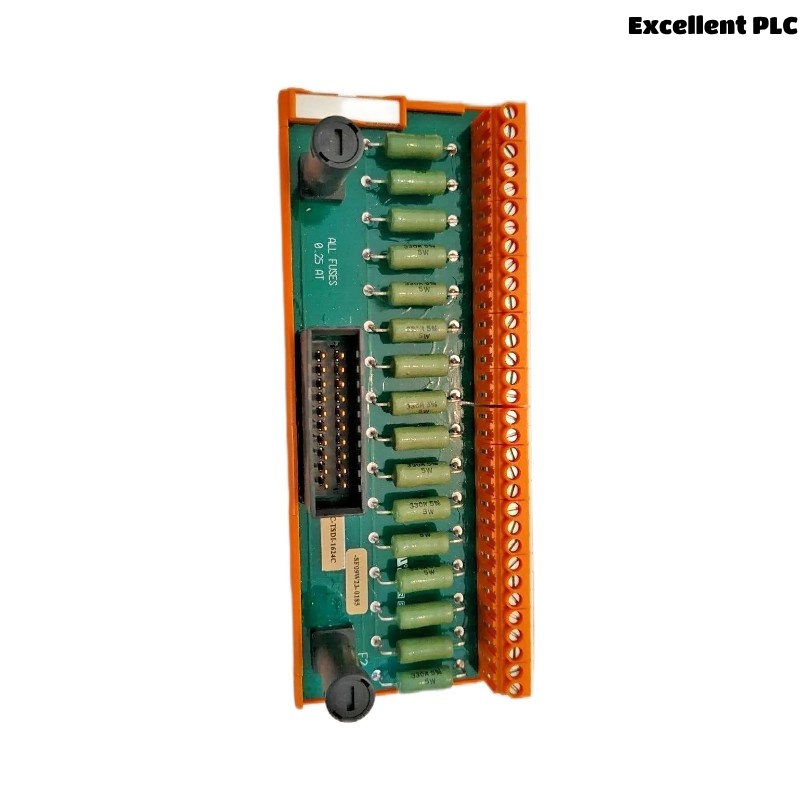

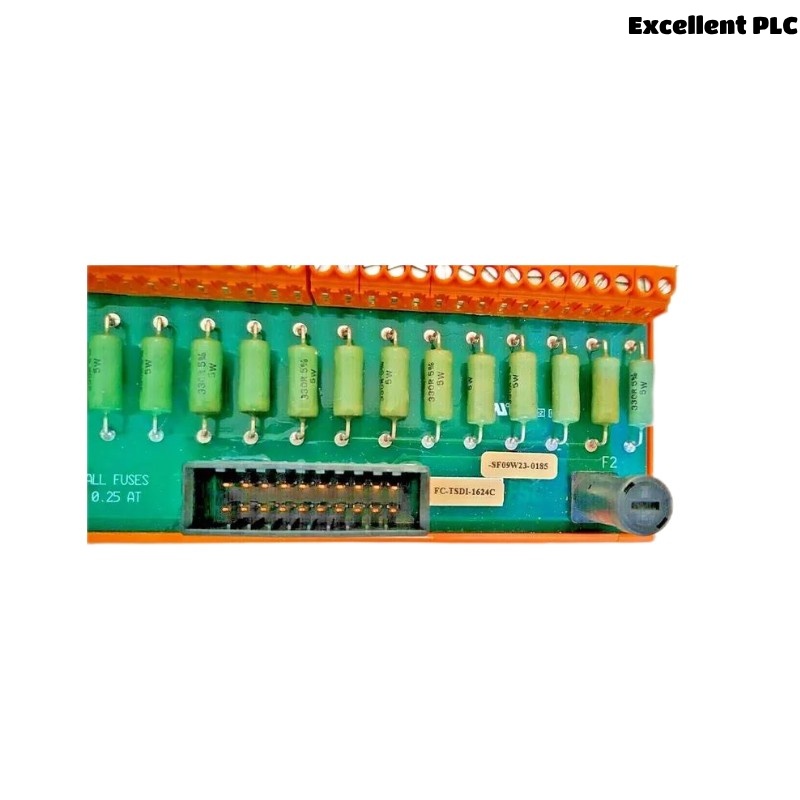

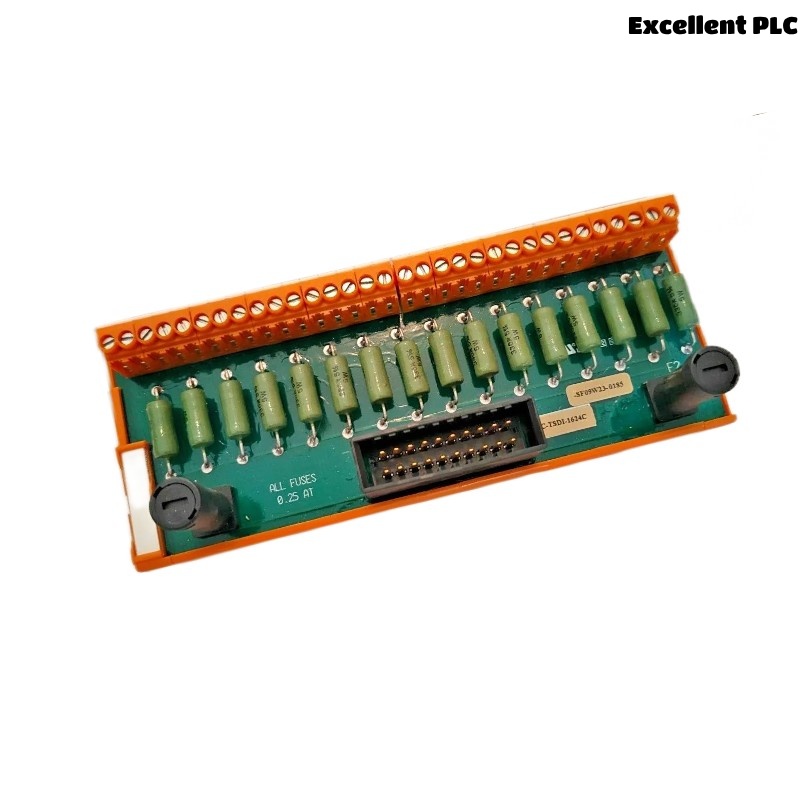

Honeywell FC-TSDI-1624C Safety Active/Passive Digital Input FTA Module

Product Introduction

The Honeywell FC-TSDI-1624C is a high-performance safety-certified digital input module designed for integration within Honeywell’s Fault Tolerant Architecture (FTA) systems. It supports both active and passive digital input signals, enabling flexible and reliable interfacing with field devices such as switches, sensors, and contact inputs within safety-critical applications.

This module is built to meet rigorous safety standards, making it suitable for use in Safety Instrumented Systems (SIS) where dependable input signal processing is essential to ensure system integrity and protect personnel, equipment, and the environment. Its robust construction and compact form factor allow easy installation within control panels while delivering exceptional performance and diagnostics.

Product Parameters

Product Applications

The FC-TSDI-1624C module is widely used in:

• Process Safety Systems: Integration in SIS for monitoring critical digital input signals.

• Refineries and Petrochemical Plants: Safety interlocks and emergency shutdown signal processing.

• Power Generation: Monitoring safety devices such as trips, alarms, and interlocks.

• Chemical Manufacturing: Critical control of process variables with reliable input signal validation.

• Oil & Gas: Ensuring safe operations through dependable digital input signal acquisition.

• Pharmaceutical Industry: Managing safety signals in automated production environments.

Product Advantages

• Safety Compliance: Certified for SIL 2 and SIL 3 applications, meeting stringent safety standards.

• Versatile Input Handling: Supports both active and passive digital input signals for greater field device compatibility.

• Compact Design: Small footprint and DIN rail mounting facilitate installation in tight control cabinets.

• Robust Diagnostics: Integrated self-test capabilities and diagnostics help reduce downtime and simplify maintenance.

• Reliable Communication: Seamless integration with Honeywell’s FTA system bus ensures consistent and secure data transfer.

• Low Power Consumption: Efficient design minimizes power usage in demanding control environments.

• Wide Operating Temperature: Suitable for diverse industrial climates.

• High Isolation: Channel-to-channel isolation enhances signal integrity and reduces noise interference.

Frequently Asked Questions (FAQ)

Q1: How many digital inputs does the FC-TSDI-1624C support?
A1: It supports 16 digital input channels.

Q2: Does this module support both active and passive inputs?
A2: Yes, it is designed to handle both active and passive digital signals.

Q3: What are the safety certification levels of this module?
A3: It is certified for SIL 2 and SIL 3 safety integrity levels.

Q4: What is the operating voltage for this module?
A4: The module operates on 24 V DC.

Q5: How is the module mounted?
A5: It is designed for standard DIN rail mounting.

Q6: What diagnostic features are included?
A6: It includes built-in self-test and continuous diagnostics for system reliability.

Q7: What are the physical dimensions of the module?
A7: The dimensions are 90 × 70 × 58 mm.

Q8: What is the module’s weight?
A8: The module weighs approximately 0.36 kg.

Q9: Can this module communicate with non-Honeywell systems?
A9: It is specifically designed for Honeywell FTA bus systems; compatibility with other systems is limited.

Q10: What temperature range can this module operate within?
A10: It operates reliably between -20°C and +70°C.
