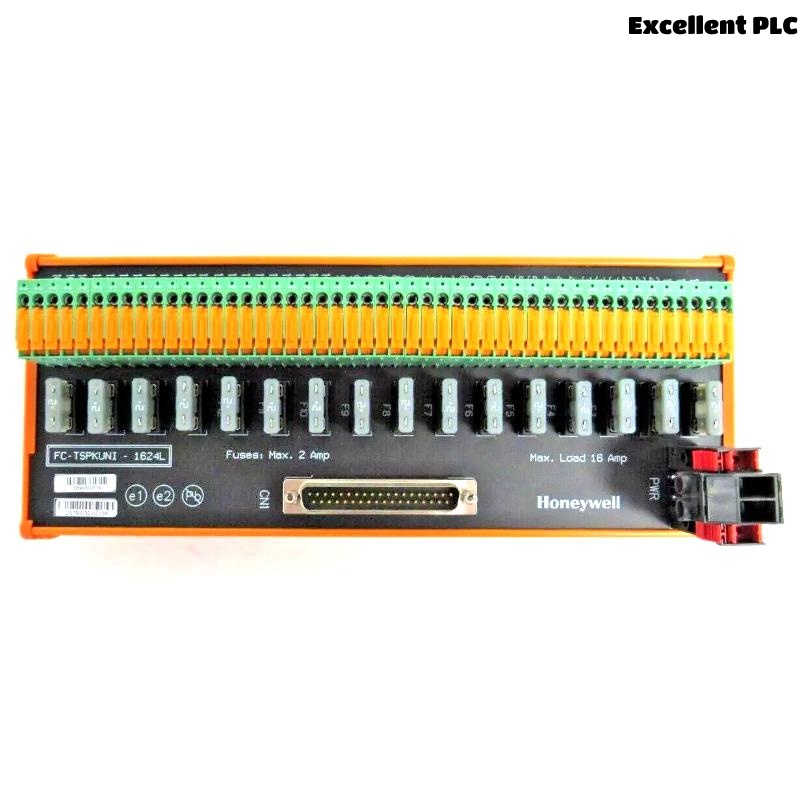

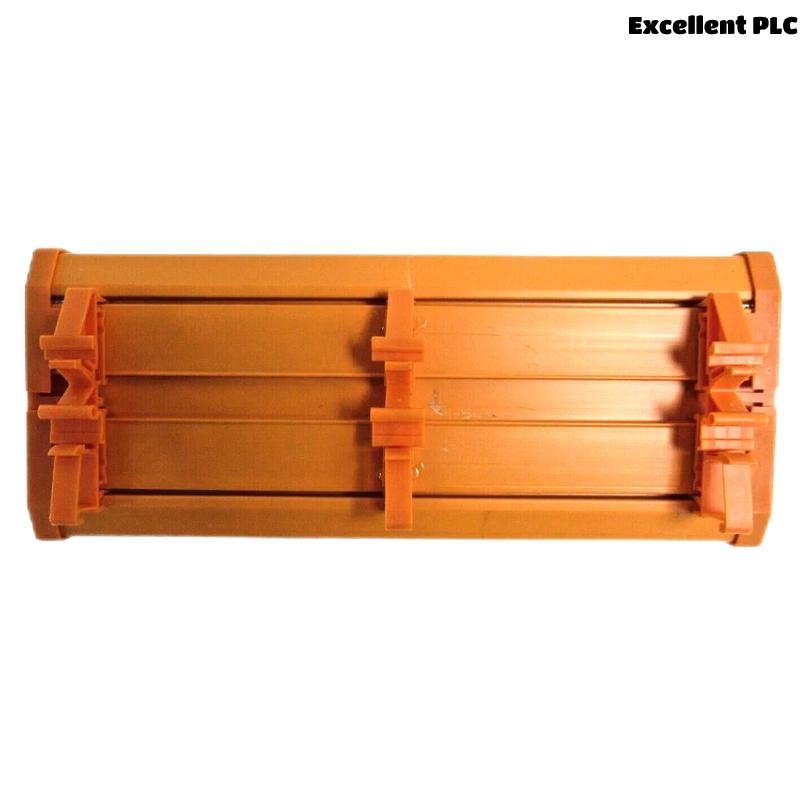

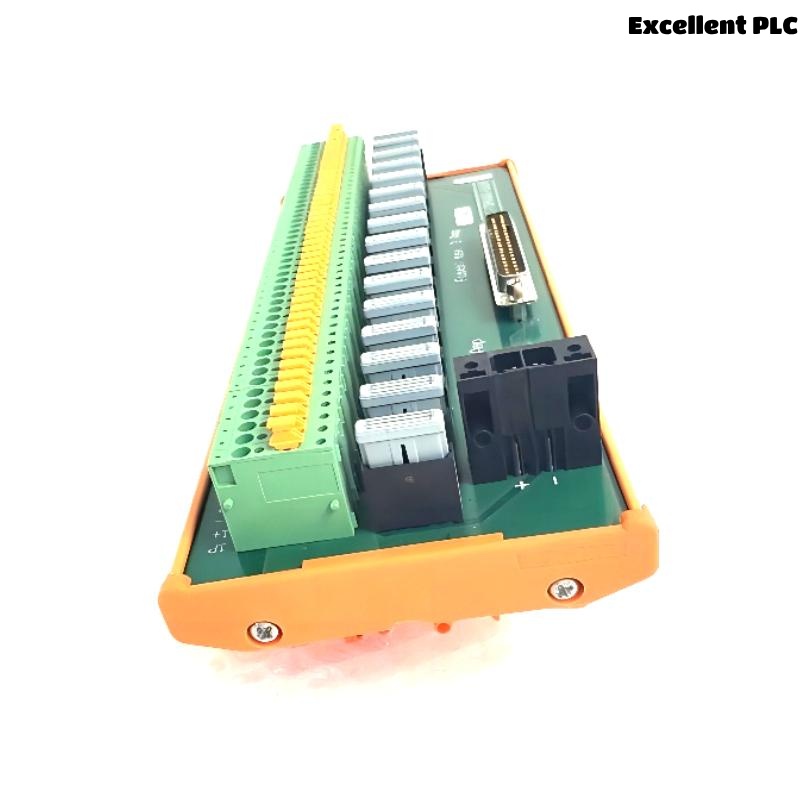

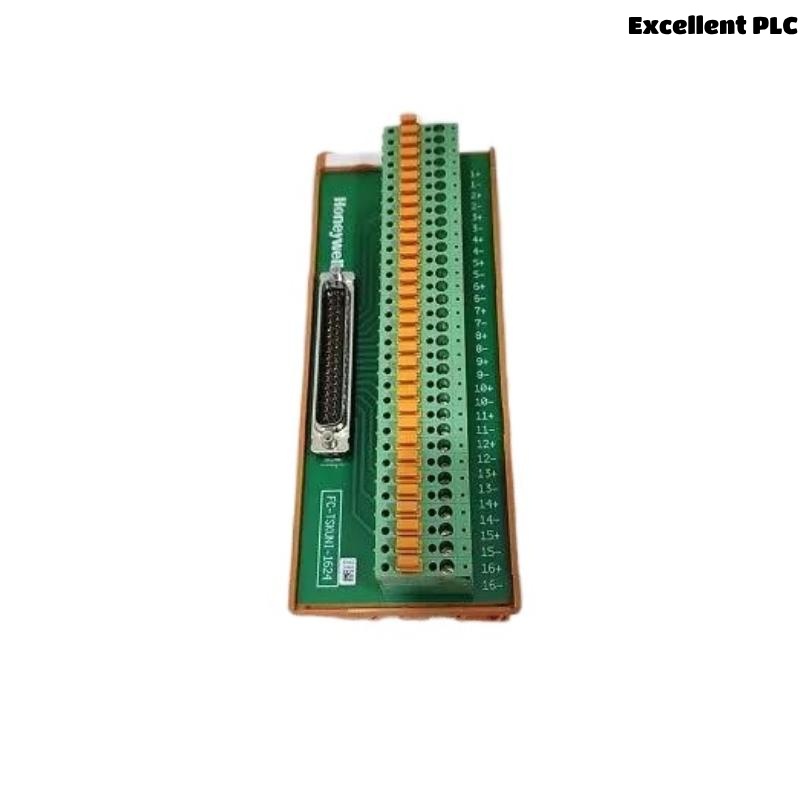

Honeywell FC-TSPKUNI-1624 Field Terminal Assembly

Product Introduction

The Honeywell FC-TSPKUNI-1624 is a versatile Field Terminal Assembly (FTA) module designed to provide a reliable interface between field wiring and Honeywell’s Fault Tolerant Architecture (FTA) safety and control systems. This module is engineered for universal use, supporting multiple signal types and offering robust signal conditioning and isolation features. It ensures secure, noise-free connections between field devices and the control system, enhancing system reliability and performance.

With a compact yet rugged design, the FC-TSPKUNI-1624 is suitable for use in demanding industrial environments such as chemical plants, power generation, and oil & gas installations. Its large terminal capacity and universal compatibility make it a flexible solution for complex control and safety system installations where reliable field wiring connections are critical.

Product Parameters

Product Applications

The FC-TSPKUNI-1624 module is broadly applied in:

• Safety Instrumented Systems (SIS): Facilitates secure and isolated connections for critical safety input/output signals.

• Process Automation: Interfaces field instruments such as sensors, switches, and actuators in complex control systems.

• Oil & Gas Industry: Provides robust field wiring solutions in hazardous and harsh environments.

• Chemical and Petrochemical Plants: Supports safe and reliable instrumentation wiring.

• Power Generation: Connects field devices with safety and control systems for reliable operation.

• Manufacturing Facilities: Ensures dependable data transmission from field devices to control architecture.

Product Advantages

• Universal Compatibility: Supports a wide variety of signal types, making it suitable for diverse applications.

• High Isolation: Channel-to-channel galvanic isolation protects system integrity by preventing ground loops and noise interference.

• Robust Construction: Designed to withstand harsh industrial conditions, ensuring long service life.

• Spacious Design: Large terminal capacity supports extensive field wiring and complex installations.

• Easy Installation: DIN rail and panel mounting options provide flexible setup possibilities.

• Reliable Signal Integrity: Signal conditioning features maintain clean and stable input/output signals.

• Compact Form Factor: Despite large terminal capacity, the module remains space-efficient.

• Low Maintenance: Built for durability and minimal upkeep requirements.

Frequently Asked Questions (FAQ)

Q1: What are the physical dimensions of the FC-TSPKUNI-1624?
A1: The module measures 265 mm in width, 109 mm in height, and 65 mm in depth.

Q2: How much does this module weigh?
A2: It weighs approximately 0.75 kg.

Q3: What types of signals does the module support?
A3: It supports a wide range of signal types including digital and analog inputs and outputs.

Q4: What mounting options are available?
A4: The module supports both DIN rail and panel mounting.

Q5: Does the module provide electrical isolation?
A5: Yes, it offers channel-to-channel galvanic isolation to prevent noise and ground loop issues.

Q6: What is the operating voltage?
A6: The module operates at 24 V DC.

Q7: What is the operating temperature range?
A7: It is designed to operate between -20°C and +70°C.

Q8: Are the connection terminals easy to access?
A8: Yes, the module uses screw terminal blocks designed for straightforward wiring and maintenance.

Q9: Can this module be used with non-Honeywell systems?
A9: It is specifically designed for Honeywell FTA bus systems; compatibility with other systems may be limited.

Q10: What materials are used in the construction of the module?
A10: The module is constructed with durable plastic and metal components to ensure resilience.
