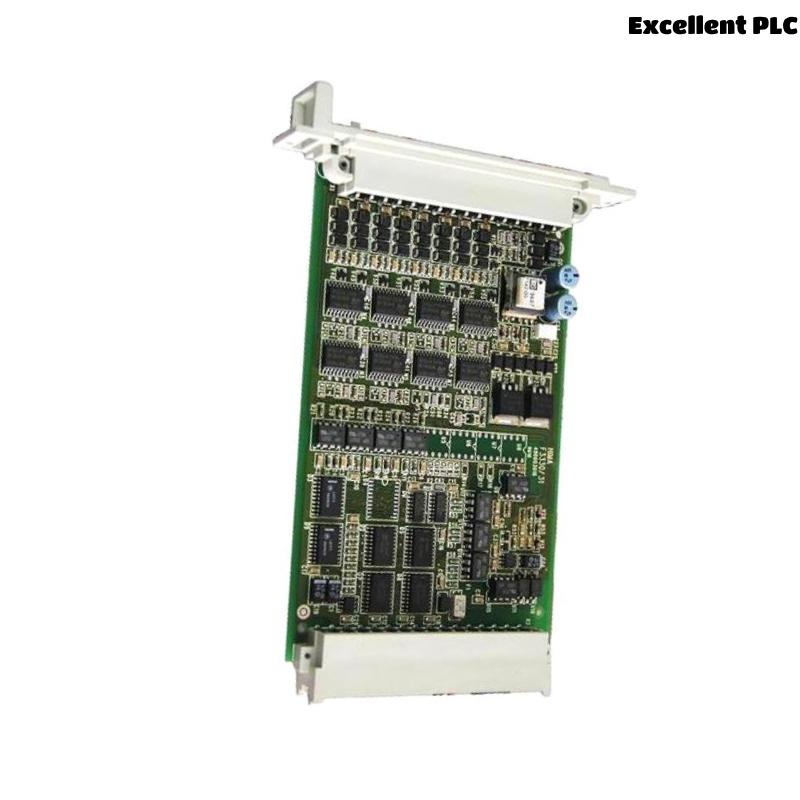

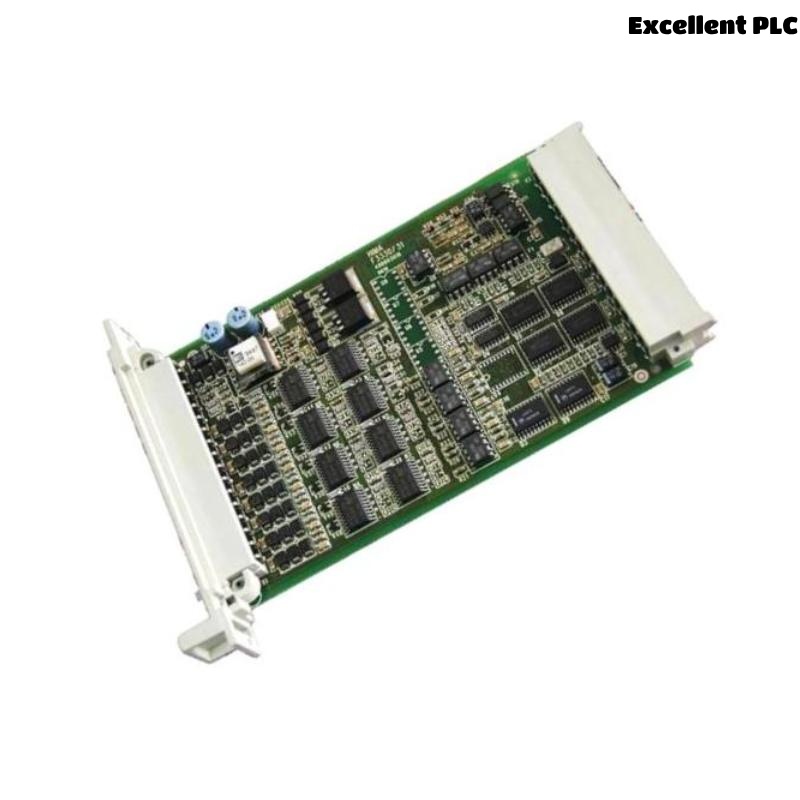

Honeywell FC-TSRO-08UNI Digital Output Field Terminal Assembly

Product Introduction

The Honeywell FC-TSRO-08UNI is a robust digital output Field Terminal Assembly (FTA) designed to provide secure, reliable interface connections between digital output signals and field wiring in safety and control systems. Engineered for use within Honeywell’s Fault Tolerant Architecture (FTA) platforms, this module facilitates accurate and dependable digital signal transmission to actuators, relays, and other field devices.

Built with durability and precision, the FC-TSRO-08UNI is ideal for harsh industrial environments where safety, reliability, and ease of maintenance are critical. Its modular design and high-quality materials ensure long-term operation, while the extensive channel isolation and signal conditioning improve overall system integrity and reduce electrical noise.

Product Parameters

Product Applications

The FC-TSRO-08UNI module is widely used in:

• Safety Instrumented Systems (SIS): Driving field devices such as solenoids, valves, and alarms.

• Process Automation: Controlling digital output devices in chemical, oil & gas, and power plants.

• Refineries: Ensuring safe operation by delivering reliable digital output signals for shutdown and emergency systems.

• Manufacturing: Facilitating automated control through dependable output signal distribution.

• Power Generation: Controlling safety and auxiliary equipment with guaranteed signal integrity.

• Mining and Heavy Industry: Providing rugged output interfaces for field equipment in harsh conditions.

Product Advantages

• Reliable Signal Transmission: Designed for precise and consistent digital output delivery.

• High Isolation: Channel-to-channel galvanic isolation minimizes noise and prevents signal interference.

• Robust Construction: Materials and design ensure durability in harsh industrial environments.

• Flexible Mounting: Supports both DIN rail and panel mounting for versatile installation.

• User-Friendly Wiring: Screw terminal blocks simplify wiring and maintenance operations.

• Wide Operating Temperature: Suitable for a broad range of industrial climates.

• System Integration: Seamless compatibility with Honeywell FTA bus systems guarantees smooth operation.

• Low Maintenance: Designed for long life with minimal upkeep.

Frequently Asked Questions (FAQ)

Q1: How many digital outputs does the FC-TSRO-08UNI support?
A1: It supports 8 digital output channels.

Q2: What are the module’s physical dimensions?
A2: The dimensions are 274 mm wide, 109 mm high, and 71 mm deep.

Q3: How much does the module weigh?
A3: It weighs approximately 0.85 kg.

Q4: What is the operating voltage for the module?
A4: The module operates at 24 V DC.

Q5: What type of output does the module provide?
A5: It provides digital outputs, which can be relay or transistor driven.

Q6: Can the module be mounted in different ways?
A6: Yes, it supports both DIN rail and panel mounting.

Q7: Does the module offer electrical isolation?
A7: Yes, it provides channel-to-channel galvanic isolation.

Q8: What is the operating temperature range?
A8: It operates reliably between -20°C and +70°C.

Q9: Are the connection terminals easy to use?
A9: Yes, it uses screw terminal blocks for straightforward wiring and maintenance.

Q10: Is the module compatible with non-Honeywell systems?
A10: It is specifically designed for Honeywell FTA bus systems; compatibility with other systems may be limited.
