Product Description

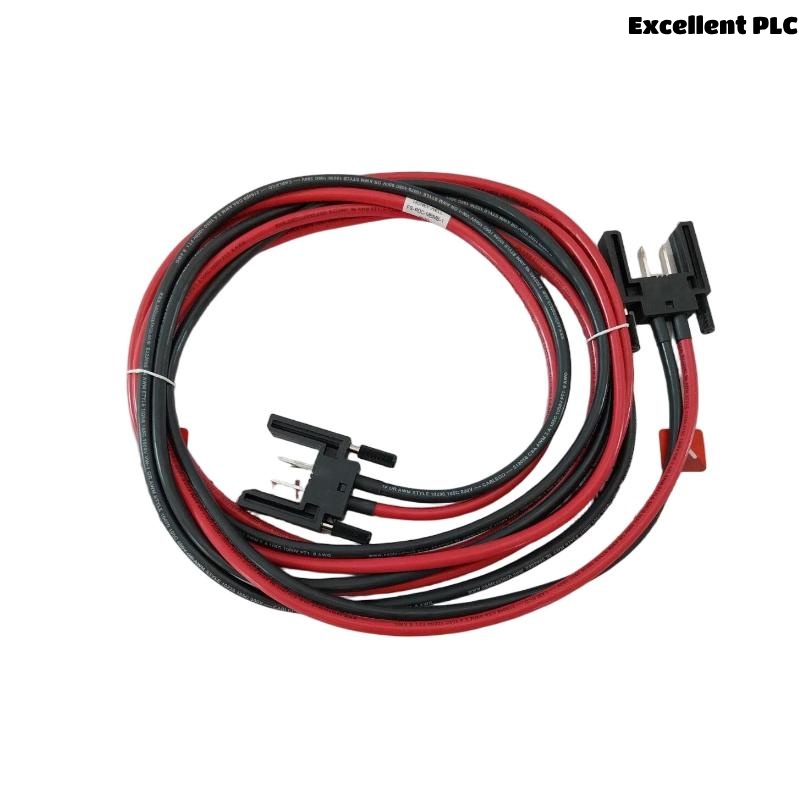

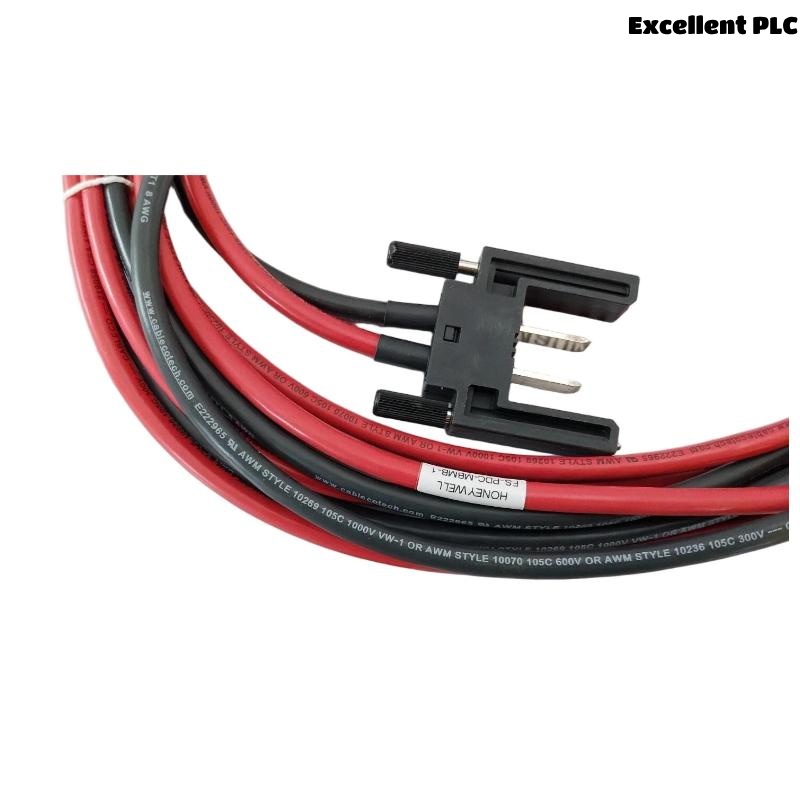

The Honeywell FS-PDC-MBMB-1 is a high-capacity power distribution cable designed to transfer 24Vdc or 48Vdc power between two mains power rails of type FS-MB-0001. It uses a robust, polarized connector with jackscrews for secure installation and supports heavy loads, including up to 100A when using two cables. This makes it suitable for critical industrial control applications.
Technical Specifications
| Parameter | Value |
|---|---|

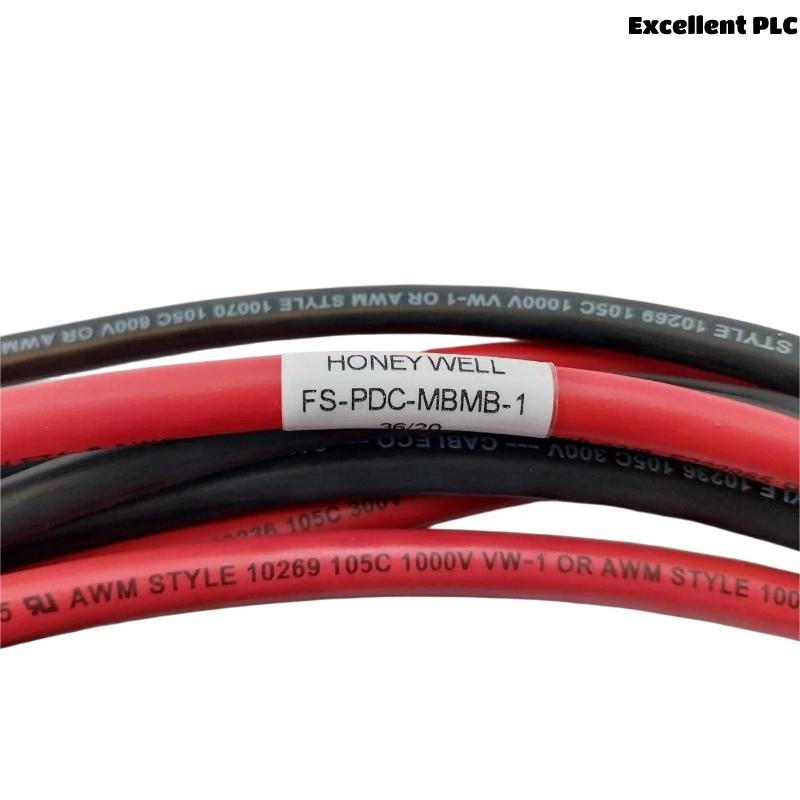

| Model Number | FS-PDC-MBMB-1 |
| Power Rating | 55 A |
| Voltage | 24Vdc / 48Vdc |
| Cable Type | HV8-55-c (AWG 8) |
| Length | 3 m |

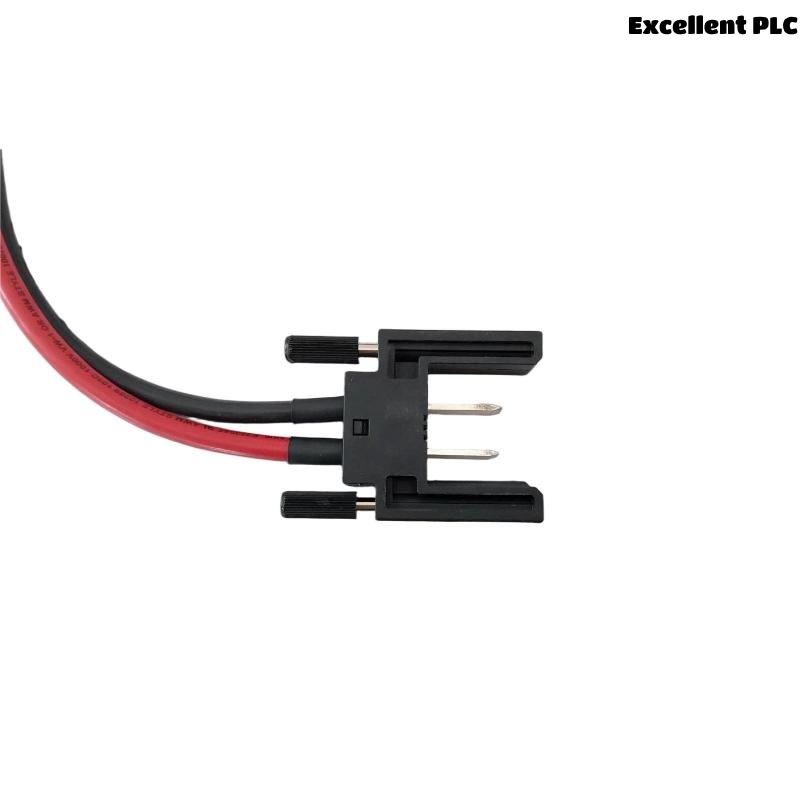

| Connector Type | 2-pole Jackscrew (D-TAB-200-JCK) |
| Pin Type | D-TAB-200-8-S |
| Max Temperature | 125°C (257°F) |
| Approvals | UL, CSA, FM pending |
| Packaging Weight | 3 kg |
Applications
-
Power distribution between mains power rails in Safety Manager systems.
-
Industrial automation cabinets requiring high-current power interconnection.
-
Redundant power supply systems for mission-critical environments.
-
Large I/O rack configurations in process control.
Advantages
-
Supports high load currents up to 55A with a single cable.
-
Up to 100A when using two cables for redundancy.
-
Rugged connectors with secure locking screws for vibration-prone environments.
-
UL and CSA recognized for compliance and safety.
-
Easy to install in designated FS-MB-0001 rail positions.
Frequently Asked Questions (FAQ)
Q1: What voltages does the FS-PDC-MBMB-1 support?
A1: It supports 24Vdc and 48Vdc power rails.
Q2: What is the maximum current rating?
A2: The cable is rated for up to 55A. Using two cables supports up to 100A.
Q3: How long is the cable?
A3: The cable length is 3 meters.
Q4: What type of connector does it use?
A4: It uses a 2-pole jackscrew connector (D-TAB-200-JCK).
Q5: Can it operate at high temperatures?
A5: Yes, it is rated for temperatures up to 125°C (257°F).
Q6: Is it UL approved?
A6: Yes, it is UL listed and CSA certified, with FM approval pending.
Q7: What is the recommended installation method for high loads?
A7: For loads over 30A, use two cables: one at the top and one at the bottom of the power rails.
Q8: What is the packaging weight?
A8: The packaged weight of the cable is 3 kg.
Q9: Is it compatible with any rail?
A9: No, it is designed specifically for FS-MB-0001 type power rails.
Q10: Does it require any special tools for installation?
A10: No special tools are required; the connector is secured using its integrated jackscrews.
