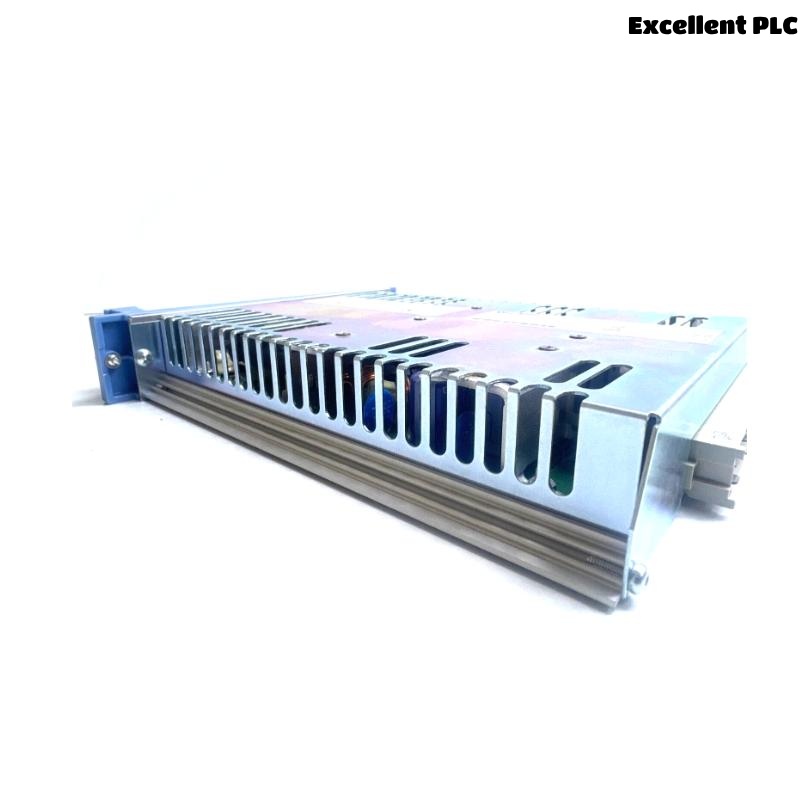

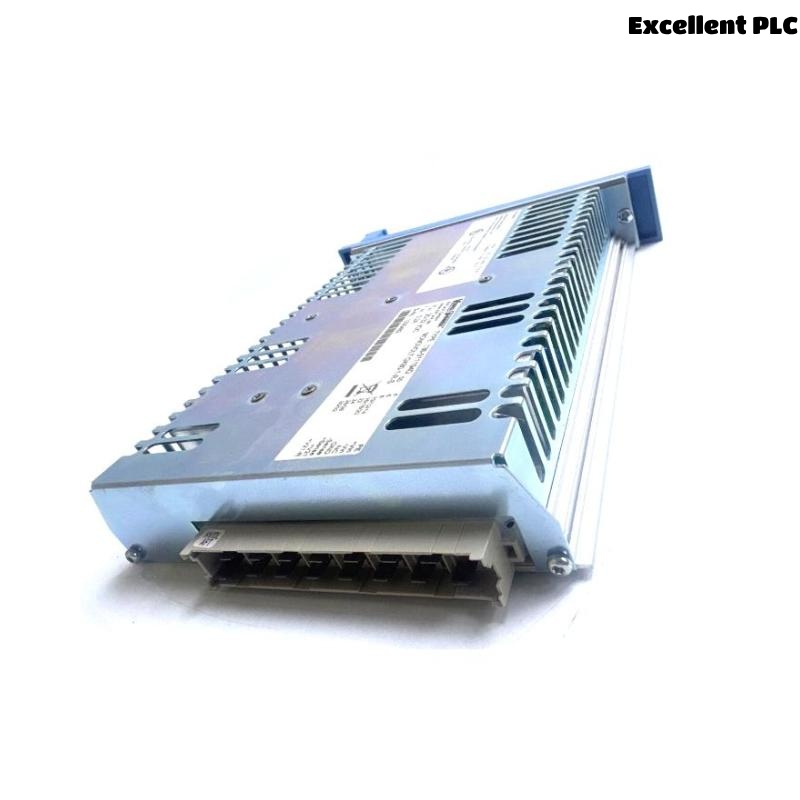

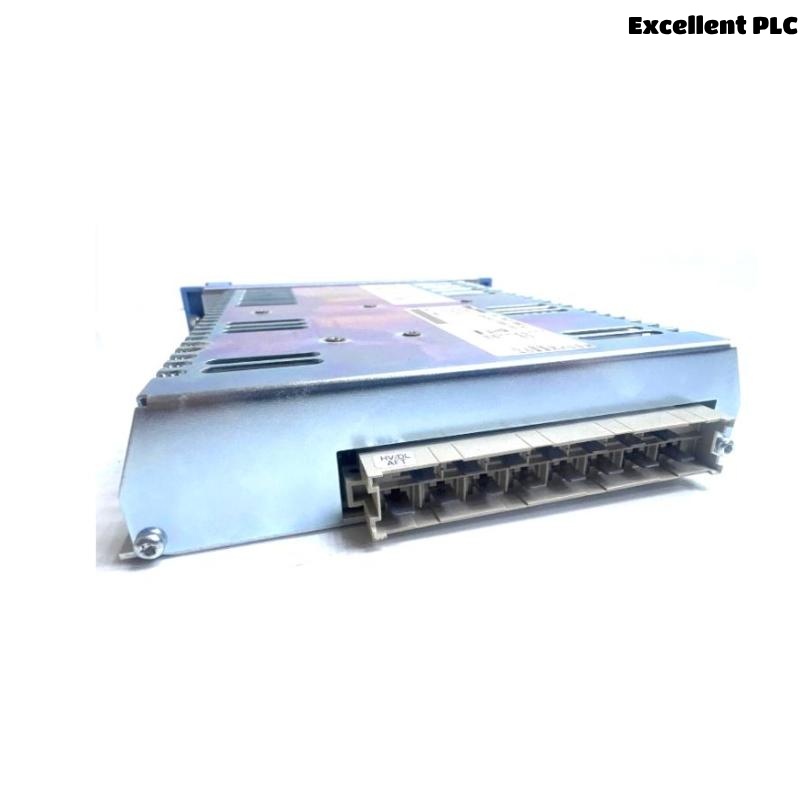

Honeywell FS-PSU-240516 Power Supply Unit
- Product Details
- FAQs
- Related
- Contact Us
- Packing & Delivery
- Product Ratings
Product Description
The Honeywell FS-PSU-240516 is a robust power supply module designed for Honeywell Safety Manager systems. It provides a stable 5 VDC output with redundancy support, ensuring high system availability and compliance with safety integrity requirements.
Technical Specifications
| Parameter | Value |
|---|---|
| Input Voltage | 24 VDC |
| Output Voltage | 5 VDC |
| Dimensions (H × W × D) | 176 × 35.2 × 212 mm |
| Weight | 0.85 kg |
| Overvoltage Protection | Dual independent circuits |
| Isolation 24V–5V | ≥ 2.5 kVDC |
| Isolation 24V–Casing | ≥ 1.0 kVDC |
| Isolation 5V–Casing | ≥ 1.5 kVDC |

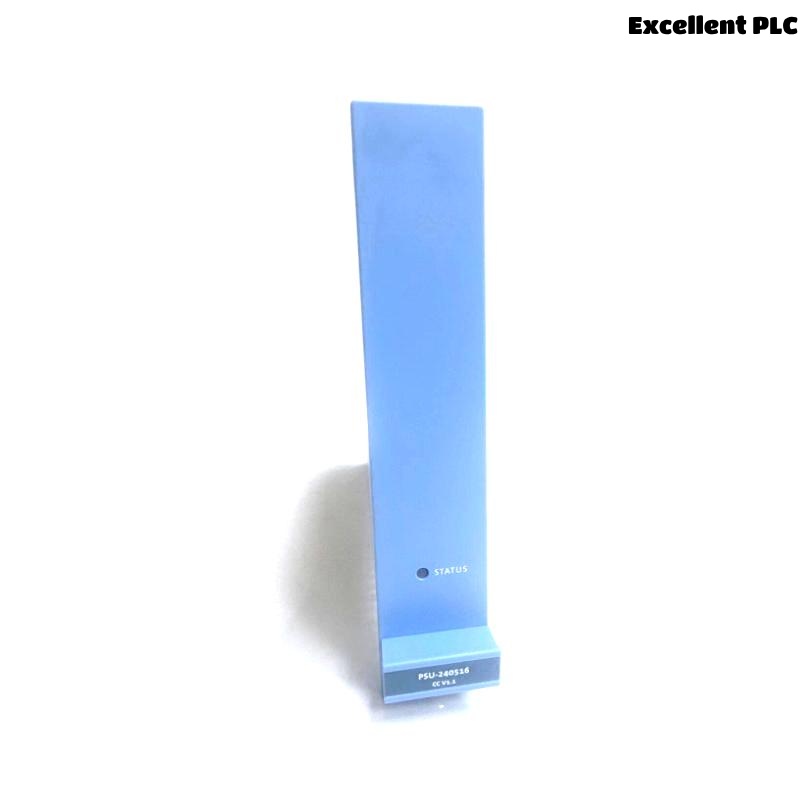

| Status Indicators | Green: OK, Red: Fault |
| Redundancy Support | Yes, for critical IO modules |
Applications
-
Safety-critical automation in oil & gas, chemical, and power generation.
-
SIL-compliant control processors.
-
Redundant 5 VDC supply for Safety Manager redundant IO.
Advantages
-
High reliability with redundant design.
-
Compact form factor for cabinet integration.
-
Status LEDs for immediate diagnostics.
-
No regular maintenance checks required.
-
Galvanic isolation enhances system safety.
FAQs
Q1: What is the output voltage of the FS-PSU-240516?
A1: The output voltage is 5 VDC.
Q2: Does it support redundant operation?
A2: Yes, it is designed to share the load with a second PSU for redundancy.
Q3: What are the status indications?
A3: Green LED indicates normal operation; red indicates fault or low output voltage.
Q4: Is it hot-swappable?
A4: No, ensure power is off before removal to prevent system interruption.
Q5: What is its primary application?
A5: It powers the Safety Manager control processor and redundant IO modules.
Q6: Is maintenance required?
A6: No, its design eliminates the need for routine maintenance checks.
Q7: How is isolation achieved?
A7: With galvanic isolation between input, output, and casing.
Q8: Can it operate on AC input?
A8: No, it is designed for 24 VDC input supply.
Q9: What are its dimensions?
A9: 176 × 35.2 × 212 mm.
Q10: What is its weight?
A10: Approximately 0.85 kg.
