Product Description

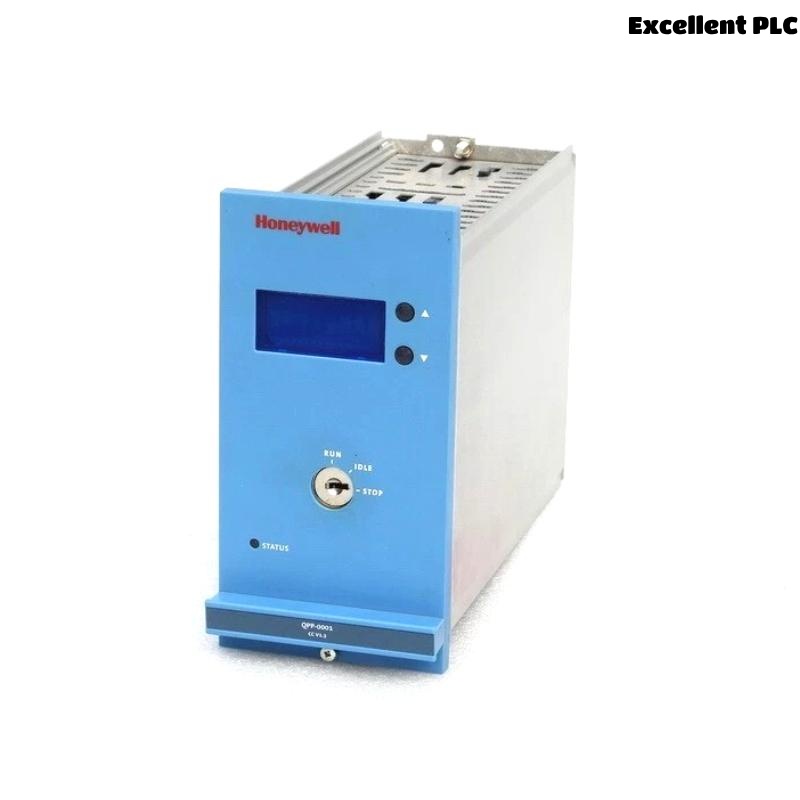

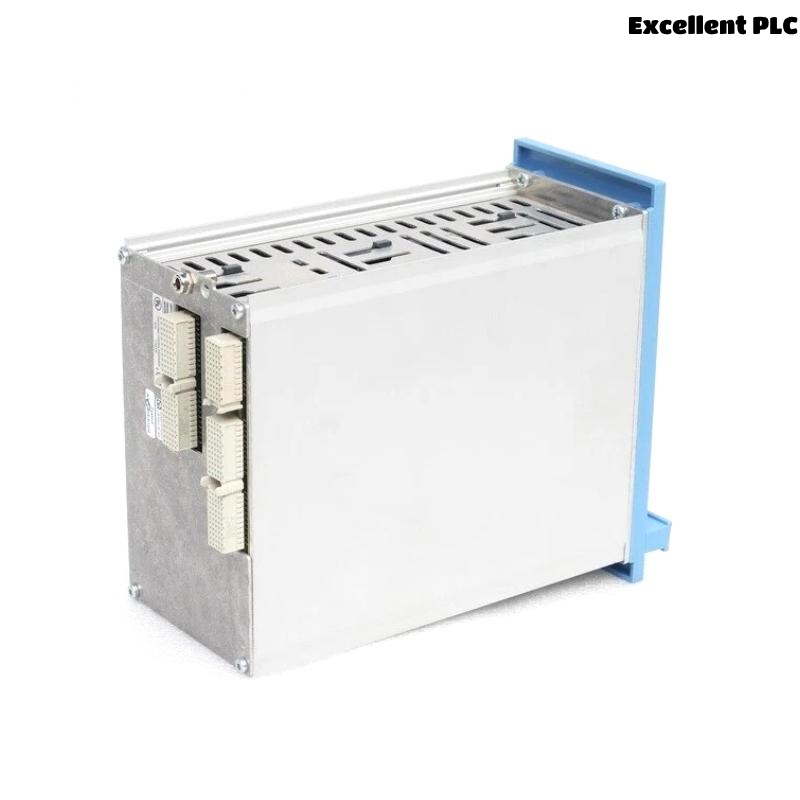

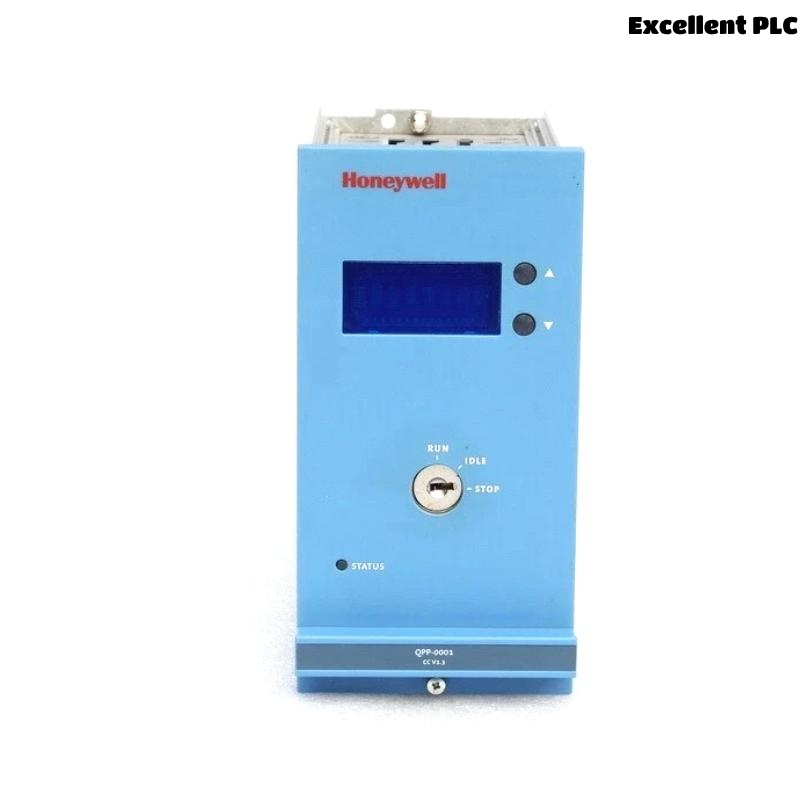

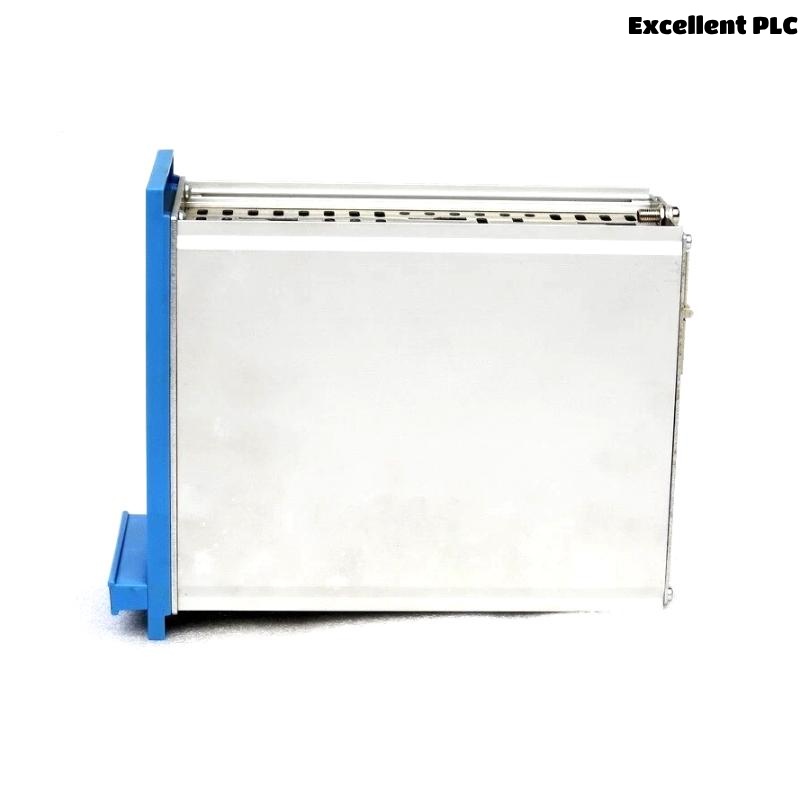

The Honeywell FS-QPP-0001 is a Quad Processor Pack designed for Honeywell Safety Manager systems. It provides high reliability and processing power with quadruple redundancy to meet SIL-rated safety requirements. It ensures fault tolerance and continuous operation in critical industrial automation and safety applications.
Technical Specifications
| Parameter | Value |
|---|---|
| Dimensions | 150 × 120 × 50 mm |
| Weight | 1.25 kg |
| Power Supply | 24 VDC (via chassis backplane) |
| Processor Redundancy | Quad redundant CPUs |
| Memory | Integrated for program and diagnostics |
| Communication | Safety Manager backplane interface |
| Status Indicators | LEDs for processor and system status |
| Mounting | Rack-mounted in designated chassis |
| Watchdog Timer | Integrated hardware watchdog |
Applications
-
Emergency Shutdown Systems (ESD)
-
Burner Management Systems (BMS)
-
Fire & Gas Detection and Mitigation
-
High Integrity Pressure Protection Systems (HIPPS)
-
Process Safety and SIL 3-rated control environments
Advantages
-
Quadruple redundancy ensures high availability and fault tolerance.
-
Compact size with robust mechanical design.
-
Seamless integration with Safety Manager architecture.
-
Real-time diagnostics and status indication.
-
Designed to meet rigorous safety integrity standards.
Frequently Asked Questions (FAQ)
Q1: What is the main function of the FS-QPP-0001?
A1: It functions as the central processing unit with quadruple redundancy for Safety Manager systems.
Q2: Does it support hot-swap?
A2: No, the module requires system shutdown for replacement.
Q3: What safety level is it designed for?
A3: It is suitable for use in SIL 3-rated safety instrumented systems.
Q4: How is it powered?
A4: It is powered via the chassis backplane at 24 VDC.
Q5: What type of diagnostics are available?
A5: It provides LED status indicators and internal watchdog diagnostics.
Q6: Can it be used in hazardous environments?
A6: Yes, when installed as part of a certified Safety Manager system.
Q7: How many processors does it contain?
A7: It contains four redundant processors operating in parallel.
Q8: Is it field-programmable?
A8: Programming is done through the Safety Builder software tool.
Q9: What is its expected lifetime?
A9: Designed for industrial longevity exceeding 10 years in standard use.
Q10: How is it mounted?
A10: It is mounted into a designated slot in the Safety Manager chassis.
