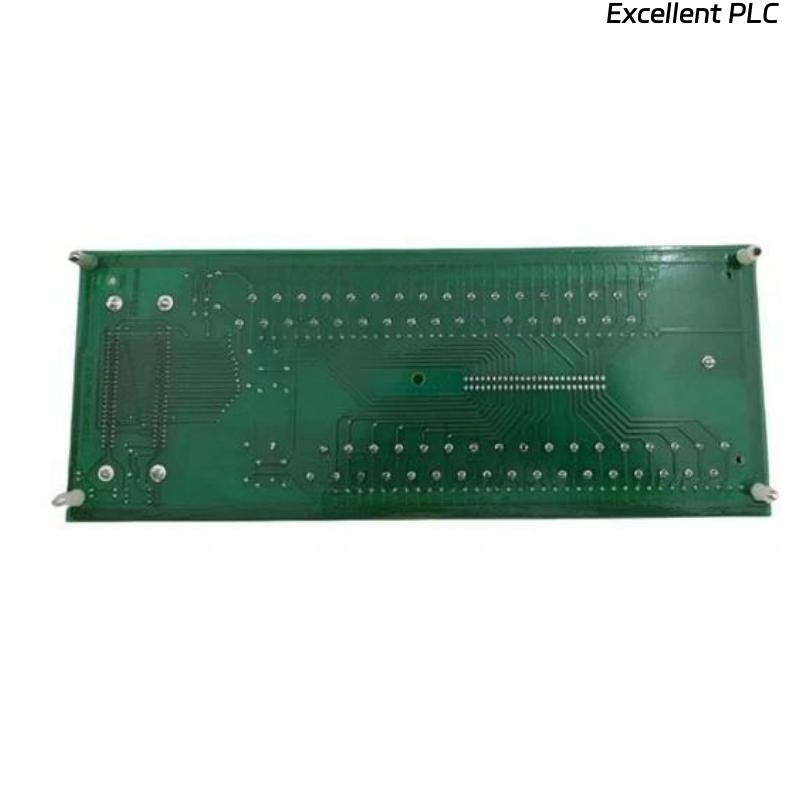

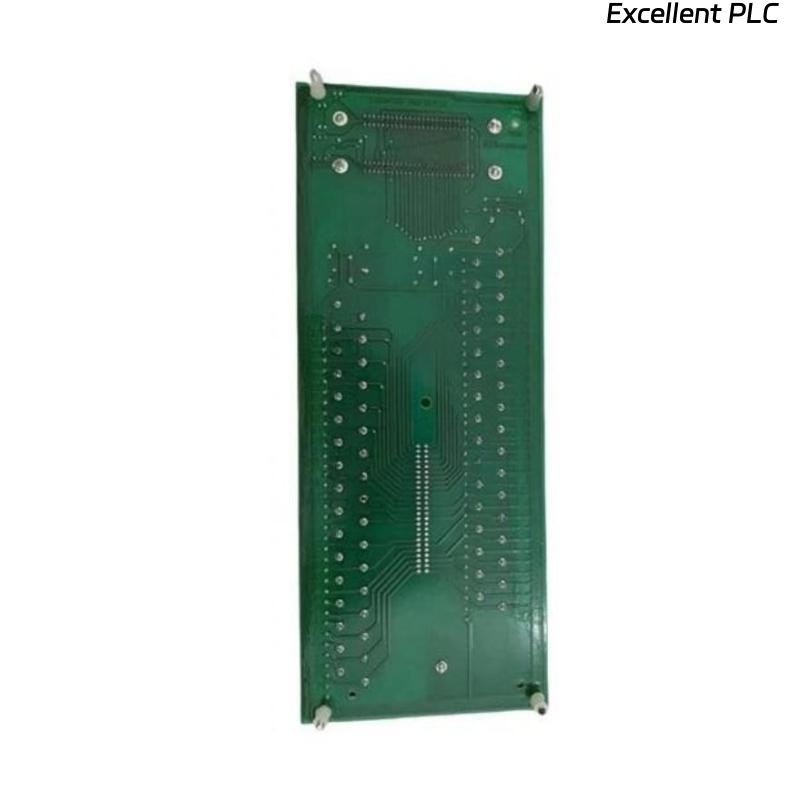

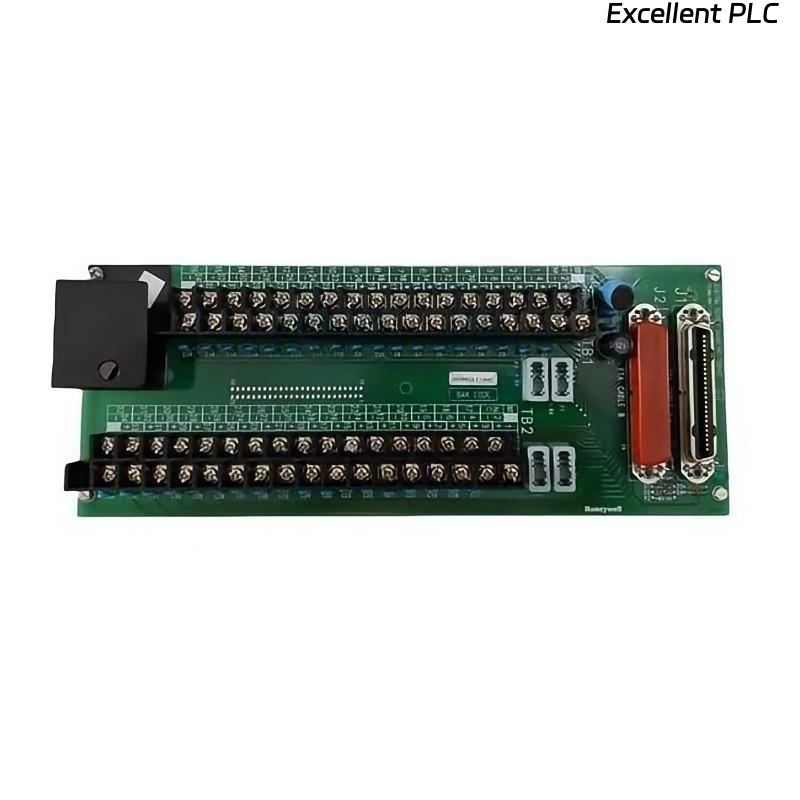

Honeywell MC-TDOY62 Digital Output Field Termination Assembly
- Product Details
- FAQs
- Related
- Contact Us
- Packing & Delivery
- Product Ratings
Product Overview
The Honeywell MC-TDOY62 Digital Output Field Termination Assembly is designed to interface Honeywell digital output modules with field devices safely and efficiently. It consolidates wiring from multiple digital output channels into a robust termination unit, simplifying installation, maintenance, and troubleshooting in industrial automation systems.
Key Features
-
Facilitates safe and organized connection of digital output modules to field devices
-
Compatible with Honeywell MC series digital output modules
-
Provides channel labeling and organized wiring paths
-
Reduces installation errors and maintenance time
-
Rugged construction suitable for industrial environments
-
Compact and modular design for easy integration
-
Supports hot-swappable digital output modules
-
High reliability for continuous industrial operation
Technical Specifications
| Item | Specification |
|---|---|
| Manufacturer | Honeywell |
| Part Number | MC-TDOY62 |
| Product Type | Digital Output Field Termination Assembly |
| Output Channels | Supports multiple digital output channels from MC series modules |
| Mounting Type | Field panel or rack-mounted termination assembly |
| Terminal Type | Screw terminals with clear channel labeling |
| Operating Temperature | 0 °C to +60 °C |
| Storage Temperature | –20 °C to +70 °C |
| Humidity | 5–95% RH, non-condensing |
| Dimensions | 200 × 140 × 50 mm |
| Weight | 0.9 |
| Applications | Connecting DCS digital output modules to field devices safely and efficiently |
Industry Applications
-
Oil and gas process control
-
Petrochemical and chemical plants
-
Power generation and distribution
-
Water and wastewater treatment
-
Manufacturing automation systems
-
Distributed control systems (DCS) field wiring interface
Frequently Asked Questions (FAQ)
Q1: What is the purpose of the MC-TDOY62?
It provides a safe and organized interface for connecting digital output modules to field devices.
Q2: Which Honeywell modules is it compatible with?
It is compatible with MC series digital output modules.
Q3: How does it simplify installation?
By providing labeled screw terminals and consolidated wiring paths for multiple channels.
Q4: Can it be mounted in industrial panels?
Yes, it supports field panel or rack-mounted installation.
Q5: Does it support hot-swappable modules?
Yes, it is designed to work with hot-swappable digital output modules.
Q6: Is it suitable for harsh industrial environments?
Yes, it has rugged construction and operates between 0 °C and +60 °C.
Q7: How does it help with maintenance?
Clear labeling and organized terminals reduce wiring errors and simplify troubleshooting.
Q8: What is the weight of the assembly?
Approximately 0.9 kg.
