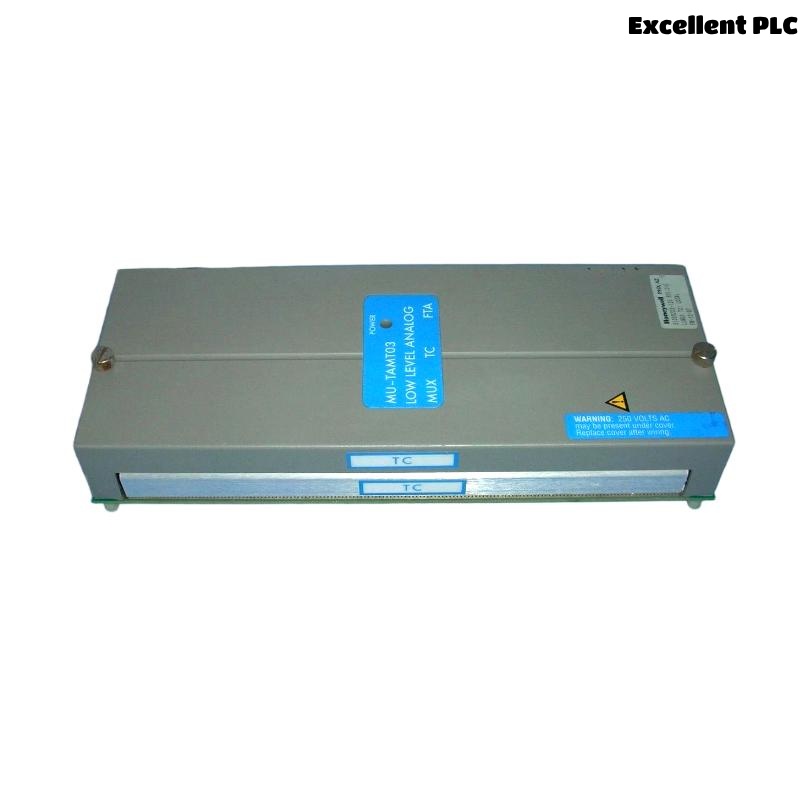

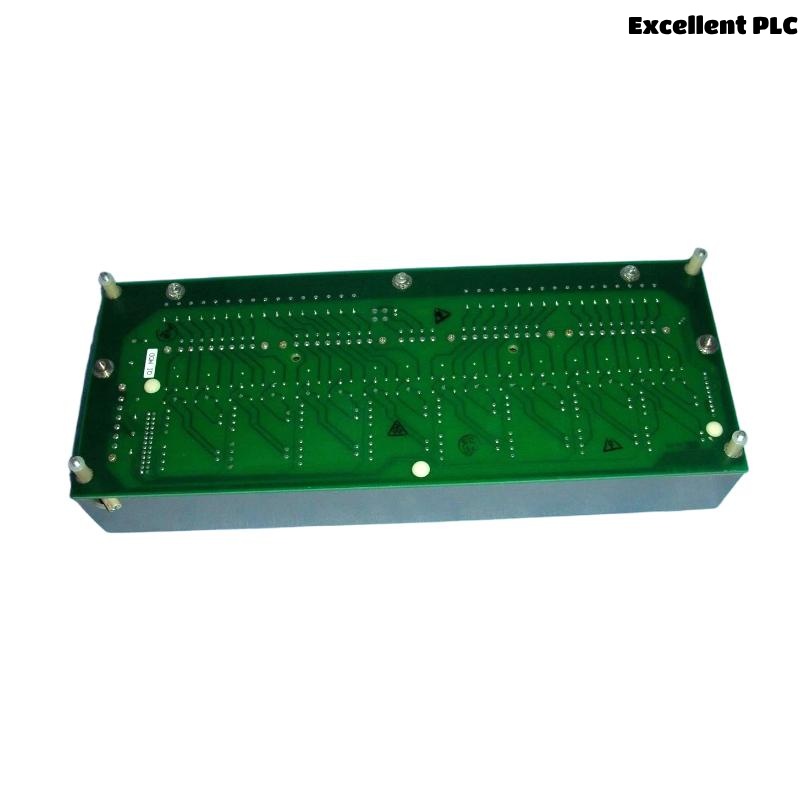

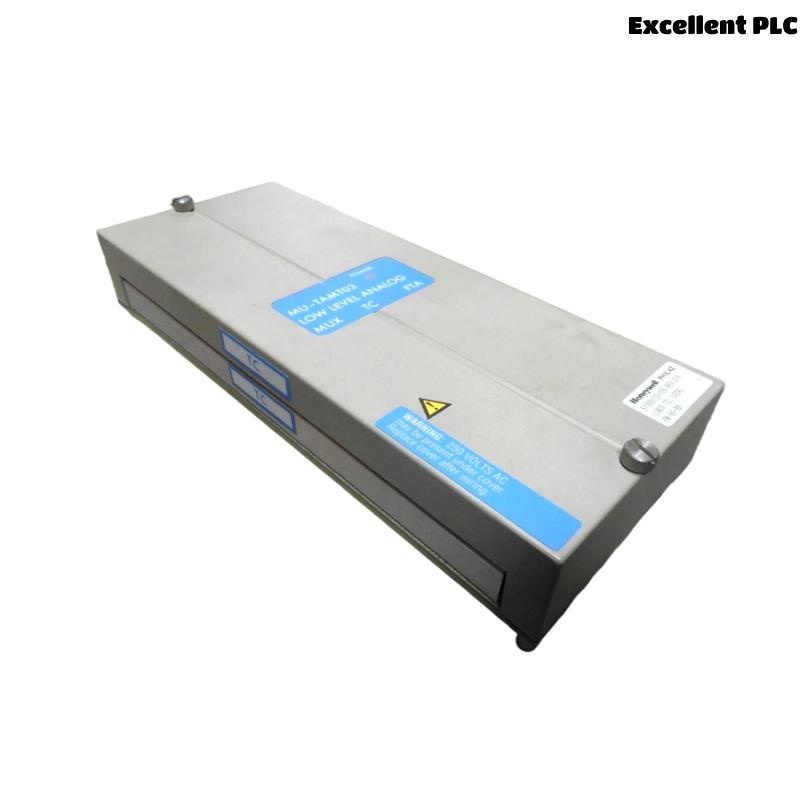

Honeywell MU-TAMT03 51309223-125 Low-Level Analog Input Multiplexer Module – TC

Product Introduction

The Honeywell MU-TAMT03 51309223-125 Low-Level Analog Input Multiplexer Module – TC is a high-performance industrial module designed for seamless integration into process control systems. This module functions as a multiplexer for low-level analog inputs and is specifically tailored for Thermocouple (TC) inputs, making it an essential component in industrial automation systems that require accurate temperature and process measurements.

The MU-TAMT03 module is capable of supporting a wide range of inputs, allowing for multiple thermocouple signals to be routed to a single input on a controller, reducing the need for multiple dedicated channels. This not only helps in simplifying system configurations but also aids in improving system efficiency and reducing overall costs.

The module is designed with robustness and accuracy in mind, ensuring it can withstand the challenges of industrial environments while providing highly accurate and reliable analog input measurements. With a compact size of 28 x 378 x 278mm and a weight of 0.62kg, it offers space-saving benefits without compromising on performance.

Product Specifications:

Applications:

The Honeywell MU-TAMT03 51309223-125 Low-Level Analog Input Multiplexer Module is a versatile component used in various industrial applications where temperature measurements are essential. Here are some of the key applications:

• Temperature Monitoring in Manufacturing: The module supports the integration of multiple thermocouple signals, making it ideal for applications such as furnace temperature monitoring, chemical process control, and HVAC systems.

• Energy Management Systems: The module is used in energy monitoring systems to track temperature fluctuations, energy consumption, and system performance, helping businesses optimize energy use.

• Industrial Process Control: It is frequently employed in industrial environments such as power plants, refineries, and chemical plants for measuring and controlling temperature in various processes.

• Building Automation Systems: The MU-TAMT03 is ideal for integration in building management systems (BMS), ensuring accurate temperature readings across multiple sensors for effective HVAC control.

• Research and Development Laboratories: The module is used in R&D environments where precise temperature control and monitoring are required, supporting applications like material testing, chemical reactions, and pilot-scale operations.

• Temperature-Based Alarms and Safety Systems: The multiplexer module can be part of systems that trigger alarms or safety protocols if temperature thresholds are exceeded, offering crucial safety features in critical industrial setups.

Advantages:

• Space-Saving Design: The 28 x 378 x 278mm size and 0.62 kg weight make this module highly compact and ideal for installations where space is limited. Despite its small size, it delivers powerful performance with up to 8 thermocouple inputs.

• Versatility in Input Types: The MU-TAMT03 supports multiple thermocouple types, providing flexibility in applications that require different temperature measurement ranges, such as J, K, T, and E types.

• Improved System Efficiency: By multiplexing several low-level analog inputs into a single channel, the module simplifies system design and reduces the need for additional equipment, helping to lower overall system costs.

• High Accuracy and Stability: The ±0.5% accuracy ensures that the module can deliver reliable and precise measurements, critical in applications where temperature control is vital to process efficiency and product quality.

• Galvanic Isolation: The module provides galvanic isolation between input channels, preventing electrical interference and improving the safety and stability of the system.

• Robust Industrial Design: Designed for industrial environments, the module is built to withstand temperature fluctuations, vibration, and harsh environmental conditions while delivering consistent performance.

• Easy Integration: The MU-TAMT03 can easily be integrated into existing process control systems, offering seamless connectivity to controllers and other automation equipment.

• Compliance with Industry Standards: With certifications such as CE and UL, the module meets global safety and quality standards, ensuring its reliability in diverse industrial sectors.

FAQ (Frequently Asked Questions)

1. What is the input type for the Honeywell MU-TAMT03 module?

   • The module supports low-level analog inputs for thermocouple (TC) signals.

2. How many input channels does the Honeywell MU-TAMT03 module support?

   • It can handle up to 8 thermocouple inputs.

3. What is the temperature range for the MU-TAMT03 module?

   • The module supports temperatures ranging from -200°C to +1800°C, depending on the type of thermocouple used.

4. What is the accuracy of the MU-TAMT03 module?

   • The accuracy is ±0.5% of full scale.

5. What is the size and weight of the MU-TAMT03 module?

   • The module has dimensions of 28 x 378 x 278mm and weighs 0.62 kg.

6. What is the operating voltage for the MU-TAMT03 module?

   • The operating voltage is 24 VDC ± 20%.

7. Is the MU-TAMT03 module suitable for use in hazardous environments?

   • Yes, the module is built for industrial environments and can operate reliably under harsh conditions.

8. Can the module handle multiple types of thermocouples?

   • Yes, it is compatible with a range of thermocouple types including J, K, T, and E.

9. What is the signal isolation provided by the module?

   • The module offers galvanic isolation between input channels to reduce electrical noise and improve signal integrity.

10. Can the MU-TAMT03 module be integrated with other Honeywell products?

    • Yes, it is designed to integrate seamlessly with Honeywell’s process control systems and automation equipment.
