Product Introduction

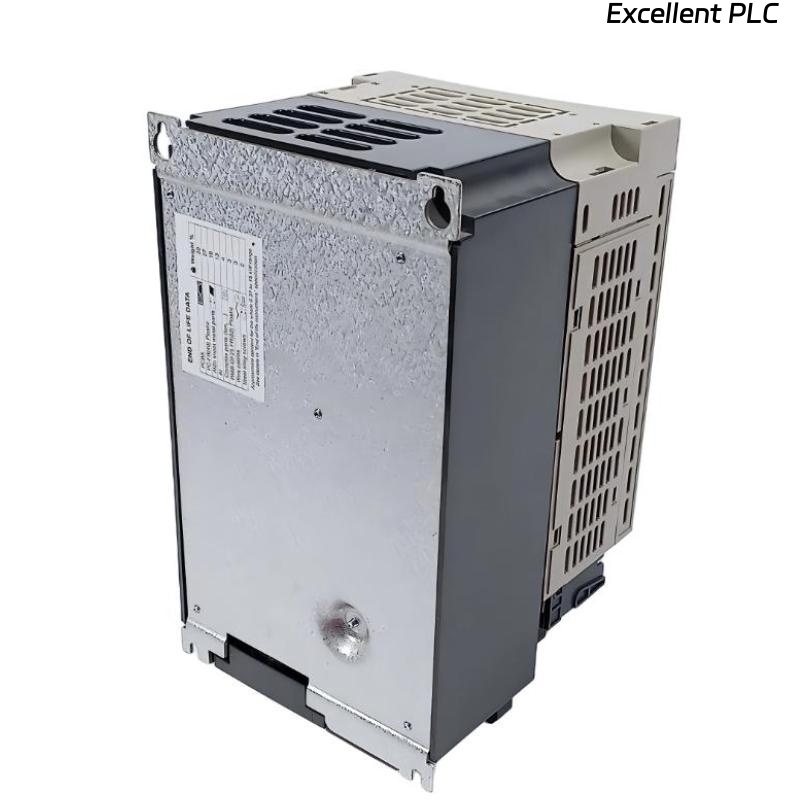

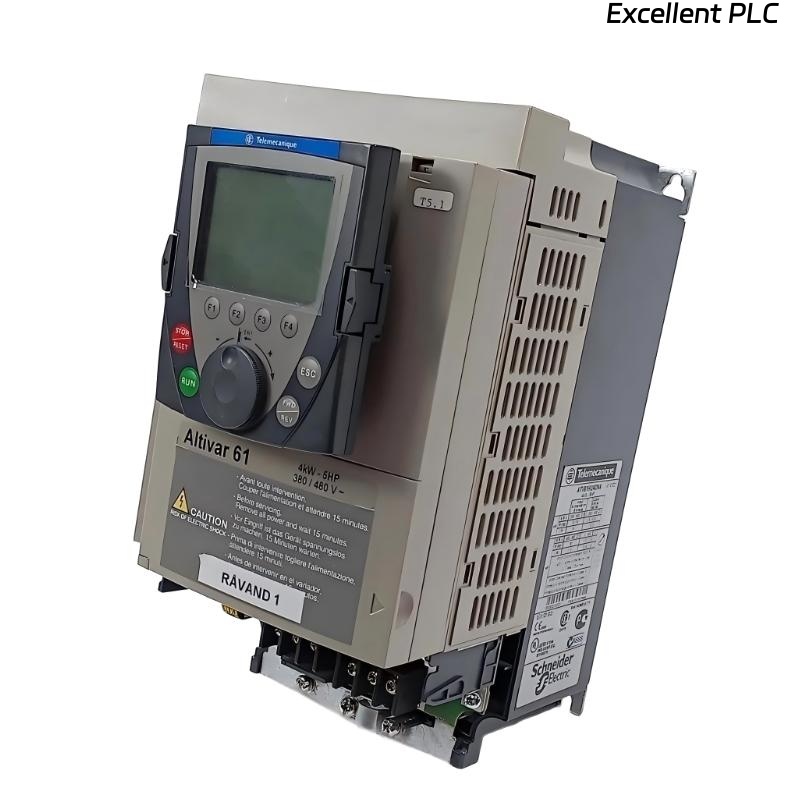

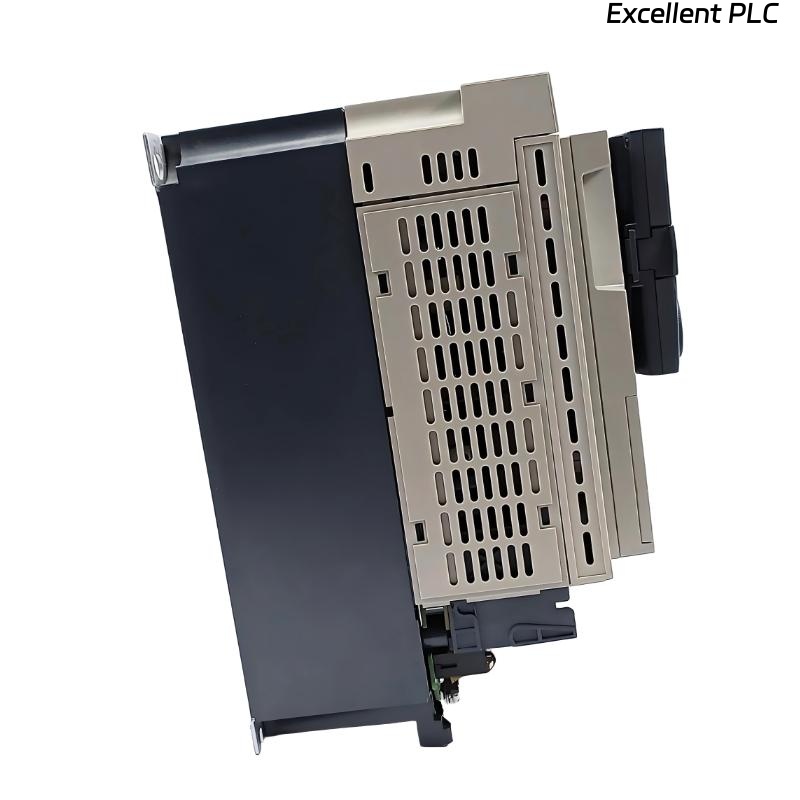

The Schneider Electric ATV61HU40N4 Variable Speed Drive is a high-capacity AC drive from the Altivar 61 range, engineered for precise and efficient control of motors used in pumping and ventilation machines. It is designed to operate with three-phase power supplies in the 380…480 V range, providing stable speed regulation for demanding industrial and infrastructure applications.
This drive combines advanced motor control algorithms with an integrated EMC filtering solution and an effective heat-sink assembly. These features support continuous operation, reduce electrical interference, and help maintain reliable performance under varying load conditions. The drive also contributes to smoother motor operation, lowering mechanical stress and improving overall system efficiency.
Optimized for energy-intensive applications, the unit is well suited for systems where accurate flow and pressure control are critical, such as HVAC installations, water management systems, and industrial process equipment.
Product Specifications
| Parameter | Specification |
|---|---|
| Product Range | Altivar 61 |
| Component Type | Variable Speed Drive |
| Product Application | Pumping and ventilation machines |
| Component Name | ATV61 |
| Motor Power (kW) | 4 kW, 3-phase at 380…480 V |
| Maximum Horsepower Rating | 5 hp, 3-phase at 380…480 V |
| Power Supply Voltage | 380…480 V (−15% / +10%) |
| Supply Phases | 3 phase |
| Line Current (480 V) | 11.5 A |
| Line Current (380 V) | 14.1 A |
| EMC Filter | Level 3 integrated EMC filter |
| Assembly Style | With heat sink |
| Apparent Power | 9.3 kVA at 380 V, 3-phase |
| Maximum Prospective Line Isc | 5 kA, 3-phase |
| Maximum Transient Current | 12.6 A for 60 s |
| Nominal Switching Frequency | 12 kHz |
| Dimensions | 260 × 155 × 187 mm |
| Weight | 4 kg |
Applications
• Pumping Systems
Provides precise speed control for pumps, improving flow regulation and energy efficiency.
• Ventilation Equipment
Enables accurate fan speed adjustment to maintain stable airflow and pressure.
• HVAC Installations
Supports efficient motor control in heating, ventilation, and air-conditioning systems.
• Water and Wastewater Treatment
Used to regulate pump operation in treatment and distribution processes.
• Industrial Process Systems
Applies to machinery requiring consistent and reliable motor speed control.
• Energy Optimization Projects
Ideal for upgrading fixed-speed motor systems to variable speed solutions.
Advantages
• High Power Capability
Supports 4 kW (5 hp) motors for more demanding pumping and ventilation tasks.
• Energy-Saving Operation
Adjusts motor speed to actual load requirements, reducing power consumption.
• Integrated EMC Protection
Level 3 EMC filter minimizes electromagnetic disturbances and simplifies compliance.
• Smooth Motor Performance
High switching frequency ensures quieter operation and reduced torque ripple.
• Thermal Stability
Heat-sink assembly supports continuous operation under load.
• Industrial Reliability
Designed for long-term service in demanding industrial environments.
