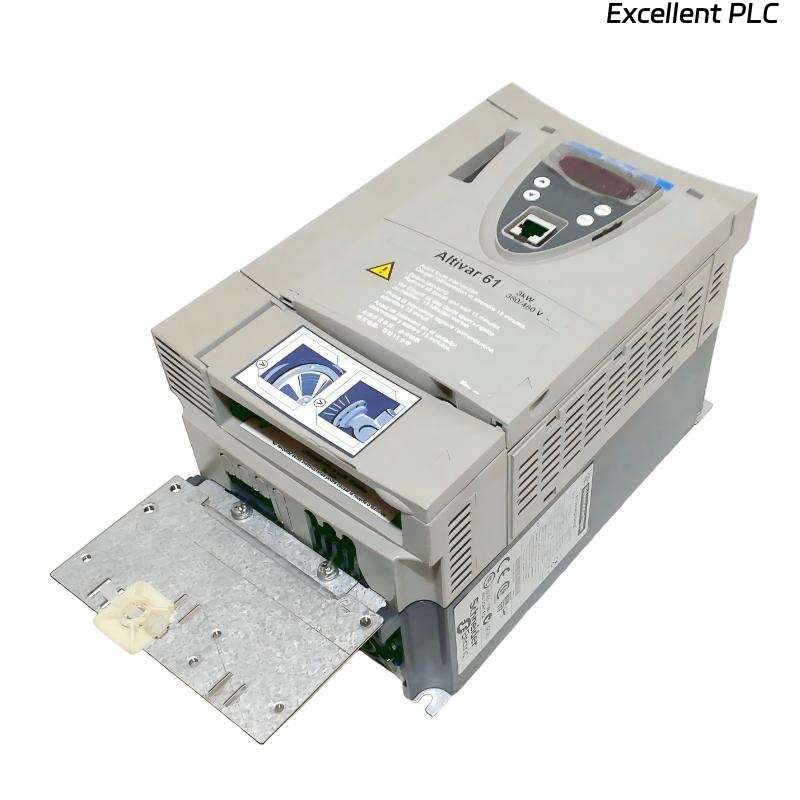

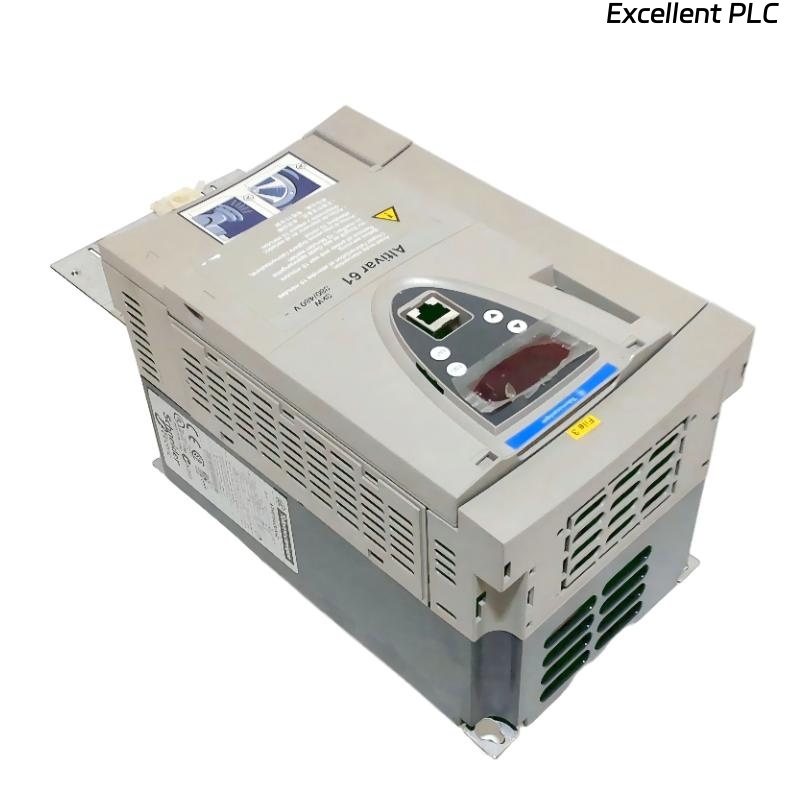

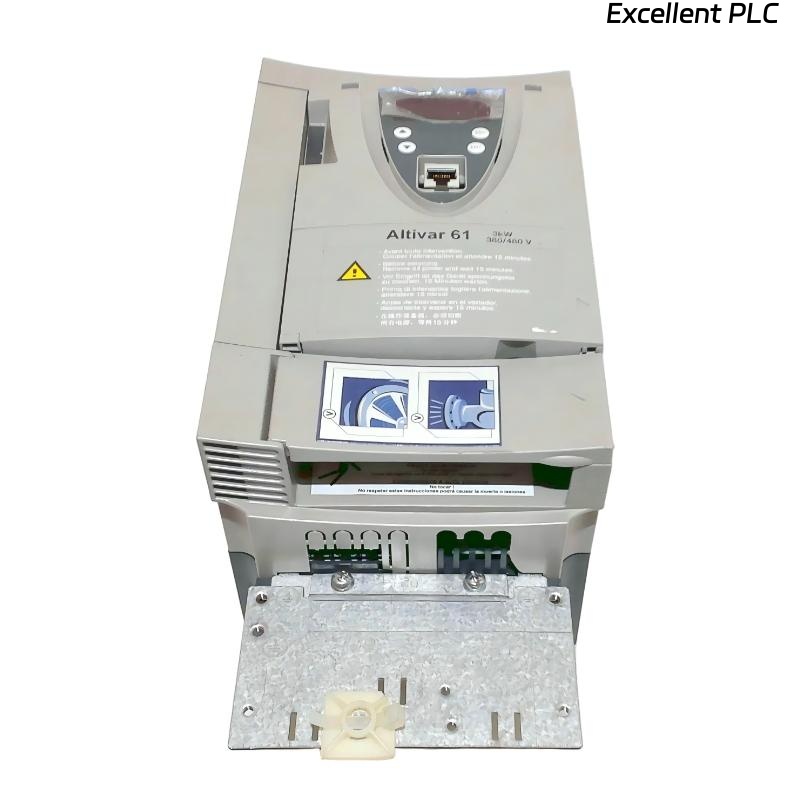

Schneider ATV61HU30N4 Variable Speed Drive
- Product Details
- FAQs
- Related
- Contact Us
- Packing & Delivery
- Product Ratings
Product Introduction
The Schneider Electric ATV61HU30N4 Variable Speed Drive is a robust AC drive from the Altivar 61 series, designed for reliable motor speed control in ventilation and pumping applications. It delivers stable performance for three-phase motors operating on 380…480 V supplies, supporting efficient flow and pressure regulation in industrial and infrastructure systems.
Built with an integrated EMC filter and an effective heat-sink construction, this drive is suited for continuous-duty operation in demanding environments. Its control architecture helps reduce mechanical stress on motors and driven equipment while improving overall system efficiency.
Optimized for HVAC, water, and process industries, the drive enables smooth motor operation, precise control, and dependable performance across a wide range of operating conditions.
Product Specifications
| Parameter | Specification |
|---|---|
| Product Series | Altivar 61 |
| Component Type | Variable Speed Drive |
| Product Application | Ventilation and pumping equipment |
| Component Name | ATV61 |
| Motor Power (kW) | 3 kW, 3-phase at 380…480 V |
| Supply Voltage | 380…480 V (−15% / +10%) |
| Supply Phases | 3 phases |
| Line Current (480 V) | 9 A |
| Line Current (380 V) | 10.7 A |
| EMC Filter | Integrated EMC filter, Class C2 |
| Construction Variant | With heat sink |
| Apparent Power | 7 kVA at 380 V, 3-phase |
| Maximum Presumed Line Isc | 5 kA, 3-phase |
| Maximum Transient Current | 9.3 A for 60 s |
| Nominal Switching Frequency | 12 kHz |
| Dimensions | 260 × 155 × 187 mm |
| Weight | 4 kg |
Applications
• Ventilation Control Systems
Allows accurate fan speed regulation to maintain airflow and environmental stability.
• Pumping Installations
Optimizes pump operation for efficient flow, pressure control, and energy savings.
• HVAC Systems
Used in heating, ventilation, and air-conditioning equipment to improve efficiency.
• Industrial Process Equipment
Supports stable motor control in processes requiring consistent speed regulation.
• Energy Efficiency Upgrades
Ideal for converting fixed-speed motor systems to variable speed operation.
• Infrastructure and Utilities
Commonly applied in water treatment plants, commercial buildings, and industrial facilities.
Advantages
• Improved Energy Efficiency
Adjusts motor speed to actual demand, reducing power consumption.
• Smooth Motor Operation
Minimizes mechanical stress through controlled acceleration and deceleration.
• Integrated EMC Compliance
Built-in Class C2 EMC filter reduces electromagnetic interference.
• Thermal Reliability
Heat-sink design supports stable operation under continuous load.
• Wide Voltage Operating Range
Enhances flexibility for different power supply conditions.
• Industrial-Grade Design
Engineered for long-term use in demanding industrial environments.
FAQ
1. What type of motors is this drive designed to control?
It is designed for three-phase AC motors operating on 380…480 V supplies.
2. Which applications benefit most from this drive?
Ventilation and pumping systems that require efficient and stable speed control.
3. How does the drive help reduce energy consumption?
By matching motor speed to load demand, it avoids unnecessary power usage.
4. Is electromagnetic interference addressed internally?
Yes, it includes an integrated EMC Class C2 filter for improved compatibility.
5. Can it handle short-term overload conditions?
It supports transient current operation for up to 60 seconds during load peaks.
6. What is the benefit of a 12 kHz switching frequency?
It improves motor smoothness and reduces audible noise during operation.
7. Is the drive suitable for continuous operation?
Yes, it is designed for continuous industrial duty with proper thermal management.
8. Does it help protect motors and mechanical equipment?
Controlled speed changes reduce mechanical shock and extend equipment life.
9. Can it be used in retrofit projects?
It is well suited for upgrading existing fixed-speed motor installations.
10. In which industries is this drive commonly used?
HVAC, water treatment, infrastructure, and general industrial process industries.
Related Models
| Model | Description |
|---|---|
| Schneider ATV61HU22N4 | Altivar 61 drive for 2.2 kW motors |
| Schneider ATV61HU37N4 | Altivar 61 drive for 3.7 kW motors |
| Schneider ATV61HD30N4 | High-duty Altivar 61 variant |
| Schneider ATV71HU30N4 | Advanced drive for dynamic applications |
| Schneider ATV630U30N4 | Process drive for pumping and ventilation |
| Schneider ATV61 Series | Complete Altivar 61 drive family |
