Product Introduction

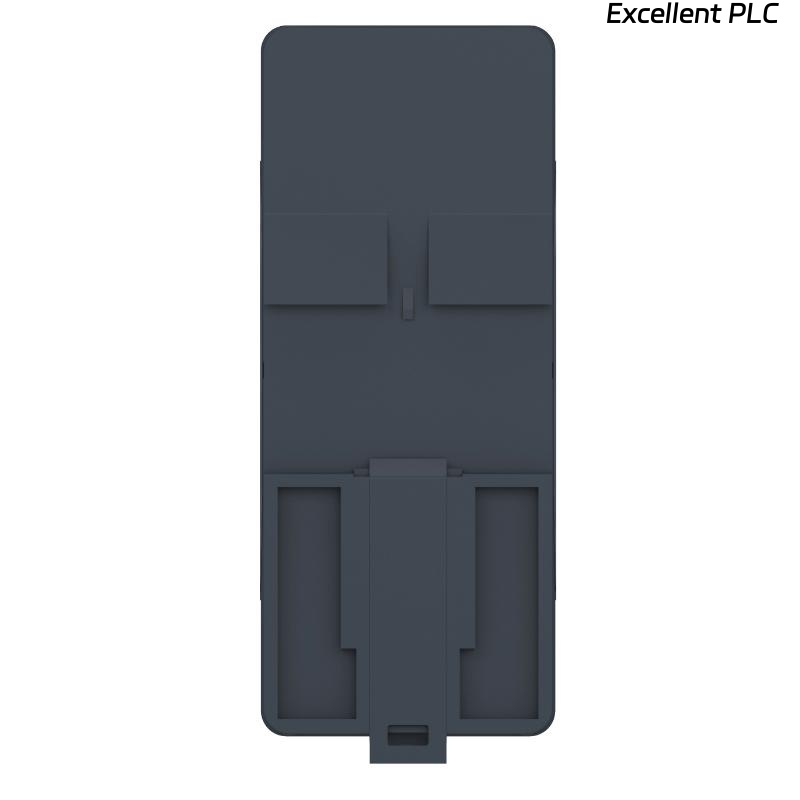

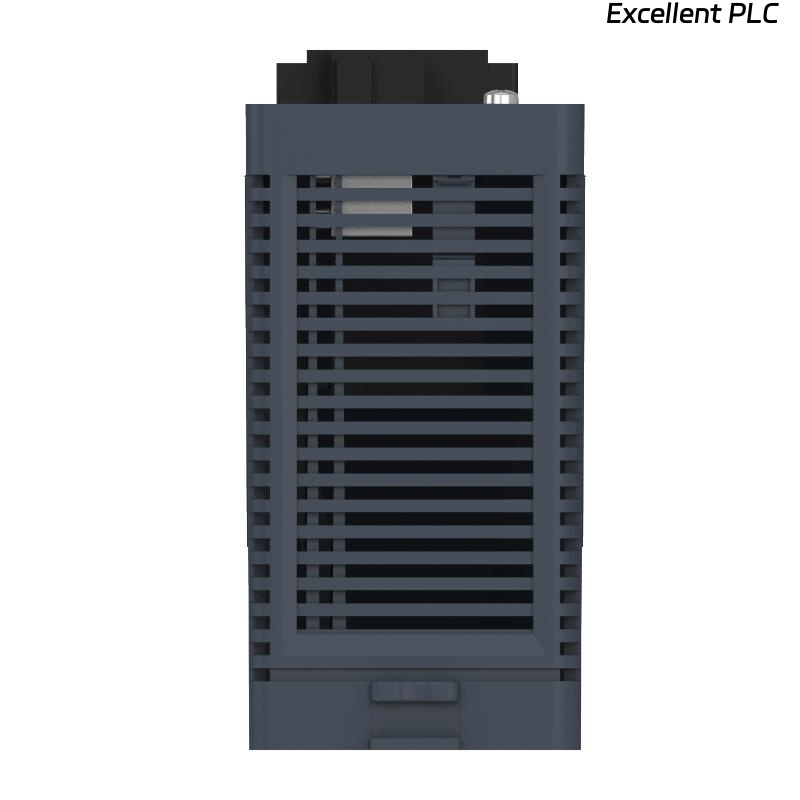

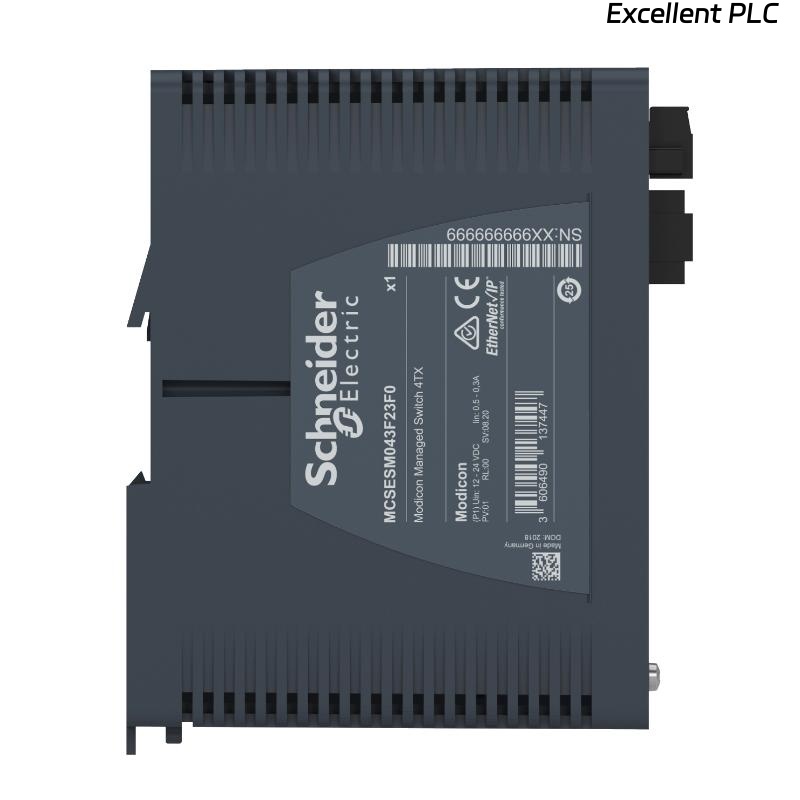

The Schneider MCSESM043F23F0 Modicon Managed Switch is a standard managed switch from the Modicon Networking series. It is designed to support Ethernet TCP/IP protocol and provides reliable connectivity for multiple Ethernet devices. Equipped with four copper ports, this switch can handle both simple and complex network connections, offering enhanced network security, network management capabilities, and advanced switching functionalities.
The switch operates at 5W power consumption, with a nominal voltage range of 12V to 24V DC. It comes with a detachable 6-pin power connector and uses shielded connectors for improved signal integrity. The product is suitable for medium-sized, isolated, or moderate-traffic networks with medium complexity.
Certified under CE, UL, RCM, EAC, UKCA, and DNV, and compliant with UL 61010, EN/IEC 61131, and EN/IEC 62368-1 standards, the MCSESM043F23F0 ensures robust safety and reliability. It allows seamless connection of multiple Ethernet devices and integrates easily into the Modicon Networking ecosystem, enabling a smart and flexible approach to managing networks from device-level connections to control and enterprise networks.
Product Specifications
| Parameter | Details |
|---|---|
| Model | MCSESM043F23F0 |
| Series | Modicon Networking |
| Type | Managed Ethernet Switch |
| Ethernet Ports | 4 × Copper RJ45 |
| Protocol Support | TCP/IP |
| Power Consumption | 5 W |
| Voltage | 12–24 V DC |
| Connector Type | Detachable 6-pin, shielded |
| Network Complexity | Medium complexity, medium traffic |
| Certifications | CE, UL, RCM, EAC, UKCA, DNV |
| Standards Compliance | UL 61010, EN/IEC 61131, EN/IEC 62368-1 |
| Dimensions | 142.8 × 57 × 117.6 mm |
| Weight | 0.38 kg |
Applications
• Industrial Automation Networks: Connect PLCs, HMIs, and controllers with reliable Ethernet communication.
• Medium-Sized Control Networks: Suitable for isolated networks or medium traffic environments requiring managed switch functionalities.
• Device-Level Networking: Provides flexible connections for devices at the equipment level, enabling seamless integration into higher-level control and enterprise networks.
• Secure and Managed Network Infrastructure: Enhances network security with advanced management and monitoring capabilities.
• Energy and Process Control Systems: Facilitates stable and predictable communication for automation and process applications.
Advantages
• Advanced Management Features: Supports VLAN, QoS, IGMP Snooping, and other switching functions for optimized traffic control.
• Reliable and Robust: Certified by CE, UL, RCM, EAC, UKCA, and DNV, ensuring safety and industrial reliability.
• Low Power Consumption: Operates efficiently at 5 W, minimizing energy costs.
• Flexible Integration: Easily connects multiple devices and integrates into Modicon network architecture.
• Shielded Connectors: Provides improved signal integrity and EMI resistance, suitable for industrial environments.
