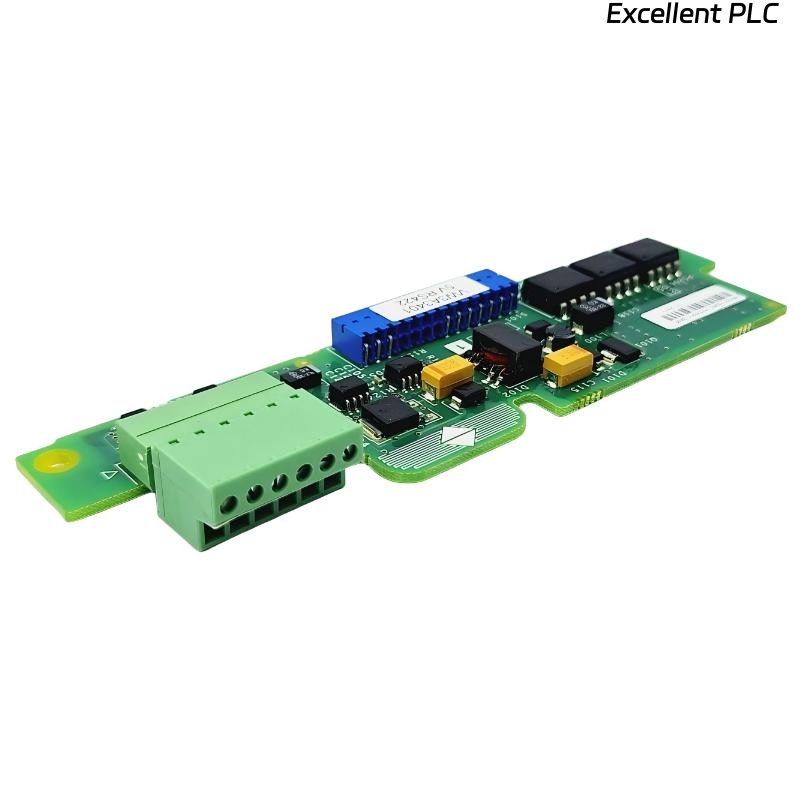

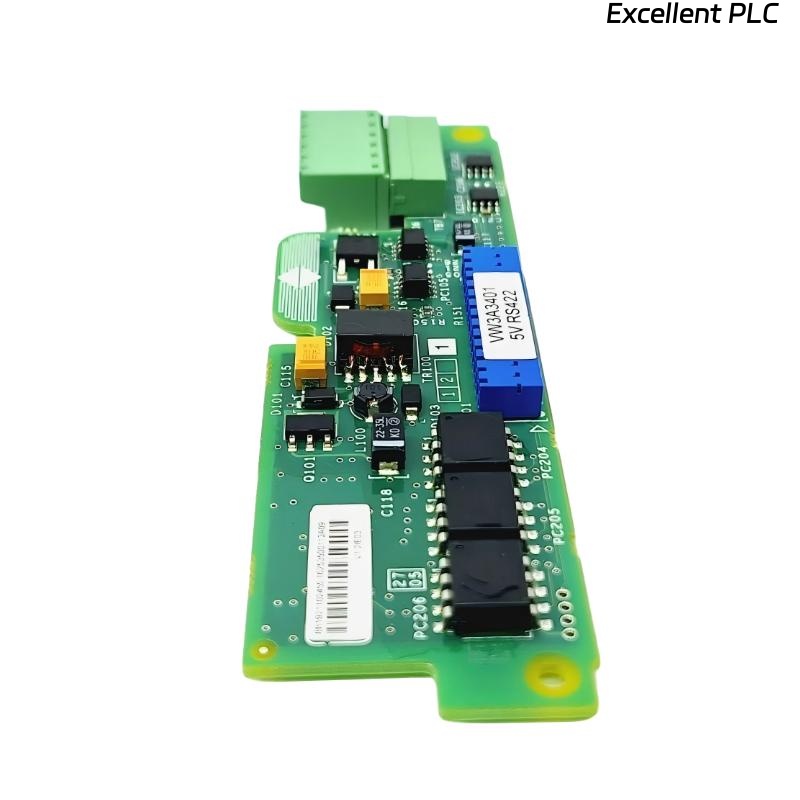

Schneider VW3A3401 Encoder Interface Card
- Product Details
- FAQs
- Related
- Contact Us
- Packing & Delivery
- Product Ratings
Product Introduction
The Schneider Electric VW3A3401 Encoder Interface Card is an embedded interface module designed for Altivar variable speed drives and other automation systems. It provides a reliable connection for incremental encoders, converting encoder signals into differential signals for accurate position and speed feedback.
Equipped with RS422 communication protocol and solid-state differential outputs, this card ensures high-speed signal processing and is compatible with standard industrial automation networks. Its built-in protections and compact design make it suitable for reliable operation in industrial environments.
Product Specifications
| Parameter | Description |
|---|---|
| Product Type | Encoder Interface Card |
| Brand | Schneider Electric |
| Model Number | VW3A3401 |
| Rated Supply Voltage [Us] | 5 V DC (limit 5…5.5 V) |
| Supply Current | 0.2 A |
| Protection Type | Short-circuit and overload protection |
| Maximum Cable Distance Between Devices | 50 m |
| Maximum Operating Frequency | 300 kHz |
| Solid-State Output Type | Differential |
| Communication Port Protocol | RS422 |
| Drive Compatibility | Altivar variable speed drives |
| Typical Use | Encoder signal interface and feedback |
| Installation Method | Embedded card within drive |
| Environmental Suitability | Industrial automation environments |
| Dimensions | 90 × 60 × 15 mm |
| Weight | 0.2 kg |
Applications
• Encoder signal interfacing for Altivar drives
• High-speed position and speed feedback in machinery
• Differential output for signal stability
• Industrial automation and motor control systems
• Reliable operation in short-distance encoder networks
• Integration with PLCs and drive control systems
Advantages
• Differential solid-state outputs for accurate signal transmission
• Supports RS422 protocol for industrial communication
• Short-circuit and overload protection for safe operation
• Compact and lightweight design for embedded installation
• Supports high-speed operation up to 300 kHz
• Simplifies encoder integration with drives
• Reliable for industrial automation environments
FAQ
-
What is the primary function of the VW3A3401 card?
It interfaces incremental encoders with Altivar drives for accurate position and speed feedback. -
Which communication protocol does it support?
It uses the RS422 protocol for encoder signal transmission. -
What type of outputs does the card provide?
It provides differential solid-state outputs. -
What is the rated supply voltage?
It operates at 5 V DC, with a limit of 5…5.5 V. -
What protections are included on the card?
Short-circuit and overload protection are built in. -
What is the maximum cable distance between devices?
Up to 50 meters is supported. -
What is the maximum operating frequency?
It supports up to 300 kHz. -
Can it be embedded inside Altivar drives?
Yes, it is designed for embedded installation. -
Is it suitable for industrial automation environments?
Yes, it is built for reliable operation in industrial settings. -
Can it ensure stable encoder signal transmission?
Yes, differential outputs provide high signal stability.
Related Models
| Model Number | Description |
|---|---|
| VW3A3400 | Basic encoder interface card |
| VW3A3402 | Extended encoder interface with multiple inputs |
| ATV320 | Altivar Machine variable speed drive |
| ATV340 | Altivar Machine variable speed drive |
| ATV630 | Altivar Process drive |
| ATV930 | Altivar Process drive |
