Product Description

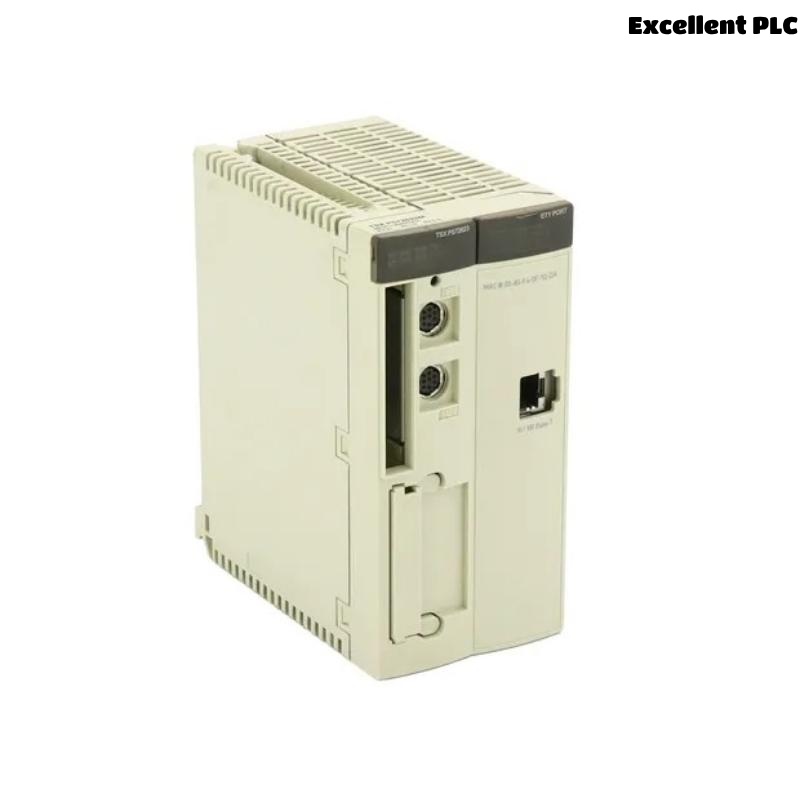

The Schneider TSXP572623M is a double-format PLC processor unit from the Modicon Premium series. It supports PL7 programming software and is designed for high-performance automation in medium to large-scale industrial systems. With extended memory, fast processing, and modular expandability, it suits applications that demand robust data handling and reliable control.
Technical Specifications
| Parameter | Description |
|---|---|
| Product Series | Modicon Premium |
| Model Number | TSXP572623M |
| Processor Type | Double Format CPU with PL7 compatibility |
| Programming Software | PL7 |
| Memory Capacity | 2048 kB program memory |
| Cycle Time | 0.15 µs per instruction |
| Communication Ports | 1x USB, 1x RS232/RS485, 1x Ethernet (optional) |
| Expansion Capability | Yes (with Premium I/O modules) |
| Power Supply | 24V DC |
| Mounting Type | Rack mounting |
| Operating Temperature | 0°C to 60°C |
| Protection Rating | IP20 |
| Dimensions (W x H x D) | 95 x 180 x 260 mm |
| Weight | 0.76 kg |
Product Applications
-
Process automation in manufacturing plants
-
Machine control for packaging, textile, and material handling
-
Utility and infrastructure management
-
Energy distribution and monitoring systems
-
Automotive assembly line control
Product Advantages
-
High-speed processing for complex automation tasks
-
Modular design supports flexible system expansion
-
Compatible with various communication protocols
-
Proven PL7 software environment ensures stable operation
-
Strong diagnostics and event logging capabilities
-
Robust build suited for harsh industrial conditions
Frequently Asked Questions (FAQ)
Q1: What software is used to program the TSXP572623M?
A1: The processor is programmed using Schneider Electric’s PL7 software.
Q2: Is the TSXP572623M compatible with Unity Pro?
A2: No, this model supports only PL7, not Unity Pro.
Q3: How many I/O modules can be connected?
A3: Up to 8 local I/O racks can be connected depending on the configuration.
Q4: What is the processor’s memory capacity?
A4: The TSXP572623M provides 2048 kB of user memory.
Q5: Can the processor be used in safety-critical systems?
A5: No, this unit is not certified for SIL-rated safety applications.
Q6: What is the power supply requirement?
A6: It operates on 24V DC.
Q7: What are the communication capabilities?
A7: It includes RS232/RS485, USB, and can support Ethernet via extension.
Q8: Is remote monitoring supported?
A8: Yes, when integrated with appropriate communication modules.
Q9: What is the CPU’s cycle time?
A9: The cycle time is approximately 0.15 µs per instruction.
Q10: What is the IP rating of this module?
A10: It has an IP20 protection rating, suitable for control cabinets.
Related Models from the Same Series
| Model | Description | Memory | Dimensions (mm) | Weight |
|---|---|---|---|---|
| TSXP572623 | Standard version with PL7 support | 1024 kB | 95 x 180 x 260 | 0.74 kg |
| TSXP573623M | Higher memory double-format processor | 4096 kB | 95 x 180 x 260 | 0.78 kg |
| TSXP574623M | Advanced processor with fast scan time | 4096 kB | 95 x 180 x 260 | 0.80 kg |
| TSXP575623M | Multi-port model with higher expansion | 8192 kB | 95 x 180 x 260 | 0.85 kg |
| TSXP57103M | Compact PL7-compatible processor | 512 kB | 95 x 180 x 260 | 0.72 kg |
| TSXP57204M | Entry-level double-format processor | 256 kB | 95 x 180 x 260 | 0.70 kg |
