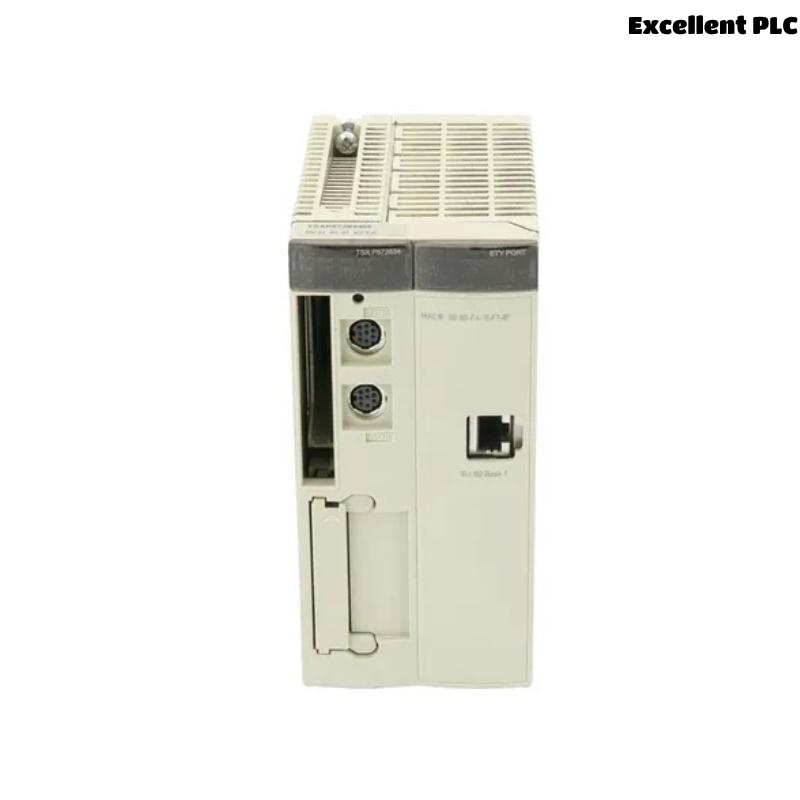

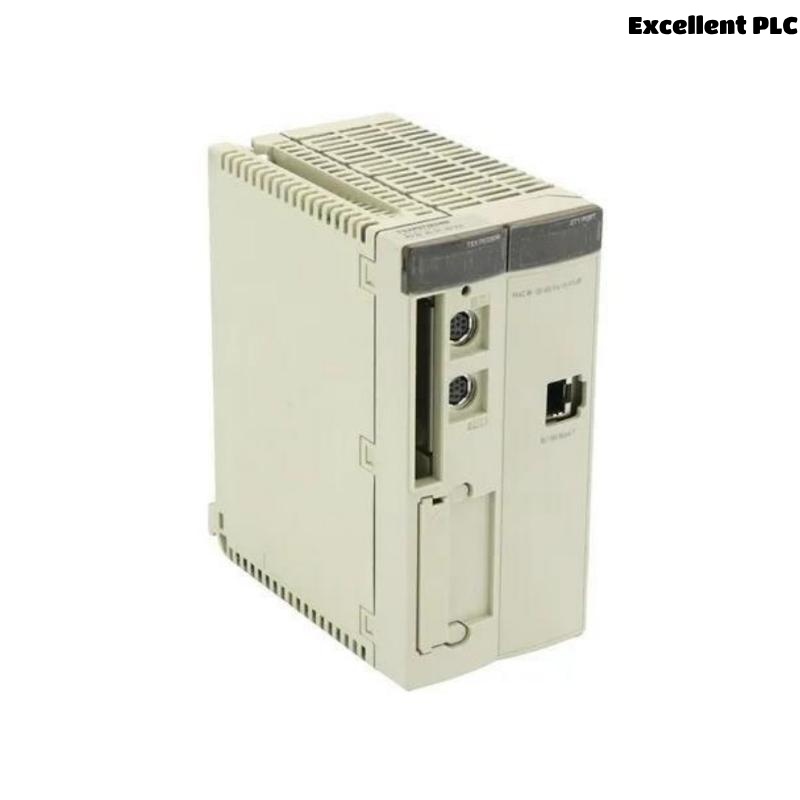

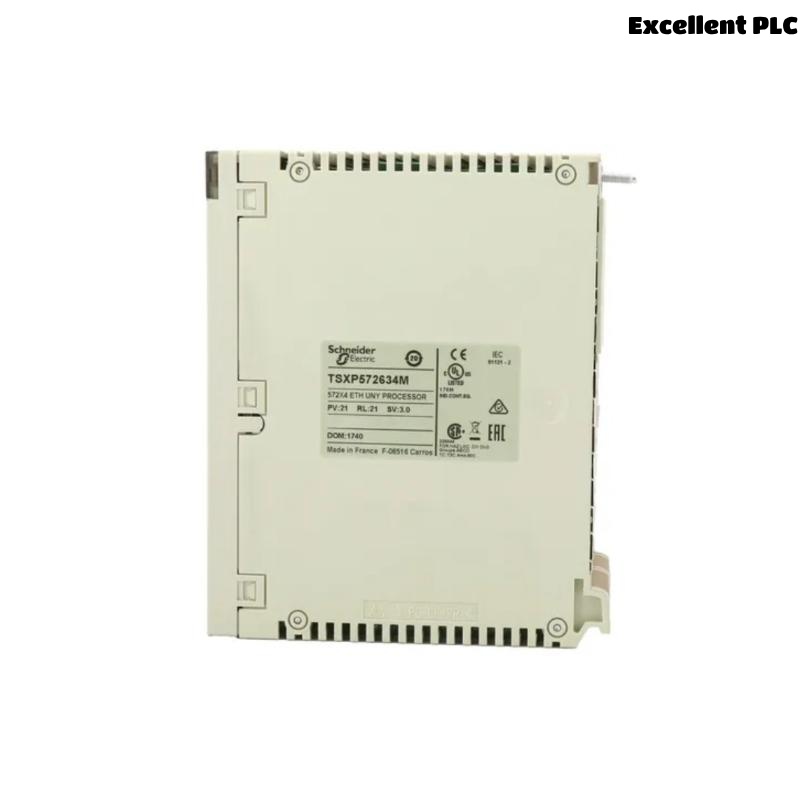

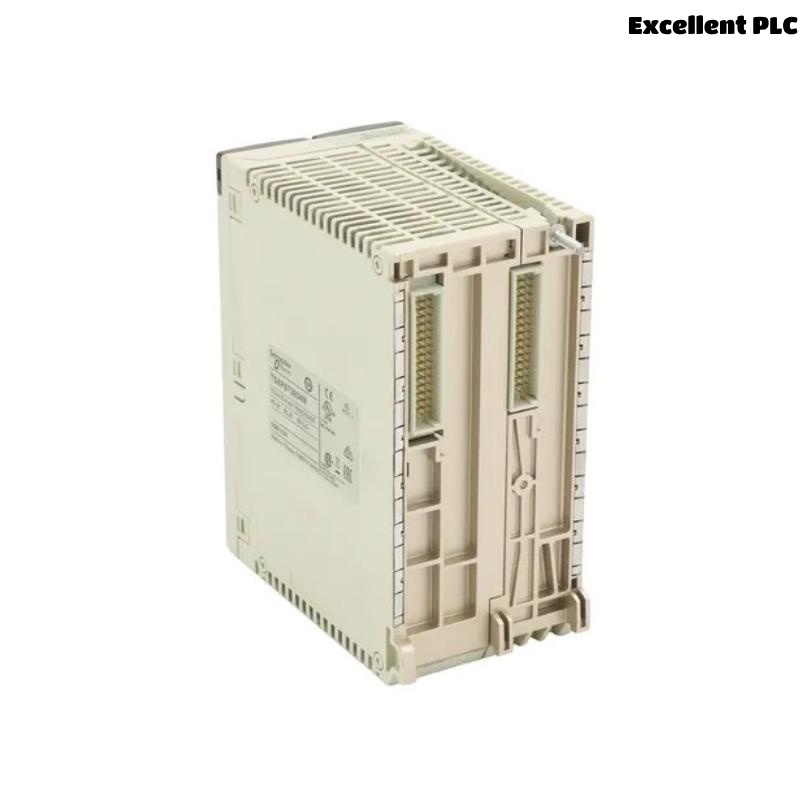

Schneider TSXP572634M Unity Processor
- Product Details
- FAQs
- Related
- Contact Us
- Packing & Delivery
- Product Ratings
Product Overview
The Schneider TSXP572634M is a Unity processor module from the Modicon Premium series, designed for complex industrial automation applications. With robust performance, high memory capacity, and multiple communication ports, it supports real-time control and is fully compatible with Unity Pro programming software.
Technical Specifications
| Parameter | Description |
|---|---|
| Model | TSXP572634M |
| Product Type | Unity Processor Module |
| Processor Type | 486DX4 – 100 MHz |
| Application Support | Unity Pro, Modsoft, PL7 |
| Memory | 2048 kB internal RAM |
| Communication Ports | 1 x USB, 2 x Serial, 1 x Ethernet |
| Battery Backup | Yes |
| Cycle Time | 0.1 ms/instruction |
| Mounting | Rack-mounted |
| Dimensions (W x H x D) | 95 x 180 x 260 mm |
| Weight | 0.042 kg |
Applications
-
Factory automation systems
-
Water and wastewater treatment facilities
-
Material transport and conveyor systems
-
Energy management and distribution systems
-
Packaging, labeling, and filling lines
-
Mission-critical process control systems
Advantages
-
High processing speed for real-time operations
-
Generous memory for complex programs and data structures
-
Multiple communication options for flexible network integration
-
Compact rack-mounted design suitable for dense panels
-
Unity Pro compatibility ensures scalable programming and migration
-
Reliable industrial-grade performance
Frequently Asked Questions (FAQ)
Q1: What programming software is used with TSXP572634M?
A1: Unity Pro is the recommended software for this processor.
Q2: Is it compatible with existing Modicon Premium racks?
A2: Yes, it is fully compatible with Modicon Premium racks.
Q3: How many communication ports are available?
A3: It has 1 USB, 2 serial, and 1 Ethernet port.
Q4: What is the internal memory capacity?
A4: It includes 2048 kB of internal RAM.
Q5: Can it retain data during power failure?
A5: Yes, it has a built-in battery for memory retention.
Q6: What is the processor speed or cycle time?
A6: The instruction cycle time is 0.1 ms.
Q7: Does it support Ethernet-based SCADA communication?
A7: Yes, it supports Ethernet communication for SCADA integration.
Q8: Is firmware upgrade supported?
A8: Yes, firmware can be upgraded through Unity Pro.
Q9: Can this processor handle high-speed I/O operations?
A9: Yes, it is suitable for high-speed control applications.
Q10: What industries commonly use this module?
A10: Manufacturing, utilities, logistics, and energy sectors are typical users.
Recommended Related or Same Series Models
| Model | Description | Dimensions (mm) | Weight (kg) |
|---|---|---|---|
| TSXP57104M | Unity Processor, 512kB RAM | 95 x 180 x 260 | 0.042 |
| TSXP57153M | Unity Processor, 1024kB RAM | 95 x 180 x 260 | 0.042 |
| TSXP57203M | Unity Processor, 2048kB RAM | 95 x 180 x 260 | 0.042 |
| TSXP57304M | Unity Processor, 2048kB + PCMCIA | 95 x 180 x 260 | 0.042 |
| TSXP57453M | Unity Processor, 4096kB RAM | 95 x 180 x 260 | 0.042 |
| TSXP57554M | High-End Unity Processor | 95 x 180 x 260 | 0.042 |
Popular Schneider Models
| Model | Description | Dimensions (mm) | Weight (kg) |
|---|---|---|---|
| BMXP342020 | M340 CPU Module | 32 x 100 x 95 | 0.18 |
| BMXAMO0410 | M340 Analog Output Module | 32 x 100 x 85 | 0.12 |
| BMXDDO1602 | M340 Digital Output Module, 16-ch | 32 x 100 x 85 | 0.15 |
| BMXPRA0100 | M340 Power Supply Module | 100 x 120 x 40 | 0.30 |
| TSXASY410 | Premium Analog Output Module | 95 x 180 x 260 | 0.042 |
| TSXCUSB485 | USB to RS485 Communication Adapter | 90 x 70 x 35 | 0.08 |
