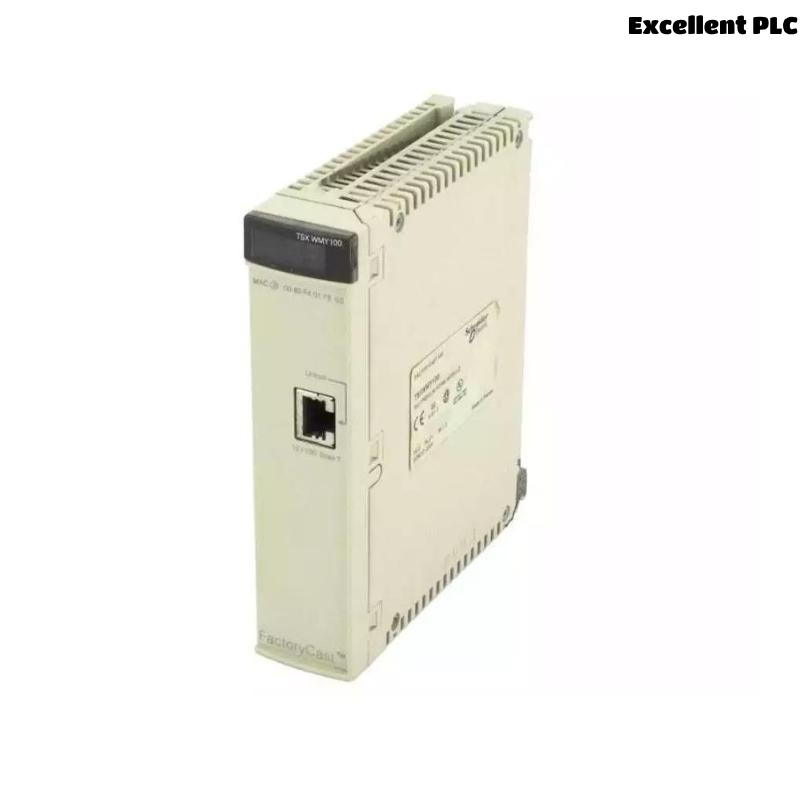

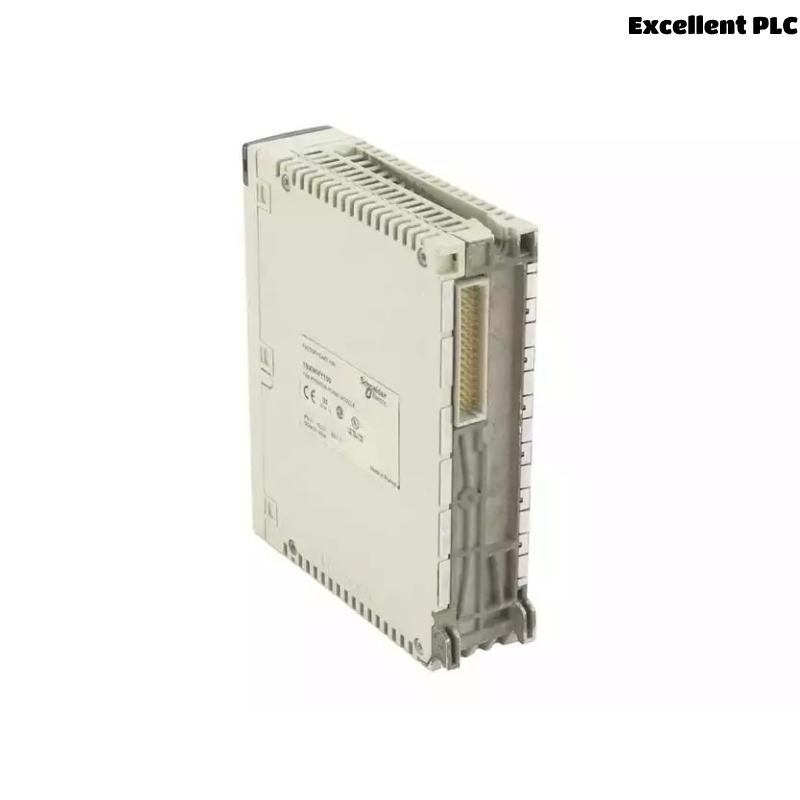

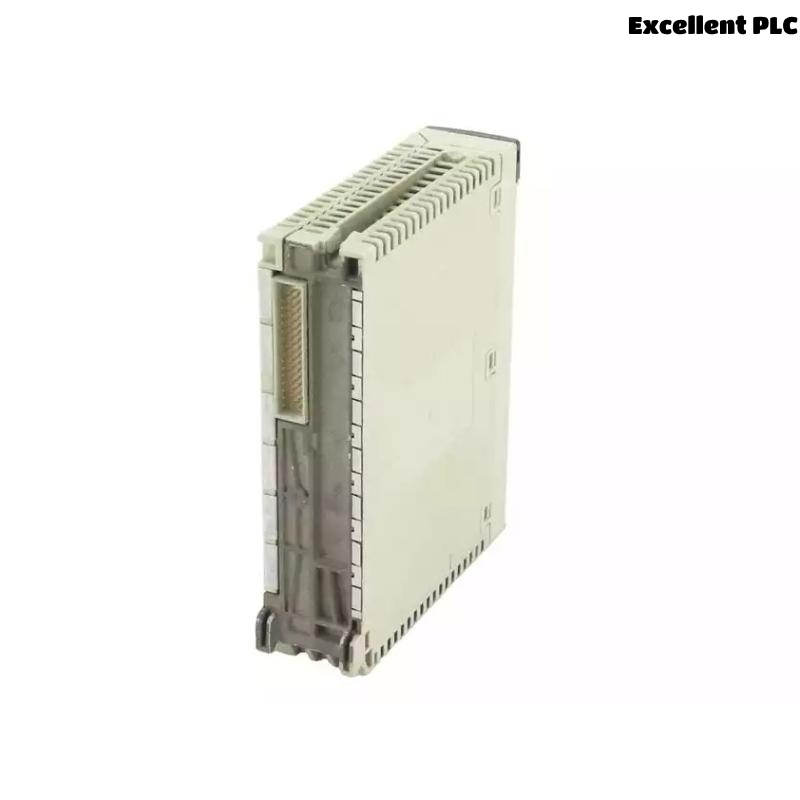

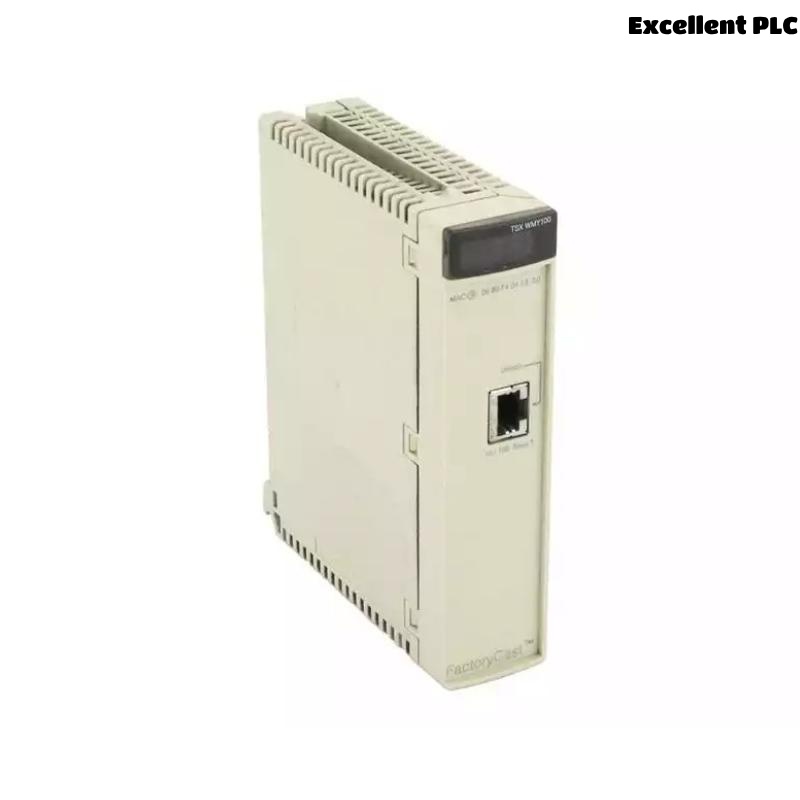

Schneider TSXWMY100 Ethernet TCP/IP Module

Schneider TSXWMY100 Ethernet TCP/IP Module

The Schneider TSXWMY100 is a communication module designed for Modicon TSX Micro and Premium PLC systems, enabling seamless Ethernet TCP/IP connectivity. It offers reliable data exchange between PLCs and supervisory systems over industrial networks.


Technical Specifications

Parameter Description
Product Type Ethernet TCP/IP Communication Module
Communication Protocol Ethernet TCP/IP
Transmission Rate 10/100 Mbps (auto-sensing)
Connector Type RJ45
Supported PLCs Modicon TSX Micro, TSX Premium
Diagnostic LED Yes
Power Supply 5 VDC from PLC backplane
Configuration Tool Unity Pro / PL7
Dimensions (W×H×D) 260 × 180 × 60 mm
Weight 0.44 kg

Applications

  • Real-time control and data acquisition in industrial automation

  • Communication between Modicon PLCs and SCADA/HMI systems

  • Integration into Ethernet-based factory networks

  • Remote monitoring and diagnostics


Advantages

  • Simple integration into existing Modicon TSX systems

  • Fast and reliable Ethernet communication

  • Supports standard Ethernet network diagnostics

  • Compact design for easy installation

  • Reduces wiring by enabling centralized data collection


Frequently Asked Questions (FAQ)

Q1: What PLCs are compatible with the TSXWMY100 module?
A1: It is compatible with Schneider Modicon TSX Micro and TSX Premium PLCs.

Q2: Can the module be used in a redundant network?
A2: No, TSXWMY100 does not support network redundancy features.

Q3: What is the default IP address of the TSXWMY100?
A3: The default IP can be configured using Unity Pro or PL7 software.

Q4: Does it support Modbus TCP?
A4: Yes, it supports Modbus TCP communication over Ethernet.

Q5: Is the TSXWMY100 hot-swappable?
A5: No, the module must be powered down before replacement.

Q6: Can I monitor diagnostics via web browser?
A6: No, it does not have a built-in web server. Diagnostics must be accessed via software tools.

Q7: What cable should be used for Ethernet connection?
A7: Use standard Cat5e or Cat6 Ethernet cables with RJ45 connectors.

Q8: Is it suitable for outdoor use?
A8: No, it should be installed in a control cabinet within a protected indoor environment.

Q9: What is the max cable length supported?
A9: It supports Ethernet cable lengths up to 100 meters.

Q10: Does it require a separate power supply?
A10: No, it draws power directly from the PLC backplane.
