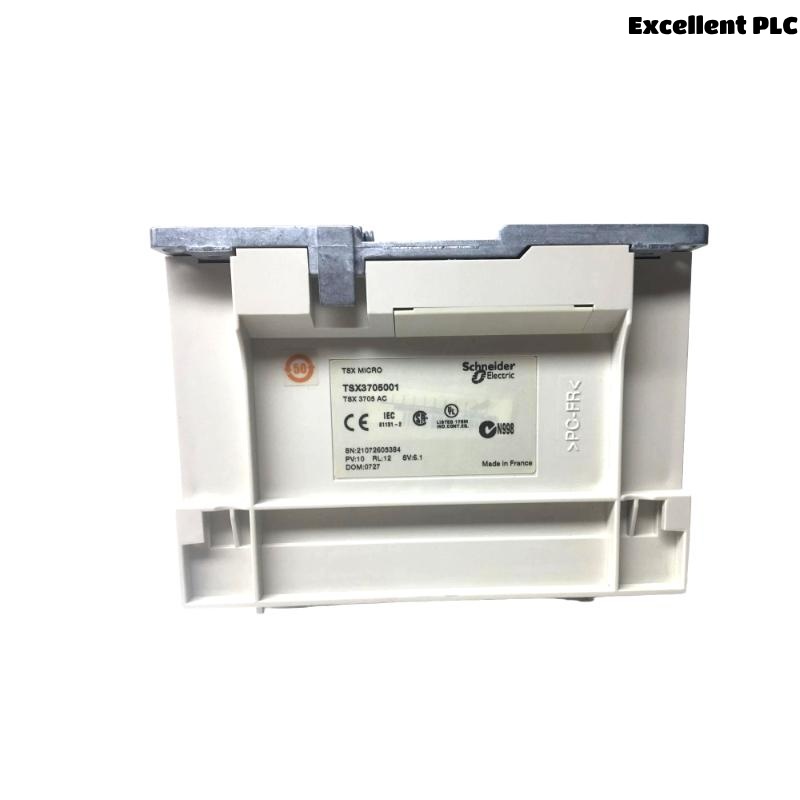

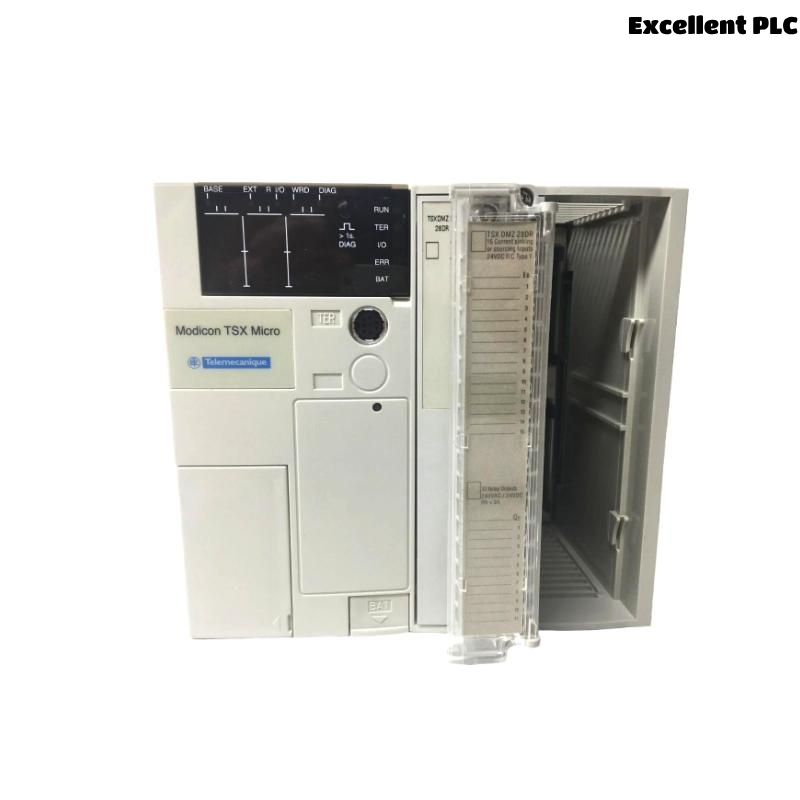

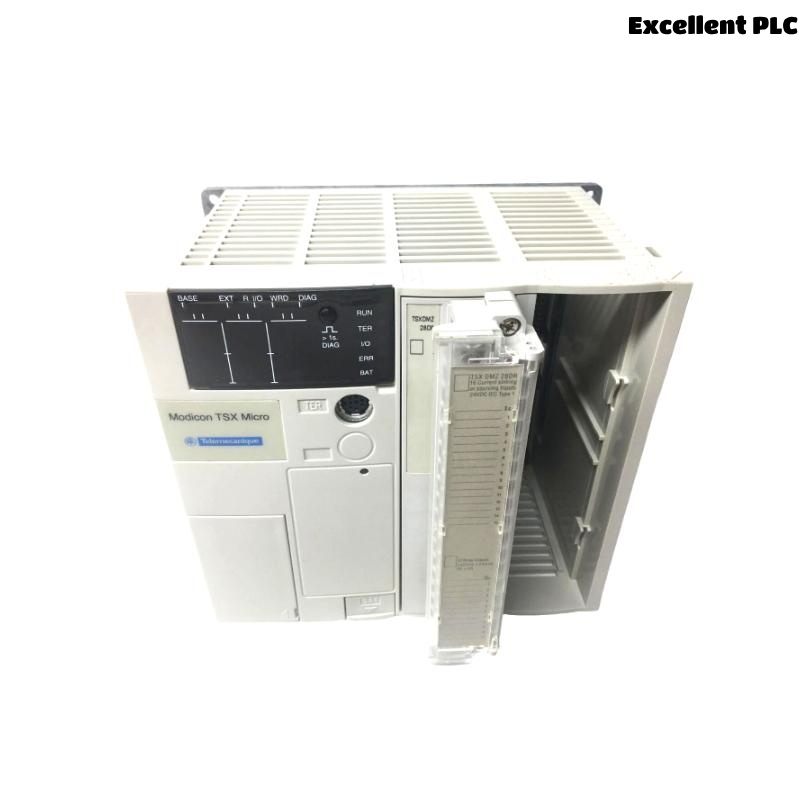

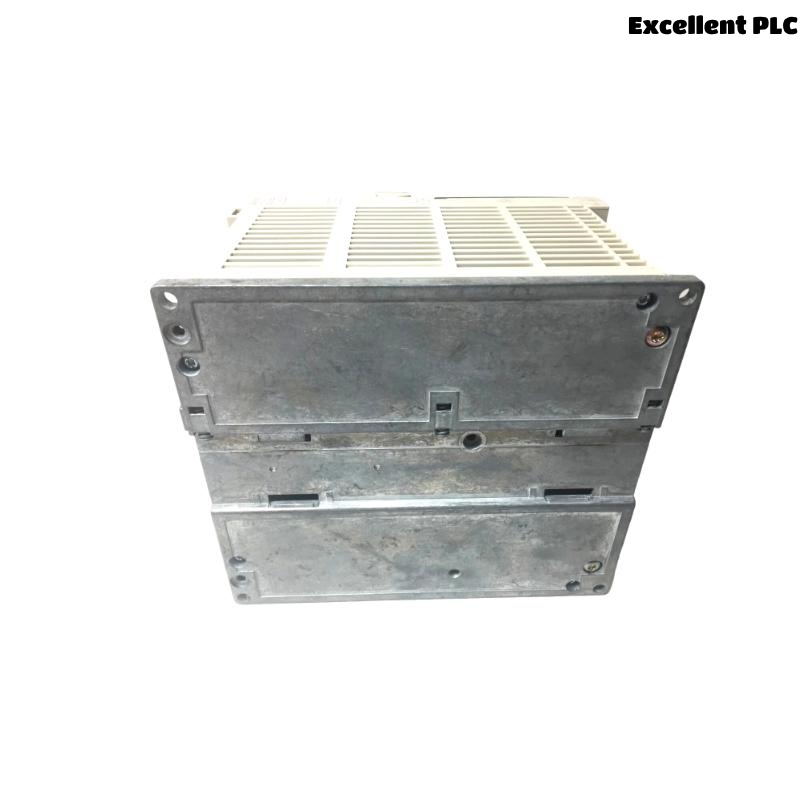

Schneider TSX3705028DR1 Modicon TSX Micro Series Logic Module
- Product Details
- FAQs
- Related
- Contact Us
- Packing & Delivery
- Product Ratings
Product Overview
The Schneider TSX3705028DR1 is a powerful programmable logic controller (PLC) from the Modicon TSX Micro Series. Designed for compact and mid-range automation systems, it integrates CPU, digital inputs/outputs, and communication capabilities into a single module, providing high performance and flexibility for industrial applications.
Technical Specifications
| Parameter | Value |
|---|---|
| Model | TSX3705028DR1 |
| Series | Modicon TSX Micro Series |
| CPU | Integrated |
| Digital Inputs | 16 |
| Digital Outputs | 12 (Relay type) |
| Power Supply | 100–240 V AC |
| Communication Ports | 1 x RS232 |
| Program Memory | 64 KB |
| Scan Time | 0.3 µs/Instruction |
| Dimensions (W x H x D) | 187.3 x 151 x 152 mm |
| Weight | 2.37 kg |
| Mounting Type | DIN Rail |
| Operating Temperature | 0 to 55°C |
| Certifications | CE, UL, CSA |
Applications
The TSX3705028DR1 is ideal for automation in:
-
Packaging and bottling lines
-
HVAC control systems
-
Water treatment facilities
-
Conveyor and sorting systems
-
Small to medium machine control
Product Advantages
-
Integrated Design: Combines CPU, I/O, and communication in one unit
-
Space-Saving: Compact form factor ideal for tight control cabinets
-
Reliable Operation: Proven TSX platform stability in harsh environments
-
Easy Integration: RS232 communication for simple networking
-
Flexible Programming: Compatible with PL7 software for user-friendly configuration
-
Wide Voltage Range: Accepts 100–240 V AC input, simplifying installation
Frequently Asked Questions (FAQ)
Q1: What is the input voltage range for the TSX3705028DR1?
A1: It supports 100–240 V AC.
Q2: How many digital inputs are available?
A2: The module includes 16 digital inputs.
Q3: What type of digital outputs does it provide?
A3: It has 12 relay-type digital outputs.
Q4: Does this module have integrated communication?
A4: Yes, it includes an RS232 communication port.
Q5: Is the module suitable for DIN rail mounting?
A5: Yes, it supports DIN rail installation.
Q6: What software is used for programming?
A6: The TSX3705028DR1 is programmed using PL7 software.
Q7: Can it operate in industrial environments?
A7: Yes, it is designed for temperatures from 0 to 55°C and is certified for industrial use.
Q8: Is there onboard memory for program storage?
A8: Yes, it features 64 KB of user program memory.
Q9: What is the module’s scan time?
A9: The scan time is 0.3 µs per instruction.
Q10: Is it certified for global use?
A10: Yes, it holds CE, UL, and CSA certifications.
Related TSX Micro Series Models
| Model | Inputs | Outputs | Power Supply | Dimensions (mm) | Weight (kg) |
|---|---|---|---|---|---|
| TSX3705028DR1 | 16 | 12 (Relay) | 100–240 V AC | 187.3 x 151 x 152 | 2.37 |
| TSX3705001DR1 | 8 | 8 (Relay) | 100–240 V AC | 187.3 x 151 x 152 | 2.20 |
| TSX3705016DR1 | 16 | 16 (Relay) | 100–240 V AC | 187.3 x 151 x 152 | 2.45 |
| TSX3705028AR1 | 16 | 12 (Transistor) | 24 V DC | 187.3 x 151 x 152 | 2.30 |
| TSX3705032DR1 | 24 | 8 (Relay) | 100–240 V AC | 187.3 x 151 x 152 | 2.55 |
| TSX3705201DR1 | 32 | 16 (Relay) | 100–240 V AC | 187.3 x 151 x 152 | 2.80 |
