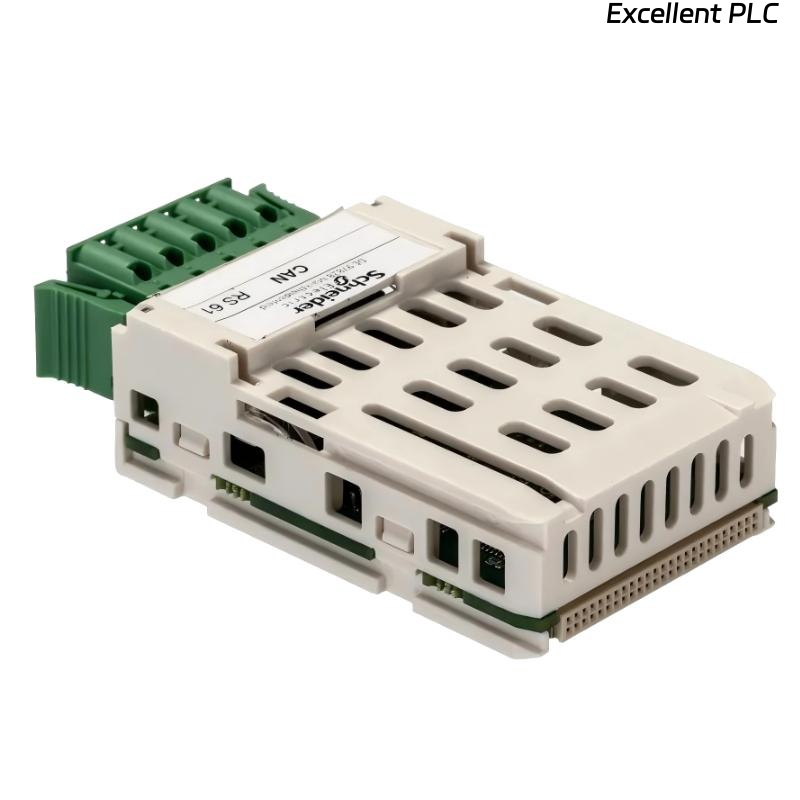

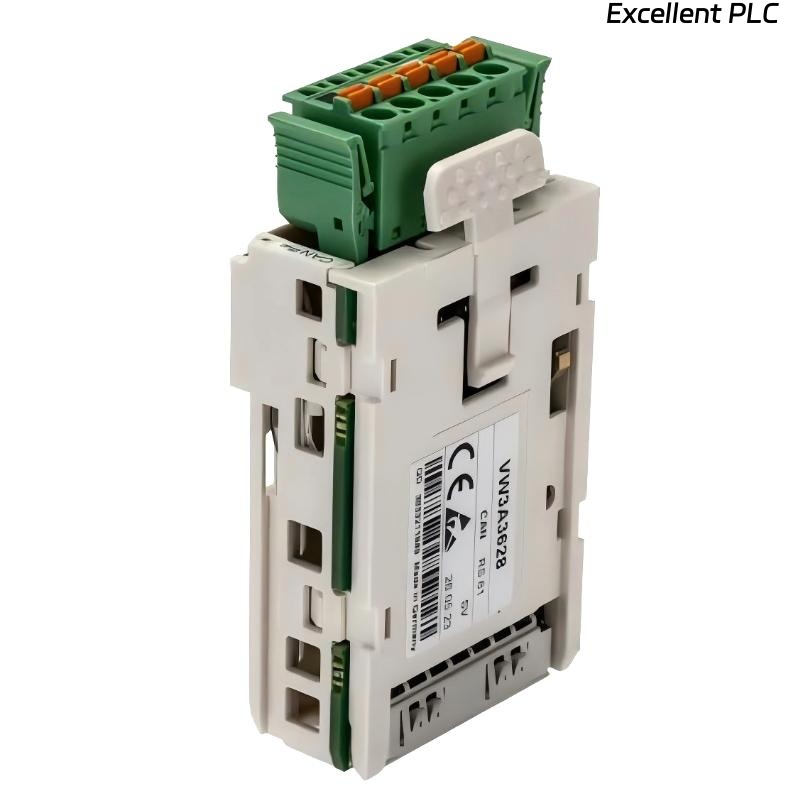

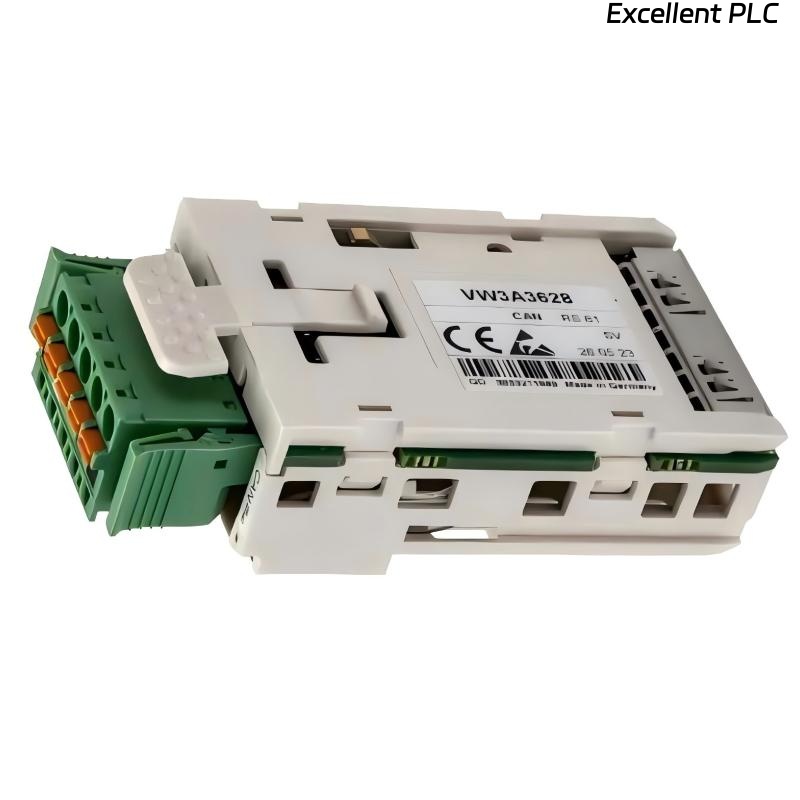

Schneider VW3A3628 CANopen Open Style Communication Module

Product Introduction

The Schneider Electric VW3A3628 Communication Module is an open-style communication interface designed for Altivar variable speed drives used with asynchronous motors. It supports CANopen and CANmotion protocols, allowing high-speed, real-time communication between drives, controllers, and automation networks.

Equipped with a 5-way spring terminal block, the module ensures secure and reliable electrical connections for field wiring. This module is compatible with a wide range of Altivar drives and servo systems, including Altivar Process ATV900, ATV600, Lexium 32, Altivar Process Modular, Altivar Machine ATV340 (excluding Sercos), Altivar 32, and Altivar Machine ATV320. It is ideal for industrial, process, and building automation applications where flexible motor control and high reliability are required.

---

Product Specifications

---

Applications

• CANopen/CANmotion network integration for Altivar drives

• Industrial and process automation using Altivar Process and Machine drives

• Servo motor communication with Lexium 32 drives

• Flexible motor control systems across machines and processes

• Real-time drive-to-controller data exchange

• Integration in building automation applications

---

Advantages

• Supports CANopen and CANmotion protocols for industrial communication

• Secure 5-way terminal block for reliable electrical connections

• Open-style module design allowing flexible installation

• Compatible with multiple Altivar and Lexium drives

• High-speed and reliable data exchange for motor control

• Enhances project flexibility by supporting multiple drives and protocols

• Simplifies network configuration and commissioning

FAQ

1. Which communication protocols does this module support?
   It supports CANopen and CANmotion protocols.

2. What type of electrical connection is provided?
   It uses a 5-way spring terminal block for secure wiring.

3. Is this module compatible with Altivar Process ATV900 drives?
   Yes, it is compatible with ATV900 as well as other Altivar Process drives.

4. Can it communicate with Lexium 32 servo drives?
   Yes, it supports communication with Lexium 32 drives.

5. Is the module suitable for open-style installation?
   Yes, it is designed as an open-style communication module.

6. Does it support Altivar Machine ATV340 drives?
   Yes, except Sercos versions, it is fully compatible.

7. Can it be used in industrial automation networks?
   Yes, it is designed for industrial and process automation environments.

8. Is it suitable for building automation applications?
   Yes, Altivar drives with this module can be integrated into building automation systems.

9. Does it provide reliable real-time communication?
   Yes, the module ensures high-speed and stable data exchange.

10. Can it be used with modular Altivar Process drives?
    Yes, it is compatible with Altivar Process Modular drives.
