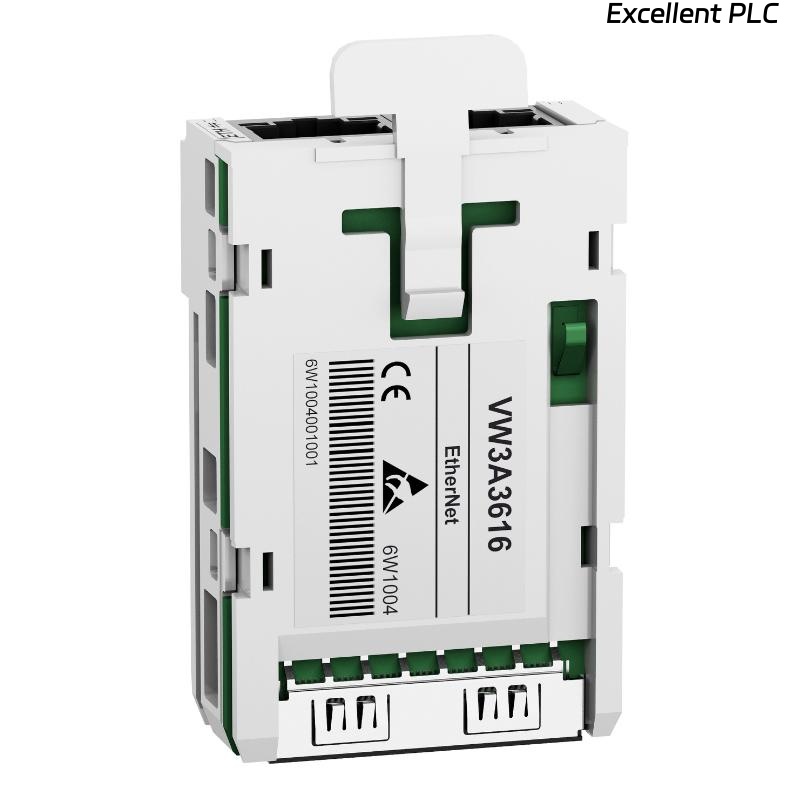

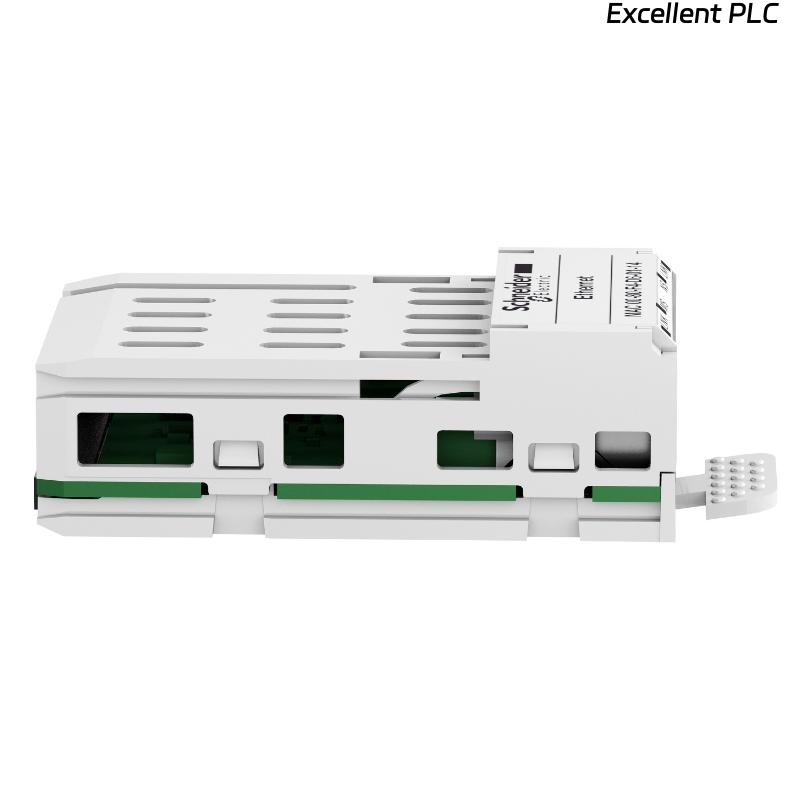

Schneider VW3A3616 Ethernet TCP/IP Communication Module
- Product Details
- FAQs
- Related
- Contact Us
- Packing & Delivery
- Product Ratings
Product Introduction
The Schneider Electric VW3A3616 Communication Module is a detachable Ethernet TCP/IP interface designed for Altivar variable speed drives. Equipped with two RJ45 ports, it supports both Modbus TCP and Ethernet/IP protocols, enabling flexible network integration and high-speed industrial communication.
The removable design allows last-minute selection of the drive communication protocol before final installation, simplifying project management and commissioning for Altivar drives in machines and automation systems. It is compatible with Altivar Machine ATV320, Lexium 32, and Altivar 32 drives.
Product Specifications
| Parameter | Description |
|---|---|
| Product Type | Communication Module |
| Brand | Schneider Electric |
| Model Number | VW3A3616 |
| Supported Protocols | Modbus TCP, Ethernet/IP |
| Communication Port Protocol | Modbus TCP, Ethernet/IP |
| Electrical Connection | 1 RJ45 connector for Ethernet/IP, 1 RJ45 connector for Modbus TCP |
| Drive Compatibility | Altivar Machine ATV320, Lexium 32, Altivar 32 |
| Module Type | Detachable communication module |
| Typical Use | Drive-to-network communication |
| Installation Method | Plug-in module |
| Data Transmission Speed | 10/100 Mbps |
| Environmental Suitability | Industrial automation environments |
| Dimensions | 100 × 80 × 20 mm |
| Weight | 0.3 kg |
Applications
• Ethernet TCP/IP communication for Altivar drives
• Integration into Modbus TCP and Ethernet/IP networks
• Machine automation using Altivar Machine ATV320 and ATV32 drives
• Servo motor communication with Lexium 32 drives
• Flexible project commissioning with selectable protocols
• Industrial automation and control systems
Advantages
• Supports Modbus TCP and Ethernet/IP protocols for versatile connectivity
• Dual RJ45 ports for flexible network topology
• Detachable module design, allowing last-minute protocol selection
• High-speed data transmission up to 100 Mbps
• Compatible with multiple Altivar and Lexium drives
• Simplifies commissioning and project management
• Reliable industrial Ethernet communication for motor control applications
FAQ
-
Which communication protocols does the VW3A3616 module support?
It supports Modbus TCP and Ethernet/IP protocols. -
How many communication ports does it have?
It has two RJ45 ports: one for Ethernet/IP and one for Modbus TCP. -
Can the module be removed after installation?
Yes, it is designed as a detachable module for flexible configuration. -
Is it compatible with Altivar Machine ATV320 drives?
Yes, it is fully compatible with ATV320 and other specified drives. -
Can it communicate with Lexium 32 servo drives?
Yes, it supports communication with Lexium 32 drives. -
Does it allow last-minute protocol selection?
Yes, the removable design allows selecting the communication protocol before final installation. -
Is it suitable for industrial automation networks?
Yes, it is designed for industrial automation applications. -
What is the maximum data transmission speed?
It supports speeds up to 10/100 Mbps. -
Can it be used in machine automation projects?
Yes, it integrates with machine automation systems using Altivar drives. -
Does it simplify project commissioning?
Yes, the detachable design and dual protocol support simplify project management.
Related Models
| Model Number | Description |
|---|---|
| VW3A3627 | Profinet communication module for Altivar drives |
| VW3A3628 | CANopen communication module |
| VW3A3629 | Modbus TCP communication module |
| ATV320 | Altivar Machine variable speed drive |
| ATV32 | Altivar 32 variable speed drive |
| Lexium 32 | Servo drive system |
Popular Models
| Model Number | Description |
|---|---|
| ATV320 | Altivar Machine variable speed drive |
| ATV340 | Altivar Machine variable speed drive |
| ATV630 | Altivar Process drive |
| ATV930 | Altivar Process drive |
| Lexium 32 | Servo drive system |
| BMXP342020 | Schneider Electric PLC CPU |
