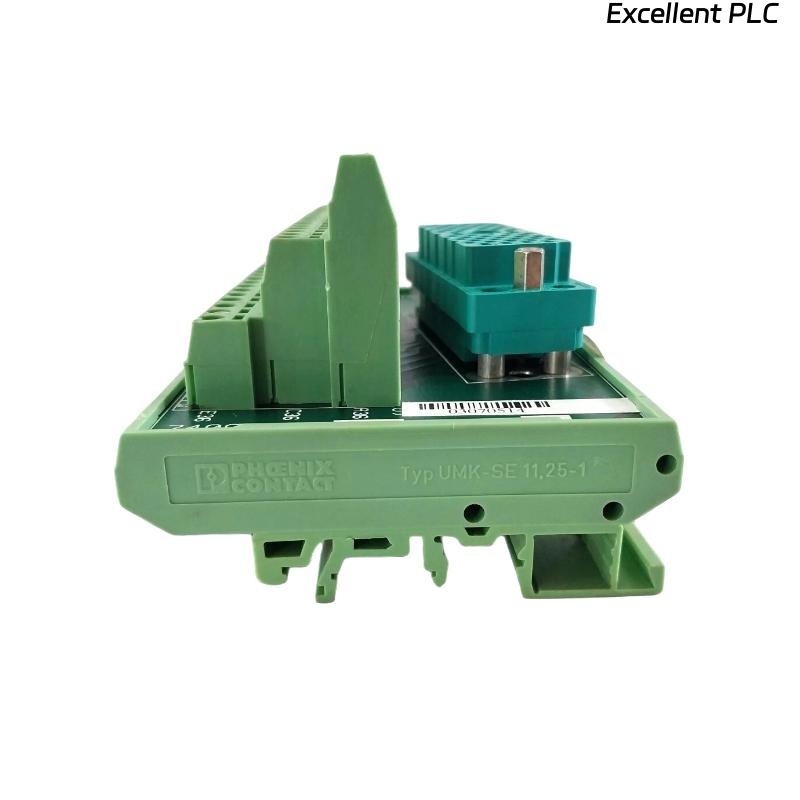

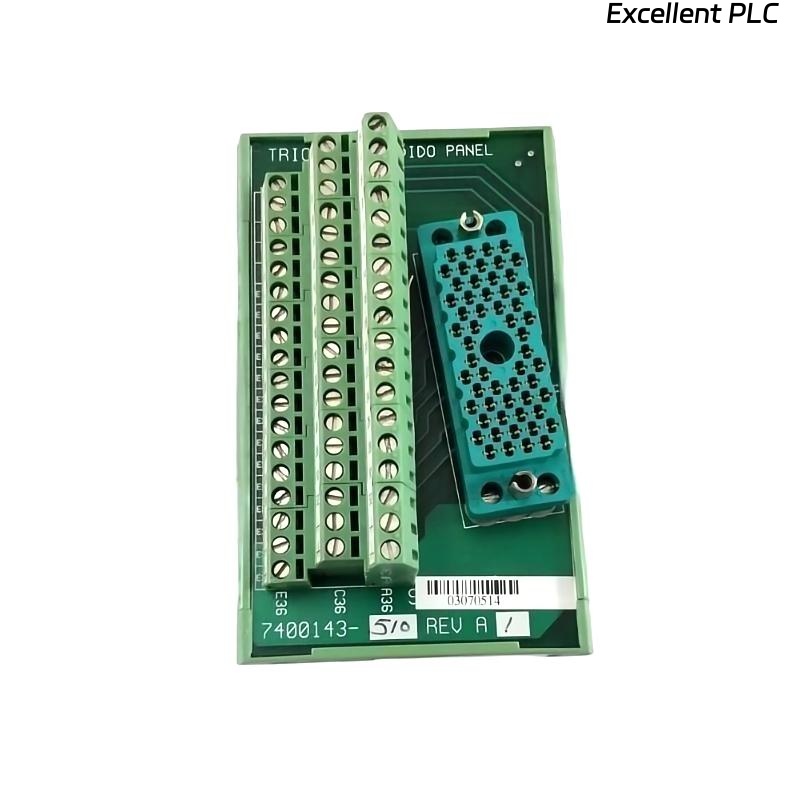

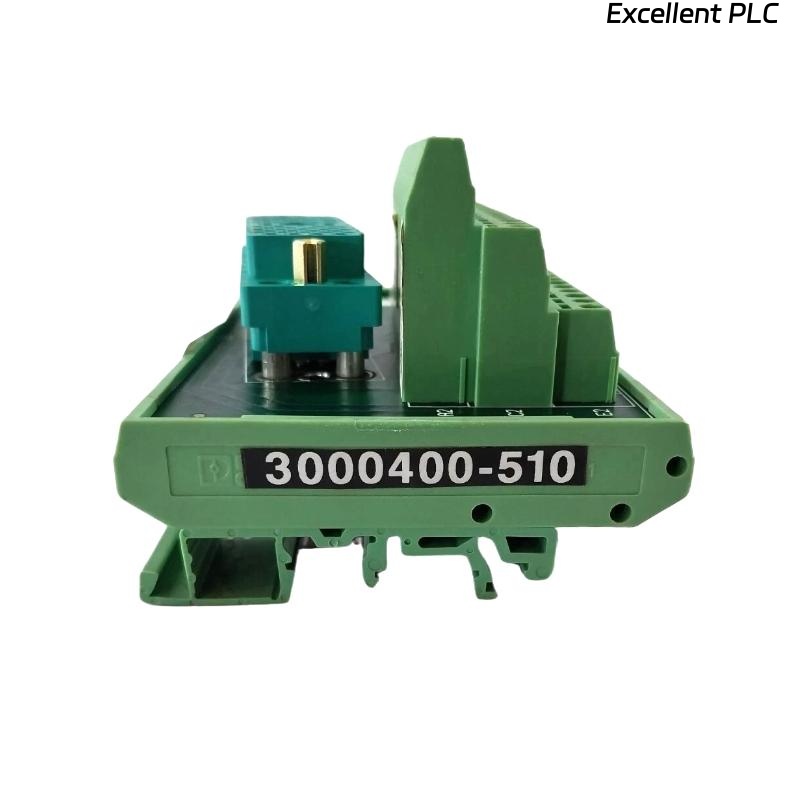

Triconex 3000400-510 External Termination Assembly
- Product Details
- FAQs
- Related
- Contact Us
- Packing & Delivery
- Product Ratings
Product Introduction
The Triconex 3000400-510 External Termination Assembly is a specialized field wiring interface designed for use with Triconex safety and control systems. It acts as a robust, secure termination point between field devices and Triconex input/output (I/O) modules, ensuring signal integrity, ease of maintenance, and high reliability in critical process applications.
This assembly is built for demanding industrial environments, providing clear labeling, secure terminal connections, and strong mechanical stability. It supports the termination of discrete, analog, and specialty signals, depending on the specific I/O module it interfaces with. The design also ensures minimal signal degradation and high immunity to electrical noise, which is essential in Safety Instrumented Systems (SIS) and high-availability control applications.
Product Parameters
| Parameter | Specification |
|---|---|
| Manufacturer | Triconex (Schneider Electric) |
| Model Number | 3000400-510 |
| Product Type | External Termination Assembly (ETA) |
| Compatible Systems | Triconex Tricon and Trident series safety controllers |
| Signal Types Supported | Discrete (digital), analog, specialty I/O |
| Terminal Type | Screw-clamp or spring-clamp (depending on variant) |
| Terminal Capacity | Supports multiple wire sizes up to 2.5 mm² (14 AWG) |
| Isolation Rating | Matches I/O module electrical isolation specifications |
| Labeling | Pre-printed channel identifiers for quick wiring |
| Shielding | Integrated grounding points for cable shields |
| Operating Voltage Range | As per corresponding I/O module |
| Power Requirements | None (passive termination unit) |
| Mounting Type | DIN rail or panel mount |
| Operating Temperature | -20 °C to 70 °C |
| Storage Temperature | -40 °C to 85 °C |
| Humidity Range | 5% to 95% RH, non-condensing |
| Dimensions (W × H × D) | 300 × 80 × 65 mm |
| Weight | 0.45 kg |
Product Applications
-
Safety Instrumented Systems (SIS) – Securely terminating critical safety I/O signals for ESD, fire & gas, and process shutdown functions.
-
Distributed Control Systems (DCS) – Providing a reliable wiring interface for field signals in complex process control applications.
-
Oil & Gas Industry – Used in refineries, offshore platforms, and pipeline control systems for sensor and actuator connections.
-
Power Generation – Termination for turbine control sensors, breaker status signals, and plant safety circuits.
-
Chemical & Petrochemical Plants – Safe wiring interface for process sensors, alarms, and safety interlocks.
-
Heavy Manufacturing – Reliable connection point for discrete and analog signals in hazardous areas.
Product Advantages
-
High Reliability – Designed for mission-critical control and safety applications with robust construction.
-
Simplified Maintenance – Clear labeling and organized terminal layout reduce wiring errors and downtime.
-
Versatile Signal Support – Compatible with various signal types, making it suitable for mixed I/O environments.
-
Noise Immunity – Integrated grounding and shielding improve EMC performance.
-
Easy Integration – Directly matches Triconex I/O module pinouts, reducing installation complexity.
-
Long Service Life – Durable materials and industrial-grade connectors ensure dependable operation over time.
-
Flexible Mounting – Supports both DIN rail and panel mounting for versatile installation.
FAQ
1. Which Triconex I/O modules is the 3000400-510 compatible with?
It is compatible with specific Triconex digital and analog I/O modules as defined in the system hardware manual.
2. Does the termination assembly provide electrical isolation?
Isolation is achieved through the corresponding I/O module; the termination assembly matches the isolation specifications of the module.
3. Can shielded cables be connected directly to the assembly?
Yes, it includes grounding points for shield terminations to enhance noise immunity.
4. Is this a powered device?
No, it is a passive termination unit and does not require a separate power supply.
5. How are channels identified on the assembly?
Each channel is labeled with pre-printed identifiers corresponding to the I/O module channel mapping.
6. What is the maximum supported wire size?
It supports wire sizes up to 2.5 mm² (14 AWG) depending on terminal type.
7. Can the assembly be mounted in hazardous areas?
It can be installed in hazardous areas when part of a certified Triconex system installation.
8. Does the assembly support both DIN rail and panel mounting?
Yes, it is designed for flexible installation with both options supported.
9. What type of terminals are available?
It is available in screw-clamp or spring-clamp variants depending on the ordering code.
10. How does it handle EMC requirements?
It incorporates grounding provisions and low-impedance paths for shielding to meet EMC standards.
Related Models (Same Series or Function)
| Model Number | Description |
|---|---|
| 3000400-520 | External Termination Assembly for analog I/O |
| 3000400-530 | External Termination Assembly for digital output |
| 3000400-540 | ETA with integrated fuses for field circuits |
| 3000400-550 | ETA with relay output support |
| 3000400-560 | High-density ETA for mixed I/O |
| 3000400-570 | ETA with barrier strip for hazardous area wiring |
