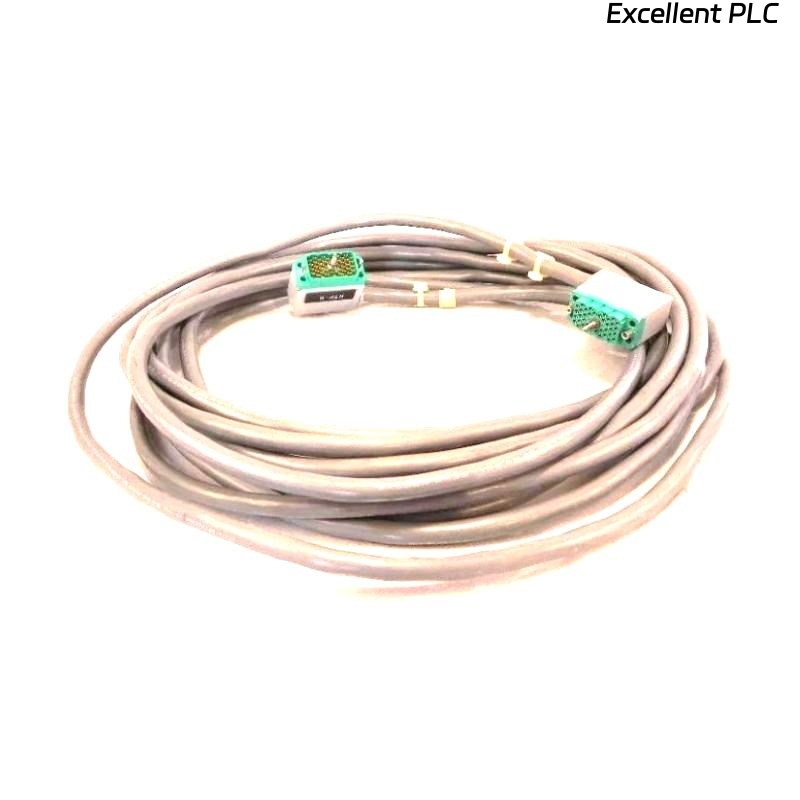

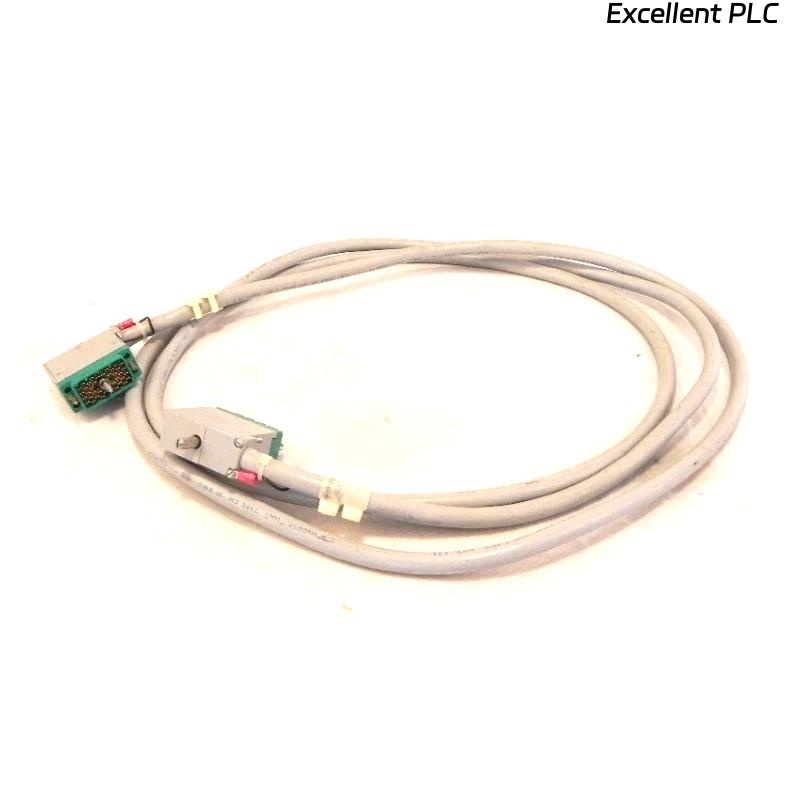

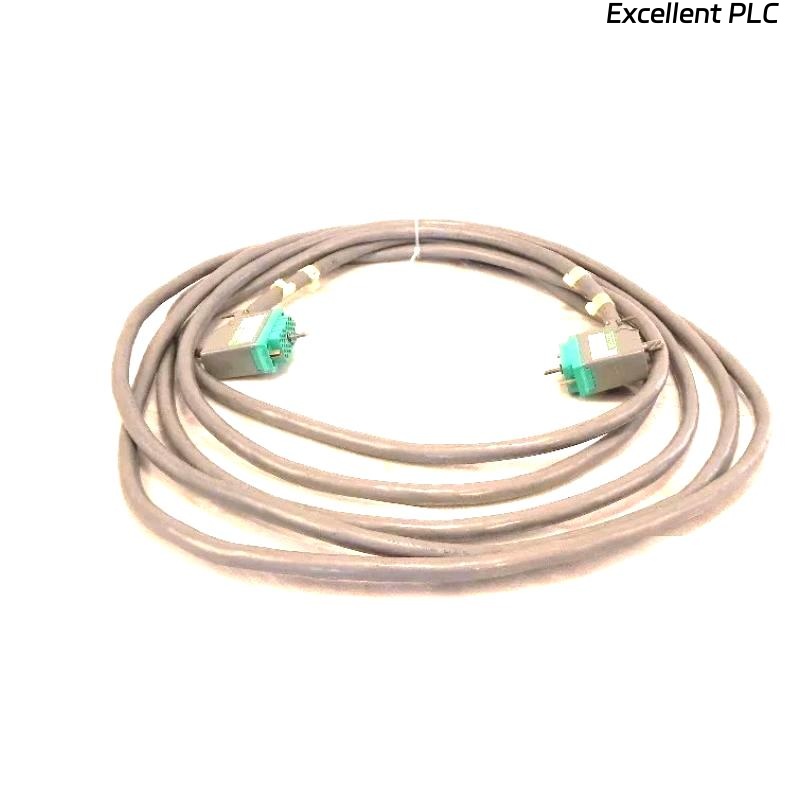

Triconex 4000043-320 Cable Assembly
The Triconex 4000043-320 Cable Assembly is a high-integrity communication cable engineered for interconnecting chassis within Tricon v9 and v10 systems. It is specifically designed for use in safety-critical applications requiring fault-tolerant data communication via triplicated RS-485 links.
Technical Specifications
| Parameter | Specification |
|---|---|
| Product Type | I/O Bus Cable Assembly |
| Part Number | 4000043-320 |
| Cable Length | 3.2 meters |
| Cable Type | Triplicated RS-485 shielded twisted pair |
| Application | Interconnection between Tricon chassis |
| Connector Type | Factory-terminated with mating connectors |
| Bend Radius (Min) | 11.684 cm |
| Weight (Gross) | 3 kg |
| Environmental Rating | Industrial-grade |
| Compatible Systems | Tricon v9/v10 Systems |
Product Application
The 4000043-320 cable is used for I/O bus communication in distributed Triconex architectures. It connects multiple I/O or expansion chassis, enabling synchronized, redundant communication between processors. It is essential for systems requiring maximum safety availability across long distances or segregated cabinet configurations.
Product Advantages
-
Redundancy Support: Enables fault-tolerant RS-485 triplicated communication.
-
System Integrity: Ensures signal integrity through shielded construction and minimum interference.
-
Pre-Terminated: Ready-to-install with factory-tested connectors, eliminating manual termination errors.
-
Designed for Harsh Environments: Built to withstand demanding industrial applications.
-
Minimized Downtime: Enables online maintenance with plug-and-play replaceability.
-
Compatibility: Seamless integration with Tricon v9 and v10 I/O chassis.
Frequently Asked Questions (FAQ)
Q1: What is the primary function of the 4000043-320 Cable Assembly?
A1: It provides fault-tolerant RS-485 triplicated communication between interconnected Tricon I/O or expansion chassis.
Q2: Is the cable pre-terminated or does it require field termination?
A2: It is factory pre-terminated with standard connectors, ensuring optimal signal reliability and fast installation.
Q3: What is the recommended minimum bend radius during installation?
A3: The minimum bend radius is 11.684 cm to prevent cable damage or signal degradation.
Q4: Which Triconex systems support this cable?
A4: It is compatible with Tricon v9 and v10 controller systems.
Q5: What environmental conditions is the cable suitable for?
A5: The cable is rated for industrial environments, suitable for use in safety-critical applications.
Q6: Can the cable be hot-swapped during system operation?
A6: While Tricon modules support hot-swap, cable replacement should be done under controlled shutdown for safety.
Q7: Is the cable shielded?
A7: Yes, it includes shielding to protect against electrical noise and maintain signal integrity.
Q8: How many communication channels does the cable support?
A8: It supports triplicated RS-485 communication channels to comply with TMR architecture.
Q9: What is the gross weight of the cable assembly?
A9: The gross weight is 3 kg.
Q10: Does this cable meet safety standards?
A10: Yes, it is part of the certified Triconex safety system designed for SIL-rated applications.
