Woodward 5417-039 Cable

Product Introduction

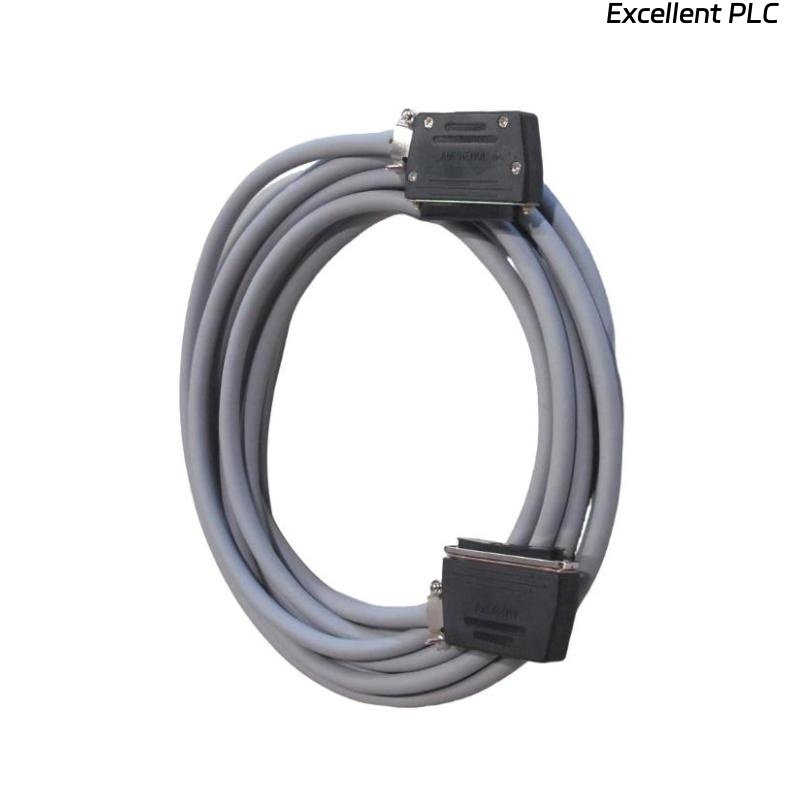

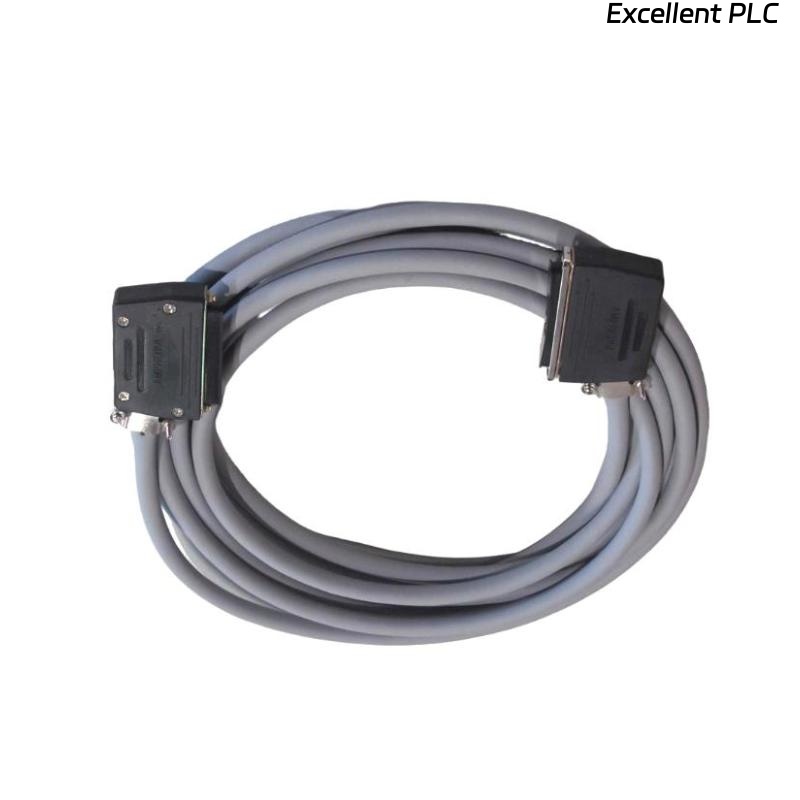

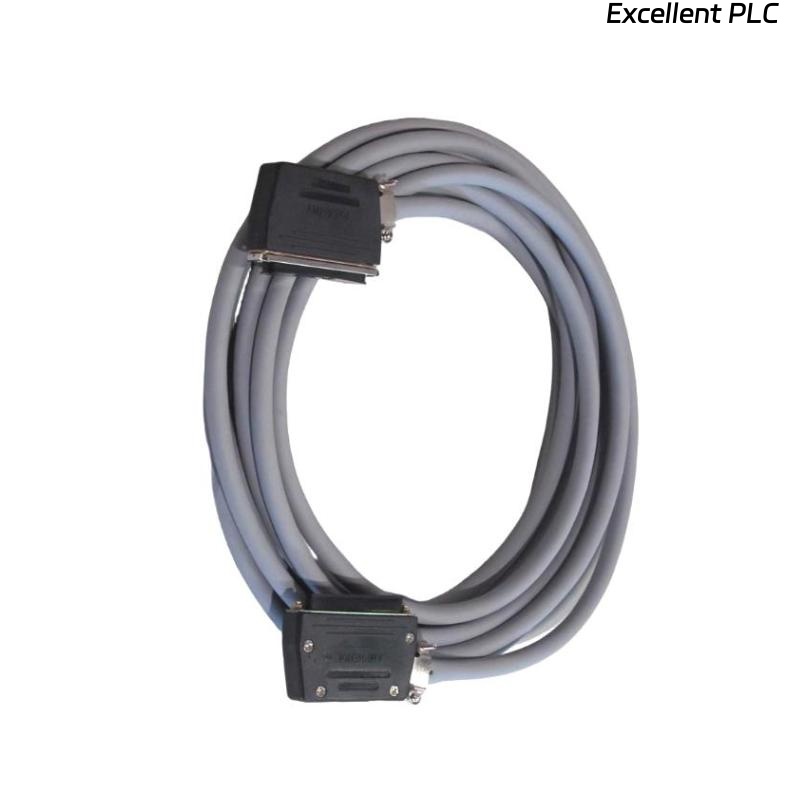

The Woodward 5417-039 Cable is a high-performance industrial connection cable engineered for dependable communication and power transmission in demanding environments. Designed specifically for Woodward control systems and compatible automation hardware, this cable ensures robust signal integrity and minimal loss over extended distances. Its durable construction and precision-engineered conductors make it ideal for mission-critical applications where reliability, electromagnetic compatibility, and mechanical strength are paramount. The cable’s gray jacket provides easy identification in control cabinets and field installations while offering enhanced protection against abrasion, oil, and chemical exposure.

Technical Specifications

Applications

• Industrial Control Systems: Connects Woodward governors, actuators, and PLC-based control modules for stable data and power transfer.

• Power Generation Facilities: Links critical sensors and turbine control units, ensuring precise signal communication and low noise interference.

• Oil & Gas Automation: Used in compressor stations and pipeline control for safe, EMI-resistant signal transmission.

• Manufacturing Automation: Interfaces with CNC machinery, robotic systems, and process control panels for consistent high-speed data transfer.

• Marine & Transportation: Provides reliable connectivity for propulsion control systems and onboard monitoring equipment in challenging environments.

Advantages

• Superior Signal Integrity: Shielded construction minimizes electromagnetic interference, ensuring accurate data communication.

• Rugged Durability: Resistant to oils, chemicals, and mechanical abrasion for long service life in harsh industrial settings.

• Flexible Installation: Compact diameter and high flexibility allow easy routing through crowded control cabinets or conduit.

• High Thermal Tolerance: Maintains performance across a wide temperature range, ideal for both indoor and outdoor installations.

• Compliance with Standards: Meets international safety and environmental standards, ensuring compatibility with global projects.

• Optimized for Woodward Systems: Engineered to integrate seamlessly with Woodward controllers and related hardware, reducing commissioning time.

FAQ

1. What type of signal shielding is incorporated in the 5417-039 cable?
   The cable features a dual-layer shield comprising 100% aluminum/polyester foil and a tinned copper braid, providing excellent protection against electromagnetic and radio-frequency interference.

2. How does the cable maintain signal quality over its 8-foot length?
   High-conductivity stranded copper conductors with low-resistance insulation minimize attenuation and ensure stable signal transmission even in electrically noisy environments.

3. Can the cable be used for both data and power transmission simultaneously?
   Yes, the conductor gauge and insulation allow for combined low-voltage power supply and signal communication, provided current ratings are not exceeded.

4. Is the outer jacket resistant to industrial oils and chemicals?
   The gray XLPE jacket is specifically formulated to resist oils, solvents, and a variety of industrial chemicals, ensuring long-term durability.

5. Does the cable support grounding through its shield?
   The tinned copper braid can be properly grounded at one or both ends to provide a low-impedance path for noise suppression and enhanced EMI protection.

6. What is the recommended minimum bend radius for installation?
   To prevent conductor damage and maintain shielding effectiveness, a minimum bend radius of five times the overall cable diameter is recommended.

7. Can this cable be used in outdoor installations?
   Yes, the robust insulation and wide operating temperature range allow safe use in outdoor or semi-exposed environments when appropriately protected from direct UV exposure.

8. How does the cable handle transient voltage spikes?
   The shielding and insulation system offer high dielectric strength, and when properly grounded, they help mitigate transient voltage spikes that may occur in industrial systems.

9. Is the cable compatible with other Woodward controller models besides the specified application?
   The 5417-039 is designed for broad compatibility across Woodward’s governor and actuator control systems, making it suitable for many legacy and current models.

10. What testing standards does the cable meet for flame resistance?
    It complies with UL VW-1 and CSA FT4 flame tests, ensuring safe operation in environments requiring stringent fire safety ratings.
