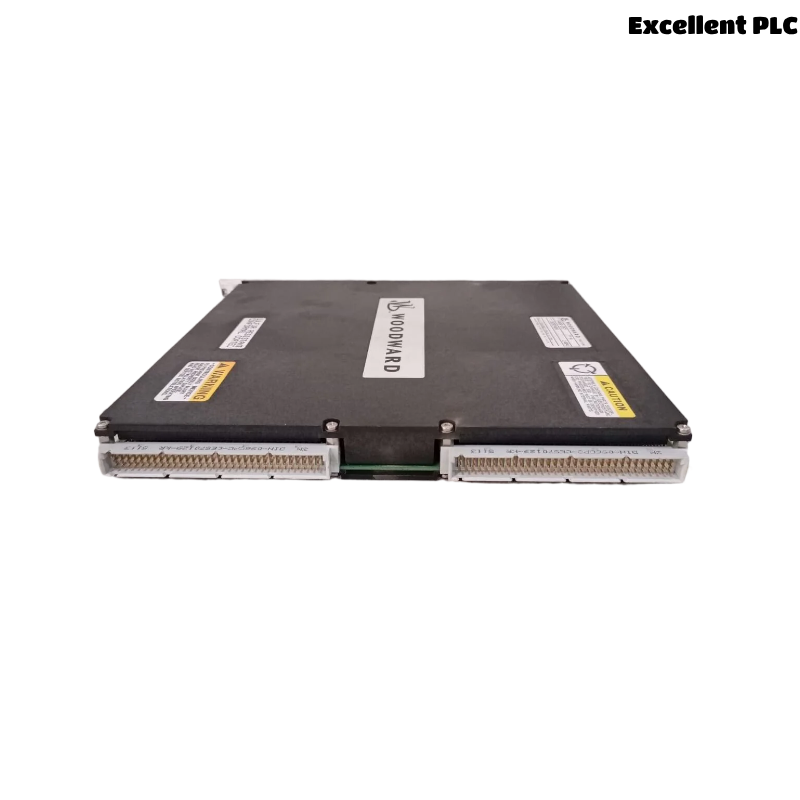

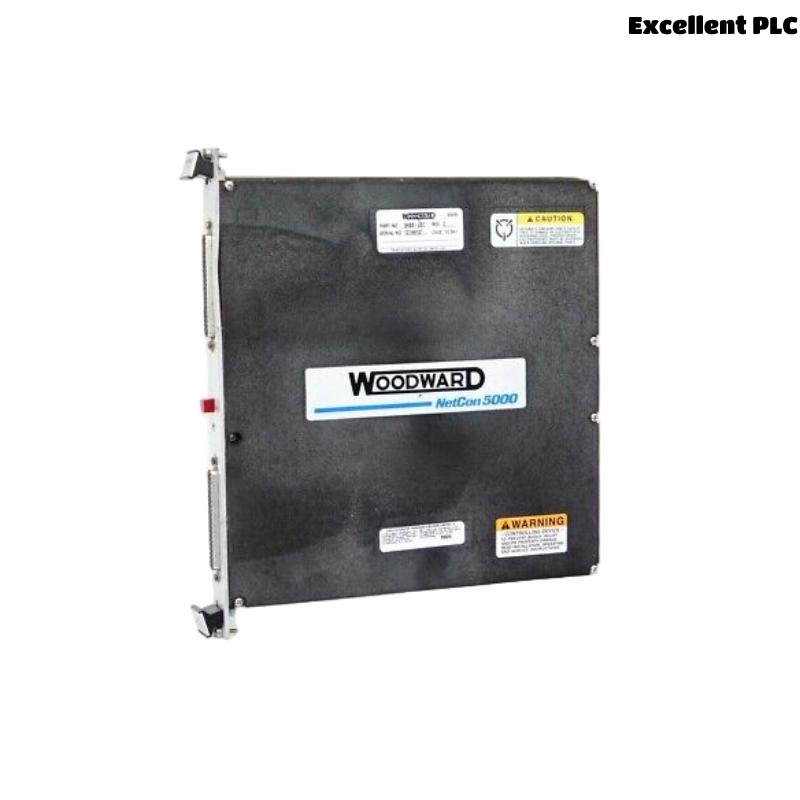

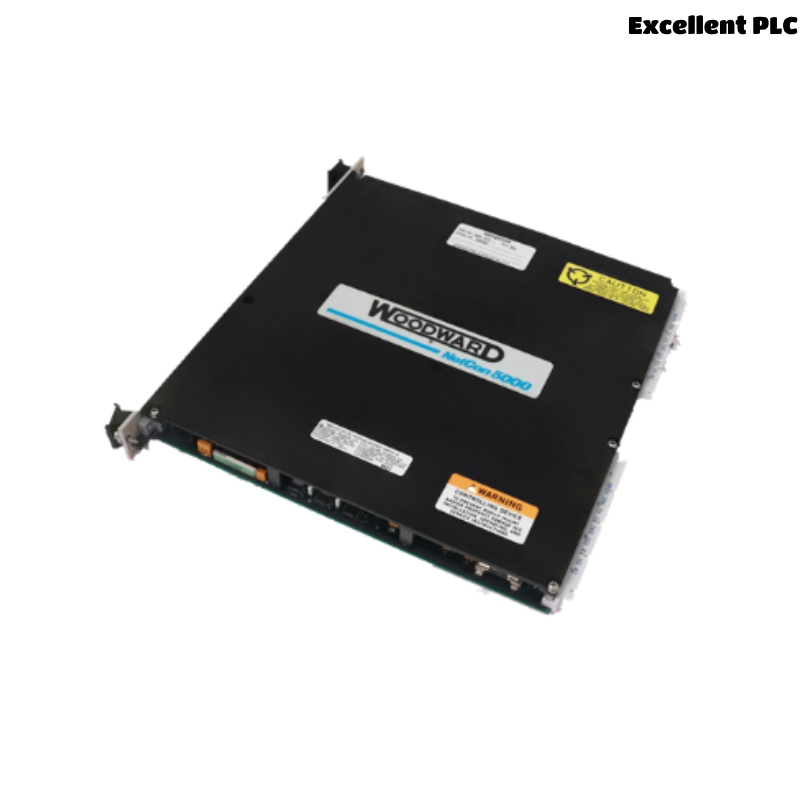

Woodward 5466-257 High-Density Analog I/O Modules

Product Introduction
The Woodward 5466-257 is a high-performance digital control module designed for use in industrial engine and turbine management systems. It is a part of Woodward’s legacy series of controllers, known for reliability, deterministic processing, and robust integration into mission-critical power generation and process automation systems. The 5466-257 module features powerful logic execution, I/O handling, and high-speed communication interfaces tailored for real-time control of rotating equipment. Its architecture is optimized to operate within harsh environments typically found in energy, oil & gas, and marine applications.

---

Product Advantages

• High Reliability: Built with industrial-grade components ensuring long operational life and stable performance in extreme environments.

• Seamless Integration: Compatible with a wide range of Woodward actuators, I/O modules, and software environments.

• Real-Time Processing: Supports deterministic control for precise and immediate actuation and data acquisition.

• Flexible Configuration: Multiple programmable parameters, scalable I/O, and adaptable network interfaces enable integration into custom automation setups.

• Strong EMC Resistance: The design complies with industrial electromagnetic compatibility standards, offering resilience in electrically noisy environments.

• Low Maintenance: Engineered for minimal service requirements, reducing total lifecycle cost for critical operations.

---

Technical Specifications

---

Product Applications
The 5466-257 control module is extensively used in the following areas:

• Gas Turbine Control: Governs fuel scheduling, speed control, and protective shutdowns in gas turbines.

• Steam Turbine Automation: Regulates inlet steam valves and monitors system health in utility steam turbines.

• Reciprocating Engines: Offers optimized control for diesel and natural gas engines in generation or mechanical drive applications.

• Process Control Systems: Integrated into control panels of oil refineries, offshore rigs, and chemical plants.

• Marine Propulsion: Ensures stable and dynamic control in maritime propulsion and auxiliary systems.

• Power Generation: Embedded in gensets for real-time load sharing, synchronization, and efficiency optimization.

---

Installation Instructions

1. Power Isolation: Before beginning installation, ensure all system power is completely turned off and locked out.

2. Mounting: Insert the 5466-257 module securely into a grounded control cabinet or rack. Ensure sufficient airflow.

3. Wiring: Connect power supply cables, communication lines, and interface I/O using manufacturer-approved connectors.

4. Commissioning: After installation, initiate a diagnostic startup using compatible Woodward configuration software.

5. Grounding: Ensure proper chassis grounding to prevent damage from transient voltages or EMI.

6. Final Checks: Confirm LED indicators are operating normally and no error codes are logged before bringing the system online.

---

Frequently Asked Questions (FAQ)

Q1: What is the primary use of the Woodward 5466-257 module?
A1: It is primarily used for control and automation of turbines, engines, and rotating machinery in industrial systems.

Q2: Can it be used in marine applications?
A2: Yes, the 5466-257 is suitable for marine propulsion and auxiliary equipment due to its environmental durability.

Q3: Does this module support remote diagnostics?
A3: It can be accessed remotely through compatible Woodward software when networked, enabling diagnostics and parameter tuning.

Q4: What is the power supply requirement for this model?
A4: It operates on a DC power input of 18 to 32 VDC, with nominal consumption below 15 watts.

Q5: How should the module be cooled?
A5: It relies on passive convection cooling. Ensure good ventilation around the unit for optimal performance.

Q6: Is the 5466-257 software-configurable?
A6: Yes, configuration is done via Woodward’s toolkit, typically through serial or Ethernet interfaces.

Q7: What happens if there’s a hardware fault?
A7: The module includes fault detection and diagnostic LEDs. It will enter safe mode or shutdown based on the fault type.

Q8: Is firmware upgradable?
A8: Firmware can be updated via Woodward’s software platform using authorized upgrade files.

Q9: What kind of connectors are used for I/O?
A9: It uses industrial-grade pin or plug connectors depending on the I/O type and rack integration.

Q10: Is the 5466-257 backward compatible with older Woodward systems?
A10: It offers compatibility with many legacy systems but should be verified with specific hardware models during integration.

---
