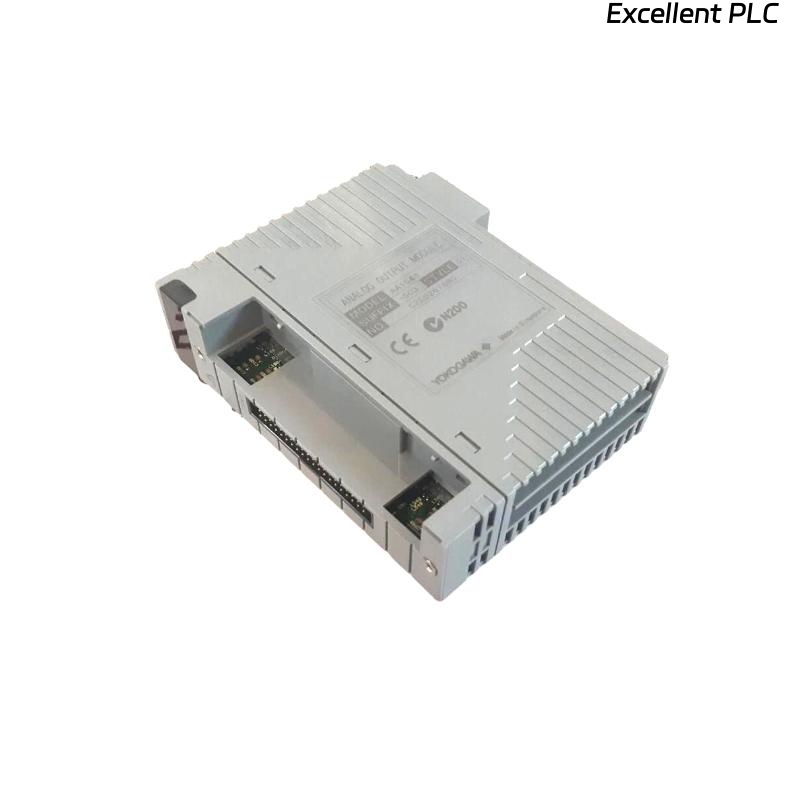

Yokogawa AAI543-S03 Analog Output Module
- Product Details
- FAQs
- Related
- Contact Us
- Packing & Delivery
- Product Ratings
Product Overview
The Yokogawa AAI543-S03 is a 16-channel isolated analog output module designed for precise 4 to 20 mA current signal transmission in industrial automation and process control systems. It is compatible with various Yokogawa FIO-based systems and supports dual-redundant configurations for enhanced reliability. With built-in HART communication capability, the module enables both standard analog control and advanced device diagnostics, ensuring optimal integration with field devices such as valve positioners and actuators.
Technical Specifications
| Parameter | Specification |
|---|---|
| Model | AAI543-S03 |
| Output Channels | 16, isolated |
| Output Signal | 4 to 20 mA |
| Withstanding Voltage | 1500 V AC between output and system, 1 minute |
| Allowable Load Resistance | 0 to 750 Ω |
| Circuit-Open Detection | Less than 0.65 mA |
| Accuracy | ±48 µA |
| Data Update Period | 10 ms |
| Temperature Drift | ±16 µA / 10°C |
| Maximum Current Consumption | 230 mA (5 V DC), 540 mA (24 V DC) |
| External Connection | Pressure clamp terminal, MIL connector cable, KS1 cable |
| Communication | HART protocol supported |
| Dimensions | 107.5 × 32.8 × 130 mm |
| Weight | 0.4 kg |
Applications
-
Process Control Systems – Precise current signal output for controlling actuators, control valves, and industrial devices.
-
Redundant Control Architectures – Dual-redundant setup ensures continuous operation in critical process environments.
-
Field Device Communication – HART-enabled monitoring and configuration for smart field devices.
-
Power Plant Automation – Reliable analog output for turbine and boiler control.
-
Chemical and Petrochemical Plants – Accurate signal transmission in hazardous and demanding conditions.
Advantages
-
High Reliability – Isolated design prevents interference and ensures stable performance.
-
Fast and Standard Switch-over Options – Supports both standard and fast response in redundant configurations.
-
HART Communication – Enables real-time device diagnostics and parameter adjustments.
-
Compact Design – Saves panel space while providing 16 isolated output channels.
-
Wide Compatibility – Works seamlessly with multiple Yokogawa field control stations.
-
Enhanced Safety – Meets high voltage isolation requirements for critical industrial applications.
FAQ
Q1: How many output channels does the AAI543-S03 have?
A1: It has 16 isolated output channels.
Q2: What is the output signal range?
A2: The output signal range is 4 to 20 mA.
Q3: Can it be used in redundant configurations?
A3: Yes, it supports both standard and fast switch-over dual-redundant setups.
Q4: Does it support HART communication?
A4: Yes, it supports HART protocol for enhanced device communication.
Q5: What is the maximum load resistance allowed?
A5: The allowable load resistance is 0 to 750 Ω.
Q6: What is the accuracy of the output signal?
A6: The accuracy is ±48 µA.
Q7: What is the size and weight of the module?
A7: Dimensions are 107.5 × 32.8 × 130 mm and weight is 0.4 kg.
Q8: What is the withstanding voltage rating?
A8: 1500 V AC between output and system for 1 minute.
Q9: What kind of external connections are supported?
A9: Pressure clamp terminal, MIL connector cable, and KS1 cable.
Q10: In which industries is the AAI543-S03 commonly used?
A10: Power generation, chemical processing, petrochemical, and other process automation industries.
Related Models (Same Series or Function)
| Model | Channels | Signal Type | Isolation | HART Support |
|---|---|---|---|---|
| AAI543-H | 16 | 4–20 mA Output | Yes | Yes |
| AAI543-5 | 16 | 4–20 mA Output | Yes | No |
| AAI543-6 | 16 | 4–20 mA Output (Fast) | Yes | No |
| AAI543-E | 16 | 4–20 mA Output | Yes | No |
| AAI543-F | 16 | 4–20 mA Output (Fast) | Yes | No |
| AAV544 | 16 | -10 to +10 V Output | Yes | No |
Popular Yokogawa Models
| Model | Function | Channels | Signal Type | Isolation |
|---|---|---|---|---|
| AAI141 | Analog Input | 16 | 4–20 mA | No |
| AAV141 | Analog Input | 16 | 1–5 V | No |
| AAI143 | Analog Input | 16 | 4–20 mA | Yes |
| AAV142 | Analog Input | 16 | -10 to +10 V | No |
| AAV544 | Analog Output | 16 | -10 to +10 V | Yes |
| AAI835 | Analog I/O | 4 In / 4 Out | 4–20 mA | Yes |
FAQ
Q1: How many output channels does the AAI543-S03 have?
A1: It has 16 isolated output channels.
Q2: What is the output signal range?
A2: The output signal range is 4 to 20 mA.
Q3: Can it be used in redundant configurations?
A3: Yes, it supports both standard and fast switch-over dual-redundant setups.
Q4: Does it support HART communication?
A4: Yes, it supports HART protocol for enhanced device communication.
Q5: What is the maximum load resistance allowed?
A5: The allowable load resistance is 0 to 750 Ω.
Q6: What is the accuracy of the output signal?
A6: The accuracy is ±48 µA.
Q7: What is the size and weight of the module?
A7: Dimensions are 107.5 × 32.8 × 130 mm and weight is 0.4 kg.
Q8: What is the withstanding voltage rating?
A8: 1500 V AC between output and system for 1 minute.
Q9: What kind of external connections are supported?
A9: Pressure clamp terminal, MIL connector cable, and KS1 cable.
Q10: In which industries is the AAI543-S03 commonly used?
A10: Power generation, chemical processing, petrochemical, and other process automation industries.
Related Models (Same Series or Function)
| Model | Channels | Signal Type | Isolation | HART Support |
|---|---|---|---|---|
| AAI543-H | 16 | 4–20 mA Output | Yes | Yes |
| AAI543-5 | 16 | 4–20 mA Output | Yes | No |
| AAI543-6 | 16 | 4–20 mA Output (Fast) | Yes | No |
| AAI543-E | 16 | 4–20 mA Output | Yes | No |
| AAI543-F | 16 | 4–20 mA Output (Fast) | Yes | No |
| AAV544 | 16 | -10 to +10 V Output | Yes | No |
Popular Yokogawa Models
| Model | Function | Channels | Signal Type | Isolation |
|---|---|---|---|---|
| AAI141 | Analog Input | 16 | 4–20 mA | No |
| AAV141 | Analog Input | 16 | 1–5 V | No |
| AAI143 | Analog Input | 16 | 4–20 mA | Yes |
| AAV142 | Analog Input | 16 | -10 to +10 V | No |
| AAV544 | Analog Output | 16 | -10 to +10 V | Yes |
| AAI835 | Analog I/O | 4 In / 4 Out | 4–20 mA | Yes |
