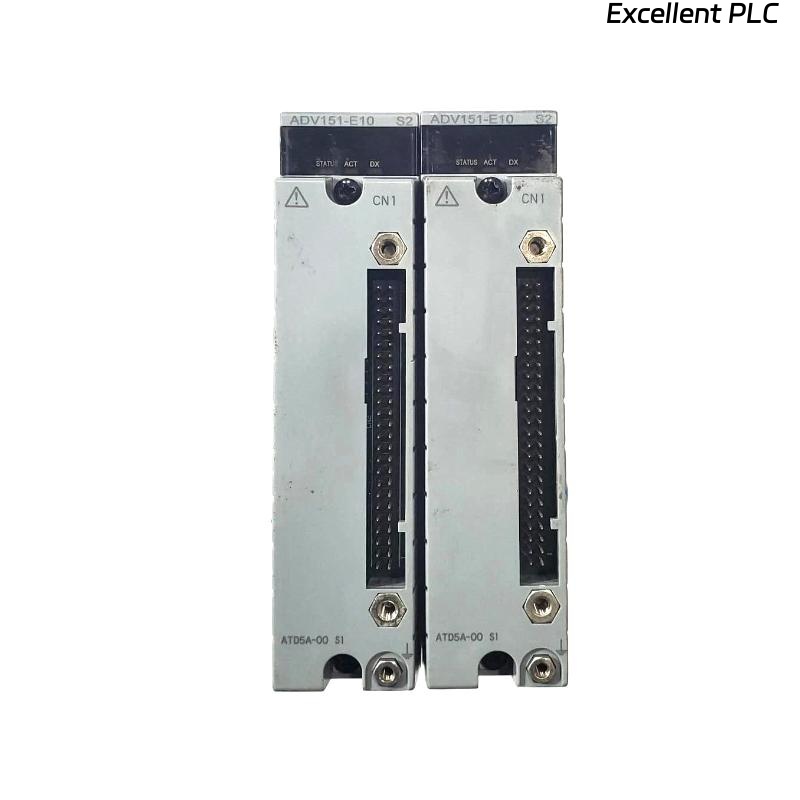

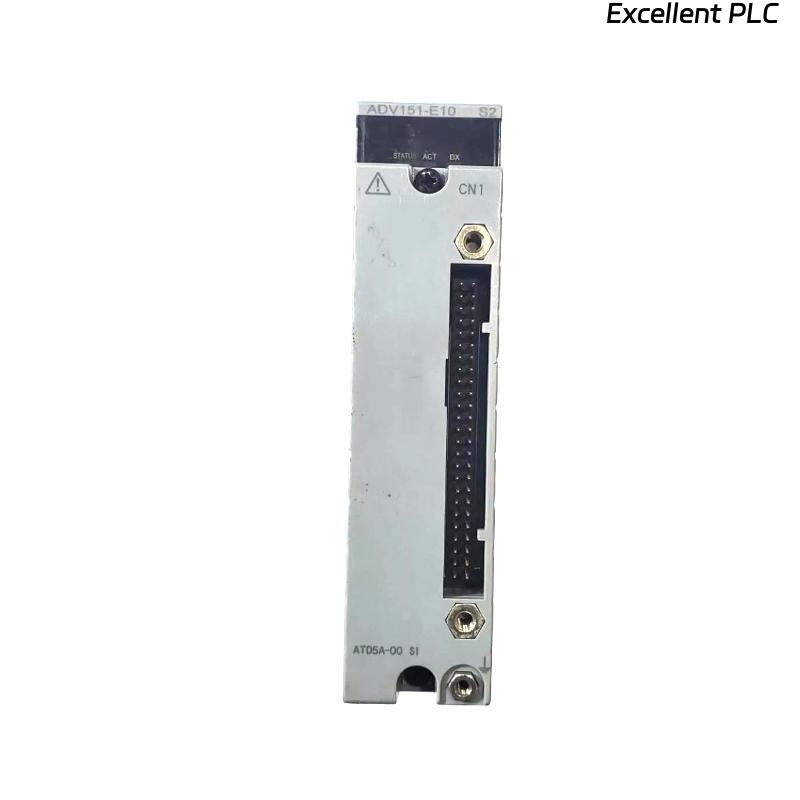

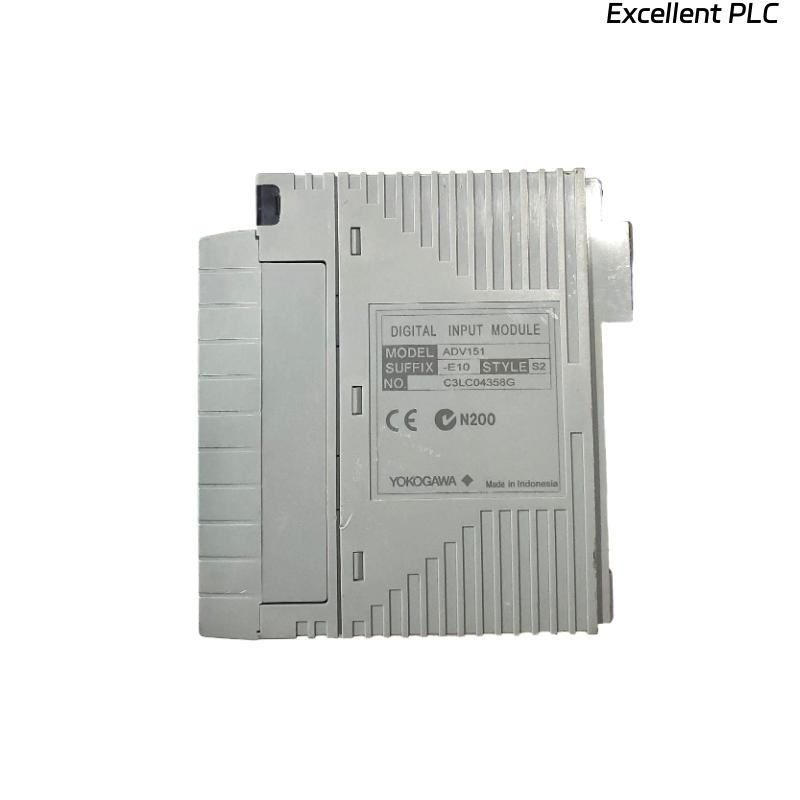

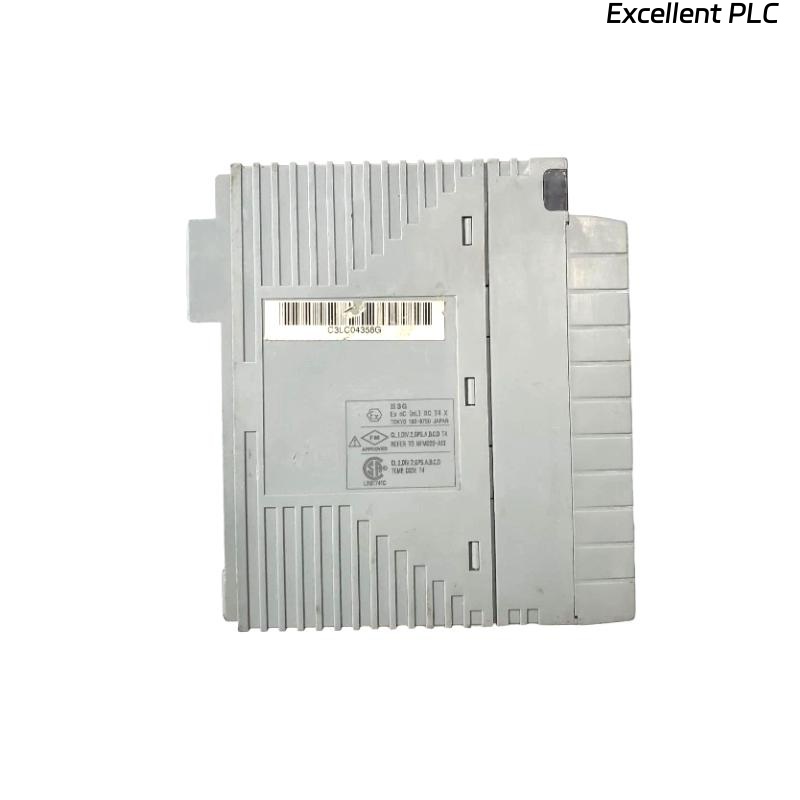

Yokogawa ADV151-E10 Digital Input Module
- Product Details
- FAQs
- Related
- Contact Us
- Packing & Delivery
- Product Ratings
Product Overview
The Yokogawa ADV151-E10 is a high-performance 32-channel digital input module designed for 24 V DC signal acquisition in industrial automation systems. It is part of Yokogawa’s Field I/O (FIO) module range and is suitable for installation in ESB Bus Node Units, Optical ESB Bus Node Units, and Field Control Units. The ADV151-E10 supports SOE (Sequence of Events) capture, enabling precise time-stamped event recording, and is optimized for reliable signal detection in demanding industrial environments.
Technical Specifications
| Parameter | Specification |
|---|---|
| Model | ADV151-E10 |
| Number of Input Channels | 32 |
| Rated Input Voltage | 24 V DC (sink/source) |
| Input ON Voltage | 18 to 26.4 V DC |
| Input OFF Voltage | ≤ 5.0 V DC |
| Input Current (at rated voltage) | 4.1 mA ±20% / channel |
| Maximum Allowable Input Voltage | 30.0 V DC |
| Withstanding Voltage | 2 kV AC (input to system, 1 min), 500 V AC (between commons every 16 channels) |
| Functions | ON/OFF status detection, pushbutton edge counting, SOE data capture |
| Input Response Time | ≤ 8 ms (status input) |
| Minimum ON Detection Time | 20 ms (pushbutton input) |
| Maximum ON/OFF Cycle | 25 Hz (pushbutton input) |
| Maximum Current Consumption | 500 mA (5 V DC) |
| External Connection | Pressure clamp terminal, dedicated cable (AKB331), MIL connector cable |
| Dimensions | 107.5 × 130 × 32.8 mm |
| Weight | 0.3 kg |
Applications
-
Process automation systems for power plants, chemical plants, and oil & gas facilities
-
High-speed digital signal acquisition for manufacturing control systems
-
Event and alarm monitoring with precise timestamping via SOE function
-
Integration with Yokogawa CENTUM VP and ProSafe-RS systems
-
Dual-redundant control architectures requiring reliable input detection
Advantages
-
High Reliability: Robust design for industrial environments with high EMC resistance.
-
Accurate Event Logging: SOE capture provides precise event timestamps for troubleshooting and sequence analysis.
-
Flexible Installation: Compatible with various Yokogawa node units and supports multiple wiring methods.
-
Fast Response: Low input response time ensures real-time system performance.
-
Compact Size: Space-saving design for dense I/O panel installations.
-
Redundant Capable: Supports dual-redundant configuration for enhanced system availability.
FAQ
Q1: What is the main function of the ADV151-E10?
A1: It detects and processes 32-channel 24 V DC ON/OFF signals for industrial automation systems.
Q2: Does the ADV151-E10 support SOE capture?
A2: Yes, the E version includes Sequence of Events capture capability.
Q3: What is the input voltage range?
A3: The rated input voltage is 24 V DC, with an ON voltage range of 18–26.4 V DC.
Q4: What is the response time of the module?
A4: The input response time is 8 ms or less for status inputs.
Q5: Can this module be used in redundant configurations?
A5: Yes, it supports dual-redundant configurations with ADV161 modules.
Q6: What type of external connections are supported?
A6: It supports pressure clamp terminals, dedicated cables, and MIL connector cables.
Q7: What is the operating principle of the pushbutton input function?
A7: It counts pushbutton edge changes with a minimum ON detection time of 20 ms.
Q8: Is the module explosion-proof?
A8: The “E” suffix indicates it is designed with explosion protection.
Q9: What is the physical size and weight?
A9: It measures 107.5 × 130 × 32.8 mm and weighs approximately 0.3 kg.
Q10: What systems is it compatible with?
A10: It is compatible with Yokogawa ESB and Optical ESB node units, as well as Field Control Units.
Related Models (Same Series)
| Model | Channels | Voltage | Special Functions |
|---|---|---|---|
| ADV151-P | 32 | 24 V DC | Pushbutton input |
| ADV151-E | 32 | 24 V DC | SOE capture |
| ADV161 | 64 | 24 V DC | Standard input |
| ADV161-P | 64 | 24 V DC | Pushbutton input |
| ADV859 | 16 in / 16 out | 24 V DC | ST2 compatible |
| ADV159 | 32 | 24 V DC | ST3 compatible |
Popular Yokogawa Models
| Model | Type | Channels | Voltage | Dimensions (mm) | Weight |
|---|---|---|---|---|---|
| ADV551 | Digital Output | 32 | 24 V DC | 107.5 × 130 × 32.8 | 0.2 kg |
| ADV561 | Digital Output | 64 | 24 V DC | 107.5 × 130 × 32.8 | 0.3 kg |
| ADV869 | Digital I/O | 32 in / 32 out | 24 V DC | 125.5 × 130 × 32.8 | 0.3 kg |
| ADV169 | Digital Input | 64 | 24 V DC | 125.5 × 130 × 32.8 | 0.3 kg |
| ADV569 | Digital Output | 64 | 24 V DC | 125.5 × 130 × 32.8 | 0.3 kg |
| ADV559 | Digital Output | 32 | 24 V DC | 125.5 × 130 × 32.8 | 0.3 kg |
