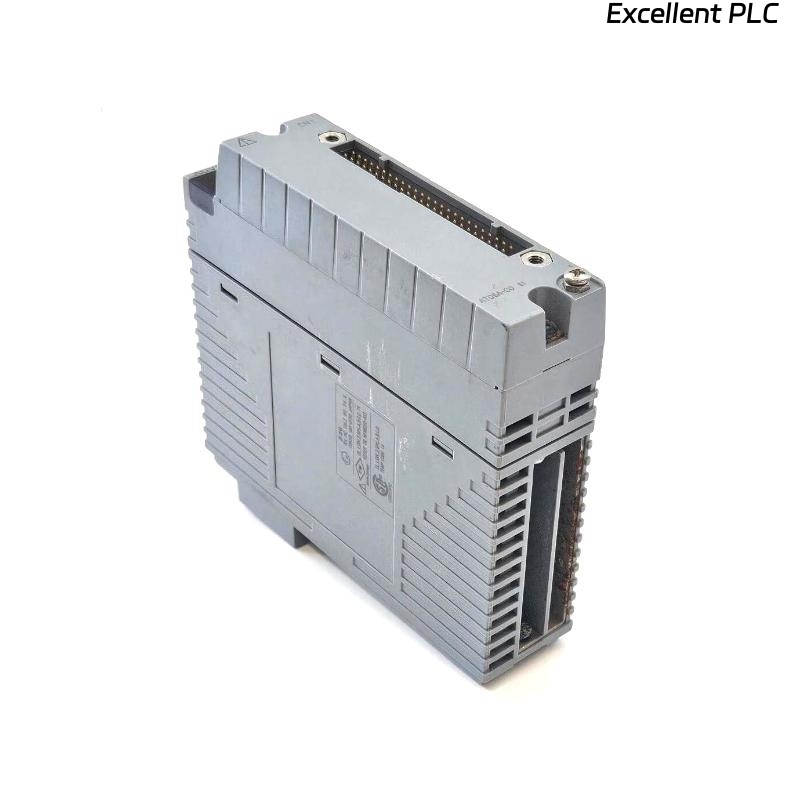

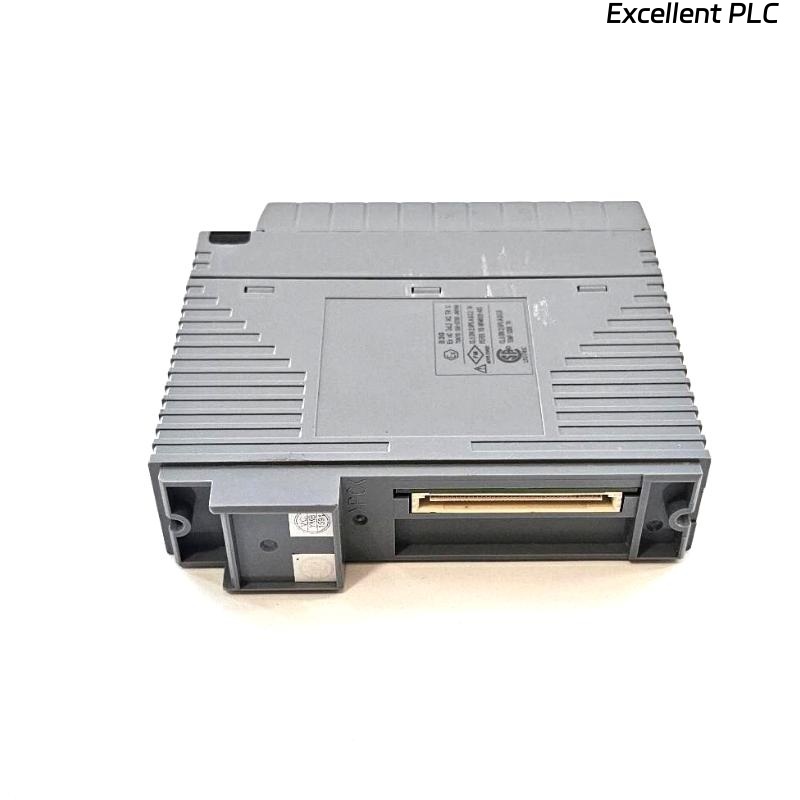

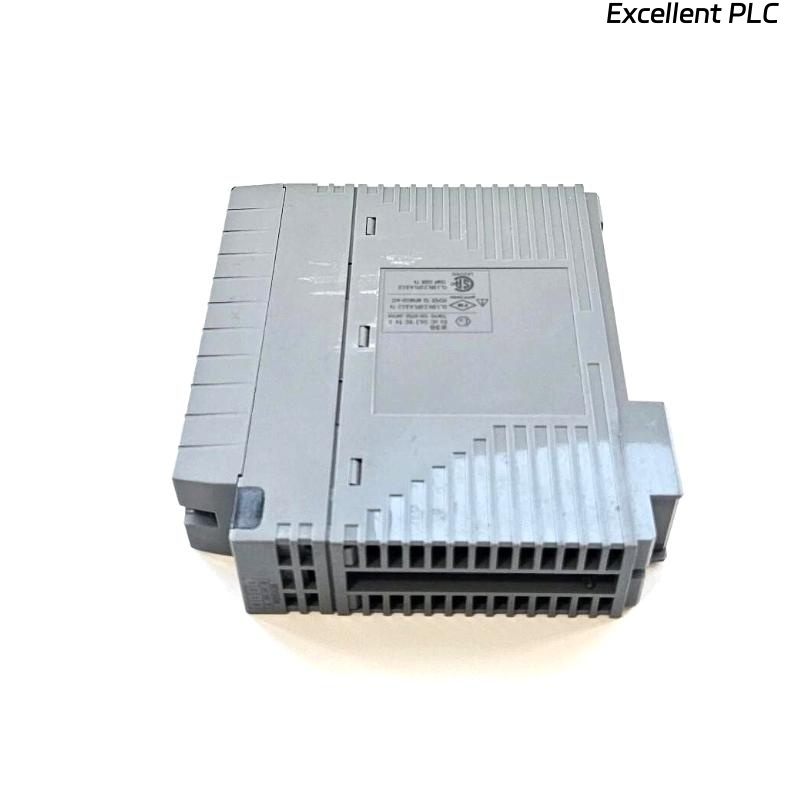

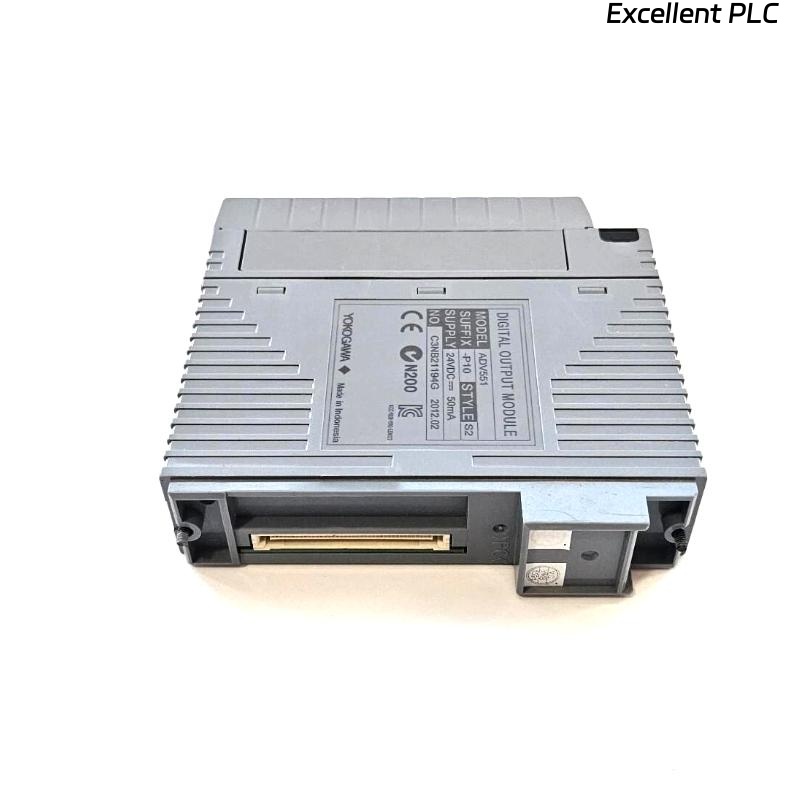

Yokogawa ADV551-P10 S2 Digital Output Module
- Product Details
- FAQs
- Related
- Contact Us
- Packing & Delivery
- Product Ratings
Product Overview
The Yokogawa ADV551-P10 S2 is a 32-channel isolated digital output module designed for use within the Field Control Unit (FCU) of the CENTUM VP integrated production control system. It provides transistor-based current sink output capability with high reliability and fast response for process automation environments. Supporting time-proportioning and pulse width functions, it is suitable for demanding digital control applications in critical industrial processes.
Applications
-
Distributed control systems (DCS) in chemical, oil & gas, and power industries
-
Batch process control for discrete outputs
-
Solenoid valve and relay control
-
High-speed digital signal processing in automation lines
-
Redundant output configurations in safety-integrated systems
Product Advantages
-
Supports 32 output channels with current sink configuration
-
Fast output response time of ≤3 ms
-
Pulse width and time-proportioning output support
-
Dual-redundant configuration compatibility
-
Electrically isolated channels for enhanced system stability
-
Compact form factor with robust mechanical design
-
Compliant with ISA Standard G3 and temperature extension options
Technical Specifications
| Parameter | Specification |
|---|---|
| Model | ADV551-P10 S2 |
| Number of Output Channels | 32 |
| Output Type | Transistor, current sink |
| Rated Applied Voltage | 24 V DC |
| External Power Supply | 24 V DC, 50 mA |
| Voltage Range | 20.4 to 26.4 V DC |
| Max. Output ON Voltage | 2 V DC |
| Max. OFF-state Leakage Current | 0.1 mA |
| Max. Load Current per Channel | 100 mA @ 26.4 V DC |
| Output Response Time | ≤3 ms (status) / ≤10 ms (mixed) |
| Pulse Width Range | 8 ms to 7200 s |
| Pulse Width Resolution | 8 ms (±1 ms delay) |
| Output Functions | Status, Pulse Width, Time Proportioning |
| Isolation | 2 kV AC (signal/system), 500 V AC (common) |
| Current Consumption (5 V DC) | 700 mA |
| Current Consumption (Ext. P.S.) | 60 mA |
| Dimensions (H×D×W) | 107.5 × 130 × 32.8 mm |
| Weight | 0.2 kg |
| Connection Type | Pressure clamp, dedicated cable, MIL cable |
FAQ
Q1: What is the function of the ADV551-P10 S2 module?
A1: It outputs 32-channel digital ON/OFF signals using a transistor sink type configuration for controlling external devices.
Q2: Is this module suitable for time-based control?
A2: Yes, it supports both pulse width and time-proportioning output functions, ideal for time-based digital control.
Q3: Can the ADV551 be used in a dual-redundant configuration?
A3: Yes, it is designed to operate in dual-redundant mode for increased system reliability.
Q4: What isolation protection does it provide?
A4: 2 kV AC between signal and system, and 500 V AC between commons every 16 channels.
Q5: What is the response time for outputs?
A5: The status output response time is ≤3 ms; mixed status/pulse outputs ≤10 ms.
Q6: Is this module compatible with MIL cables?
A6: Yes, it supports MIL connector cable interfaces as well as pressure clamp terminal blocks.
Q7: What external voltage is required?
A7: A 24 V DC supply within a range of 20.4 to 26.4 V DC.
Q8: What type of output format does it use?
A8: Current sink transistor output.
Q9: What is the weight and size of the module?
A9: The module measures 107.5 × 130 × 32.8 mm and weighs approximately 0.2 kg.
Q10: Does it support high-frequency switching?
A10: Yes, it supports high-speed digital switching with precise timing via PWM and TPO functions.
Related Yokogawa Models (Same Series)
| Model | Type | Channels | Voltage | Functions | Weight |
|---|---|---|---|---|---|
| ADV561 | Digital Output | 64 | 24 V DC | SO / PW / TP | 0.3 kg |
| ADV559 | Digital Output | 32 | 30 V DC | SO / PW / TP (ST4 compatible) | 0.3 kg |
| ADV569 | Digital Output | 64 | 30 V DC | SO / PW / TP (ST7 compatible) | 0.3 kg |
| ADV859 | Digital I/O | 16 in / 16 out | 30 V DC | SO / PW / TP (ST2 compatible) | 0.3 kg |
| ADV869 | Digital I/O | 32 in / 32 out | 30 V DC | SO / PW / TP (ST5 compatible) | 0.3 kg |
| ADV151 | Digital Input | 32 | 24 V DC | SI / PB / SOE | 0.3 kg |
Popular Yokogawa Models
| Model | Description | Function | Voltage | Weight |
|---|---|---|---|---|
| AAI543-H50 | Analog Input Module | AI HART, 16 ch | 24 V DC | 0.25 kg |
| AAI841-H00 | Analog Input HART Module | AI HART, 8 ch | 24 V DC | 0.3 kg |
| AAR181-S00 | Remote I/O Optical Repeater | I/O Extension | – | 0.4 kg |
| ADV151-P05 | Digital Input Module | 32 ch, Pushbutton support | 24 V DC | 0.3 kg |
| CP451-10 | Processor Module | CPU for FCU | – | 0.6 kg |
| PW482-10 | Power Supply Module | FCU power supply | 24 V DC | 1.0 kg |
