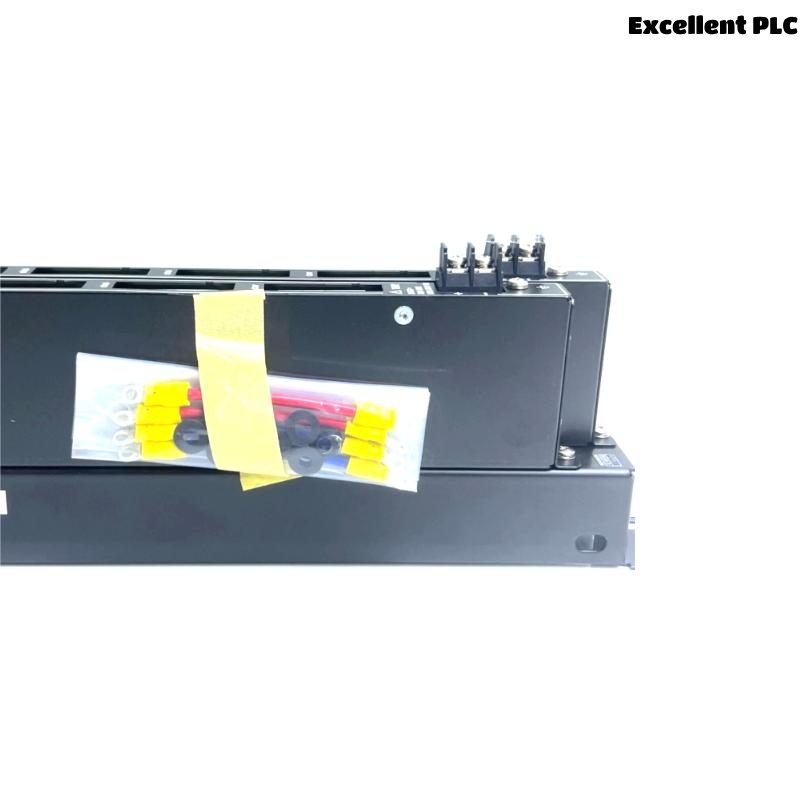

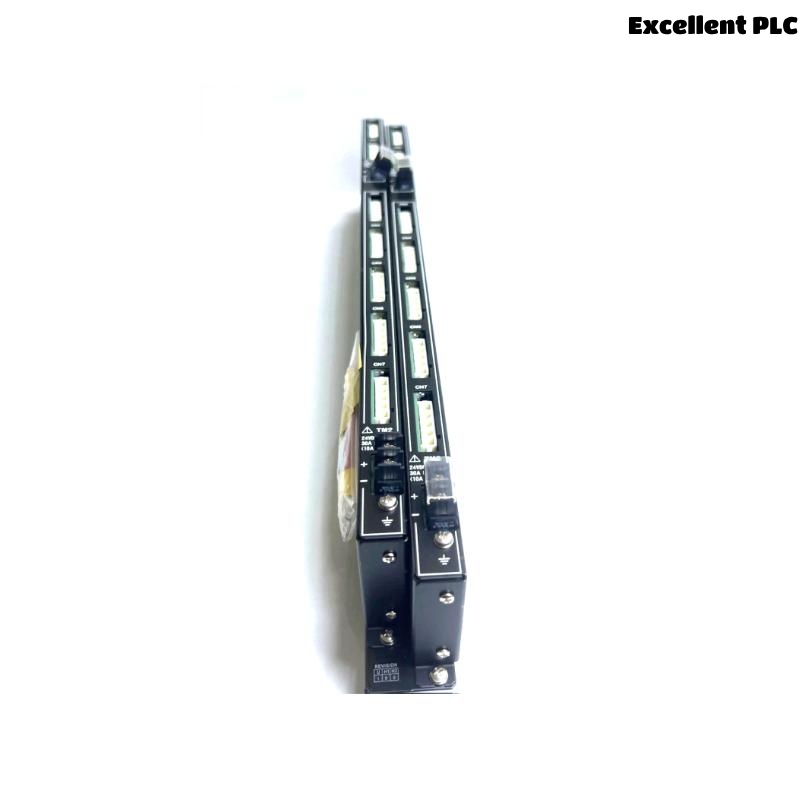

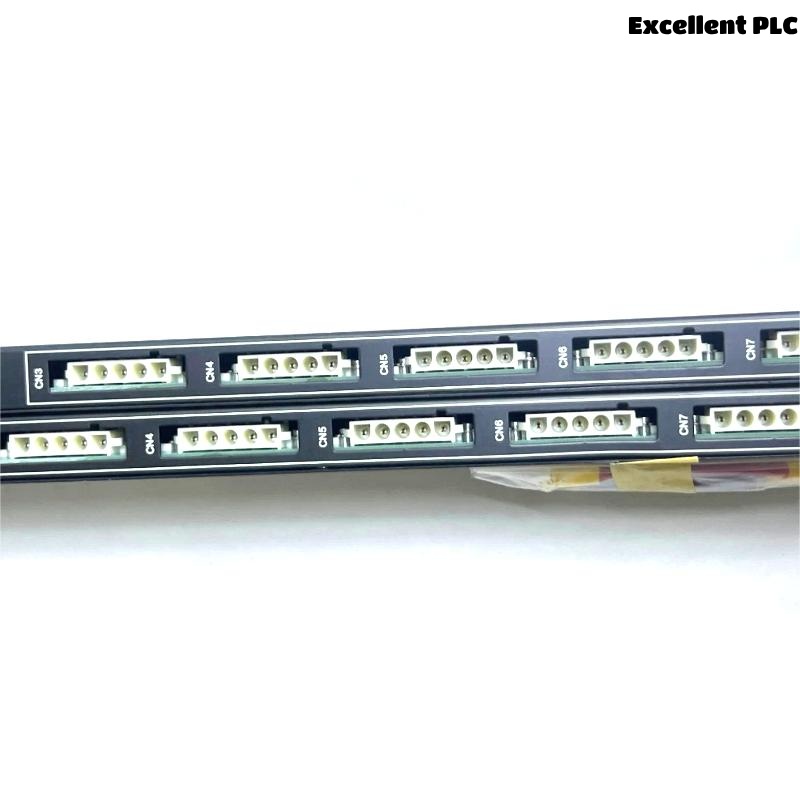

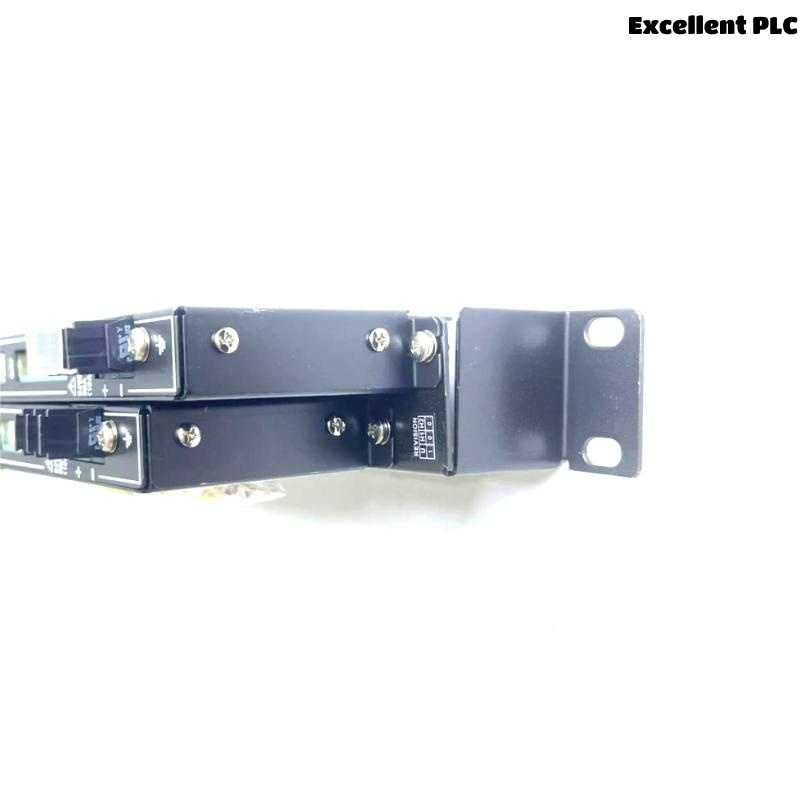

Yokogawa AEPV7D Power Supply Bus Unit
- Product Details
- FAQs
- Related
- Contact Us
- Packing & Delivery
- Product Ratings
Product Description
The Yokogawa AEPV7D Power Supply Bus Unit is a vertical-type power distribution unit designed for cabinet mounting in N-IO/FIO systems. It distributes power to multiple units in a cabinet, supporting dual independent power sources for redundancy. With options for 100–120 V AC, 220–240 V AC, or 24 V DC input, it provides up to 14 outputs by combining inputs. It ensures reliable and maintainable power distribution in process control environments.
Technical Specifications
| Parameter | Specification |
|---|---|
| Model | AEPV7D |
| Input Voltage Options | 100–120 V AC ±10%, 50/60 Hz 220–240 V AC ±10%, 50/60 Hz 24 V DC ±10% |
| Maximum Input Current | 20 A (AC types) 42 A (DC type) |
| Maximum Output Current per Port | 6 A (AC types) 10 A (DC type) |
| Outputs | Up to 14 (7 per power line) |
| Dimensions | 630 × 166 × 43.6 mm |
| Weight | Approx. 2.9 kg |
| Installation | Cabinet vertical mounting only |
| Withstanding Voltage | 1500 V AC (AC types) 500 V AC (DC type) |
Applications
-
Power distribution for Yokogawa N-IO/FIO systems.
-
Cabinet-mounted process control systems.
-
Environments requiring redundant and independent power lines.
-
Industrial plants with explosion-protected or standard installations.
Advantages
-
Supports dual independent power sources for redundancy.
-
Multiple output ports for flexible cabinet configuration.
-
Compact and lightweight design for efficient space usage.
-
Available in standard and explosion-protected versions.
-
Compatible with Yokogawa CENTUM VP systems.
Frequently Asked Questions
Q1: What input voltages does the AEPV7D support?
A1: It supports 100–120 V AC, 220–240 V AC, and 24 V DC inputs.
Q2: How many output ports does it provide?
A2: It provides up to 14 output ports by combining two input lines.
Q3: Can it be installed horizontally?
A3: No, it is designed only for vertical cabinet mounting.
Q4: Is it suitable for use in explosion-protected environments?
A4: Yes, specific models are available with explosion protection.
Q5: What is the maximum output current per port?
A5: Up to 6 A for AC models and 10 A for the DC model.
Q6: Is the unit compatible with CENTUM VP systems?
A6: Yes, it is designed for use with Yokogawa CENTUM VP.
Q7: What is the weight of the unit?
A7: Approximately 2.9 kg.
Q8: Can it operate with only one power source?
A8: Yes, one source can provide power to all outputs if lines are bridged.
Q9: Does it include cables?
A9: Optional cables are available depending on the model.
Q10: Is maintenance possible on one power line without shutting down the other?
A10: Yes, each power line can be maintained independently.
Recommended Related Models
| Model | Input Voltage | Outputs | Dimensions (mm) | Weight |
|---|---|---|---|---|
| AEPV7D-1□□ | 100–120 V AC | 14 | 630 × 166 × 43.6 | 2.9 kg |
| AEPV7D-2□□ | 220–240 V AC | 14 | 630 × 166 × 43.6 | 2.9 kg |
| AEPV7D-4□□ | 24 V DC | 14 | 630 × 166 × 43.6 | 2.9 kg |
| AEPJ7D | Horizontal Type | 14 | Similar | Similar |
| AEPV6D | Previous Gen | 12 | Slightly smaller | 2.7 kg |
| AEPV8D | High Capacity | 16 | 700 × 180 × 50 | 3.2 kg |
Popular Yokogawa Models
| Model | Description | Dimensions (mm) | Weight |
|---|---|---|---|
| PW101 | Power Supply Module | 160 × 120 × 35 | 0.8 kg |
| PW102 | Power Supply Module | 160 × 120 × 35 | 0.8 kg |
| PW402 | Power Supply Module | 220 × 150 × 40 | 1.2 kg |
| PW302-S4 | Power Supply Module | 220 × 150 × 40 | 1.2 kg |
| AEPJ7D | Power Supply Bus Unit (Horz.) | 630 × 166 × 43.6 | 2.9 kg |
| AEPV6D | Power Supply Bus Unit (Prev. Gen) | 600 × 160 × 40 | 2.7 kg |
Frequently Asked Questions
Q1: What input voltages does the AEPV7D support?
A1: It supports 100–120 V AC, 220–240 V AC, and 24 V DC inputs.
Q2: How many output ports does it provide?
A2: It provides up to 14 output ports by combining two input lines.
Q3: Can it be installed horizontally?
A3: No, it is designed only for vertical cabinet mounting.
Q4: Is it suitable for use in explosion-protected environments?
A4: Yes, specific models are available with explosion protection.
Q5: What is the maximum output current per port?
A5: Up to 6 A for AC models and 10 A for the DC model.
Q6: Is the unit compatible with CENTUM VP systems?
A6: Yes, it is designed for use with Yokogawa CENTUM VP.
Q7: What is the weight of the unit?
A7: Approximately 2.9 kg.
Q8: Can it operate with only one power source?
A8: Yes, one source can provide power to all outputs if lines are bridged.
Q9: Does it include cables?
A9: Optional cables are available depending on the model.
Q10: Is maintenance possible on one power line without shutting down the other?
A10: Yes, each power line can be maintained independently.
Recommended Related Models
| Model | Input Voltage | Outputs | Dimensions (mm) | Weight |
|---|---|---|---|---|
| AEPV7D-1□□ | 100–120 V AC | 14 | 630 × 166 × 43.6 | 2.9 kg |
| AEPV7D-2□□ | 220–240 V AC | 14 | 630 × 166 × 43.6 | 2.9 kg |
| AEPV7D-4□□ | 24 V DC | 14 | 630 × 166 × 43.6 | 2.9 kg |
| AEPJ7D | Horizontal Type | 14 | Similar | Similar |
| AEPV6D | Previous Gen | 12 | Slightly smaller | 2.7 kg |
| AEPV8D | High Capacity | 16 | 700 × 180 × 50 | 3.2 kg |
Popular Yokogawa Models
| Model | Description | Dimensions (mm) | Weight |
|---|---|---|---|
| PW101 | Power Supply Module | 160 × 120 × 35 | 0.8 kg |
| PW102 | Power Supply Module | 160 × 120 × 35 | 0.8 kg |
| PW402 | Power Supply Module | 220 × 150 × 40 | 1.2 kg |
| PW302-S4 | Power Supply Module | 220 × 150 × 40 | 1.2 kg |
| AEPJ7D | Power Supply Bus Unit (Horz.) | 630 × 166 × 43.6 | 2.9 kg |
| AEPV6D | Power Supply Bus Unit (Prev. Gen) | 600 × 160 × 40 | 2.7 kg |
