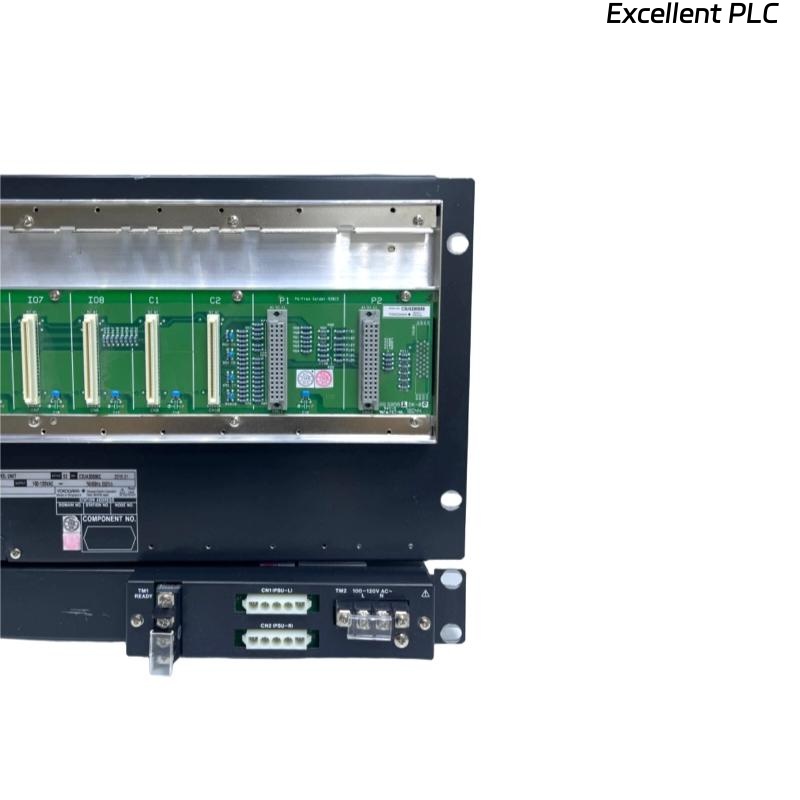

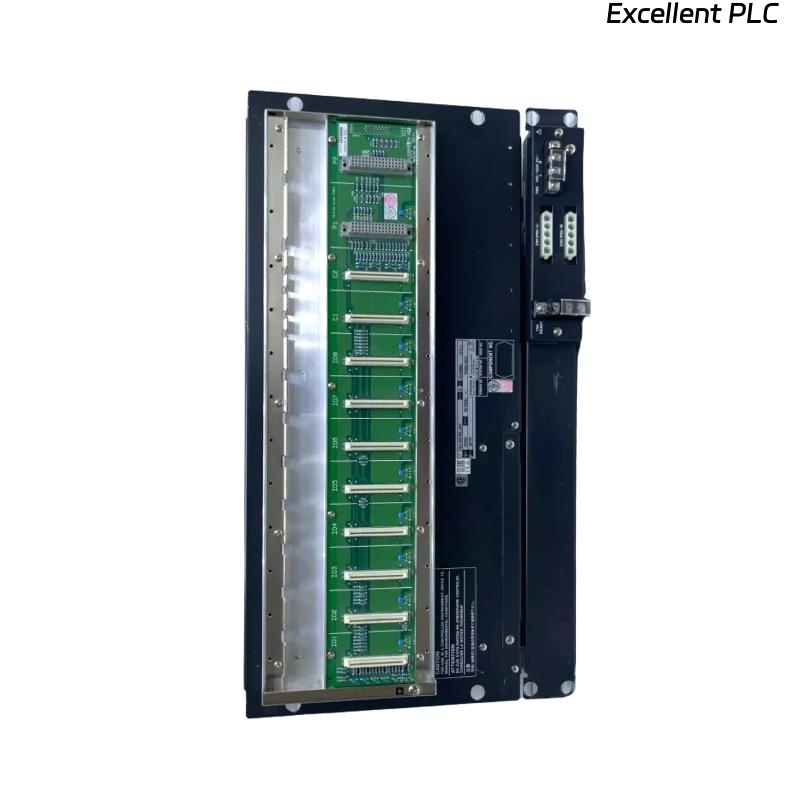

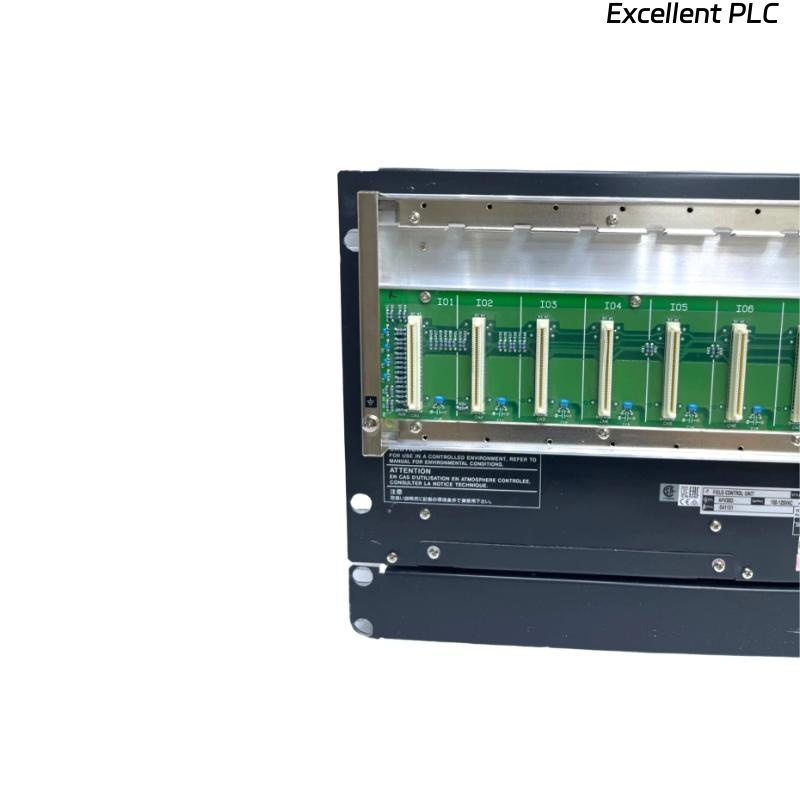

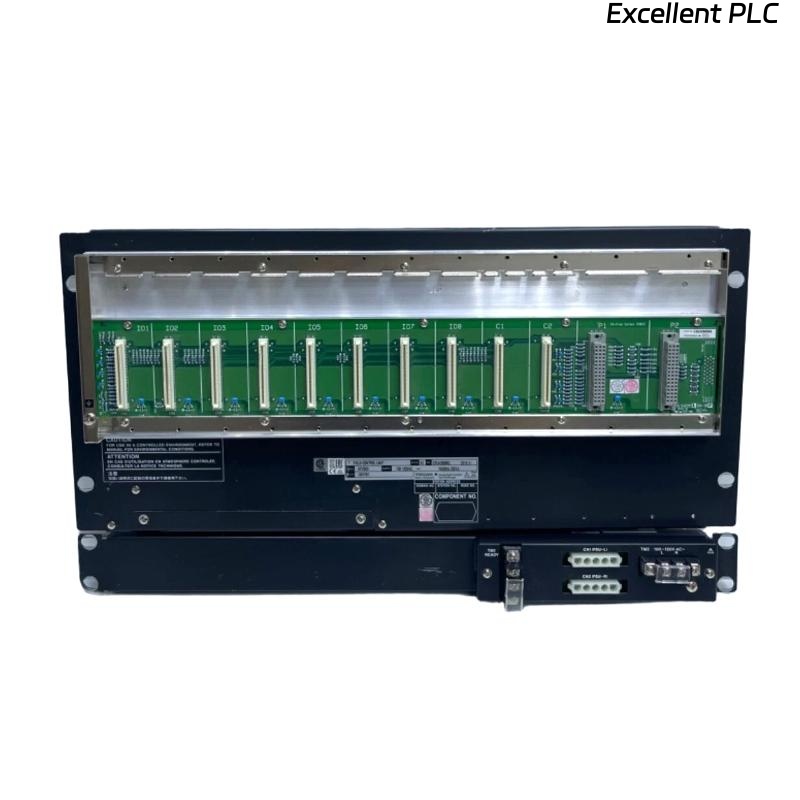

Yokogawa AFV30D-S41151 Duplexed Field Control Unit

Product Introduction

The Yokogawa AFV30D-S41151 Duplexed Field Control Unit (FCU) is a high-reliability control module designed for the CENTUM VP Distributed Control System (DCS). As a duplexed configuration unit, it provides redundant control processing to ensure system availability and seamless operation even in the event of hardware failures.

This FCU is primarily used in mission-critical industries such as oil & gas, petrochemicals, refining, power generation, and water treatment facilities. Its design follows Yokogawa’s philosophy of achieving continuous plant availability, long-term stability, and flexible scalability.

By supporting duplex (redundant) CPU configuration, the AFV30D-S41151 offers fault tolerance, real-time process monitoring, and deterministic control performance. It ensures that process plants can achieve uninterrupted operation, making it an essential building block for modern industrial automation infrastructures.

Product Parameters

Product Applications

• Oil & Gas Industry – Used in upstream and downstream process control, including drilling, refining, and LNG plants.

• Petrochemical & Chemical Processing – Provides stable process control for complex continuous production.

• Power Generation – Ensures continuous plant operation in thermal, nuclear, and renewable power plants.

• Water & Wastewater Treatment – Enables reliable control of water treatment, desalination, and distribution systems.

• Pharmaceutical Manufacturing – Used in batch process control requiring high accuracy and regulatory compliance.

• Steel & Mining Industries – Supports heavy industrial processes with fault-tolerant control performance.

Product Advantages

1. Duplex Redundancy – Ensures uninterrupted control with dual CPU architecture.

2. High Availability – Automatic switchover in case of CPU or communication failure.

3. Scalability – Can handle large-scale plant applications with flexible I/O expansion.

4. Deterministic Control – Provides precise control cycles from 10 ms upwards.

5. Integrated Networking – Uses Yokogawa’s high-speed Vnet/IP for seamless system communication.

6. Compliance with Standards – Supports SIL2 applications and API/IEC safety requirements.

7. Long Lifecycle Support – Yokogawa guarantees long-term availability and backward compatibility.

8. Reduced Downtime – Hot-swap support for components without shutting down the system.

9. Energy Efficient – Optimized design reduces power consumption while maintaining high performance.

10. Proven Reliability – Trusted in thousands of global installations across mission-critical industries.

FAQ

1. What control cycle times are supported by the AFV30D-S41151?
   It supports cycle times selectable between 10 ms and 250 ms.

2. Which communication protocol does the unit use for networking?
   It uses Yokogawa’s Vnet/IP high-speed deterministic network.

3. Does the FCU support hot-swappable components?
   Yes, key modules and power units can be replaced online without shutting down.

4. What redundancy is provided in this module?
   Duplex redundancy is available for CPU, power supply, and communication paths.

5. How many I/O points can the FCU manage?
   It supports up to 1,500 I/O points depending on system configuration.

6. Is this FCU SIL2 certified for safety applications?
   Yes, when configured within a certified safety system, it complies with SIL2.

7. What industries typically deploy the AFV30D-S41151?
   It is widely used in oil & gas, petrochemical, power generation, and water treatment.

8. How does the system handle a CPU failure?
   Automatic switchover to the standby CPU occurs seamlessly without process interruption.

9. Can it integrate with legacy Yokogawa systems?
   Yes, it maintains backward compatibility within CENTUM VP and integrates with legacy series.

10. What is the communication speed of Vnet/IP in this module?
    Vnet/IP provides high-speed deterministic communication at 1 Gbps.
