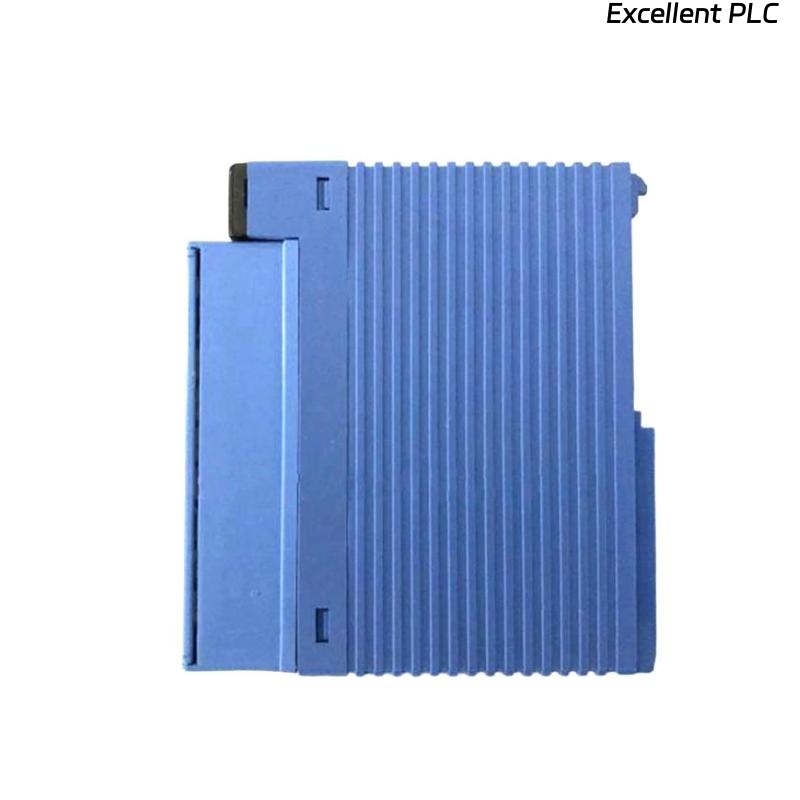

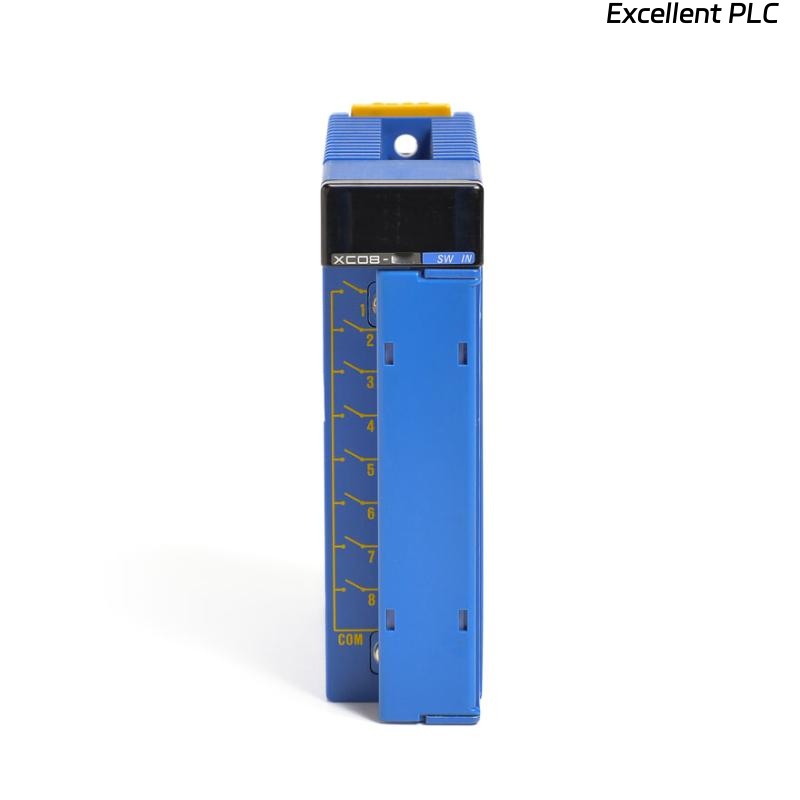

Yokogawa F3AD08-5V Analog Input Module
- Product Details
- FAQs
- Related
- Contact Us
- Packing & Delivery
- Product Ratings
Product Overview

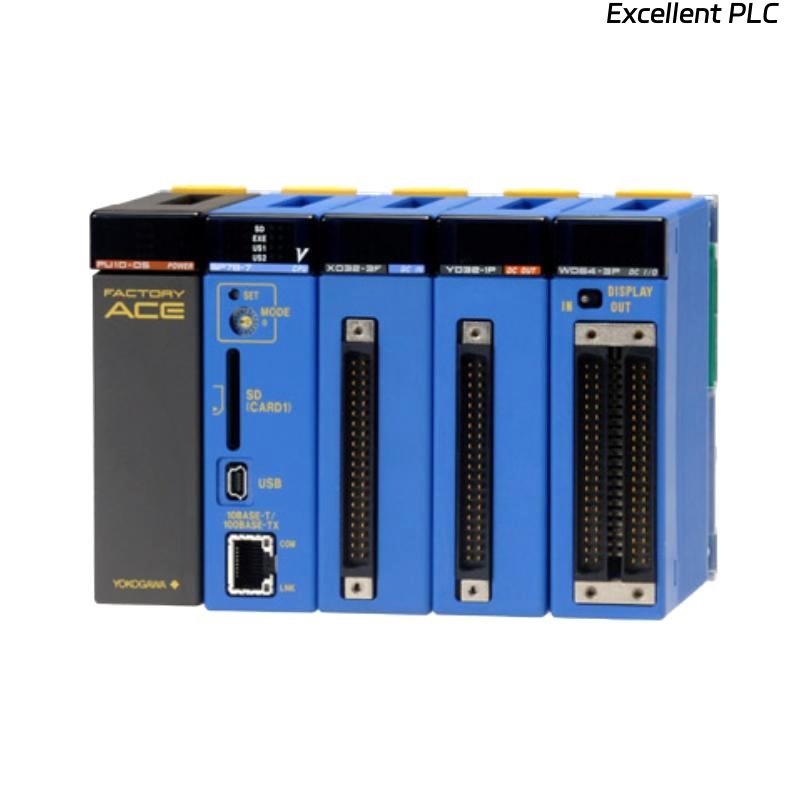

The Yokogawa F3AD08-5V is an 8-channel analog input module designed for FA-M3 PLC systems. It provides precise voltage signal acquisition with high-speed A/D conversion and robust input isolation. The module is engineered for industrial automation environments requiring accuracy, reliability, and flexible configuration options.
Technical Specifications
| Parameter | Specification |
|---|---|
| Number of Inputs | 8 differential channels |
| Input Signal Range | 0–5 V DC, 1–5 V DC, 0–10 V DC, -10–+10 V DC |
| Conversion Speed | 1 ms per channel |
| Resolution | 12-bit A/D conversion |
| Accuracy | ±0.2% FS (23±2°C), ±0.5% FS (0–55°C) |
| Scaling | -30,000 to 30,000 |
| Offset | -5,000 to 5,000 |
| Filter Options | First-order lag or moving average per channel |
| Data Hold | Supports peak and trough value recording |
| Self-Diagnosis | Hardware self-diagnosis, over-range detection |
| Current Consumption | 210 mA at 5 V DC |
| Dimensions | 28.9 × 100 × 106.1 mm |
| Weight | 0.2 kg |
| Connection | 18-point terminal block, M3.5 screws |
| Isolation | Input terminals isolated via photocouplers |
Applications
-
Industrial process control systems
-
Data acquisition in manufacturing environments
-
Machine automation requiring high-precision voltage monitoring
-
Signal monitoring for safety and quality systems
Advantages
-
High-speed, 12-bit A/D conversion ensures accurate measurements
-
Multiple input ranges for versatile voltage signal compatibility
-
Built-in self-diagnosis and over-range detection improve reliability
-
Configurable filters and data hold functions support advanced signal processing
-
Compact and lightweight design allows easy integration into PLC racks
-
Input isolation enhances system safety and reduces interference
Frequently Asked Questions (FAQ)
1. What voltage ranges does the F3AD08-5V support?
It supports 0–5 V DC, 1–5 V DC, 0–10 V DC, and -10–+10 V DC input ranges.
2. How fast is the A/D conversion?
Each channel converts signals in 1 millisecond.
3. What is the module’s measurement accuracy?
±0.2% FS at 23±2°C and ±0.5% FS over 0–55°C.
4. Can the module record peak and trough values?
Yes, the data hold function allows peak and trough value recording.
5. Is the module protected against over-range inputs?
Yes, over-range detection is integrated with hardware self-diagnosis.
6. How are the inputs isolated?
Input terminals are isolated via photocouplers from the internal circuitry.
7. What is the power consumption?
The module consumes 210 mA at 5 V DC.
8. What type of terminal connection is used?
It uses an 18-point terminal block with M3.5 screws.
9. Can filtering be applied individually per channel?
Yes, first-order lag or moving average filters can be enabled per channel.
10. What are the physical dimensions and weight?
Dimensions: 28.9 × 100 × 106.1 mm; Weight: 0.2 kg.
Related and Recommended Models
| Model | Channels | Input Range | Resolution | Dimensions (mm) | Weight (kg) |
|---|---|---|---|---|---|
| F3AD08-10V | 8 | 0–10 V, -10–+10 V | 12-bit | 28.9 × 100 × 106.1 | 0.2 |
| F3AD04-5V | 4 | 0–5 V DC | 12-bit | 28.9 × 100 × 106.1 | 0.2 |
| F3AD04-10V | 4 | 0–10 V, -10–+10 V | 12-bit | 28.9 × 100 × 106.1 | 0.2 |
| F3AD08-20mA | 8 | 4–20 mA | 12-bit | 28.9 × 100 × 106.1 | 0.2 |
| F3AD04-20mA | 4 | 4–20 mA | 12-bit | 28.9 × 100 × 106.1 | 0.2 |
| F3AD16-5V | 16 | 0–5 V DC | 12-bit | 57 × 100 × 106.1 | 0.35 |

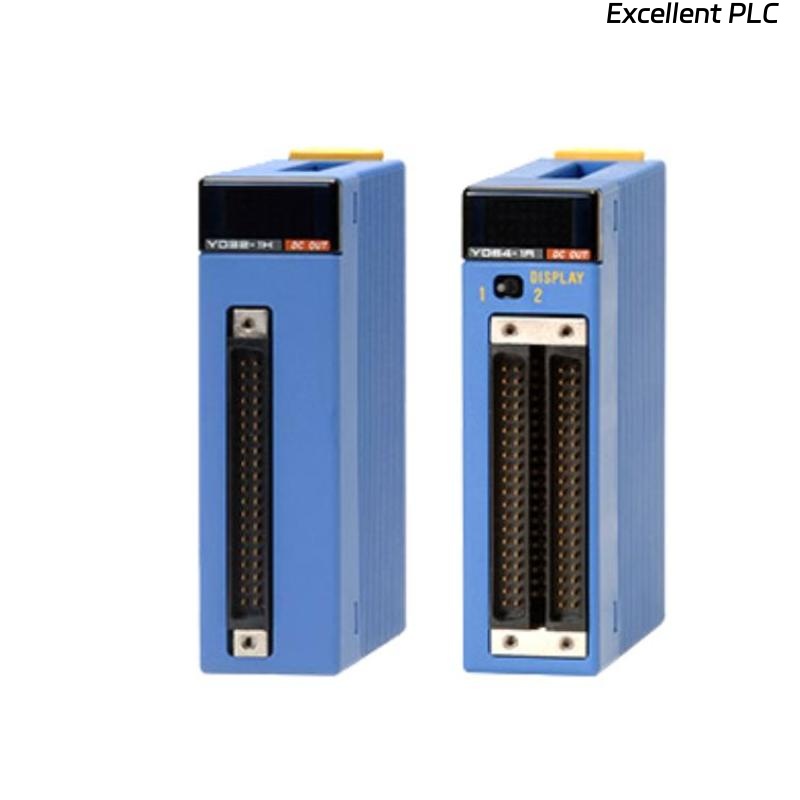

Popular Yokogawa FA-M3 Modules
| Model | Function | Channels/IO | Dimensions (mm) | Weight (kg) |
|---|---|---|---|---|
| F3AD08-5V | Analog Input | 8 | 28.9 × 100 × 106.1 | 0.2 |
| F3OD08-5V | Analog Output | 8 | 28.9 × 100 × 106.1 | 0.2 |
| F3ID16 | Digital Input | 16 | 28.9 × 100 × 106.1 | 0.2 |
| F3OD16 | Digital Output | 16 | 28.9 × 100 × 106.1 | 0.2 |
| F3DA08-10V | Dual Analog Input | 8 | 28.9 × 100 × 106.1 | 0.2 |
| F3RA08 | Relay Output | 8 | 28.9 × 100 × 106.1 | 0.2 |
