Product Introduction

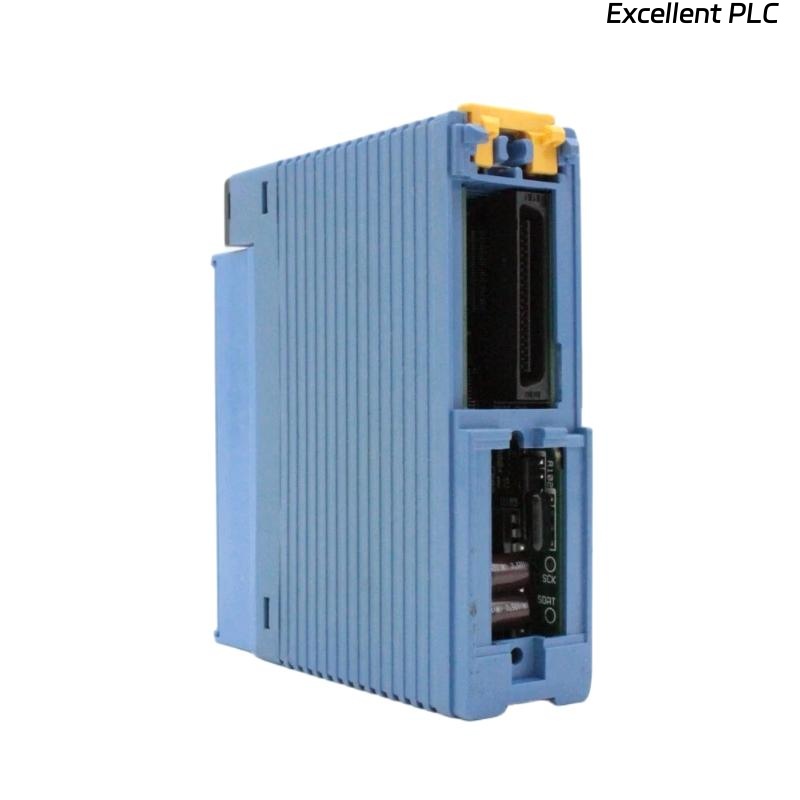

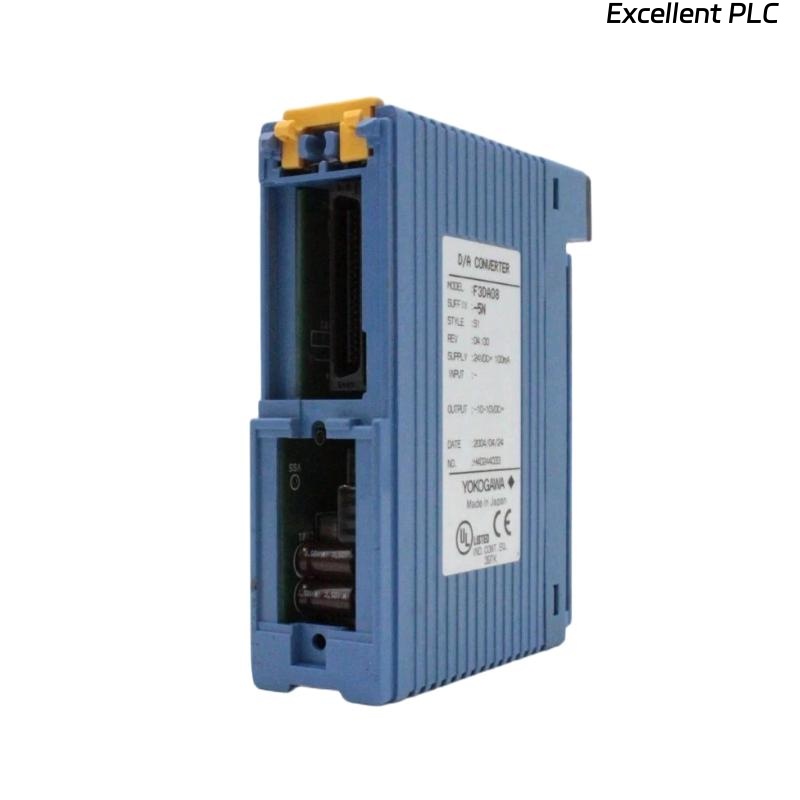

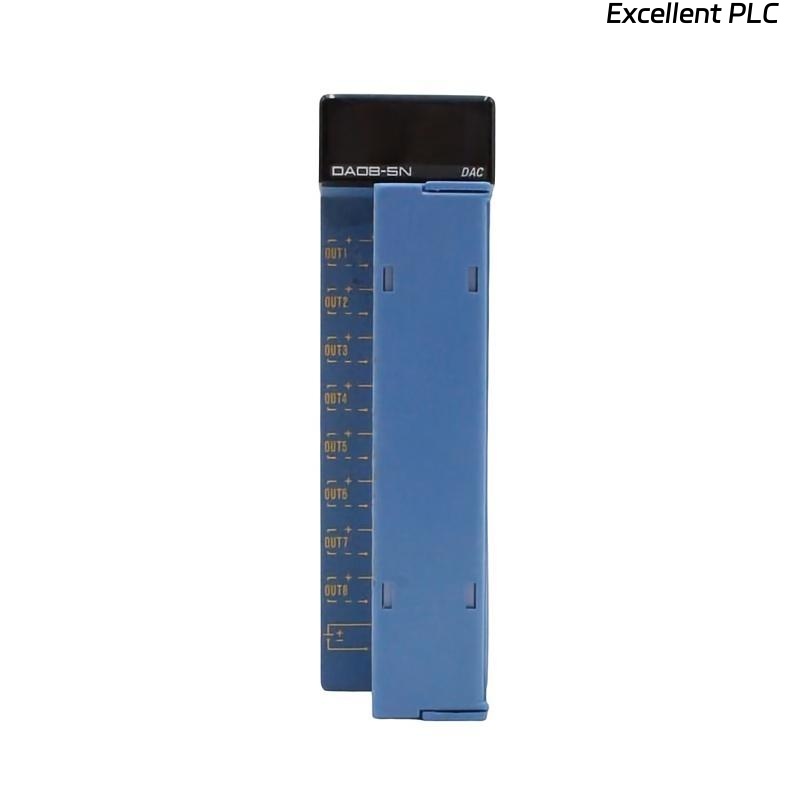

The Yokogawa F3DA08-5N Analog Output Module is a high-performance module designed for use in distributed control systems (DCS), providing precise analog signal outputs to control field devices. It converts digital control signals from the DCS into analog current or voltage signals suitable for actuators, control valves, and other field instruments.
This module is engineered for reliability, high accuracy, and low noise operation, ensuring stable process control even in demanding industrial environments. The F3DA08-5N is fully compatible with Yokogawa’s CENTUM VP and related DCS platforms, supporting modular expansion and seamless integration into complex automation systems.
Product Specifications
| Parameter | Description |
|---|---|
| Model | F3DA08-5N |
| Function | Analog Output Module |
| Output Channels | 8 channels |
| Output Signal | 4–20 mA, 0–20 mA, or 0–10 V |
| Resolution | 16-bit digital-to-analog conversion |
| Accuracy | ±0.1% of full scale |
| Response Time | <10 ms |
| Load Resistance | 600 Ω max (current), 2 kΩ min (voltage) |
| Power Supply | 24 V DC nominal |
| Power Consumption | Approx. 5 W |
| Operating Temperature | 0°C to +55°C |
| Storage Temperature | -20°C to +70°C |
| Relative Humidity | 5% to 95% RH (non-condensing) |
| Installation | Rack-mounted in DCS frame |
| Diagnostic Features | Channel fault detection, LED indicators |
| Compliance | CE, RoHS |
| Dimensions (H × W × D) | 28.9 x 100 x 83.2 mm |
| Weight | 0.2 kg |
Applications
-
Distributed Control Systems (DCS): Converts digital control commands to analog signals for field devices.
-
Process Automation: Controls valves, actuators, and other analog-controlled instruments.
-
Power Plants: Maintains precise analog outputs for turbine, generator, and boiler control systems.
-
Chemical & Petrochemical Plants: Ensures stable control for critical chemical processes.
-
Oil & Gas Industry: Provides accurate outputs for process and safety instrumentation.
-
Water & Wastewater Treatment: Controls pumps, chemical dosing systems, and valves with high precision.
Product Advantages
-
High Accuracy: 16-bit resolution and ±0.1% full-scale accuracy ensure precise control.
-
Multiple Signal Support: Configurable for current or voltage output, supporting various field devices.
-
Fast Response: Response time under 10 ms enables real-time process control.
-
Advanced Diagnostics: Channel fault detection and LED indicators allow for proactive maintenance.
-
Modular and Compact: Easy to install, replace, and expand in rack-mounted DCS systems.
-
Industry Compliance: CE and RoHS certified for safe and environmentally compliant operation.
FAQ
1. What types of output signals can the F3DA08-5N generate?
The module supports configurable analog output channels that can be set to either 4–20 mA, 0–20 mA, or 0–10 V. This allows compatibility with a wide range of field devices, including valves and actuators.
2. How many analog output channels are available on this module?
The F3DA08-5N provides 8 independently configurable analog output channels, enabling simultaneous control of multiple devices in the process system.
3. What is the accuracy of the analog outputs?
The module delivers high precision with an accuracy of ±0.1% of full scale, ensuring stable and reliable control of field instruments.
4. Can the module detect faults in the output channels?
Yes, each channel includes diagnostic functionality to detect short circuits, open circuits, or other abnormal conditions, and the status is indicated via onboard LEDs.
5. What is the response time for signal changes?
The output channels respond in less than 10 milliseconds, allowing rapid adjustments and real-time control for dynamic process applications.
6. Is this module compatible with CENTUM VP and other Yokogawa DCS platforms?
Yes, the F3DA08-5N is fully compatible with CENTUM VP, supporting seamless integration, channel configuration, and monitoring via the system engineering tools.
7. What is the maximum load resistance supported for current outputs?
For 4–20 mA or 0–20 mA output, the module can drive loads up to 600 Ω, ensuring proper operation with standard field instruments.
8. Can the module output both voltage and current signals simultaneously?
No, each output channel must be configured for either voltage or current; however, all 8 channels can be independently configured, providing flexibility in system design.
9. How does the module ensure stable operation under varying environmental conditions?
The module is designed to operate between 0°C and +55°C with 5% to 95% relative humidity (non-condensing), using robust electronics and shielding to minimize noise and maintain signal integrity.
10. What diagnostic indicators are provided for maintenance and monitoring?
The module provides LED indicators for power, channel operation, and fault status. This allows operators to quickly identify abnormal conditions and perform preventive maintenance without disrupting the process.
