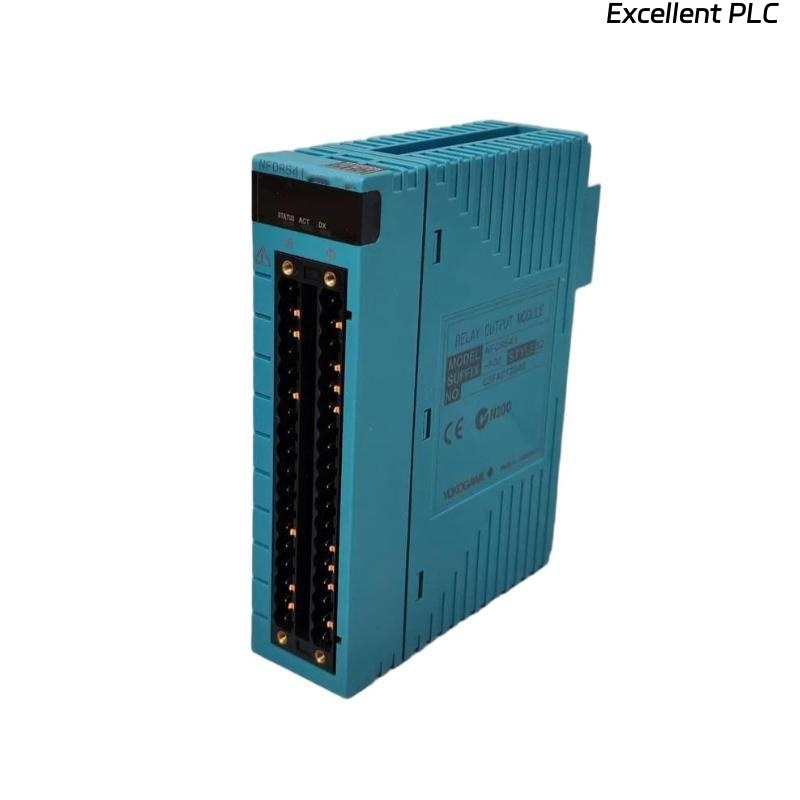

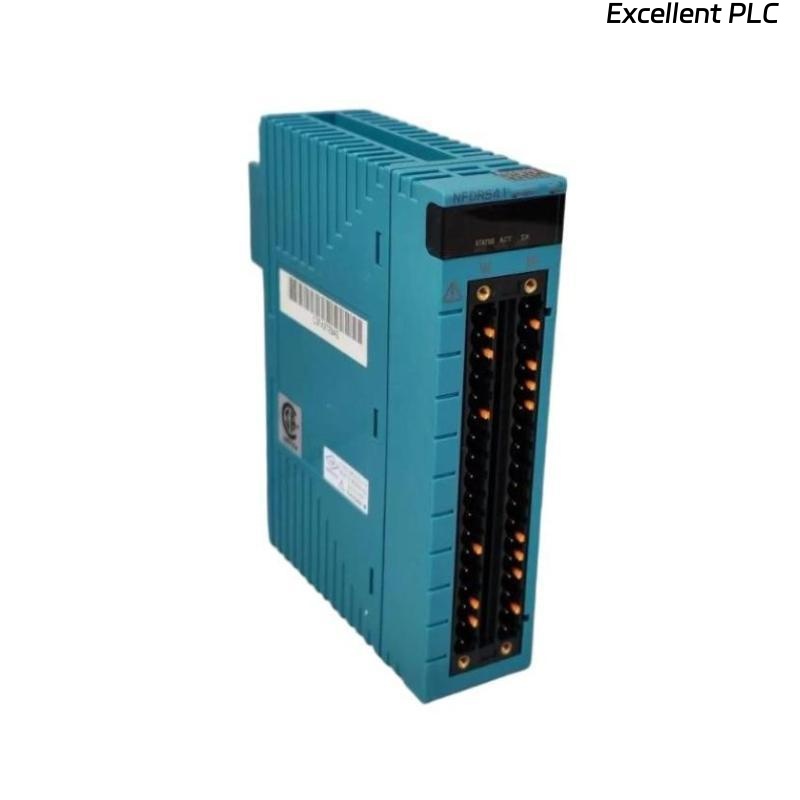

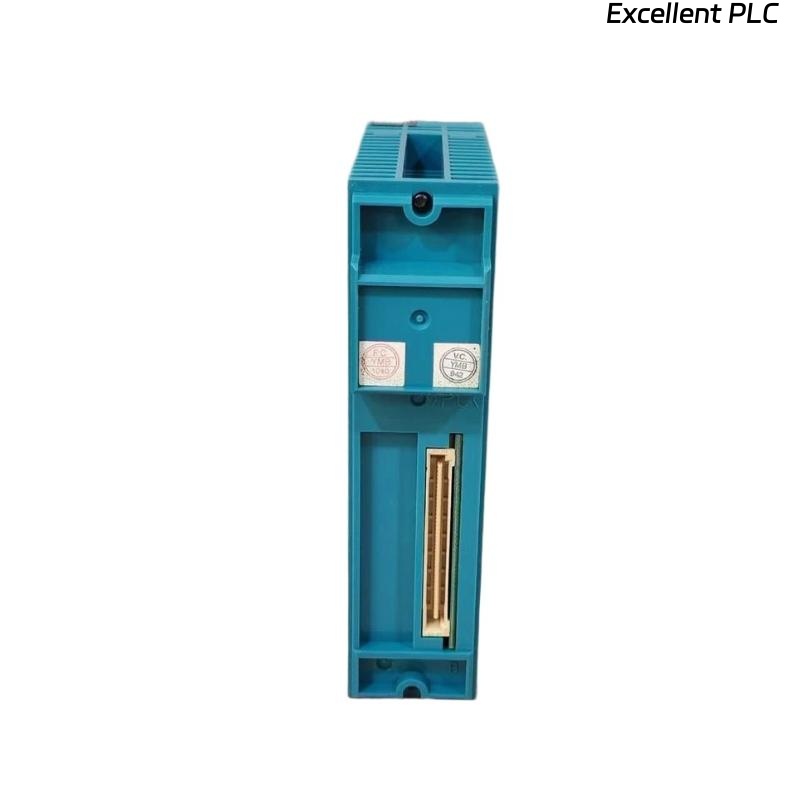

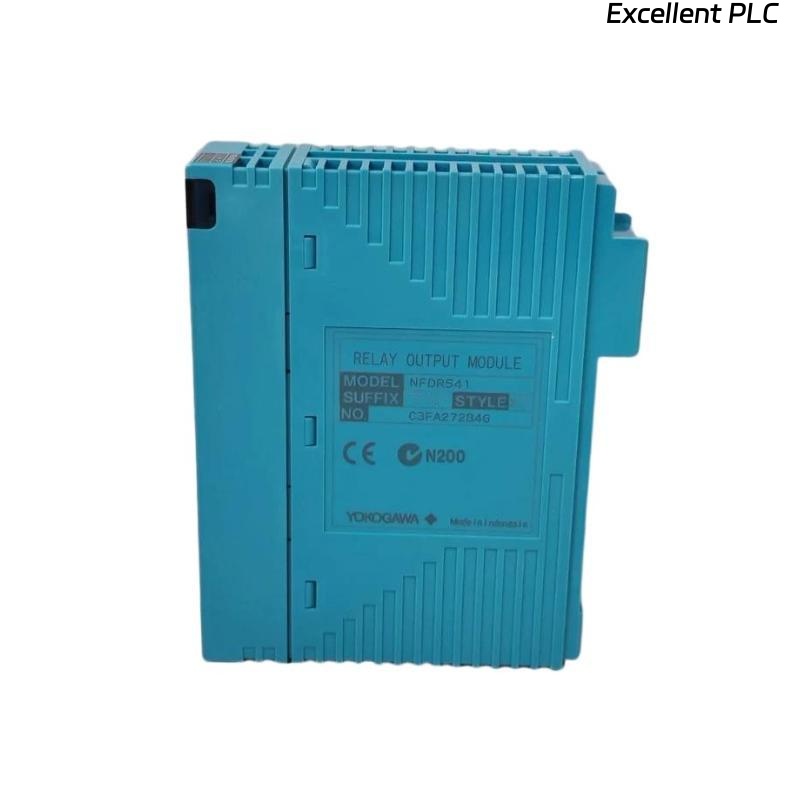

Yokogawa NFDR541 Relay Output Module
- Product Details
- FAQs
- Related
- Contact Us
- Packing & Delivery
- Product Ratings
Product Overview
The Yokogawa NFDR541 Relay Output Module is a reliable field output device designed for use in Yokogawa control and safety systems. It provides secure relay-based output switching for driving external loads such as alarms, solenoids, interlocks, and motor starters. Built with robust isolation and fault detection features, the NFDR541 ensures dependable operation in mission-critical industrial environments.
Key Features
-
Relay-based output switching for high reliability
-
Galvanic isolation between field wiring and system bus
-
Redundant system compatibility for high availability architectures
-
Built-in diagnostics and fault detection for safe operations
-
Hot-swappable design to minimize downtime during replacement
-
Long relay life cycle for continuous industrial operation
-
Compact form factor for optimized control cabinet space
-
Compatible with Yokogawa safety and control platforms
Technical Specifications
| Item | Specification |
|---|---|
| Module Type | Relay Output Module |
| Model Number | NFDR541 |
| System Compatibility | Yokogawa CENTUM VP, ProSafe-RS |
| Number of Channels | 8 relay outputs (typical) |
| Relay Type | Mechanical/electromechanical relay contacts |
| Contact Rating | Up to 30 V DC / 2 A, 120 V AC / 2 A (resistive load) |
| Isolation | Optical/galvanic isolation between system and field |
| Redundancy | Supported in redundant output configuration |
| Diagnostics | Module health monitoring and output status detection |
| Hot-Swappable | Yes |
| Operating Temperature | 0°C to 55°C |
| Storage Temperature | -40°C to 85°C |
| Humidity | 5% to 95% RH (non-condensing) |
| Power Consumption | Low power consumption design |
| Dimensions | 130 x 111.5 x 32.8 mm |
| Weight | 0.3 kg |
Industry Applications
-
Oil & Gas – Control of safety interlocks, alarms, and shutdown systems
-
Power Generation – Turbine trips, boiler interlocks, and auxiliary equipment control
-
Chemical & Petrochemical – Process safety management and emergency shutdown (ESD)
-
Pharmaceuticals – Regulatory-compliant batch control and safety functions
-
Water & Wastewater – Reliable relay actuation for pumps and safety devices
-
Pulp & Paper – Equipment interlocks, alarms, and control system outputs
Frequently Asked Questions (FAQ)
Q1: What is the function of the NFDR541 module?
It is a relay output module used to drive external loads such as alarms, solenoids, and motor starters.
Q2: How many relay channels does it provide?
It typically provides 8 relay output channels.
Q3: What is the maximum relay contact rating?
Up to 30 V DC / 2 A or 120 V AC / 2 A (resistive load).
Q4: Does the NFDR541 support redundancy?
Yes, it can be used in redundant configurations for safety-critical applications.
Q5: Is it hot-swappable?
Yes, the module can be replaced without shutting down the system.
Q6: What diagnostics are included?
It supports self-diagnosis and output status monitoring.
Q7: What industries commonly use the NFDR541?
It is widely used in oil & gas, power generation, chemical, water, and paper industries.
Q8: What is the operating temperature range?
It operates between 0°C and 55°C.
Q9: How does it ensure system safety?
It provides galvanic isolation and continuous fault monitoring.
Q10: How much does the module weigh?
It weighs approximately 0.3 kg.
