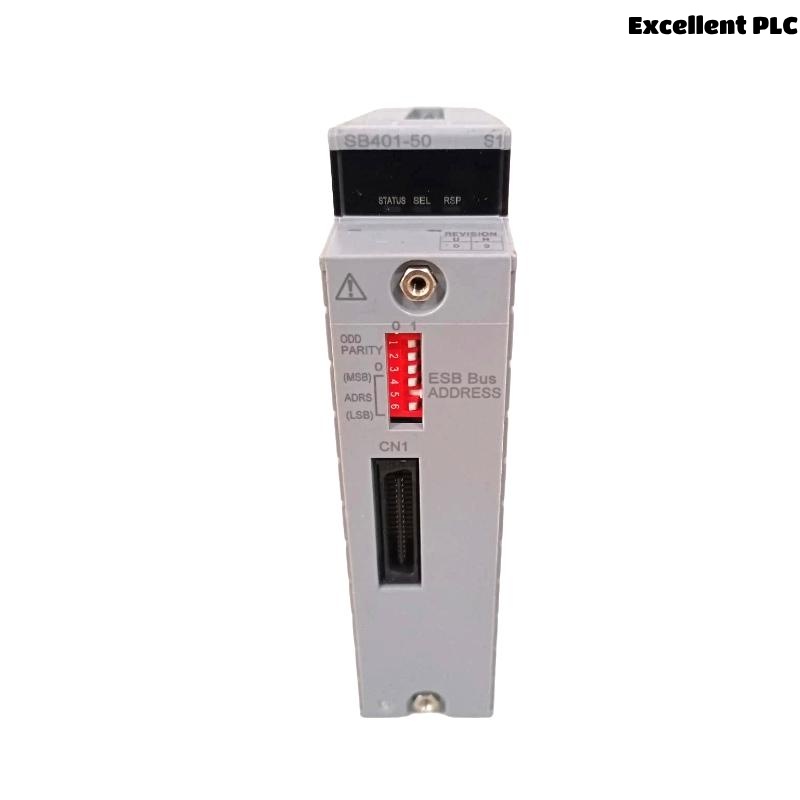

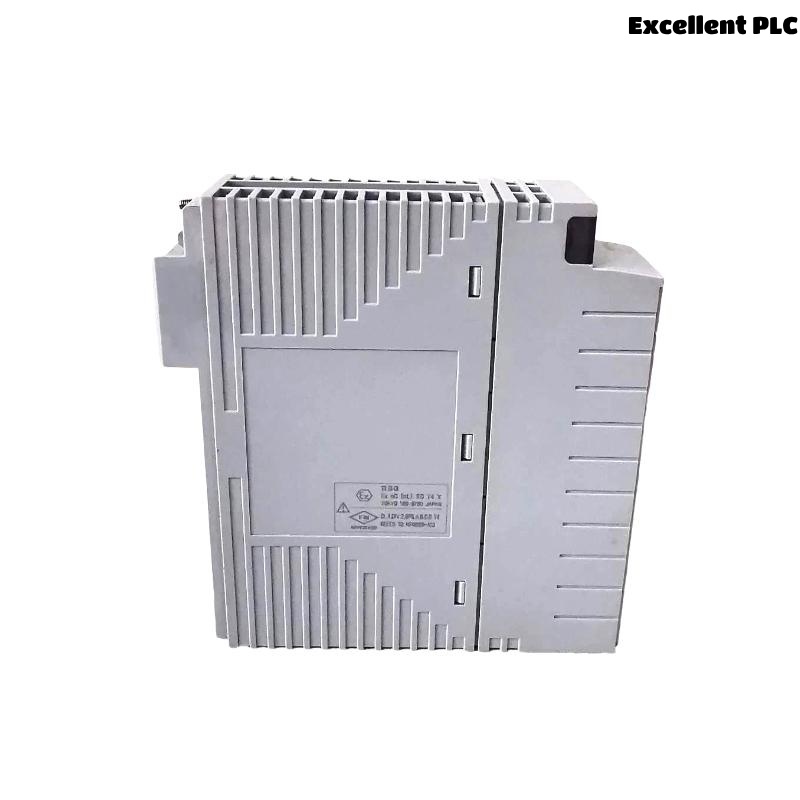

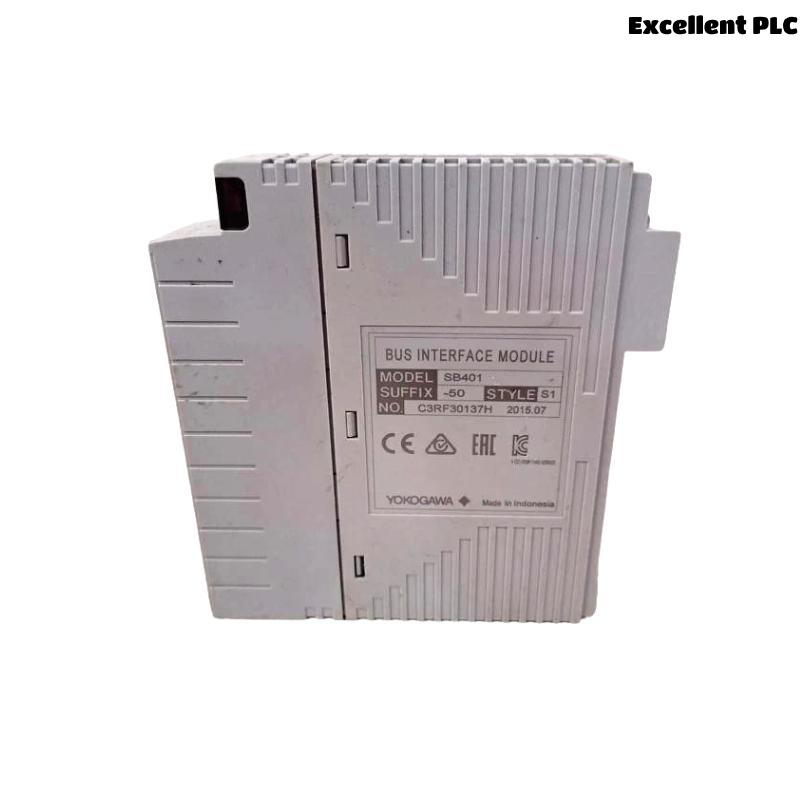

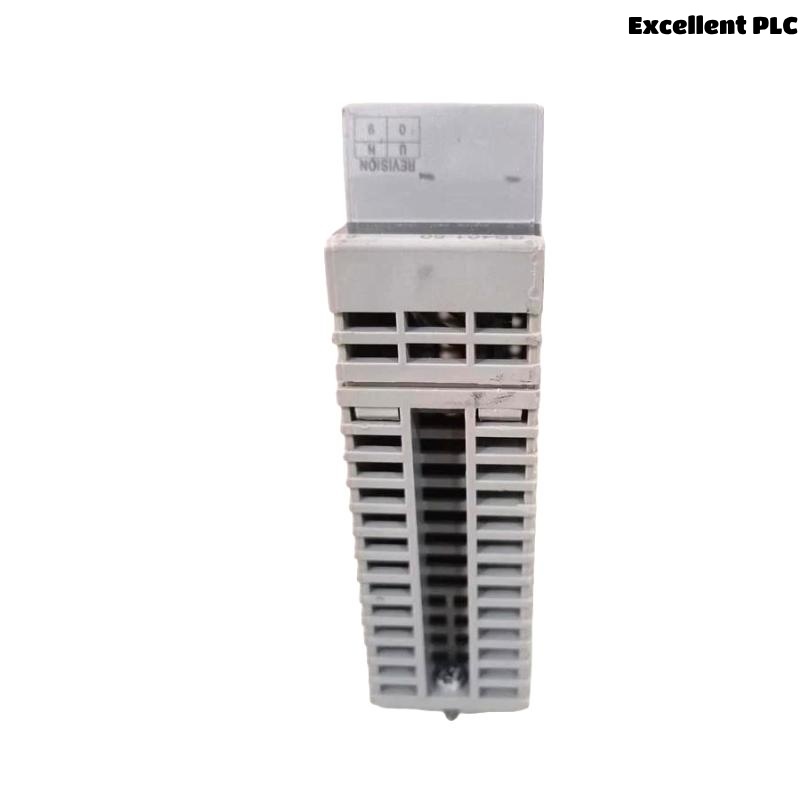

Yokogawa SB401-50 S1 ESB Bus Interface Slave Module
- Product Details
- FAQs
- Related
- Contact Us
- Packing & Delivery
- Product Ratings
Product Overview
The Yokogawa SB401-50 S1 is an ESB Bus Interface Slave Module designed for communication between I/O modules and the Field Control Unit (FCU) over the ESB bus. It supports both single and dual-redundant configurations, ensuring stable system integration in process control environments.
Technical Specifications
| Parameter | Specification |
|---|---|
| Model | SB401-50 S1 |
| Function | ESB Bus Interface Slave Module |
| Communication Bus | ESB (Enhanced Serial Bus) |
| Configuration Support | Single / Dual-redundant |
| I/O Module Capacity | Up to 8 I/O Modules per node unit |
| Power Supply | Supplied via Node Unit |
| Mounting | 19-inch Rack Mounting |
| Dimensions (W x H x D) | 130 × 142.5 × 32.8 mm |
| Weight | 0.45 kg |
Applications
-
Distributed Control Systems (DCS) in power, chemical, and oil & gas industries
-
Reliable I/O communication with the FCU via ESB bus
-
Power interface and data link for analog/digital modules
-
Use in standard or hazardous environments with appropriate configurations
Key Advantages
-
Dual-redundant support enhances system availability
-
Compact design with standardized rack-mount installation
-
Integrates seamlessly with Yokogawa’s CENTUM VP system
-
Modular configuration simplifies system expansion
-
Supports ISA G3 option for wide temperature operation (-20°C to 70°C)
FAQ
Q1: What does the SB401-50 S1 do?
A1: It connects I/O modules to the control unit via the ESB bus, facilitating data communication.
Q2: Can this module be used in redundant configurations?
A2: Yes, two SB401 modules can be used in a dual-redundant setup.
Q3: How many I/O modules can it support?
A3: Up to 8 I/O modules per node unit.
Q4: Is it suitable for rack mounting?
A4: Yes, it supports 19-inch rack mounting.
Q5: Does it operate in extreme temperatures?
A5: Yes, when ordered with ISA G3 option, it supports -20°C to 70°C.
Q6: What is the power source for SB401-50 S1?
A6: It is powered through the node unit’s internal power supply system.
Q7: Can this module be hot-swapped?
A7: Hot-swapping depends on system setup and redundancy; usually requires system halt.
Q8: Is barrier protection included?
A8: No, barriers must be installed separately using insulating partitions.
Q9: What systems are compatible with SB401-50 S1?
A9: It works with Yokogawa systems like A2FV50, A2FV70, AFV30, and AFV40.
Q10: Are special accessories needed for ESB connection?
A10: Yes, Connector Units like /CU1N or /CU1T are recommended for proper ESB bus termination.
