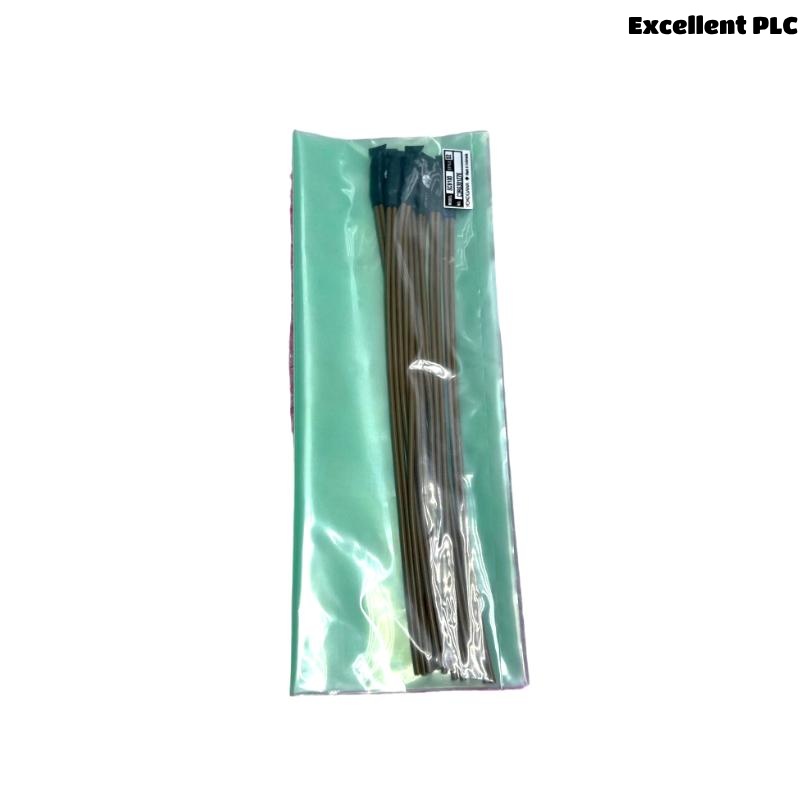

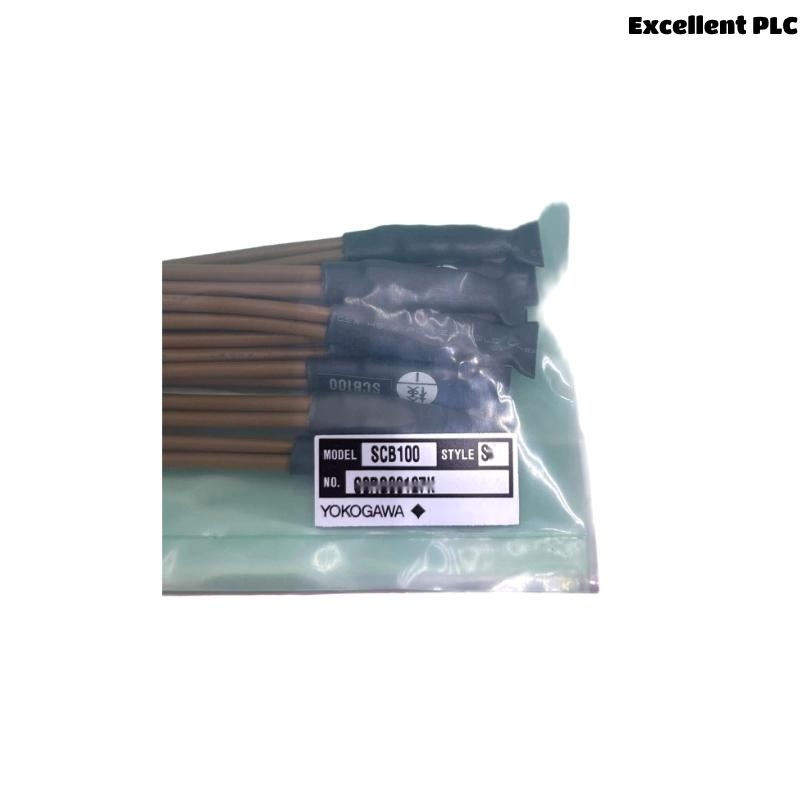

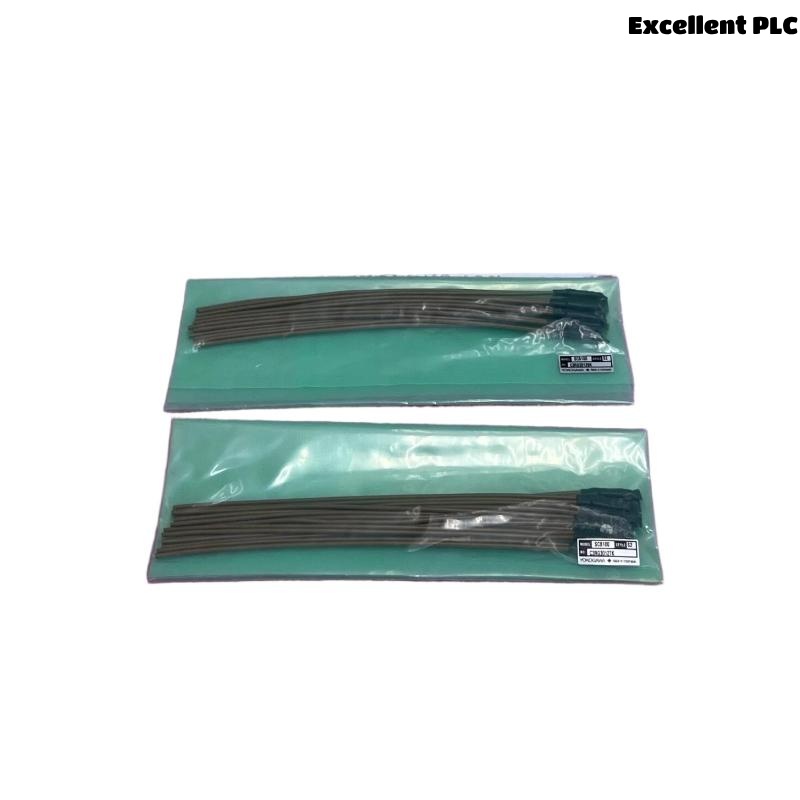

Yokogawa SCB100-S0 Wiring Diagnosis Element
- Product Details
- FAQs
- Related
- Contact Us
- Packing & Delivery
- Product Ratings
Product Overview
The Yokogawa SCB100-S0 is a wiring diagnosis element used in conjunction with digital input modules like the SDV144. It is designed to detect open-circuit conditions when input signals are normally in the OFF state. Installed in parallel with field contacts, it enhances diagnostic capabilities in safety-critical automation systems.
Technical Specifications
| Parameter | Specification |
|---|---|
| Model | SCB100-S0 |
| Function | Open circuit detection for digital input |
| Signal Type | No-voltage contact (normally off) |
| Compatible Module | SDV144 |
| Installation Mode | Parallel with field contact |
| Diagnostic Target | Open-circuit fault detection |
| Standard Compliance | ISA Standard G3 |
| Number of Wires | 8 wires/set |
| Dimensions | 5 x 250 x 10 mm |
| Weight | 0.3 kg |
Applications
-
Safety Instrumented Systems (SIS)
-
Process automation fault detection
-
Industrial plant diagnostics
-
Field wiring monitoring
-
Safety control loops
Product Advantages
-
Improves detection of wiring faults
-
Easy integration with SDV144 input module
-
Suitable for safety-critical operations
-
Compact and lightweight design
-
Industry-grade reliability (ISA G3 certified)
FAQ
Q1: What is the function of the SCB100-S0?
A1: It detects open-circuit faults in digital input channels where signals are normally off.
Q2: Is SCB100 used for normally on signals?
A2: No, for normally on signals, use the SCB110 model.
Q3: How is SCB100 connected to the system?
A3: It is installed in parallel with the contact output of the field equipment.
Q4: What module is SCB100 compatible with?
A4: It is compatible with the SDV144 digital input module.
Q5: Can SCB100 be used in redundant setups?
A5: Yes, it is suitable for use in dual-redundant configurations of SDV144.
Q6: What does ISA Standard G3 indicate?
A6: It certifies the product for use in environments with dust, corrosive gases, and humidity.
Q7: Can it detect both short and open circuits?
A7: No, SCB100 detects only open circuits. Combine with SCB110 to detect both.
Q8: Does it include wiring?
A8: Yes, each SCB100 unit includes a set of 8 wires.
Q9: What is the weight of the SCB100?
A9: Approximately 0.3 kg.
Q10: Is external power required for SCB100?
A10: No, it functions passively within the circuit.
Related Yokogawa Models
| Model | Description | Dimensions (mm) | Weight |
|---|---|---|---|
| SCB110-S0 | Wiring check (short-circuit detection) | 5 x 250 x 10 | 0.3 kg |
| SDV144-S5 | 16-Channel Digital Input Module (24 V DC) | 130 x 107.5 x 32.8 | 0.36 kg |
| SDV531-S5 | 8-Channel Digital Output Module (24 V DC) | 130 x 107.5 x 32.8 | 0.28 kg |
| SDV541-S5 | 16-Channel Digital Output Module (24 V DC) | 130 x 107.5 x 32.8 | 0.29 kg |
| SDV521-S6 | 4-Channel High Current Output Module (2 A) | 130 x 125.5 x 32.8 | 0.36 kg |
| SDV53A-S6 | 8-Channel Digital Output Module (48 V DC) | 130 x 159.8 x 32.8 | 0.46 kg |
Popular Yokogawa Models
| Model | Description | Dimensions (mm) | Weight |
|---|---|---|---|
| STARDOM FCN | Autonomous Controller | Varies | ~1.2 kg |
| YHC5150X | Handheld Communicator (HART/Fieldbus) | 228 x 110 x 60 | ~0.6 kg |
| DX2020 | Paperless Recorder | 144 x 144 x 200 | ~2.5 kg |
| UT55A | Digital Indicating Controller | 96 x 96 x 100 | ~0.4 kg |
| AXF | Magnetic Flowmeter with diagnostics | Varies | ~3.0 kg |
| EJA110E | Differential Pressure Transmitter | 120 x 130 x 150 | ~3.8 kg |
