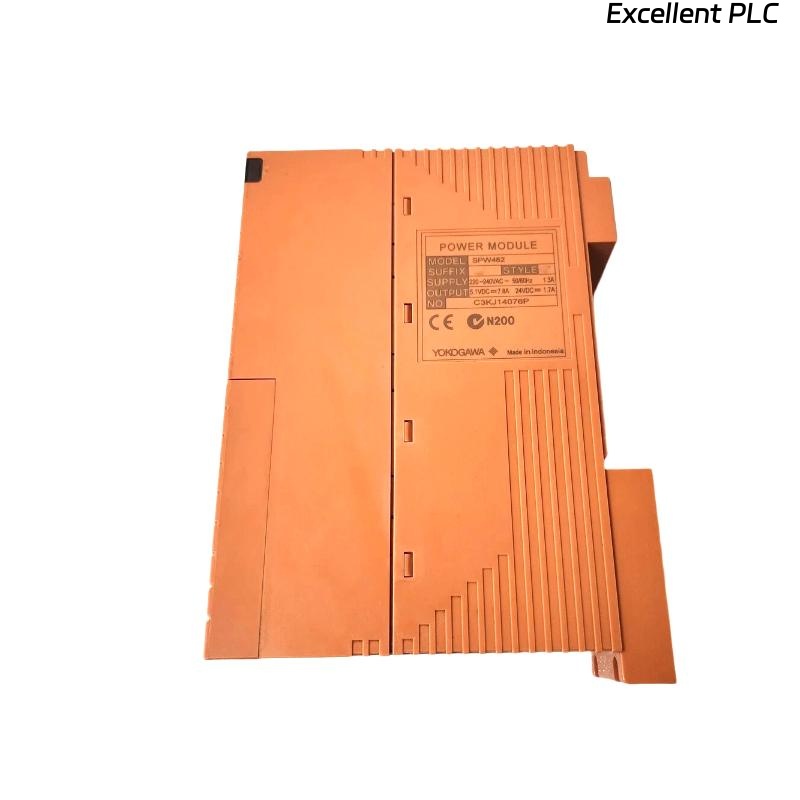

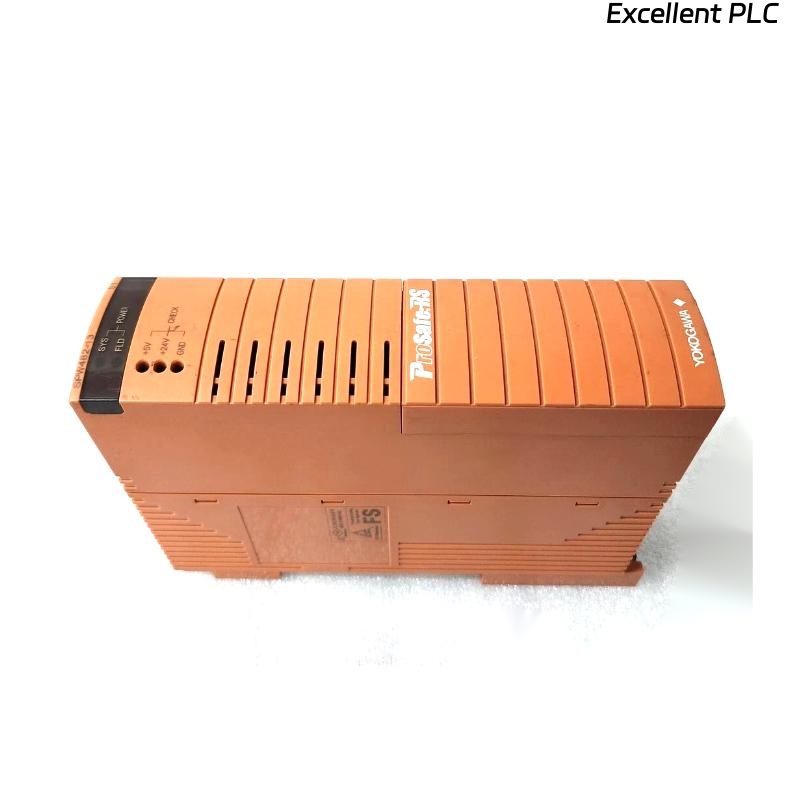

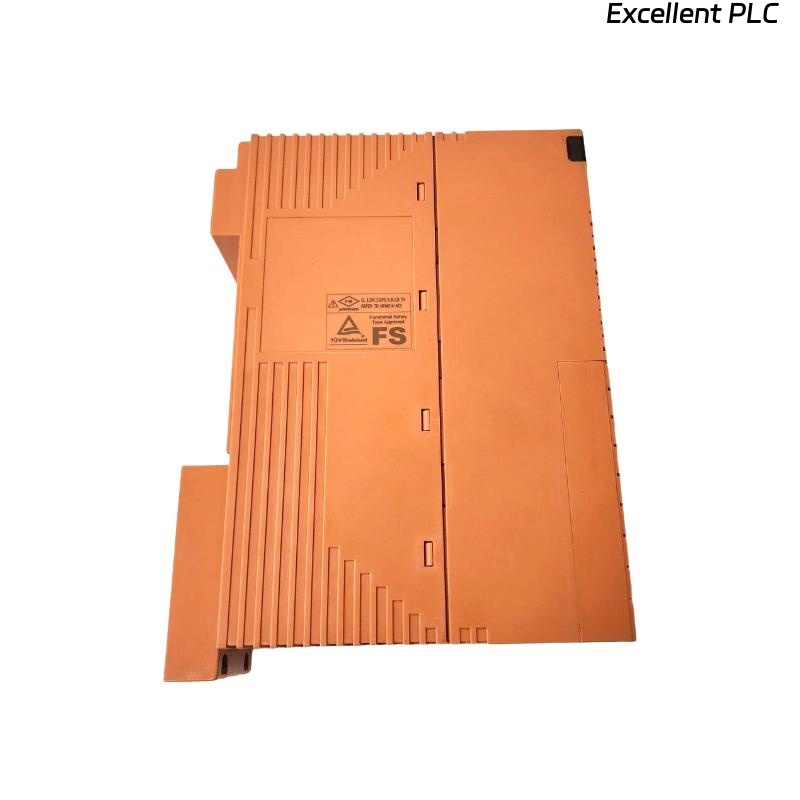

Yokogawa SPW482-10 Power Supply Module
The Yokogawa SPW482-10 is a high-performance power supply module designed for use in the ProSafe-RS Safety Instrumented System (SIS). It provides stable and reliable power to critical components such as Field Control Units (FCUs), FIO Node Units, and Optical ESB Bus Repeater Units. The module supports single or dual-redundant configurations, ensuring continuous operation in demanding industrial environments.
🔧 Product Specifications
| Parameter | Specification |
|---|---|
| Input Voltage | 220–240 V AC ±10%, 50/60 Hz ±3 Hz |
| Maximum Power Consumption | 230 VA |
| Dimensions (WxHxD) | 44.45 × 264.2 × 186 mm |
| Weight | 1.4 kg |

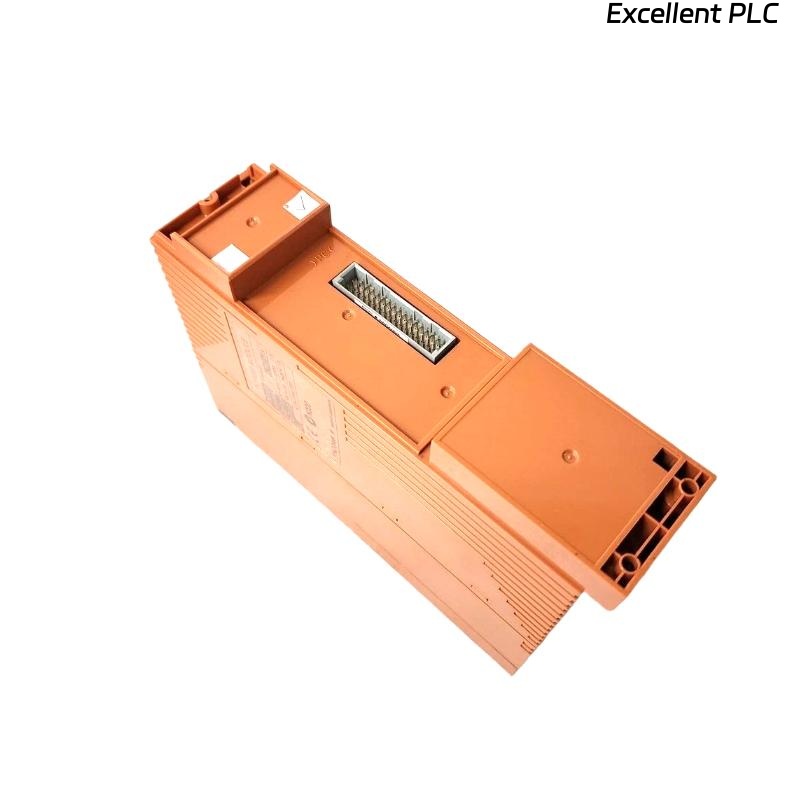

| Interface | Exclusive connector |
| Redundancy | Supports dual-redundant configuration |
| Installation Slot | P1 for single, P1-P2 for dual-redundant |
| Compatible Units | FCU, FIO Node Unit, Optical ESB Bus Repeater Unit, Base Plate |
🛠️ Applications
-
Field Control Units (AFV30D, AFV30S, A2FV50D, A2FV50S, A2FV70D, A2FV70S)
-
FIO Node Units (ANB10D, ANB10S, ANB11D, ANB11S)
-
Optical ESB Bus Repeater Units (ANT10U)
-
Base Plates (A2BE1D, A2BE2D)
🌟 Advantages
-
Reliable power delivery for safety-critical systems
-
Supports dual-redundant configuration for uninterrupted operation
-
Compact and lightweight design for flexible installation
-
High tolerance to voltage fluctuations and industrial environmental conditions
-
Simplified integration with ProSafe-RS control architecture
❓ FAQ
1. What is the input voltage range for the SPW482-10?
The module operates at 220–240 V AC ±10%, 50/60 Hz ±3 Hz.
2. Can the SPW482-10 be used in redundant configurations?
Yes, it supports dual-redundant configuration when two identical modules are installed.
3. Which units is this module compatible with?
It is compatible with FCU, FIO Node Units, Optical ESB Bus Repeater Units, and Base Plates.
4. What are the physical dimensions of the module?
44.45 × 264.2 × 186 mm.
5. How much does the SPW482-10 weigh?
The module weighs 1.4 kg.
6. Where should the module be installed in the control rack?
Install in slot P1 for single configuration, or slots P1-P2 for dual-redundant configuration.
7. Does the module have any interface requirements?
Yes, it uses an exclusive connector compatible with Yokogawa units.
8. What is the maximum power consumption?
The maximum power consumption is 230 VA.
9. What environmental conditions can the SPW482-10 operate under?
The SPW482-10 is designed to operate reliably in typical industrial environments, including temperature ranges from 0°C to 55°C and relative humidity up to 95% (non-condensing).
10. What safety features does this module support?
Supports stable power supply for safety-critical systems and redundant configuration for high reliability.
🔄 Related Models (Same Series)
| Model | Description | Dimensions (mm) | Weight |
|---|---|---|---|
| SPW482-53 | Replacement power supply module | 44.45 × 264.2 × 186 | 1.4 kg |
| SPW482-11 | Standard power supply module | 44.45 × 264.2 × 186 | 1.4 kg |
| SPW482-12 | High-reliability power module | 44.45 × 264.2 × 186 | 1.4 kg |
| SPW482-20 | Redundant power supply module | 44.45 × 264.2 × 186 | 1.4 kg |
| SPW482-21 | Extended range power module | 44.45 × 264.2 × 186 | 1.4 kg |
| SPW482-30 | High-capacity module | 44.45 × 264.2 × 186 | 1.4 kg |
🔝 Popular Yokogawa Modules (Other Products)
| Model | Description | Dimensions (mm) | Weight |
|---|---|---|---|
| DCS-AFV30 | Field Control Unit | 120 × 300 × 200 | 2.3 kg |
| ANB11D | FIO Node Unit | 44.45 × 264.2 × 186 | 1.2 kg |
| ANT10U | Optical ESB Bus Repeater | 44.45 × 264.2 × 186 | 1.3 kg |
| SPW482-53 | Replacement power supply | 44.45 × 264.2 × 186 | 1.4 kg |
| A2BE1D | Base Plate | 44.45 × 264.2 × 186 | 1.1 kg |
| FCU-AFV50 | Field Control Unit | 120 × 300 × 200 | 2.5 kg |
