Yokogawa YCB141-M002 V net Cable
- Product Details
- FAQs
- Related
- Contact Us
- Packing & Delivery
- Product Ratings
Product Description

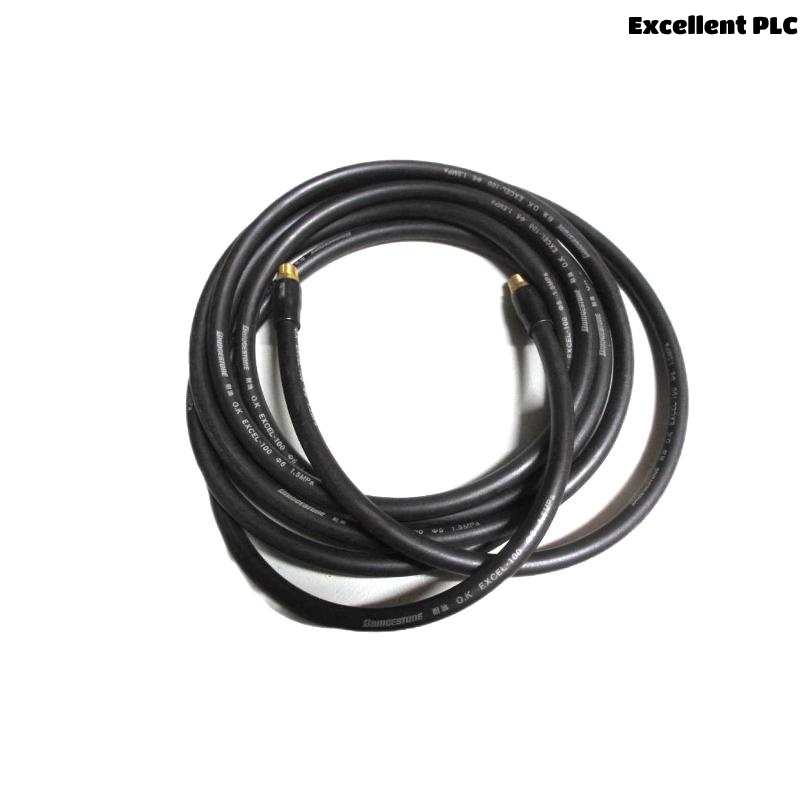

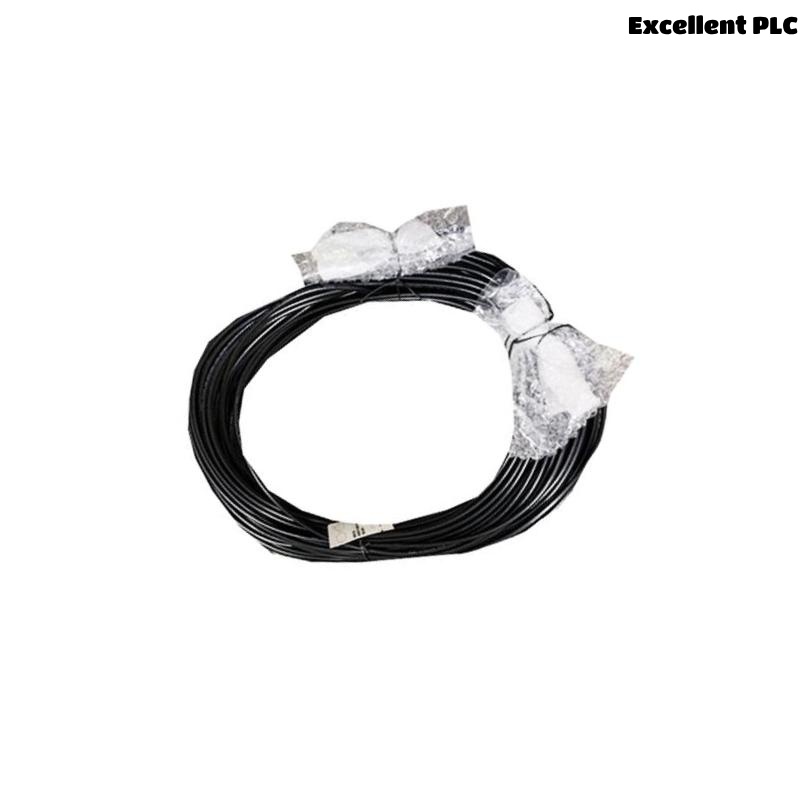

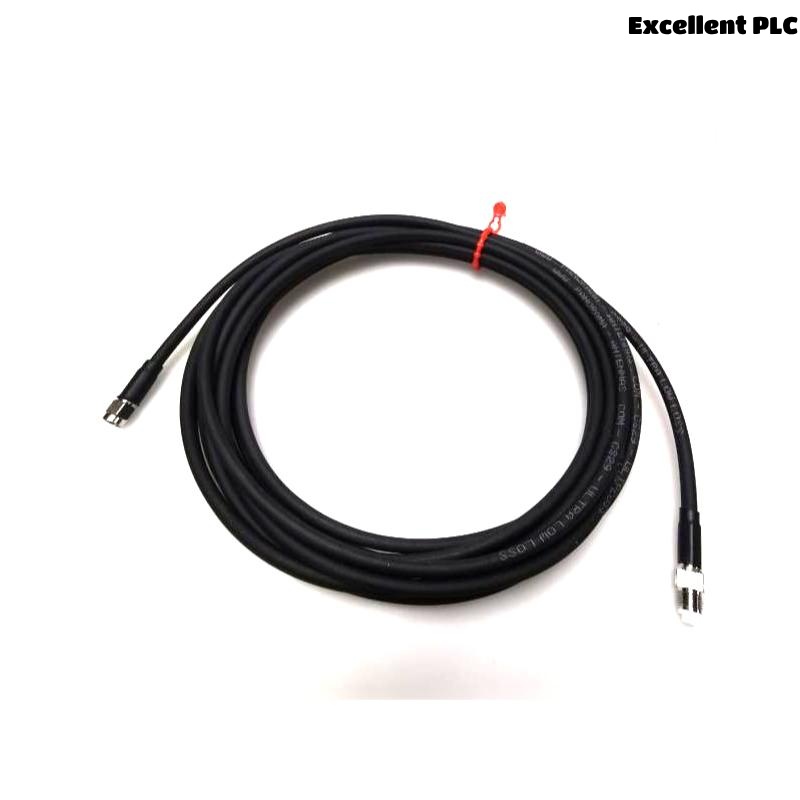

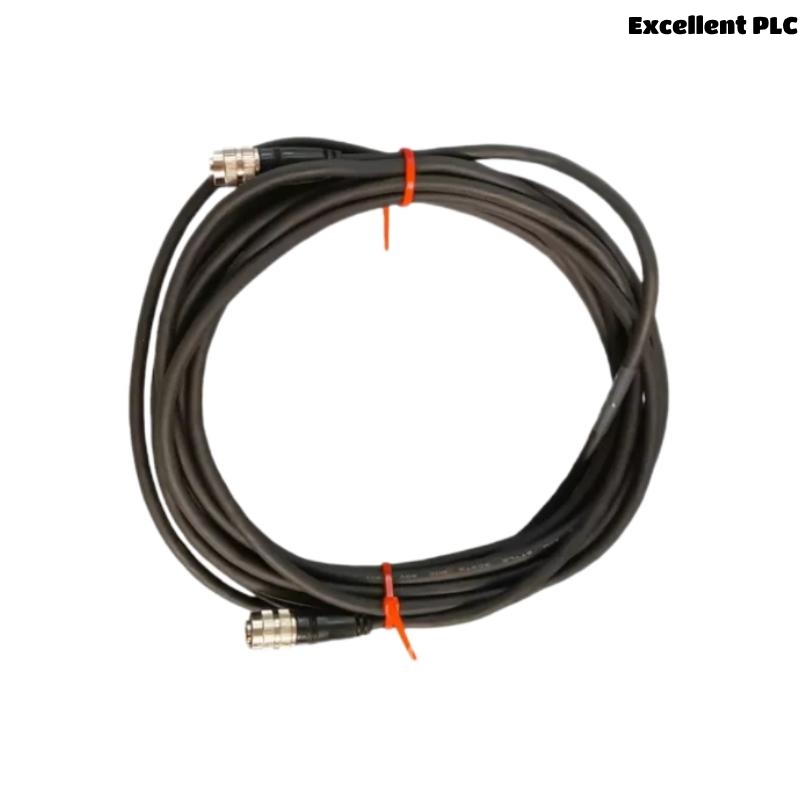

The Yokogawa YCB141-M002 is a high-quality V net coaxial communication cable designed for use in 10BASE-2 network systems within Yokogawa’s CENTUM series. It ensures reliable and durable signal transmission across system components, offering compatibility with V net routers such as the AVR10D.
Technical Specifications
| Parameter | Value |
|---|---|
| Model | YCB141-M002 |
| Cable Type | V net (10BASE-2) coaxial cable |
| Cable Length | 2 meters |
| Outer Diameter | Ø14.5 mm / Ø5 mm |
| Minimum Bending Radius | 50 mm |
| Operating Temperature | -20 to +70°C |
| Certification Option | /NL (CSA Non-Incendive) |
| Maximum Cable Length | 185 meters (with custom suffix) |
| Shipping Weight | 2 kg |
Applications
-
Used in Yokogawa CENTUM VP, CS 3000, and CS 1000 systems
-
Connection between V net devices and routers
-
Suitable for industrial process control networks requiring stable coaxial communication
Product Advantages
-
Reliable Signal Integrity: Optimized for Yokogawa 10BASE-2 network systems
-
Flexible Installation: Supports bending radius down to 50 mm
-
Certified Safety Option: /NL code for CSA non-incendive instrumentation
-
Custom Length Availability: Configurable from 1 m to 185 m
-
Robust Environmental Tolerance: Operates in harsh temperature conditions
FAQs
Q1: What is the standard length of the YCB141-M002?
A1: It comes in a 2-meter length.
Q2: What network protocol does it support?
A2: It supports 10BASE-2 V net protocol.
Q3: Is this cable shielded?
A3: Yes, it is a coaxial cable suitable for industrial environments.
Q4: Can this cable be used outdoors?
A4: Yes, within the specified temperature range (-20 to +70°C).
Q5: What is the bending radius?
A5: The minimum bending radius is 50 mm.
Q6: Is it compatible with Ethernet?
A6: No, V net specifications differ from standard Ethernet.
Q7: What’s the maximum distance this cable can support?
A7: Up to 185 meters with suffix -M185.
Q8: What is the shipping weight?
A8: Approximately 2 kg for the 2 m version.
Q9: What type of connector is used?
A9: BNC type coaxial connector.
Q10: Is there an option for certification?
A10: Yes, the /NL option supports CSA non-incendive instrumentation.
Related or Same Series Models
| Model | Cable Length | Min. Bending Radius | Max Length | Certification Option | Weight |
|---|---|---|---|---|---|
| YCB141-M001 | 1 m | 50 mm | 185 m | Optional /NL | ~1.5 kg |
| YCB141-M005 | 5 m | 50 mm | 185 m | Optional /NL | ~2.2 kg |
| YCB141-M010 | 10 m | 50 mm | 185 m | Optional /NL | ~2.5 kg |
| YCB141-M050 | 50 m | 50 mm | 185 m | Optional /NL | ~3.5 kg |
| YCB141-M100 | 100 m | 50 mm | 185 m | Optional /NL | ~4.8 kg |
| YCB141-M185 | 185 m | 50 mm | 185 m | Optional /NL | ~5.8 kg |
Popular Yokogawa Models
| Model | Description | Function | Power Supply | Dimensions (mm) | Weight |
|---|---|---|---|---|---|
| AVR10D | Duplexed V net Router | Connects V net/Vnet-IP | 100-120/220-240V AC / 24V DC | 482.6×132.5×150.6 | ~5.8 kg |
| YCB148 | V net Terminator | 10BASE-2 cable termination | N/A | Ø14.5 x 24 | ~0.1 kg |
| YCB149 | V net Converter Connector | 10BASE-2 to 10BASE-5 Adapter | N/A | Ø17 x 34.8 | ~0.2 kg |
| VI451 | Vnet/IP Interface Module | Communication interface | N/A | – | – |
| VP6H4450 | Multi-Project Connection Package | Software connectivity | N/A | – | – |
| VP6E5450 | Multi-Project Connection Builder | Project configuration tool | N/A | – | – |
FAQs
Q1: What is the standard length of the YCB141-M002?
A1: It comes in a 2-meter length.
Q2: What network protocol does it support?
A2: It supports 10BASE-2 V net protocol.
Q3: Is this cable shielded?
A3: Yes, it is a coaxial cable suitable for industrial environments.
Q4: Can this cable be used outdoors?
A4: Yes, within the specified temperature range (-20 to +70°C).
Q5: What is the bending radius?
A5: The minimum bending radius is 50 mm.
Q6: Is it compatible with Ethernet?
A6: No, V net specifications differ from standard Ethernet.
Q7: What’s the maximum distance this cable can support?
A7: Up to 185 meters with suffix -M185.
Q8: What is the shipping weight?
A8: Approximately 2 kg for the 2 m version.
Q9: What type of connector is used?
A9: BNC type coaxial connector.
Q10: Is there an option for certification?
A10: Yes, the /NL option supports CSA non-incendive instrumentation.
Related or Same Series Models
| Model | Cable Length | Min. Bending Radius | Max Length | Certification Option | Weight |
|---|---|---|---|---|---|
| YCB141-M001 | 1 m | 50 mm | 185 m | Optional /NL | ~1.5 kg |
| YCB141-M005 | 5 m | 50 mm | 185 m | Optional /NL | ~2.2 kg |
| YCB141-M010 | 10 m | 50 mm | 185 m | Optional /NL | ~2.5 kg |
| YCB141-M050 | 50 m | 50 mm | 185 m | Optional /NL | ~3.5 kg |
| YCB141-M100 | 100 m | 50 mm | 185 m | Optional /NL | ~4.8 kg |
| YCB141-M185 | 185 m | 50 mm | 185 m | Optional /NL | ~5.8 kg |
Popular Yokogawa Models
| Model | Description | Function | Power Supply | Dimensions (mm) | Weight |
|---|---|---|---|---|---|
| AVR10D | Duplexed V net Router | Connects V net/Vnet-IP | 100-120/220-240V AC / 24V DC | 482.6×132.5×150.6 | ~5.8 kg |
| YCB148 | V net Terminator | 10BASE-2 cable termination | N/A | Ø14.5 x 24 | ~0.1 kg |
| YCB149 | V net Converter Connector | 10BASE-2 to 10BASE-5 Adapter | N/A | Ø17 x 34.8 | ~0.2 kg |
| VI451 | Vnet/IP Interface Module | Communication interface | N/A | – | – |
| VP6H4450 | Multi-Project Connection Package | Software connectivity | N/A | – | – |
| VP6E5450 | Multi-Project Connection Builder | Project configuration tool | N/A | – | – |
