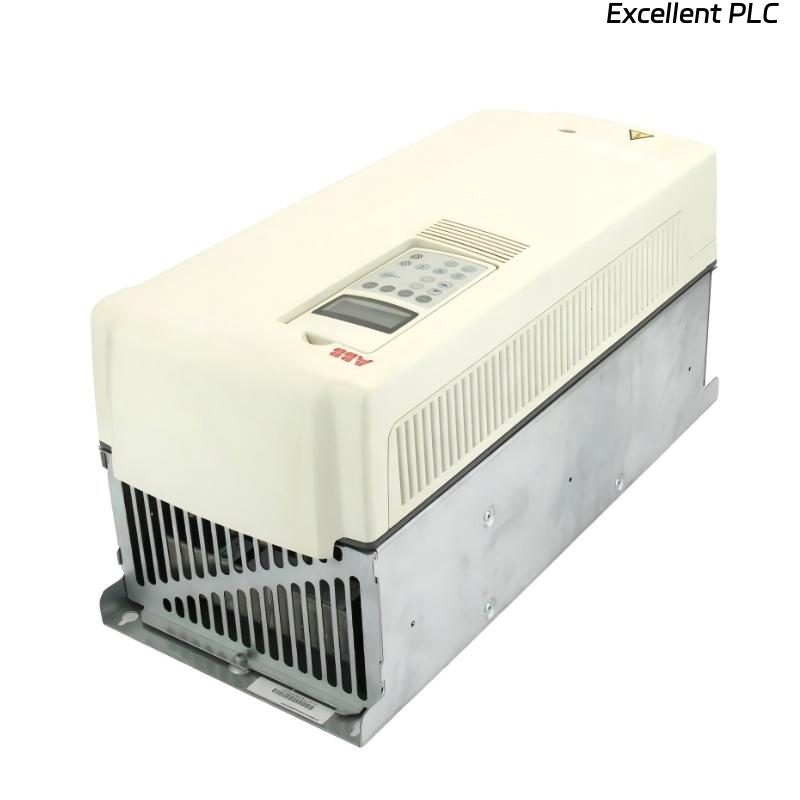

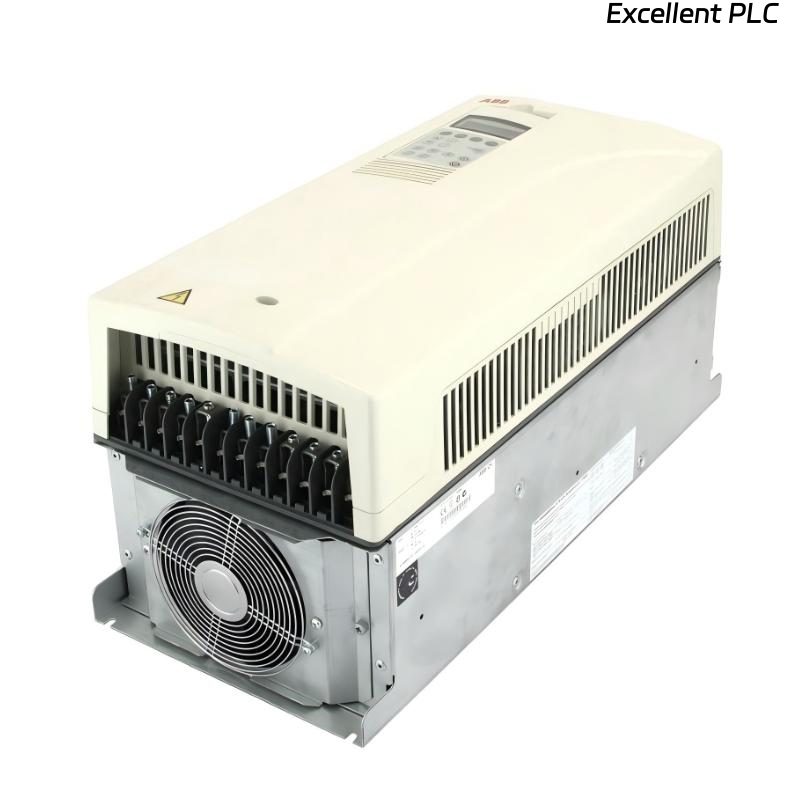

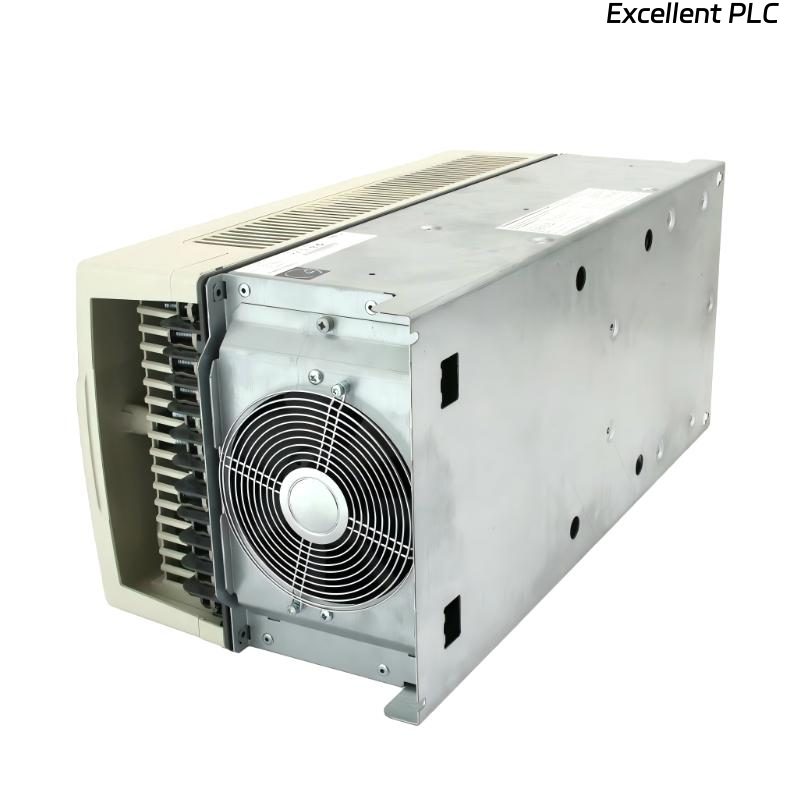

ABB ACS800-01-0050-3 64576470 Frequency Converter
- Product Details
- FAQs
- Related
- Contact Us
- Packing & Delivery
- Product Ratings
Product Introduction
ABB ACS800-01-0050-3 64576470 Frequency Converter is a high-performance industrial drive designed for reliable motor control in medium-power applications. It provides accurate speed regulation, stable torque control, and efficient operation for various industrial systems.
With a three-phase 380…415 V input voltage, 86 A normal duty output current, and 45 kW normal duty output power, this frequency converter is suitable for demanding motor applications. The wall-mounted design provides convenient installation and flexible integration into industrial control systems.
The ACS800-01-0050-3 supports normal duty, light overload, and heavy-duty operation modes, making it suitable for pumps, fans, conveyors, and industrial machinery requiring dependable variable speed control.
Product Specifications
| Parameter | Specification |
|---|---|
| Product Model | ABB ACS800-01-0050-3 |
| Part Number | 64576470 |
| Product Type | Frequency Converter |
| Brand | ABB |
| Number of Phases | Three-phase |
| Frequency (f) | 48 … 63 Hz |
| Frame Size | R5 |
| Input Voltage (U in) | 380…415 V |
| Mounting Type | Wall-mounted |
| Output Current, Normal Use (I n) | 86 A |
| Output Current, Light Overload Use (ILD) | 80 A |
| Output Current, Heavy Duty Use (I HD) | 60 A |
| Output Power, Normal Use (Pn) | 45 kW |
| Output Power, Light Overload Use (PLD) | 37 kW |
| Output Power, Heavy Duty Use (PHD) | 30 kW |
| Apparent Output Power | 60 kVA |
| Efficiency Level | IE2 |
| Standby Loss | 97 W |
| Temperature Class | Maximum 50 °C |
| Dimensions | 739 × 265 × 286 mm |
| Weight | 34 kg |
Applications
• Industrial Machinery
Suitable for manufacturing equipment requiring precise motor speed and torque control.
• Pump Systems
Provides efficient control for industrial pumps, water treatment systems, and process applications.
• Fan and Ventilation Equipment
Helps regulate airflow systems through accurate motor speed adjustment.
• Material Handling Equipment
Supports conveyors and production lines requiring smooth acceleration and stable operation.
• Automation Systems
Provides reliable motor control for industrial automation and process equipment.
Advantages
• High Performance Motor Control
Provides accurate speed and torque regulation for improved equipment stability.
• Flexible Load Operation
Supports normal duty, light overload, and heavy-duty modes for different industrial conditions.
• Energy Efficient Design
IE2 efficiency helps reduce operating losses and improve system performance.
• Convenient Installation
The wall-mounted structure simplifies integration into industrial control systems.
• Reliable Industrial Operation
Built with ABB drive technology for stable and dependable performance.
FAQ
- How does the ABB ACS800-01-0050-3 control motor speed?
The converter adjusts output frequency and voltage to achieve precise motor speed and torque control. - What applications are suitable for this frequency converter?
It is suitable for pumps, fans, conveyors, industrial machines, and automation systems requiring variable speed operation. - How does the converter improve energy efficiency?
It optimizes motor speed according to actual load requirements, reducing unnecessary energy consumption. - What operation modes does this model support?
It supports normal duty, light overload, and heavy-duty operation for different application requirements. - How does the drive maintain stable motor performance?
The converter continuously adjusts control parameters to ensure smooth and reliable operation. - Why is the wall-mounted design useful?
It allows simple installation and efficient use of space in industrial control environments. - Can this converter handle demanding industrial loads?
Yes, it provides 60 A heavy-duty current capability for applications with higher load requirements. - What power supply does this frequency converter require?
It requires a three-phase 380…415 V input supply with a frequency range of 48…63 Hz. - How does the converter support automation systems?
It provides accurate motor control to improve process stability and production efficiency. - What factors should be considered before selecting this drive?
Motor power, load type, operating environment, and control requirements should be evaluated.
