Product Introduction

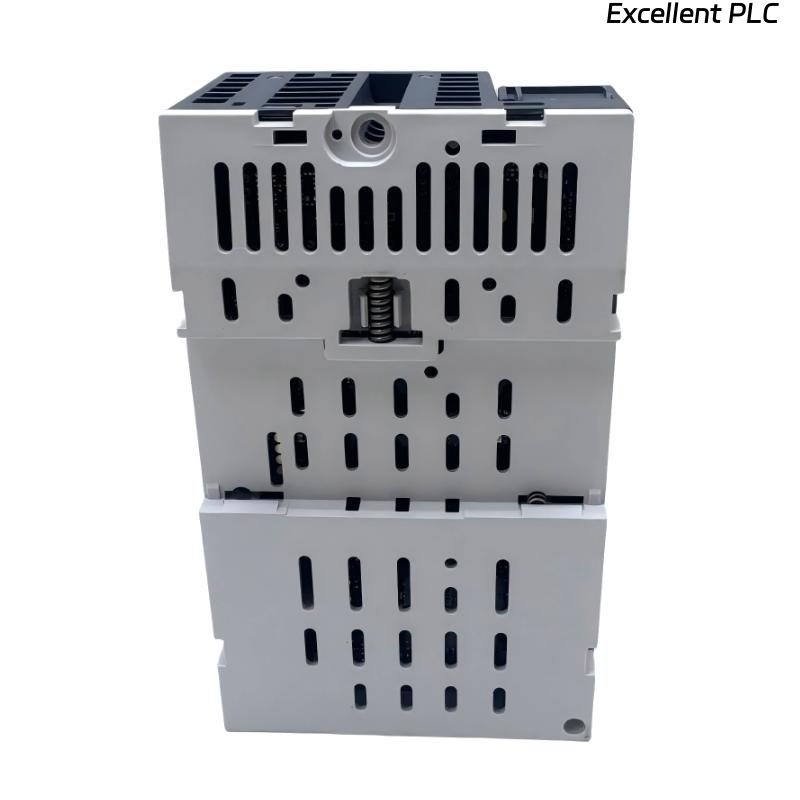

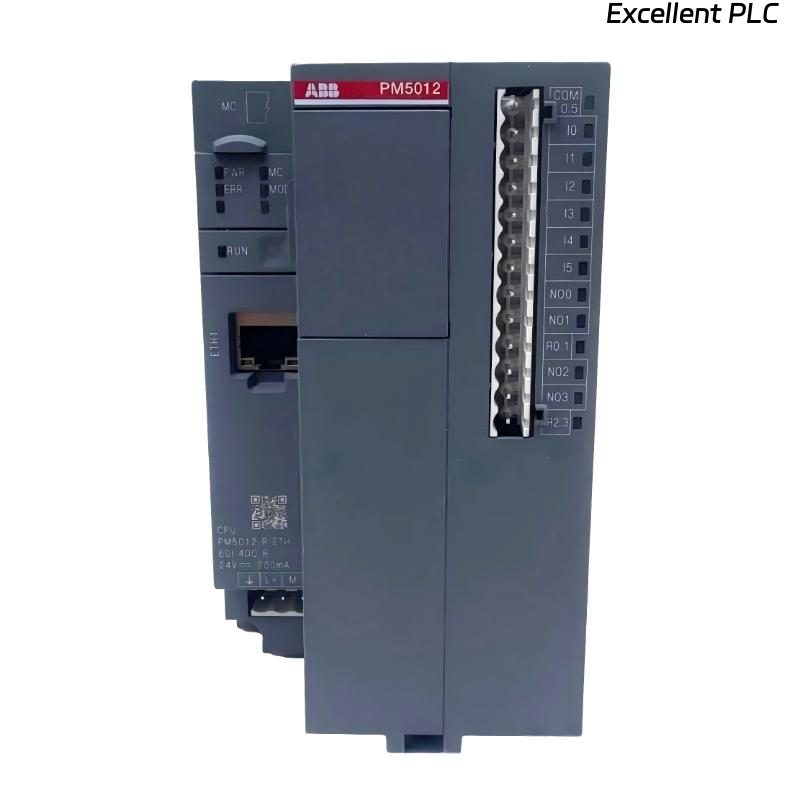

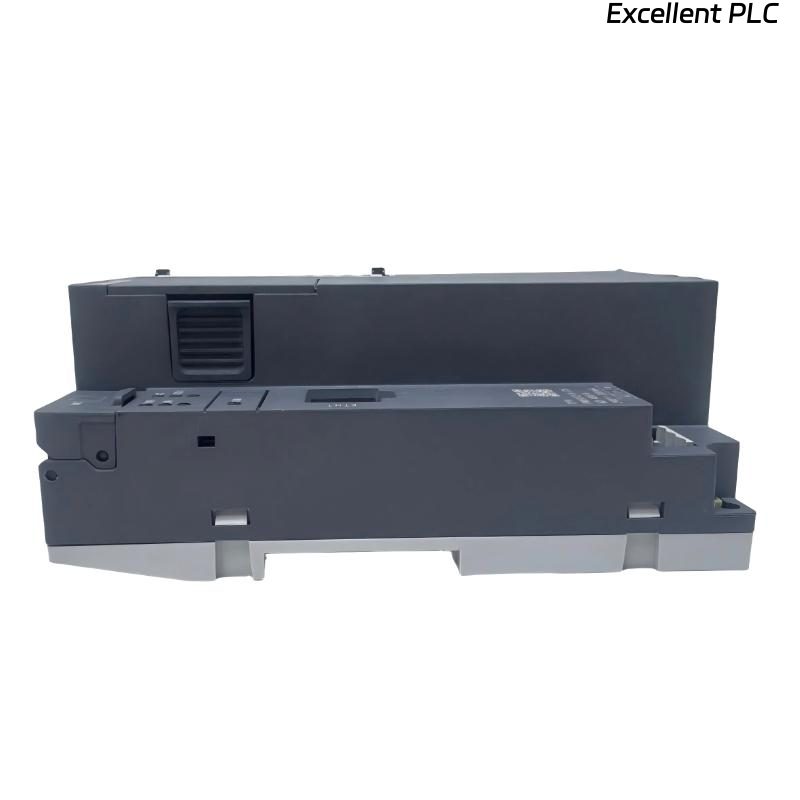

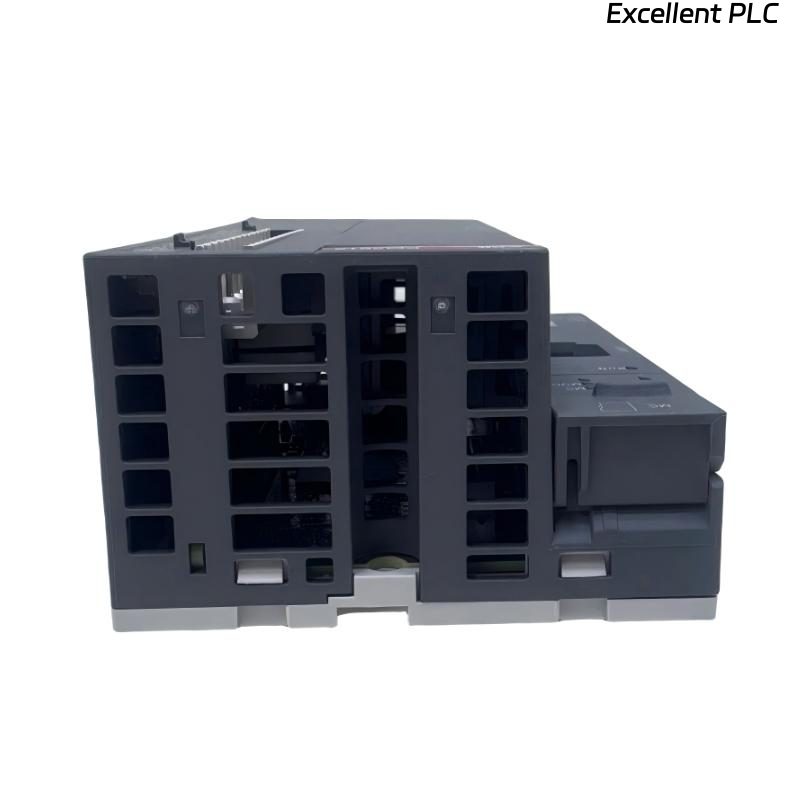

The ABB PM5012-R-ETH 1SAP122700R0072 Processor Module is a compact and powerful industrial controller designed for advanced automation and machine control applications. As part of ABB’s programmable controller platform, this processor module integrates logic processing, digital I/O capability, relay outputs, and Ethernet communication into a single compact unit.
The module features 1 MB of memory, providing sufficient capacity for control logic, process handling, and communication tasks in medium-scale automation systems. It includes 6 digital inputs operating at 24 VDC and 4 relay digital outputs, enabling direct connection to sensors, switches, relays, and field devices without requiring additional expansion modules for basic control tasks.
An integrated Ethernet interface allows reliable communication with supervisory systems, HMIs, engineering stations, and industrial networks. The additional option slot provides flexibility for future expansion and customization according to application requirements.
With its compact footprint and industrial-grade design, the PM5012-R-ETH is suitable for installation in machinery control panels, manufacturing systems, and process automation environments where stable performance and efficient communication are essential.
Product Specifications
| Parameter | Specification |
|---|---|
| Model | PM5012-R-ETH |
| Part Number | 1SAP122700R0072 |
| Brand | ABB |
| Type | Processor Module |
| Memory Capacity | 1 MB |
| Digital Inputs | 6 DI, 24 VDC |
| Digital Outputs | 4 Relay Outputs |
| Output Type | Relay |
| Communication Interface | Ethernet |
| Option Slots | 1 Expansion Slot |
| Application | Industrial Automation & Machine Control |
| Mounting Type | DIN Rail / Panel Mount |
| Operating Environment | Industrial Grade |
| Controller Function | Logic Processing & Communication |
| Dimensions | 135 × 74 × 82 mm |
| Weight | 0.235 kg |
Applications
• Machine automation systems, providing reliable logic control and Ethernet communication for production equipment.
• Packaging machinery, supporting sensor monitoring, relay control, and process coordination.
• Industrial manufacturing lines, enabling compact PLC-based automation control.
• Process control applications, ensuring stable operation of distributed devices and field equipment.
• Building and utility automation, supporting monitoring and control of industrial infrastructure systems.
Advantages
• Integrated Ethernet interface enables fast and stable industrial communication.
• Compact all-in-one design combines processor, digital I/O, and networking functions in a single module.
• 1 MB memory capacity supports efficient program execution and process handling.
• Relay outputs allow direct control of external devices and loads.
• Expansion capability through option slot increases system flexibility.
• Industrial-grade reliability ensures stable operation in demanding environments.
