Product Introduction

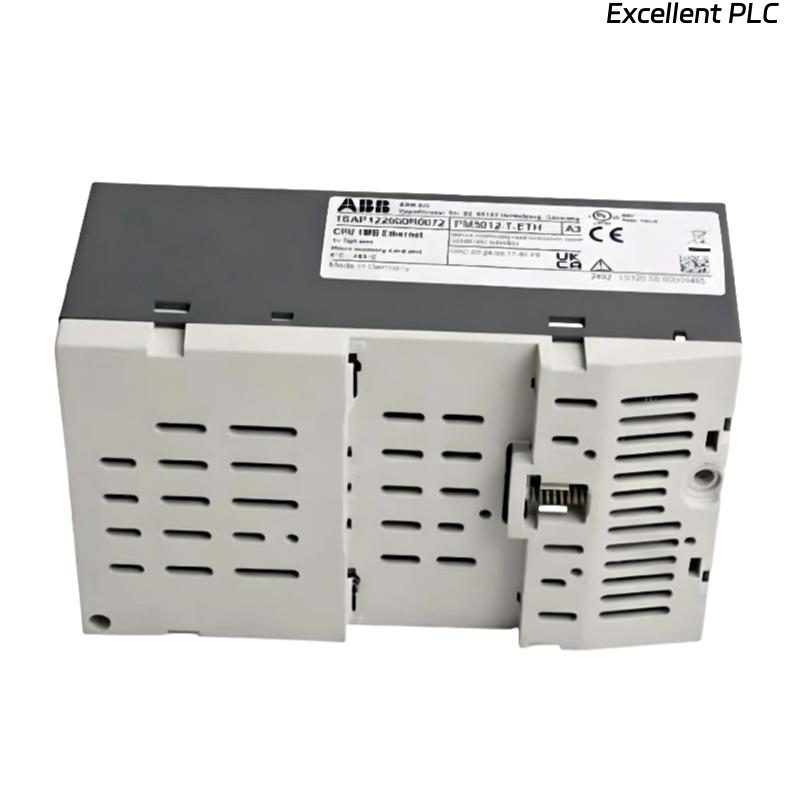

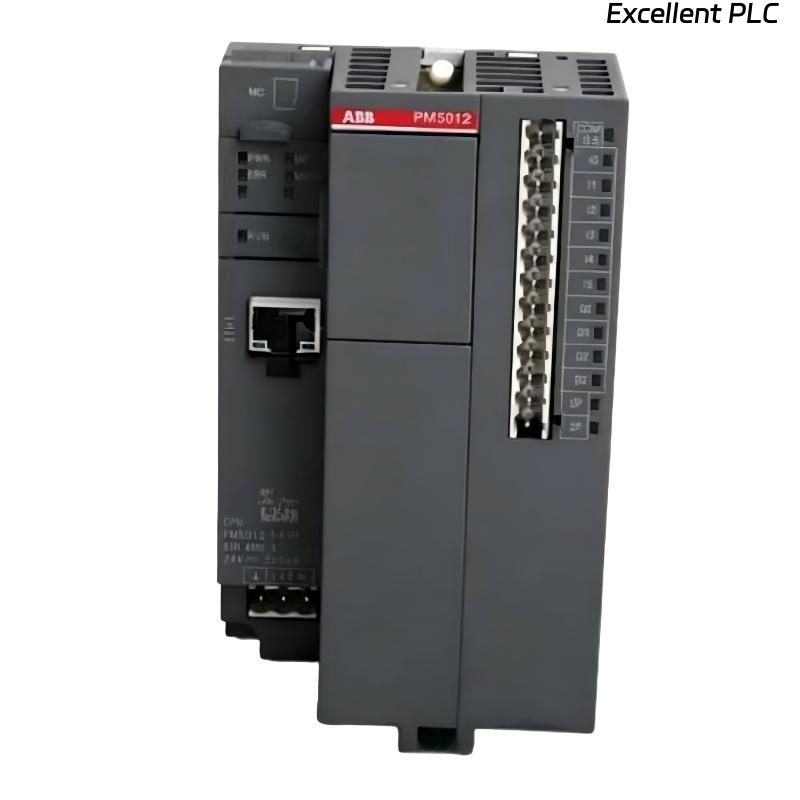

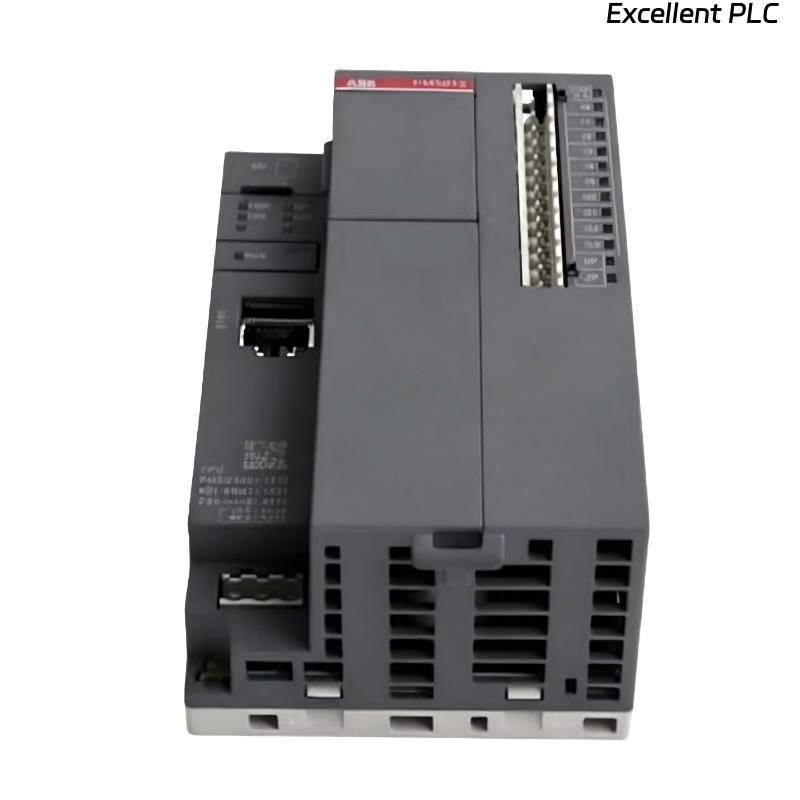

The ABB PM5012-T-ETH 1SAP122600R0072 Processor Module is a compact programmable controller designed for industrial automation applications requiring reliable logic processing, fast response, and integrated communication. As part of ABB’s controller family, this module combines CPU functionality, onboard digital I/O, and Ethernet connectivity into a single unit, making it suitable for space-constrained control systems.
Equipped with 1 MB of memory, the module provides sufficient capacity for control programs, data handling, and communication tasks. It features 6 digital inputs operating at 24 VDC and 4 transistor-based digital outputs, also at 24 VDC, enabling high-speed switching and precise control of field devices such as sensors, actuators, and relays.
The integrated Ethernet interface supports seamless communication with HMIs, SCADA systems, and engineering tools, while the built-in option slot allows system expansion to meet evolving application requirements. Its compact size and industrial-grade design make it ideal for machine automation, small process systems, and distributed control applications.
Product Specifications
| Parameter | Specification |
|---|---|
| Model | PM5012-T-ETH |
| Part Number | 1SAP122600R0072 |
| Brand | ABB |
| Type | Processor Module |
| Memory Capacity | 1 MB |
| Digital Inputs | 6 DI, 24 VDC |
| Digital Outputs | 4 DO, Transistor 24 VDC |
| Output Type | Transistor |
| Communication Interface | Ethernet |
| Option Slots | 1 Expansion Slot |
| Application | Industrial Automation & Machine Control |
| Mounting Type | DIN Rail / Panel Mount |
| Operating Environment | Industrial Grade |
| Controller Function | Logic Processing & Communication |
| Dimensions | 135 × 74 × 82 mm |
| Weight | 0.225 kg |
Applications
• Machine automation systems, enabling high-speed control and real-time signal processing.
• Packaging and assembly equipment, supporting fast switching outputs for precise operation.
• Industrial production lines, providing compact PLC functionality with Ethernet communication.
• Process control systems, ensuring reliable monitoring and control of field devices.
• Building automation and utilities, supporting control of electrical and mechanical systems.
Advantages
• Transistor output design allows high-speed switching and precise control of loads.
• Integrated Ethernet communication ensures seamless connectivity with industrial networks.
• Compact all-in-one controller reduces panel space and simplifies system architecture.
• 1 MB memory capacity supports efficient program execution and data handling.
• Expandable design with option slot provides flexibility for system upgrades.
• Industrial-grade reliability ensures stable performance in demanding environments.
