Product Introduction

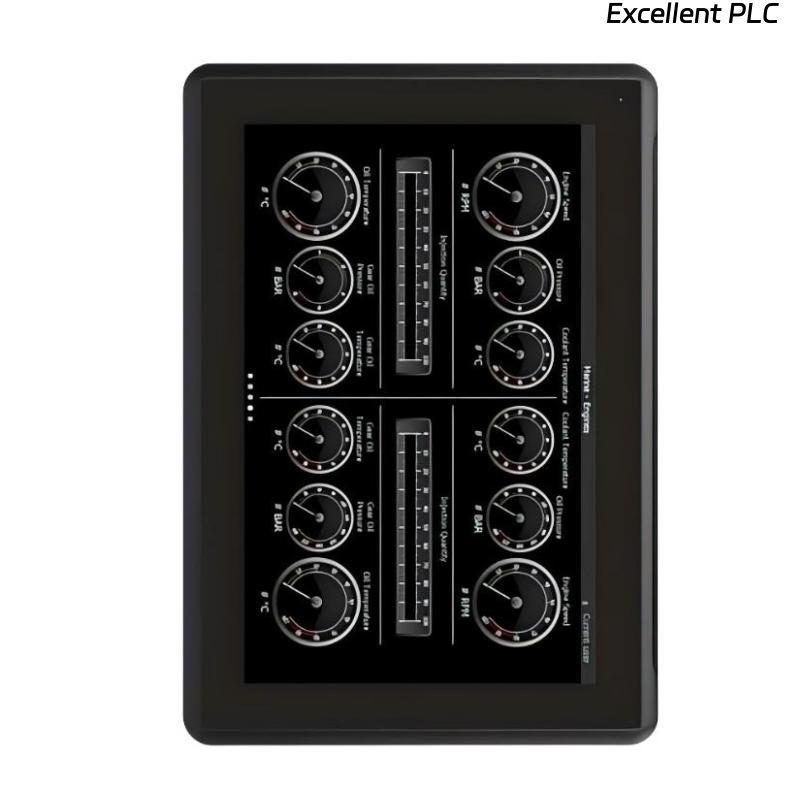

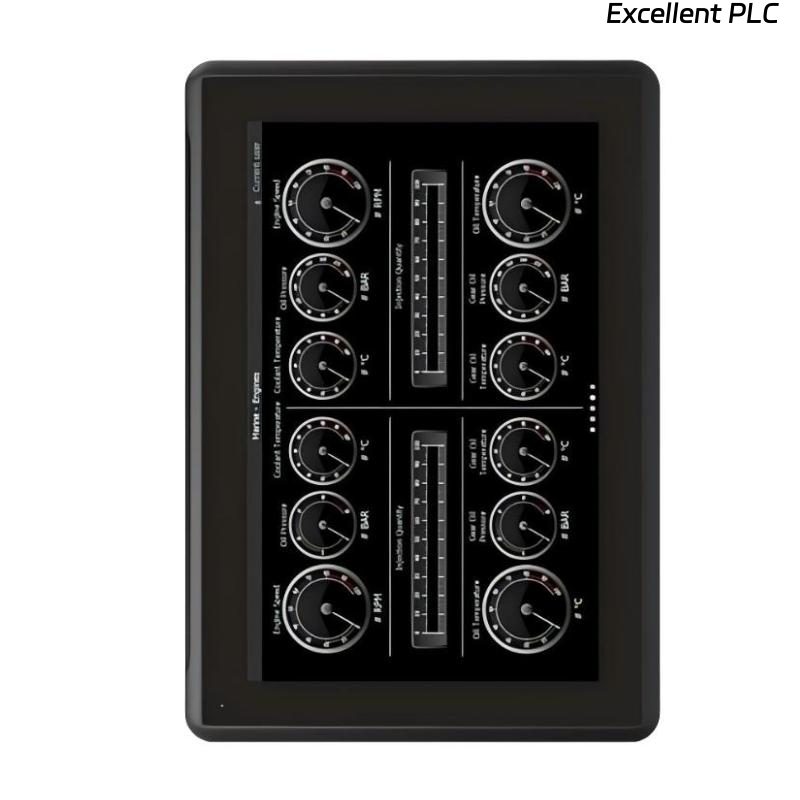

The ABB PP886M 3BSE092984R1 Touch Screen Panel is a high-performance industrial Human Machine Interface (HMI) designed for advanced machine control, process visualization, and operator interaction. As part of ABB’s Panel 800 series, it combines a large 15.4-inch widescreen display with powerful processing capabilities to provide a responsive and intuitive user experience in demanding industrial environments.
Featuring a black-front design, high-resolution touchscreen, and a 1 GHz ARM9 processor, the PP886M delivers excellent performance for complex automation applications. Its widescreen format allows operators to view more process information, alarms, trends, and diagnostics on a single screen, improving productivity and operational awareness.
The PP886M is suitable for manufacturing, power generation, water treatment, oil and gas, mining, infrastructure, and process control applications where reliable visualization and control are essential.
Product Specifications
| Parameter | Description |
|---|---|
| Model | PP886M 3BSE092984R1 |
| Product Type | Touch Screen Panel |
| Manufacturer | ABB |
| Series | Panel 800 |
| Article Number | 3BSE092984R1 |
| Category | Black |
| Display Type | Touchscreen |
| Display Size | 15.4 Inches |
| Brightness | 450 cd/m² |
| Display Resolution | 1280 × 800 Pixels |
| Aspect Ratio | Widescreen |
| Processor | ARM9, 1 GHz |
| Main Memory | 1 GB |
| External Storage | 1 × SD Card Slot (SDHC Supported) |
| Power Supply | 24 V DC |
| Input Voltage Range | 18 to 32 V DC |
| Operating Temperature | -10°C to +60°C |
| Dimensions | 410 × 61 × 286 mm |
| Weight | 3.85 kg |
Applications
• Industrial Automation Systems – Provides centralized machine monitoring and control.
• Manufacturing Plants – Displays production status, alarms, and machine diagnostics.
• Power Generation Facilities – Supports visualization of critical operating parameters.
• Water & Wastewater Treatment Plants – Monitors and controls treatment processes.
• Oil & Gas Operations – Provides operator access to process information and controls.
• Mining and Metals Processing – Supports monitoring of heavy industrial equipment.
• Infrastructure Projects – Integrates with utility and facility automation systems.
• Packaging Machinery – Enables efficient machine operation and supervision.
• Process Industries – Displays trends, alarms, and process data.
• Control Rooms – Provides a large operator interface for complex applications.
Advantages
• 15.4-Inch Widescreen Display – Offers an expanded viewing area for process visualization.
• 1280 × 800 Resolution – Delivers sharp graphics and detailed operational information.
• 450 cd/m² Brightness – Ensures clear screen visibility in industrial environments.
• Touchscreen Interface – Simplifies operator interaction and navigation.
• 1 GHz ARM9 Processor – Provides reliable performance for demanding applications.
• 1 GB Main Memory – Supports large HMI projects and data-intensive applications.
• SD Card Expansion Support – Enables convenient data storage and project management.
• Wide Operating Temperature Range – Operates reliably from -10°C to +60°C.
• 24 V DC Power Input – Compatible with standard industrial power systems.
• Industrial-Grade Reliability – Designed for continuous operation in harsh environments.
