Allen Bradley 1756-A13 ControlLogix 13 Slots Chassis

Product Introduction

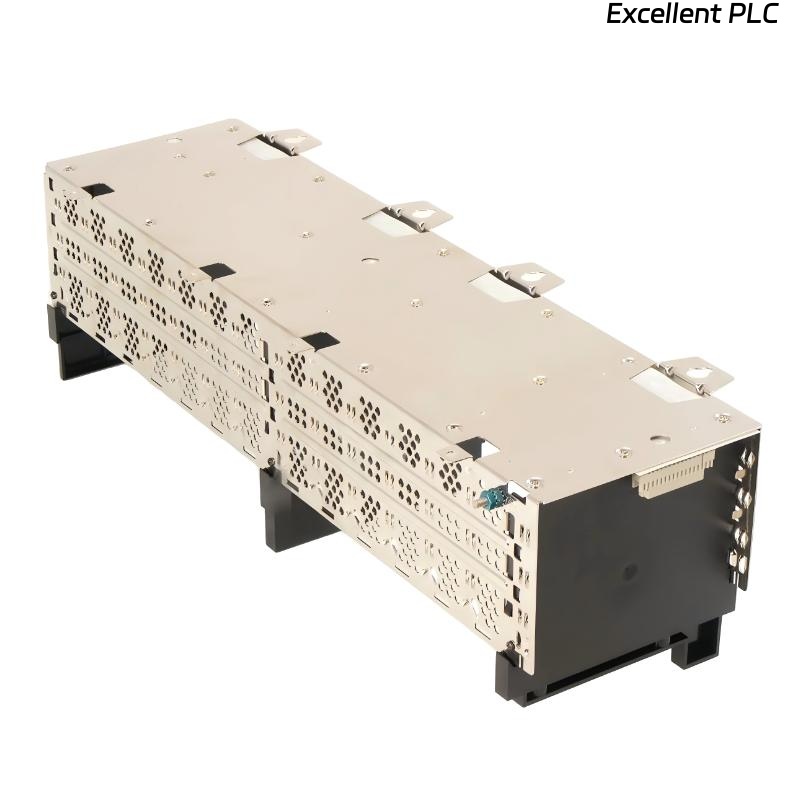

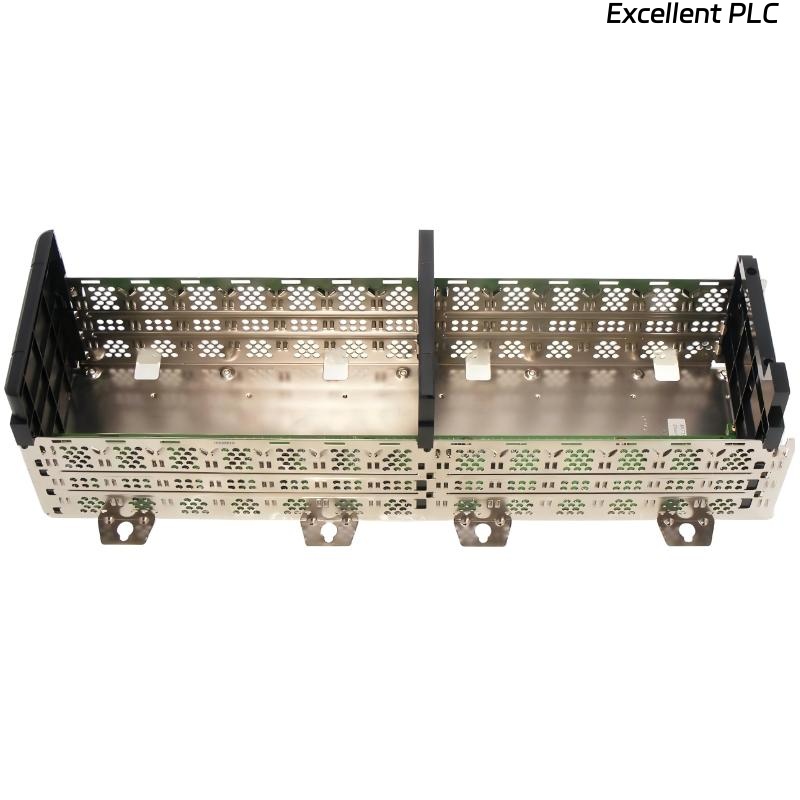

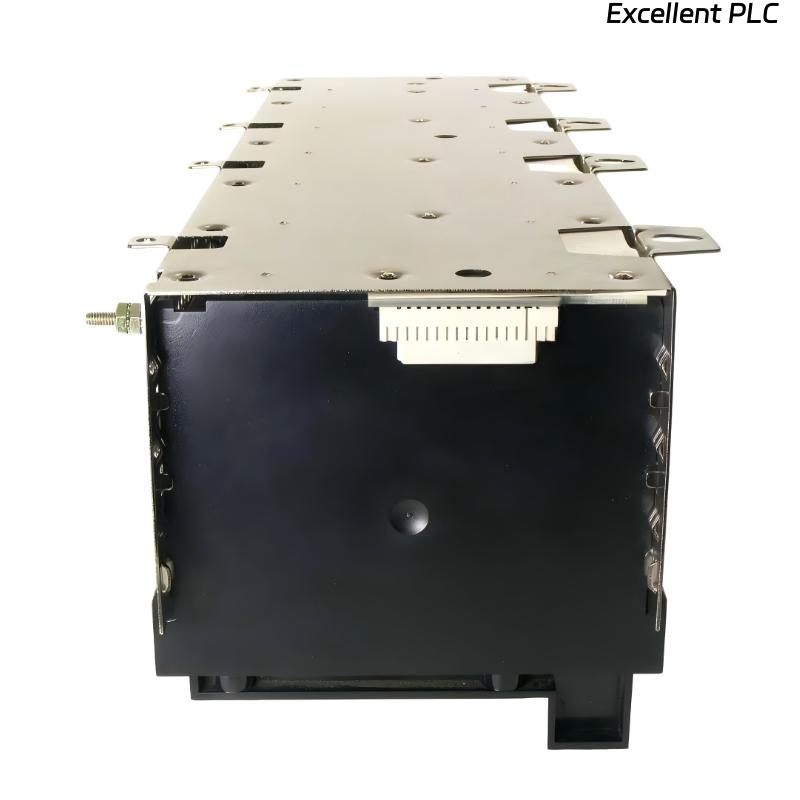

The Allen-Bradley 1756-A13 is a ControlLogix 13-slot chassis designed to serve as the structural and electrical backbone of mid- to large-scale ControlLogix automation systems. It provides a stable mechanical platform and a high-performance backplane that enables seamless communication and power distribution between ControlLogix controllers, I/O modules, communication modules, and specialty modules.

Built for industrial reliability, the 1756-A13 chassis supports demanding control architectures where high module density, robust power handling, and long-term operational stability are required. Its design allows flexible system expansion while maintaining signal integrity and consistent performance across the entire ControlLogix platform.

---

Product Specifications

---

Applications

• Used as the central chassis for ControlLogix systems in manufacturing, process control, and infrastructure automation

• Suitable for medium to large control systems requiring multiple I/O, communication, and specialty modules

• Applied in process industries such as oil & gas, chemicals, pharmaceuticals, and power generation

• Commonly implemented in high-availability and redundant control architectures

• Ideal for systems requiring stable backplane power distribution and high-speed internal communication

---

Advantages

• 13-slot capacity supports high module density and flexible system expansion

• High-current backplane design ensures stable power delivery to all installed modules

• Robust mechanical construction enhances durability in harsh industrial environments

• Wide operating temperature support across different series improves deployment flexibility

• Seamless compatibility with ControlLogix modules simplifies system design and integration

• Designed for long-term, continuous operation in mission-critical automation systems

FAQ

1. What role does the 1756-A13 play in a ControlLogix system?
   It serves as the physical mounting structure and communication backplane for ControlLogix controllers and modules.

2. How many modules can be installed in this chassis?
   Up to 13 ControlLogix modules, including controllers, I/O, communication, and specialty modules.

3. Does the chassis perform signal processing?
   No, it provides backplane communication and power distribution; signal processing is handled by installed modules.

4. Why are multiple backplane voltage rails used?
   Different ControlLogix modules require different voltage levels, and the chassis supports them simultaneously.

5. Is the chassis suitable for high-power module configurations?
   Yes, its high backplane current capacity supports power-intensive modules.

6. Can different module types be mixed in the same chassis?
   Yes, digital, analog, communication, safety, and specialty modules can coexist.

7. What is the benefit of low power dissipation?
   Lower dissipation reduces cabinet heat, improving system stability and component reliability.

8. Does the chassis affect system scan time?
   The backplane is optimized for high-speed communication and does not limit controller performance.

9. Is the chassis suitable for harsh environments?
   Yes, it is designed for industrial environments with extended temperature and storage ranges.

10. Can the chassis be used in redundant ControlLogix systems?
    Yes, it is commonly used in redundant and high-availability ControlLogix architectures.
