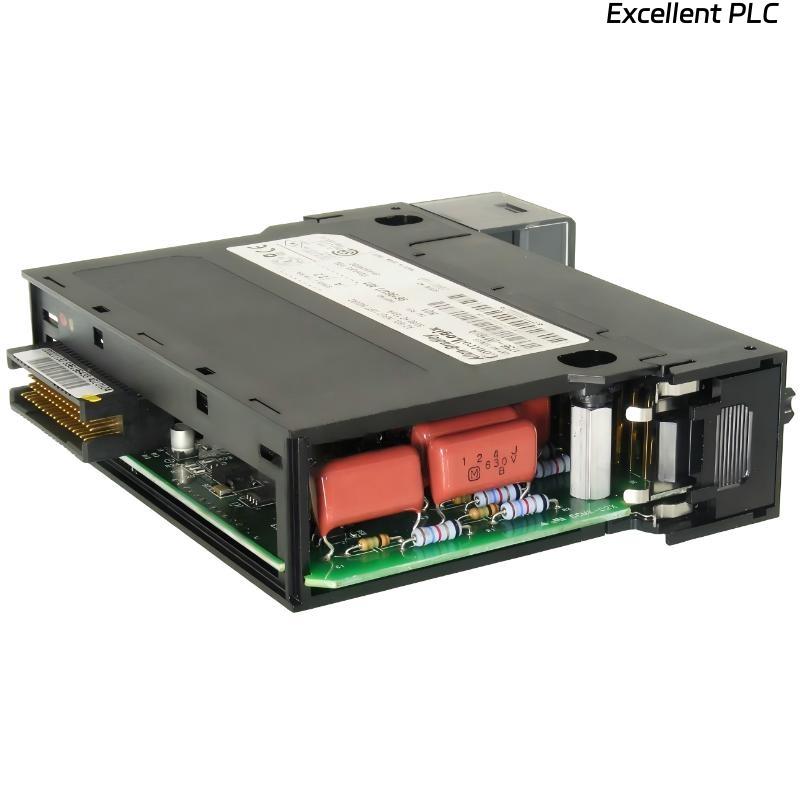

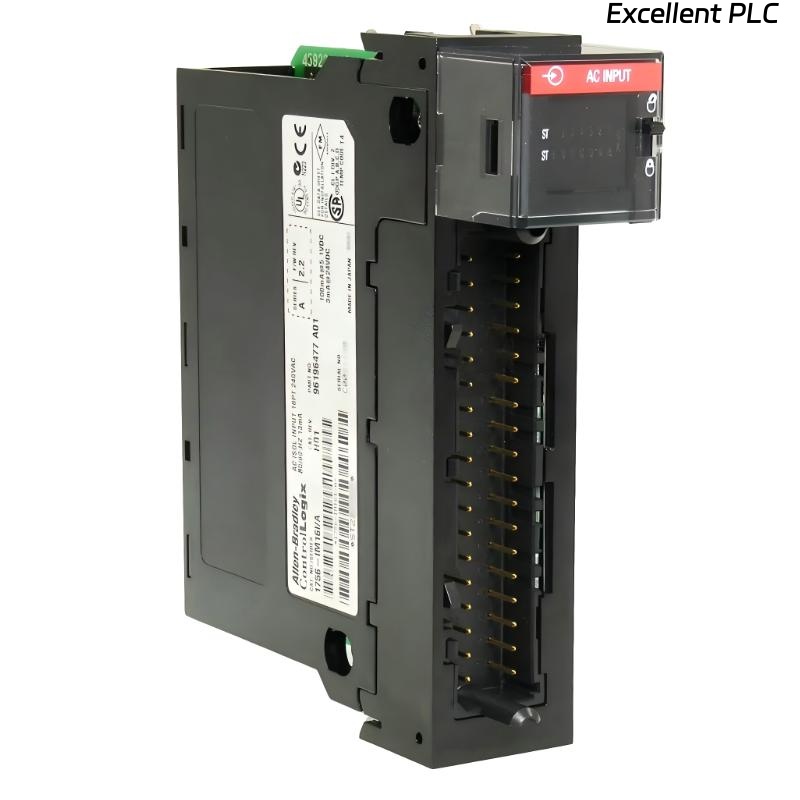

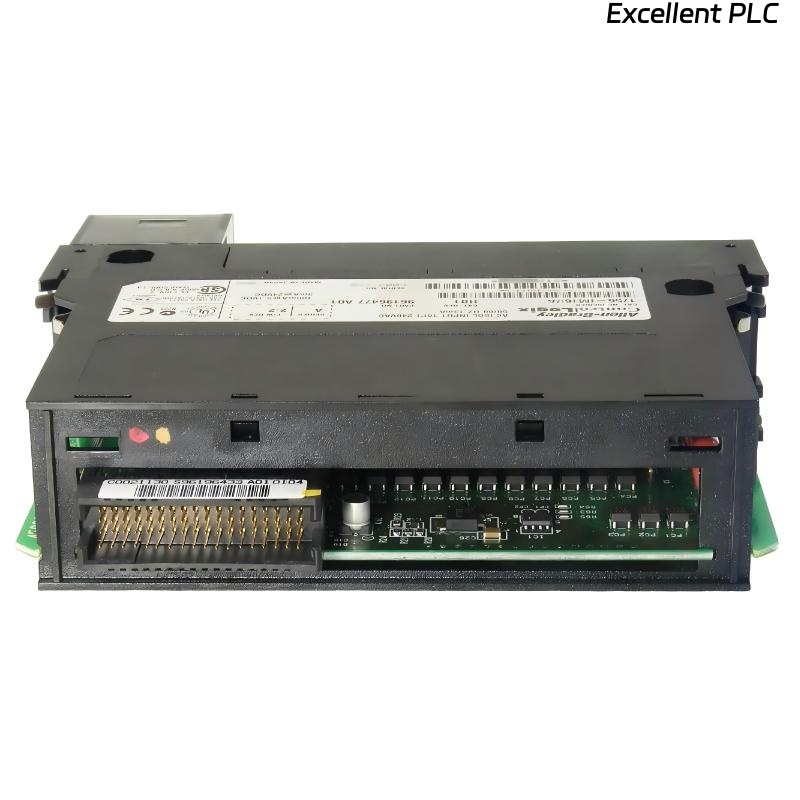

Allen Bradley 1756-IM16I ControlLogix AC Digital Input Module
- Product Details
- FAQs
- Related
- Contact Us
- Packing & Delivery
- Product Ratings
Product Introduction
The Allen-Bradley 1756-IM16I is a ControlLogix AC digital input module designed for high-voltage AC signal monitoring, individual channel isolation, and robust performance in industrial control systems. As part of the ControlLogix I/O platform, this module provides reliable detection of AC signals and safe integration with high-voltage field devices while protecting the backplane and controller electronics.
The 1756-IM16I is ideal for applications where precise AC input monitoring and protection from electrical noise or transients are required. Its 16-channel configuration supports high-density input applications while maintaining electrical isolation for safety and system integrity.
Product Specifications
| Parameter | Description |
|---|---|
| Product Type | ControlLogix AC Digital Input Module |
| Input Type | AC Digital Input |
| Number of Inputs | 16 points |
| Input Voltage Range | 159–265 V AC |
| Input Configuration | Individually isolated AC inputs |
| Signal Detection | High-voltage AC signal detection |
| Chassis Compatibility | ControlLogix chassis |
| Control Platform | ControlLogix automation system |
| Industrial Rating | Designed for industrial control environments |
| Dimensions | 144.5 × 34.6 × 130.18 mm |
| Weight | 0.272 kg |
Applications
• Used for monitoring high-voltage AC signals in industrial machinery and process systems
• Suitable for process automation systems requiring isolated AC digital inputs
• Applied in material handling, packaging, and assembly lines where high-voltage input detection is critical
• Commonly implemented in factory automation systems needing safe integration of AC-powered devices
• Ideal for applications requiring high-density, reliable AC input monitoring with electrical isolation
Advantages
• 16 isolated AC inputs provide reliable and safe monitoring of high-voltage signals
• Wide AC voltage range (159–265 V) ensures compatibility with standard industrial AC power sources
• Individual channel isolation protects the backplane and controller electronics from electrical disturbances
• Seamless integration with ControlLogix controllers allows easy configuration and real-time diagnostics
• Compact module design optimizes chassis space while supporting high channel density
• Designed for robust performance in electrically noisy industrial environments
FAQ
-
What types of devices can the 1756-IM16I monitor?
It can monitor AC-powered field devices such as motors, solenoids, pumps, and industrial sensors within 159–265 V AC. -
How does individual channel isolation benefit the system?
Isolation protects each input from faults or electrical noise, improving system safety and reliability. -
Can the module detect AC signals of varying frequency?
Yes, it is designed for standard industrial AC frequencies typically 50/60 Hz. -
How is input status communicated to the controller?
Input states are transmitted through the ControlLogix backplane, enabling real-time monitoring and diagnostics. -
Can this module coexist with DC input modules in the same chassis?
Yes, AC and DC input modules can be installed together in a ControlLogix chassis when properly configured. -
Does high-voltage AC affect module lifespan?
The module is rated for 159–265 V AC operation, and using it within this range ensures normal operation and longevity. -
How quickly can inputs be detected?
High-speed electronic detection ensures accurate and repeatable monitoring of AC input signals. -
Are there wiring considerations for safety?
Proper conductor sizing, insulation, and adherence to industrial wiring standards are essential for safe operation. -
Can the module be used in distributed control systems?
Yes, it can be used in centralized or distributed ControlLogix architectures. -
What protection does the module provide against electrical noise?
Individual input isolation and internal filtering reduce the impact of noise and transient voltages on the controller and backplane.
Related Models
| Model | Description |
|---|---|
| 1756-IM8 | 8-channel AC digital input module |
| 1756-IM16 | Standard 16-channel AC input module |
| 1756-IB16 | 16-channel DC digital input module |
| 1756-IF16 | 16-channel analog input module |
| 1756-IQ16 | High-speed input module |
| 1756-IA16 | 16-channel AC analog input module |
