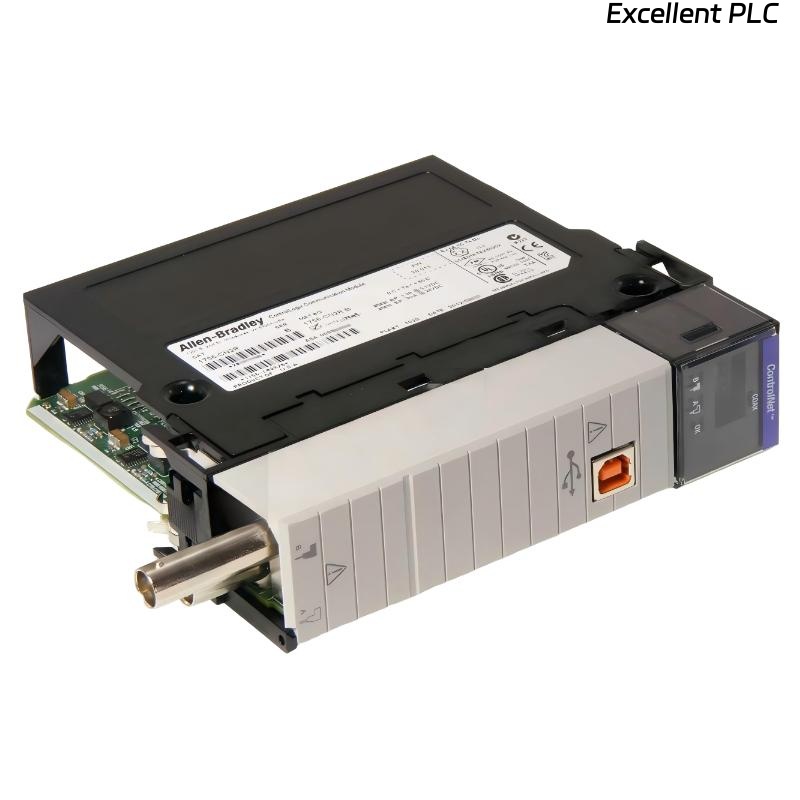

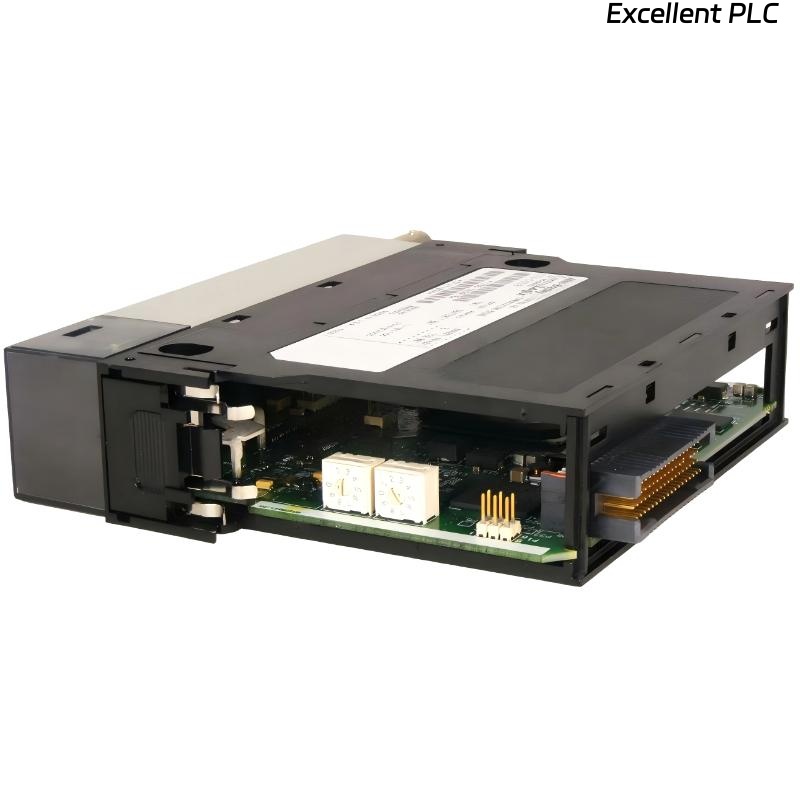

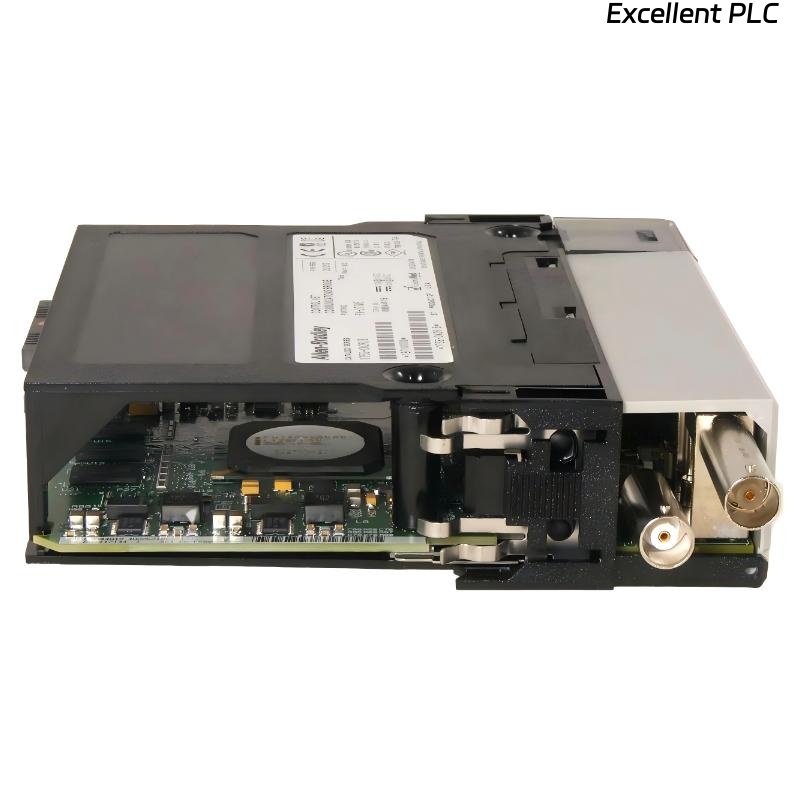

Allen Bradley 1756-CN2RK ControlLogix ControlNet Communication Module
- Product Details
- FAQs
- Related
- Contact Us
- Packing & Delivery
- Product Ratings
Product Introduction
The Allen-Bradley 1756-CN2RK is a high-performance, dual-channel ControlNet communication module designed for ControlLogix systems requiring redundant or high-speed networking. This module allows robust communication between multiple ControlLogix controllers, I/O modules, and networked devices while maintaining system reliability and high throughput.
The 1756-CN2RK is ideal for applications that demand fault-tolerant communication, high availability, and optimized network performance. Its dual-channel design supports simultaneous data paths, enabling redundancy and enhanced bandwidth for complex industrial control networks.
Product Specifications
| Parameter | Description |
|---|---|
| Product Type | ControlLogix Communication Module |
| Module Performance | High-performance dual-channel |
| Communication Protocol | ControlNet |
| Logix Connections | 128 |
| Channel Configuration | Dual-channel for redundancy or high-speed operation |
| System Compatibility | ControlLogix chassis and controllers |
| Industrial Rating | Designed for industrial automation networks |
| Power Dissipation | 6.7 W |
| Thermal Dissipation | 22.9 BTU/h |
| Operating Temperature | 0 to 60 °C |
| Storage Temperature | -40 to 85 °C |
| Enclosure Type Rating | Open-style |
| Dimensions | 144.5 × 34.6 × 130.18 mm |
| Weight | 0.293 kg |
Applications
• Used for high-performance ControlNet communication in distributed control systems
• Suitable for redundant network configurations requiring dual communication channels
• Applied in process control, manufacturing automation, and critical industrial operations
• Enables robust, fault-tolerant communication between ControlLogix controllers and I/O modules
• Ideal for applications requiring simultaneous high-speed data transmission and network reliability
Advantages
• Dual-channel design provides redundancy and increases network reliability
• High-performance module supports up to 128 Logix connections for complex systems
• Seamless integration with ControlLogix controllers simplifies configuration and monitoring
• Low power and thermal dissipation ensures stable operation within control panels
• Open-style mounting allows flexible installation in industrial environments
• Designed for critical industrial networks where downtime and communication errors must be minimized
FAQ
-
What is the primary function of the 1756-CN2RK module?
It provides dual-channel ControlNet communication for high-performance and redundant ControlLogix networks. -
How many Logix connections does it support?
The module supports up to 128 Logix connections. -
Can the dual channels operate independently?
Yes, the channels can provide simultaneous communication paths for redundancy or increased throughput. -
Is the module compatible with standard ControlNet networks?
Yes, it integrates seamlessly with existing ControlNet networks and devices. -
What is the maximum number of nodes supported?
The maximum nodes depend on network configuration, typically up to 99 per channel in standard networks. -
Does it generate significant heat?
No, power dissipation is 6.7 W with thermal dissipation of 22.9 BTU/h, suitable for industrial enclosures. -
Can it be used in redundant network architectures?
Yes, the dual-channel design is specifically for redundancy and high-availability systems. -
What operating temperature range is supported?
The module operates from 0 to 60 °C. -
How is the module installed in a ControlLogix system?
It is mounted in a ControlLogix chassis and communicates via the backplane with other modules and controllers. -
What are the advantages of high-performance communication?
High-performance communication reduces latency, increases throughput, and supports critical industrial automation processes.
Related Models
| Model | Description |
|---|---|
| 1756-CN2R | Standard ControlNet communication module |
| 1756-CN2RK | High-performance dual-channel ControlNet module |
| 1756-CN2E | Enhanced ControlNet communication module |
| 1756-EN2TR | EtherNet/IP communication module |
| 1756-EN2F | EtherNet/IP communication module |
| 1756-CN2T | ControlNet trunk module |
Popular Models
| Model | Description |
|---|---|
| 1756-L81E | ControlLogix high-performance controller |
| 1756-L83E | Advanced ControlLogix controller |
| 1756-PA75 | ControlLogix AC power supply |
| 1756-A13 | 13-slot ControlLogix chassis |
| 1756-IF16 | 16-channel analog input module |
| 1756-OB16I | 16-channel DC isolated output module |
