Product Introduction

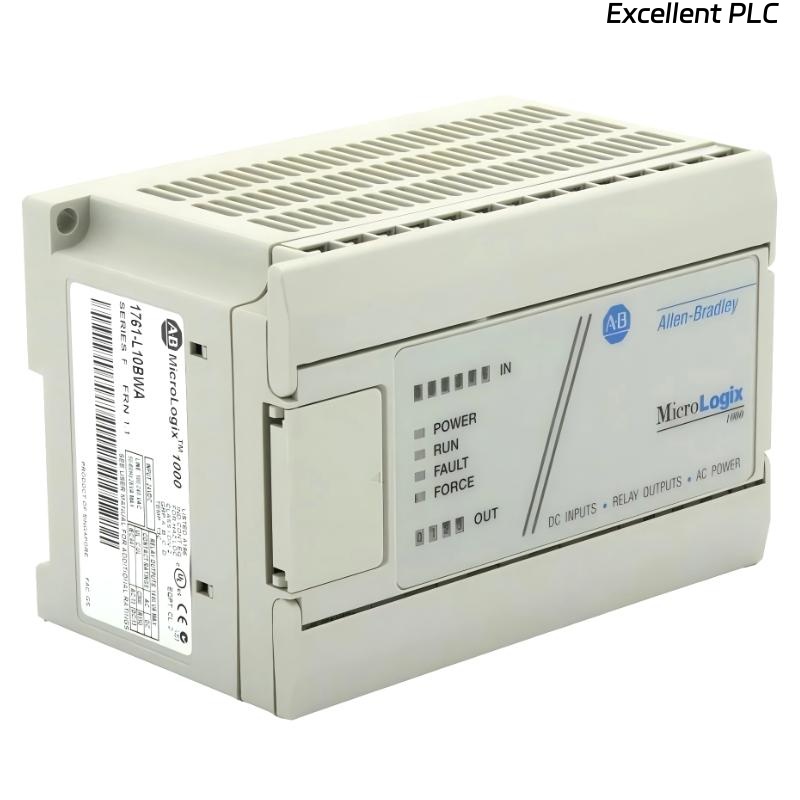

The Allen-Bradley 1761-L10BWA is a compact MicroLogix 1000 programmable logic controller designed for small standalone automation systems and OEM equipment. Powered by 120/240 VAC, this controller integrates digital inputs and relay outputs within a single housing, eliminating the need for additional expansion modules in simple control applications.
With 6 digital inputs (24V DC) and 4 relay outputs, the 1761-L10BWA is well suited for basic machine sequencing, motor control logic, alarm handling, and interlocking applications. Its compact structure and integrated AC power supply make it particularly suitable for panels where only AC power is available.
The MicroLogix 1000 platform is recognized for its reliability, ease of configuration, and long-term stability in industrial environments.
Product Specifications
| Parameter | Description |
|---|---|
| Model Number | 1761-L10BWA |
| Product Series | MicroLogix 1000 |
| Controller Type | Compact PLC |
| Power Supply | 120 / 240 VAC |
| Power Consumption | 26 VA |
| Digital Inputs | 6 × 24V DC |
| Outputs | 4 × Relay Outputs |
| User Memory | 1 KB |
| Communication Port | RS-232 Serial Port |
| Programming Software | RSLogix 500 |
| Mounting Type | DIN Rail / Panel Mount |
| Dimensions | 120 × 73 × 80 mm |
| Weight | 0.34 kg |
Applications
● Small machine automation systems for OEM or standalone equipment.
● Pump and fan control panels requiring simple on/off logic.
● Motor starter and interlock logic applications.
● Basic conveyor systems for small production lines.
● Standalone OEM equipment control where compact PLCs are needed.
● Simple process monitoring and alarm systems.
Advantages
● Integrated AC power supply eliminates the need for external DC power.
● Relay outputs capable of switching AC and DC loads.
● Compact design suitable for tight panel spaces.
● Reliable industrial operation for small-scale automation.
● Ease of programming with RSLogix 500 software.
● Cost-effective entry-level PLC solution.
