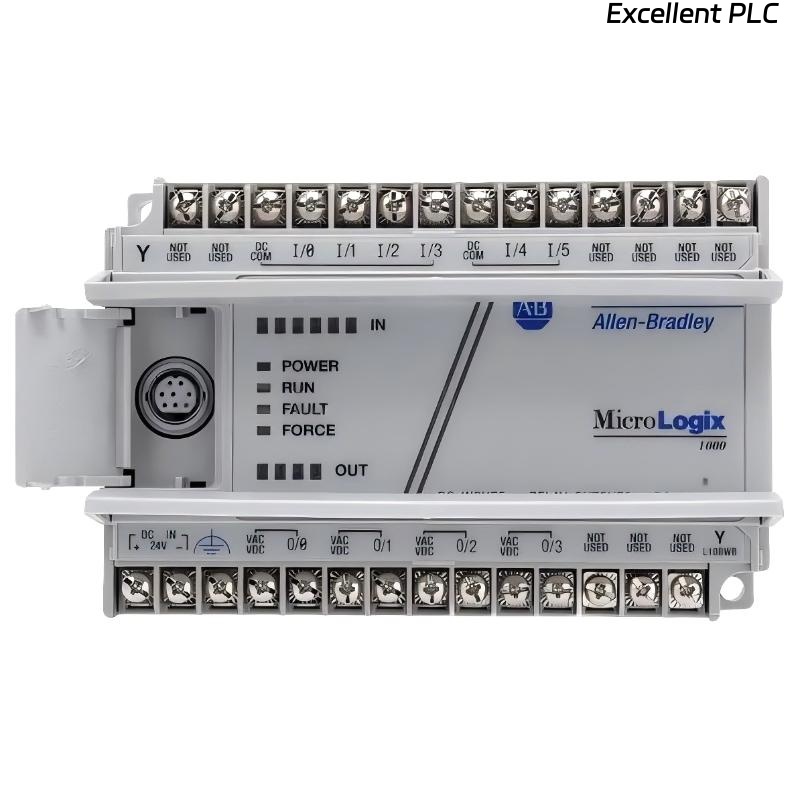

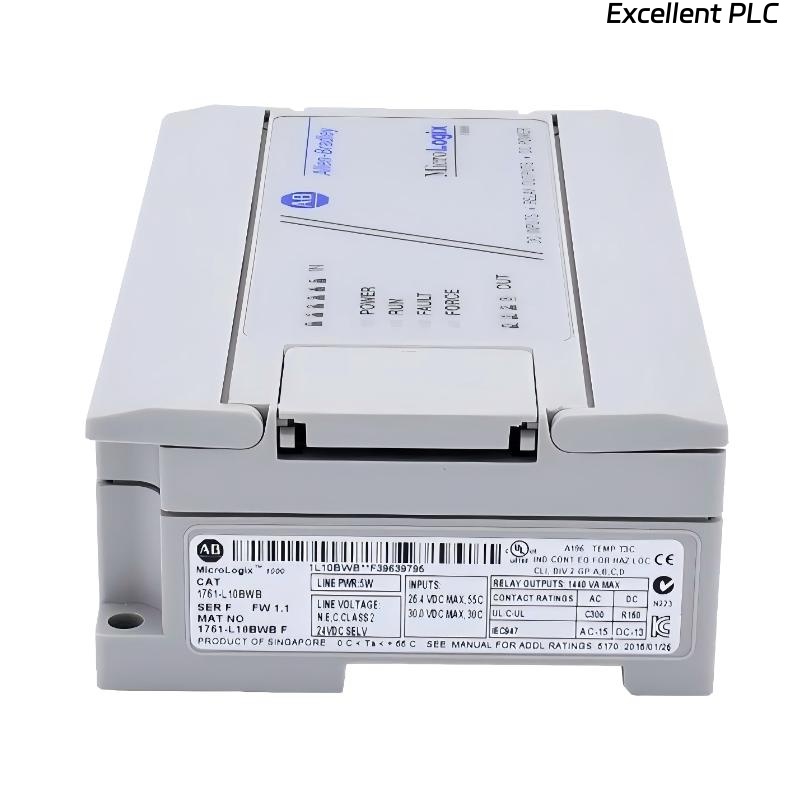

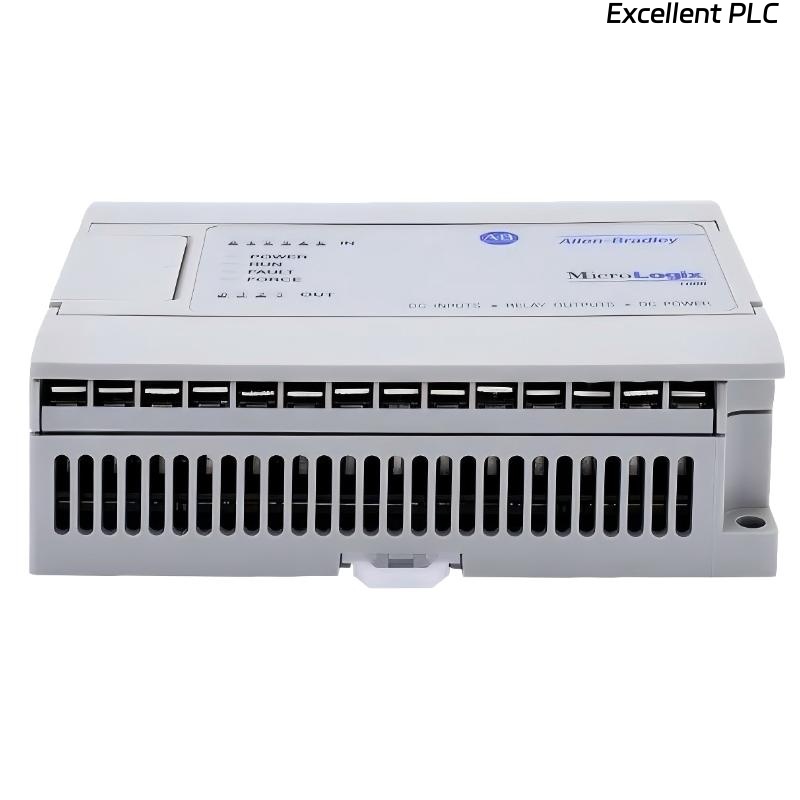

Allen Bradley 1761-L10BWB MicroLogix 1000 Programmable Controller
- Product Details
- FAQs
- Related
- Contact Us
- Packing & Delivery
- Product Ratings
Product Introduction
The Allen-Bradley 1761-L10BWB is a compact MicroLogix 1000 programmable controller designed for small-scale automation and OEM equipment applications. It provides integrated 24V DC digital inputs, relay outputs, and a built-in 24V DC power supply, making it ideal for standalone machine control and basic automation tasks.
With 6 digital inputs and 4 relay outputs, the 1761-L10BWB is optimized for simple logic operations, motor control, alarms, and interlocking. Its 1 KB EEPROM ensures non-volatile storage of control programs, enabling reliable operation even during power interruptions. Its small footprint allows easy installation in tight control panels.
Product Specifications
| Parameter | Description |
|---|---|
| Model Number | 1761-L10BWB |
| Product Series | MicroLogix 1000 |
| Controller Type | Compact PLC |
| Power Supply | 24 VDC |
| Digital Inputs | 6 × 24 VDC |
| Outputs | 4 × Relay Outputs |
| User Memory | 1 KB EEPROM |
| Communication Port | RS-232 Serial Port |
| Programming Software | RSLogix 500 |
| Mounting Type | DIN Rail / Panel Mount |
| Dimensions | 120 × 40 × 80 mm |
| Weight | 0.2 kg |
Applications
● Standalone machine automation for OEM and small equipment.
● Motor control and interlock systems.
● Alarm monitoring and signal logic.
● Simple sequencing and timing operations.
● Compact control panels where DC power is available.
● Small-scale process monitoring.
Advantages
● Integrated 24V DC power supply reduces external wiring.
● Compact design allows easy installation in small panels.
● Relay outputs capable of switching AC or DC loads.
● EEPROM memory ensures non-volatile program retention.
● Simple programming using RSLogix 500.
● Cost-effective solution for entry-level automation applications.
FAQ
-
What power supply does the 1761-L10BWB use?
It operates on 24 VDC. -
How many digital inputs and outputs are included?
6 digital inputs (24 VDC) and 4 relay outputs. -
Are the outputs relay or transistor type?
The outputs are relay type. -
How much user memory is available?
It provides 1 KB of EEPROM memory. -
What programming software is compatible?
RSLogix 500 is used for programming. -
Can it control motors?
Yes, the relay outputs can switch small motors or contactors within rating limits. -
Is external DC power needed for inputs?
No, the built-in 24 VDC supply powers the digital inputs. -
Does it support expansion modules?
MicroLogix 1000 controllers typically have fixed I/O with limited expansion capability. -
Can it be mounted on DIN rail or panel?
Yes, both DIN rail and panel mounting are supported. -
What applications is this controller best suited for?
Small-scale automation, OEM machines, motor starters, and simple logic control.
