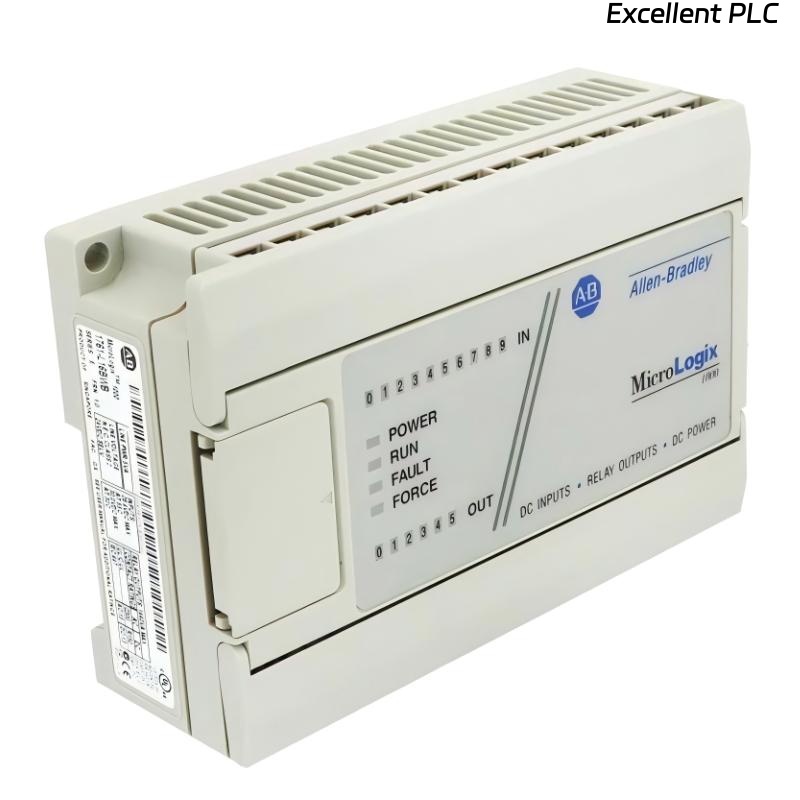

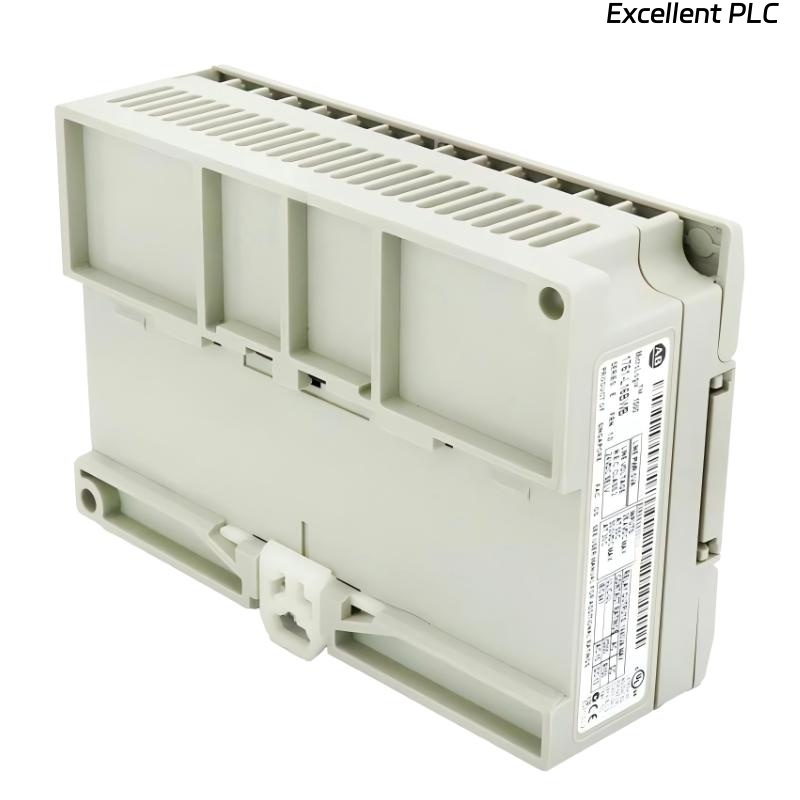

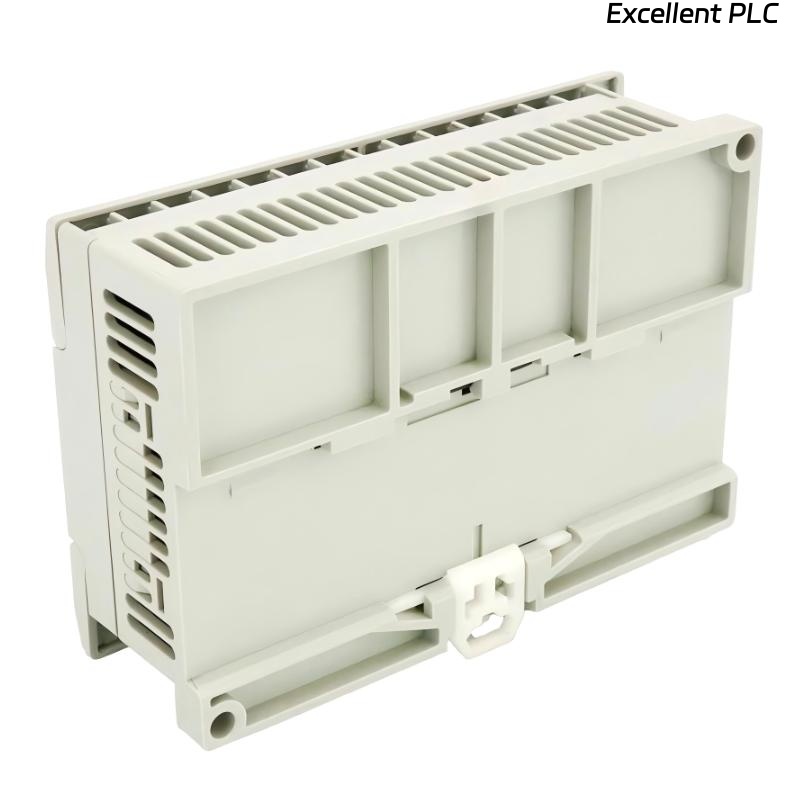

Allen Bradley 1761-L16BWB MicroLogix 1000 Programmable Controller
- Product Details
- FAQs
- Related
- Contact Us
- Packing & Delivery
- Product Ratings
Product Introduction
The Allen-Bradley 1761-L16BWB is a compact MicroLogix 1000 programmable logic controller (PLC) designed for small-scale automation and standalone machine control applications. It combines integrated digital inputs, relay outputs, and built-in power supply capability within a compact housing.
Operating on 24V DC power, this controller features 10 digital inputs (24V DC) and 6 relay outputs, making it suitable for simple logic control, motor starters, alarms, and small machine sequencing tasks. With 1 KB of user memory, it is optimized for straightforward automation applications requiring reliable and cost-effective control.
The MicroLogix 1000 series is widely used in OEM equipment, small process systems, and decentralized control applications due to its durability, simplicity, and ease of programming.
Product Specifications
| Parameter | Description |
|---|---|
| Model Number | 1761-L16BWB |
| Product Type | Micro PLC Controller |
| Series | MicroLogix 1000 |
| Power Supply | 24V DC |
| Digital Inputs | 10 × 24V DC |
| Outputs | 6 × Relay Outputs |
| User Memory | 1 KB |
| Communication Port | Built-in serial communication (RS-232) |
| Programming Software | RSLogix 500 |
| Mounting | DIN rail or panel mount |
| Dimensions | 120 × 40 × 80 mm |
| Weight | 0.222 kg |
Applications
● Small machine automation such as packaging, labeling, and assembly units.
● Motor control and starter logic for compact systems.
● Standalone equipment control in OEM applications.
● Basic sequencing and timing control in industrial processes.
● Alarm monitoring and interlock systems.
● Decentralized control nodes within larger automation architectures.
Advantages
● Compact integrated design combining power, inputs, and outputs in one unit.
● Relay outputs allow flexible switching of AC or DC loads.
● Simple programming structure suitable for entry-level automation.
● Cost-effective control solution for small applications.
● Reliable 24V DC operation for industrial environments.
● Easy installation via DIN rail or panel mounting.
FAQ
-
What type of power supply does the 1761-L16BWB require?
It operates on a 24V DC power supply. -
How many digital inputs are available?
The controller provides 10 digital inputs rated at 24V DC. -
What type of outputs does it have?
It includes 6 relay outputs capable of switching various load types. -
How much user memory is available?
It provides 1 KB of user program memory. -
What software is used for programming?
It is programmed using RSLogix 500 software. -
Can relay outputs switch both AC and DC loads?
Yes, relay outputs are electrically isolated and can switch compatible AC or DC loads within rating limits. -
Is it suitable for standalone machine control?
Yes, it is designed for compact standalone automation applications. -
Does it support communication with external devices?
Yes, it includes a built-in serial communication port. -
Is expansion I/O supported?
The MicroLogix 1000 series generally has fixed I/O and limited expansion capability. -
Is it appropriate for OEM equipment manufacturing?
Yes, it is commonly used in OEM-built compact machines and control panels.
Related Models
| Model | Description |
|---|---|
| 1761-L10BWB | MicroLogix 1000, 10 I/O Controller |
| 1761-L20BWB | MicroLogix 1000, 20 I/O Controller |
| 1761-L32BWA | MicroLogix 1000, 32 I/O Controller |
| 1763-L16BWA | MicroLogix 1100 Controller |
| 1766-L32BWA | MicroLogix 1400 Controller |
| 1762-IQ16 | 16-Point Digital Input Expansion Module |
Popular Models
| Model | Description |
|---|---|
| 1761-L16BWB | 16 I/O MicroLogix 1000 Controller |
| 1761-L20BWB | 20 I/O MicroLogix 1000 Controller |
| 1763-L16BWA | MicroLogix 1100 Controller |
| 1766-L32BWA | MicroLogix 1400 Controller |
| 1762-IF4 | 4-Channel Analog Input Module |
| 1762-OW16 | 16-Point Relay Output Module |
