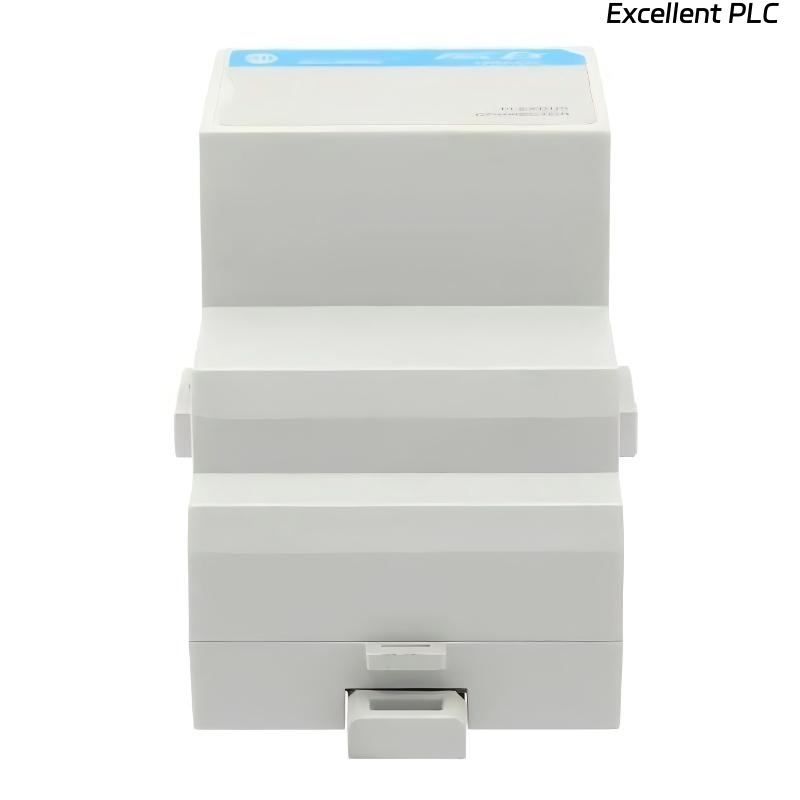

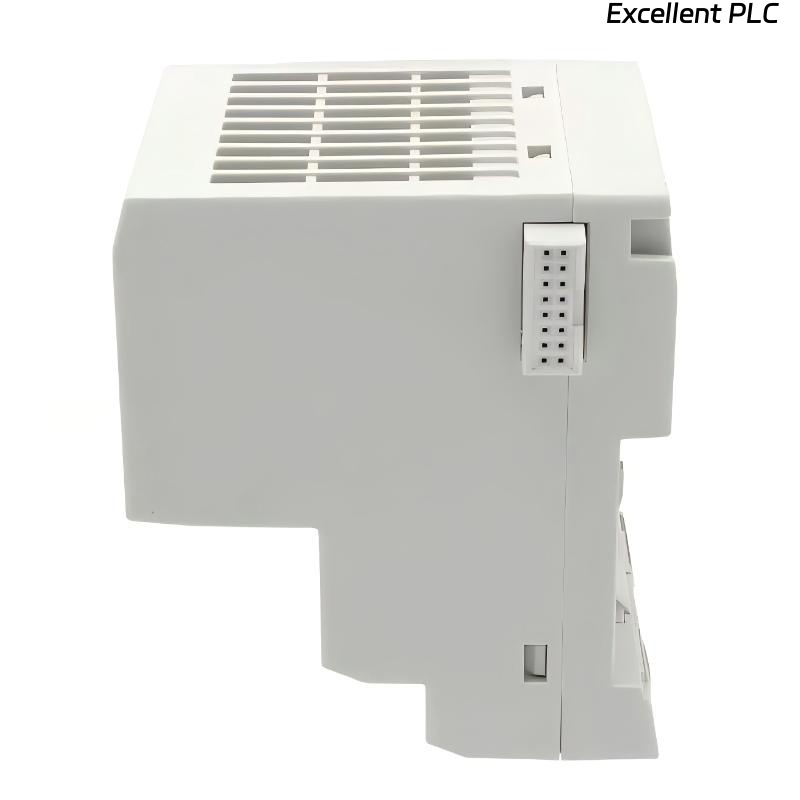

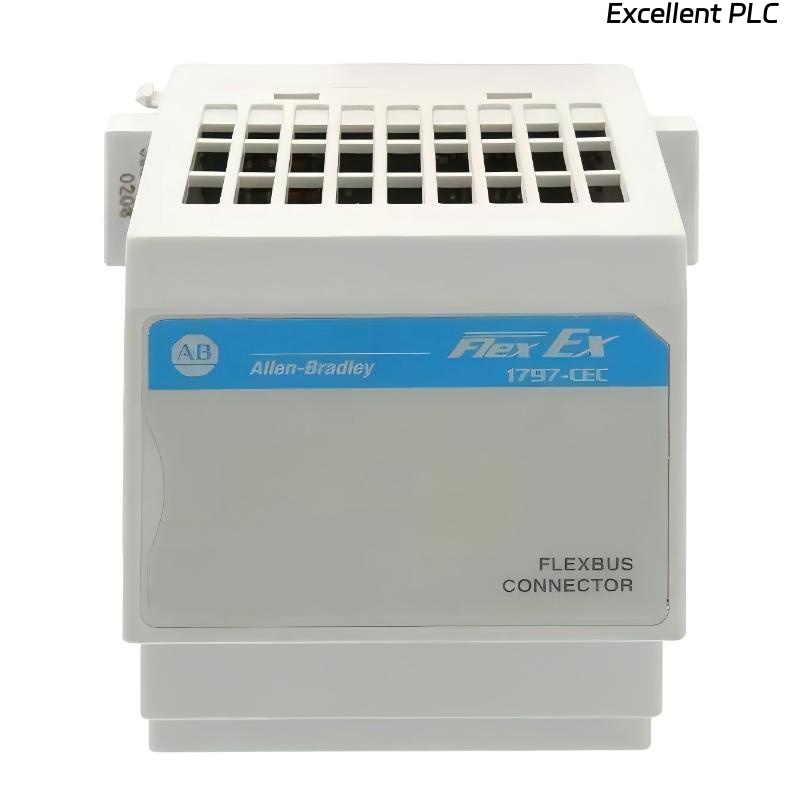

Allen Bradley 1797-CEC Flex Ex I/O Bus Connector Module

Product Introduction

The Allen Bradley 1797-CEC Flex Ex I/O Bus Connector Module is a key structural and communication component within the FLEX Ex distributed I/O system. It is designed to interconnect FLEX Ex and FLEX I/O modules on a shared DIN rail, enabling unified configuration and seamless data exchange through a common adapter interface.

This module functions as a bus connector, allowing multiple I/O modules to be grouped together and treated as a single node within the control system. By simplifying module expansion and reducing wiring complexity, it plays an important role in building scalable and organized control architectures, especially in environments where both standard and intrinsically safe I/O modules must coexist.

Its compact design and straightforward installation make it particularly suitable for modular system layouts. The 1797-CEC ensures stable backplane communication between connected modules while maintaining compatibility with hazardous-area requirements when used within FLEX Ex systems.

---

Product Specifications

---

Applications

• Used in modular distributed I/O systems where multiple FLEX Ex and FLEX I/O modules need to be interconnected under a single communication adapter

• Applicable in hazardous industrial environments such as chemical plants and oil & gas facilities requiring intrinsically safe I/O deployment

• Enables hybrid system configurations combining intrinsically safe modules with standard I/O modules on the same DIN rail

• Ideal for control cabinets with limited space where compact and organized module grouping is required

• Supports system expansion scenarios where additional I/O modules are added without redesigning the entire network

---

Advantages

• Simplifies system architecture by allowing multiple I/O modules to be grouped and managed as a single unit

• Reduces wiring complexity through integrated bus connection instead of point-to-point wiring

• Improves installation efficiency with straightforward DIN rail mounting and modular expansion capability

• Enhances system flexibility by supporting both FLEX Ex and FLEX I/O modules in one configuration

• Compact and lightweight design minimizes panel space usage and facilitates easier handling

• Ensures reliable backplane communication between connected modules for stable system operation

FAQ

1. What is the main purpose of the 1797-CEC module?
   It serves as a bus connector that links multiple FLEX Ex and FLEX I/O modules together, enabling them to communicate through a shared adapter interface.
2. How many I/O modules can be connected using this connector?
   The module supports up to eight I/O modules connected in a single group under one adapter.
3. Can FLEX Ex and standard FLEX I/O modules be mixed in the same configuration?
   Yes, the connector allows both types of modules to be mounted on the same DIN rail and function together within the same system.
4. Does the module require configuration or programming?
   No direct configuration is typically required, as it operates as a passive bus connector within the system architecture.
5. What is the role of the connector in system scalability?
   It allows additional I/O modules to be easily added to an existing system without significant redesign, supporting incremental expansion.
6. How does the module affect communication between I/O modules?
   It provides a stable backplane communication path, ensuring consistent data transfer between modules and the main adapter.
7. Is the module suitable for hazardous area installations?
   Yes, when used within a FLEX Ex system, it supports configurations designed for intrinsically safe environments.
8. What type of mounting does the module use?
   It is designed for DIN rail mounting, making installation quick and compatible with standard industrial enclosures.
9. Does the connector introduce any signal delay or loss?
   Under normal operating conditions, it maintains efficient signal transmission with negligible delay, ensuring system performance is not affected.
10. What happens if more than eight modules are required?
    Additional groups with separate connectors and adapters must be used, as each connector supports a maximum of eight modules.
