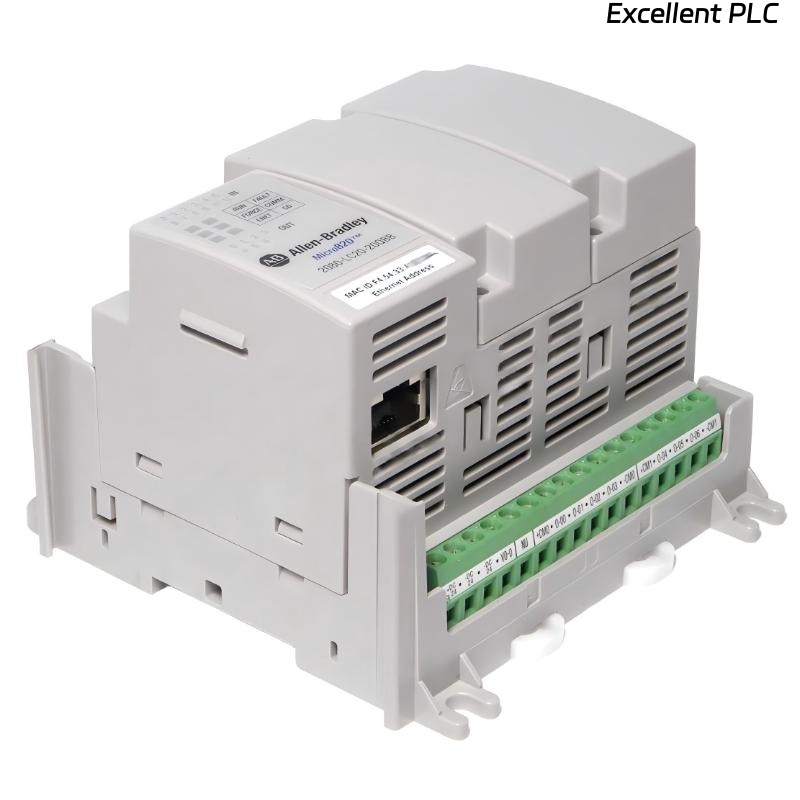

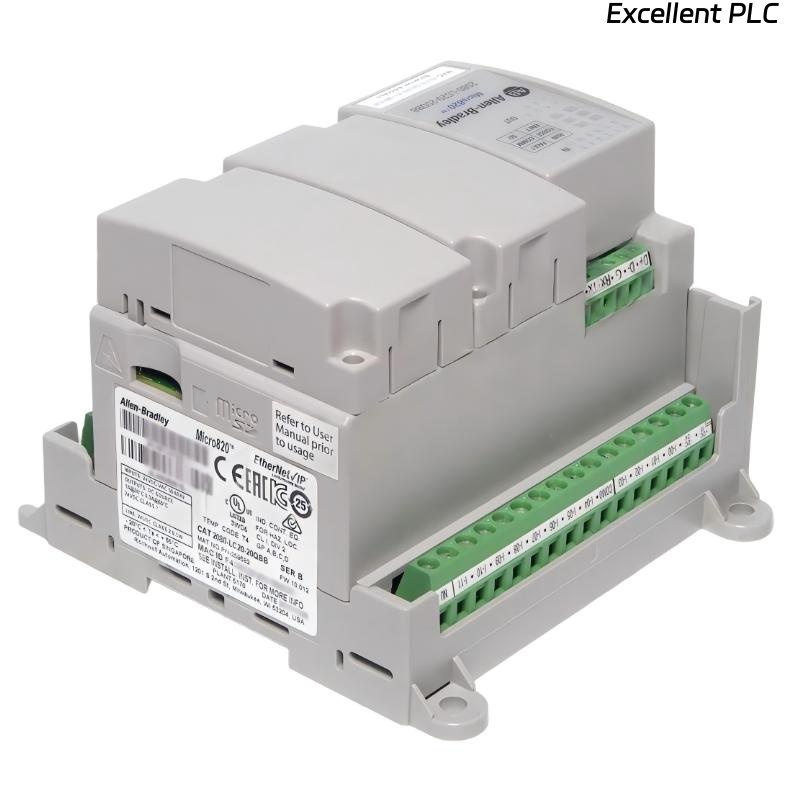

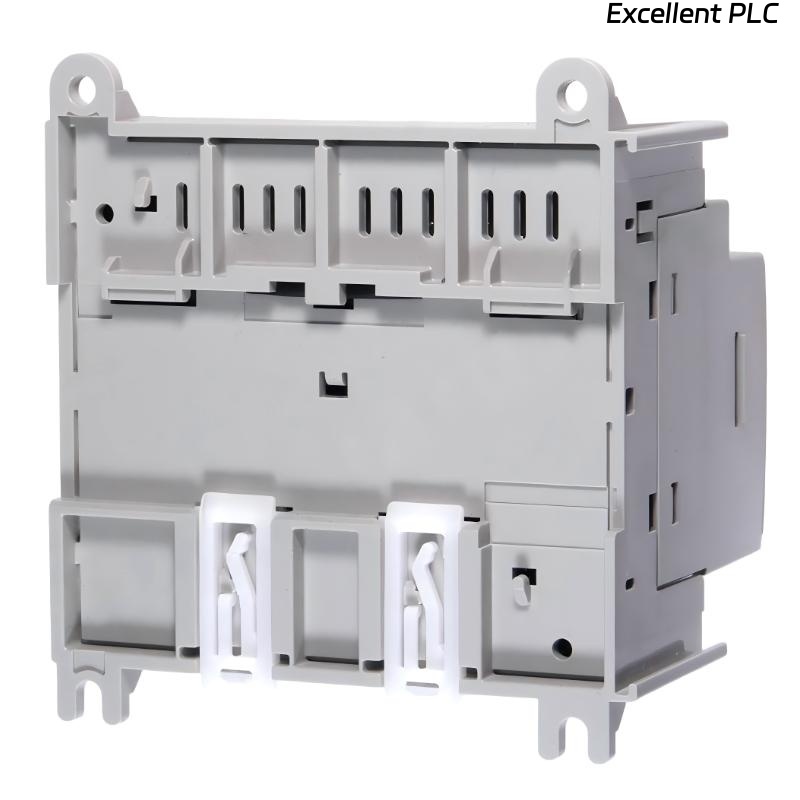

Allen Bradley 2080-LC20-20QBB Micro820 Programmable Controller

Product Introduction

The Allen Bradley 2080-LC20-20QBB Micro820 Programmable Controller is a compact and cost-effective programmable logic controller (PLC) designed for small to mid-sized automation applications. As part of the Micro800 family, it provides a flexible control solution with integrated I/O, making it well suited for standalone machines and simple process control systems.

This controller combines digital and analog capabilities within a single unit, reducing the need for additional expansion modules in many applications. It features built-in 24 V DC digital inputs and outputs, along with analog input channels capable of handling 0–10 V DC signals. The inclusion of analog functionality allows direct interfacing with sensors such as pressure transmitters, level sensors, and variable signal devices.

With fixed terminal connections and a compact footprint, the Micro820 simplifies installation and wiring. Its design focuses on ease of use, reliable performance, and efficient control execution, making it a practical choice for machine builders and system integrators looking for a streamlined automation solution.

---

Product Specifications

---

Applications

• Used in small machine automation systems such as packaging machines, conveyors, and assembly equipment

• Applicable in building automation for controlling lighting, HVAC systems, and energy management processes

• Ideal for standalone control applications where integrated I/O reduces system complexity

• Supports analog signal processing for sensors such as pressure, level, and temperature transmitters

• Suitable for OEM equipment requiring compact, reliable, and cost-effective PLC control

---

Advantages

• Compact all-in-one design integrates digital and analog I/O, minimizing the need for additional modules

• Flexible control capability supports both discrete and analog signal processing in a single controller

• Simplified installation with fixed terminals and DIN rail mounting reduces wiring time

• Cost-effective solution for small automation systems without sacrificing essential functionality

• Reliable performance in industrial environments with stable control execution

• Efficient system integration with built-in communication options for easy connectivity

FAQ

1. What type of applications is the Micro820 controller best suited for?
   It is designed for small to medium automation tasks, particularly standalone machines or systems that require a compact and integrated control solution.
2. How many digital inputs and outputs are available on this controller?
   The controller includes 12 digital inputs and 8 digital outputs, supporting standard 24 V DC industrial signals.
3. What type of analog signals can this controller handle?
   It supports 0–10 V DC analog inputs and outputs, making it compatible with a wide range of industrial sensors and actuators.
4. Are the analog inputs independent of the digital inputs?
   No, the analog inputs are shared with the DC inputs, so careful configuration is required when using these channels.
5. What is the function of the analog output channel?
   The analog output can be used to control devices such as variable speed drives or control valves that accept 0–10 V DC signals.
6. Does the controller support communication with other devices?
   Yes, it includes built-in communication interfaces that allow integration with HMIs, other controllers, or supervisory systems.
7. Is this controller expandable with additional modules?
   Yes, it can be expanded with compatible Micro800 modules to increase I/O capacity if required.
8. What is the advantage of having source-type digital outputs?
   Source outputs provide positive voltage switching, which is commonly used in industrial control systems and compatible with many field devices.
9. How is the controller installed in a panel?
   It can be mounted on a DIN rail or directly on a panel, depending on the installation requirements.
10. Is programming complex for this controller?
    Programming is relatively straightforward using dedicated software tools, making it accessible for both new and experienced users.
