Product Introduction

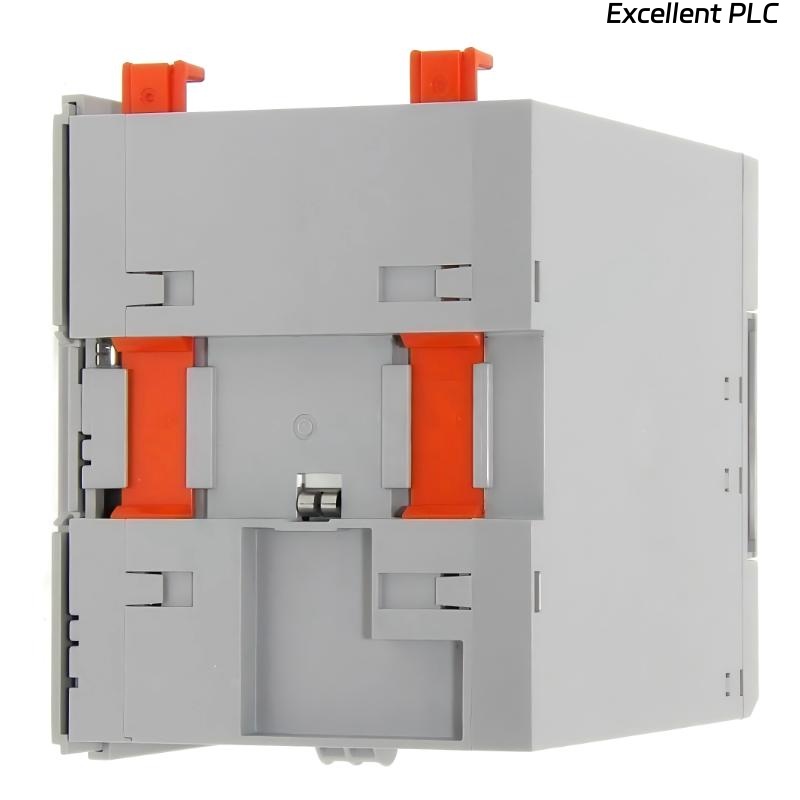

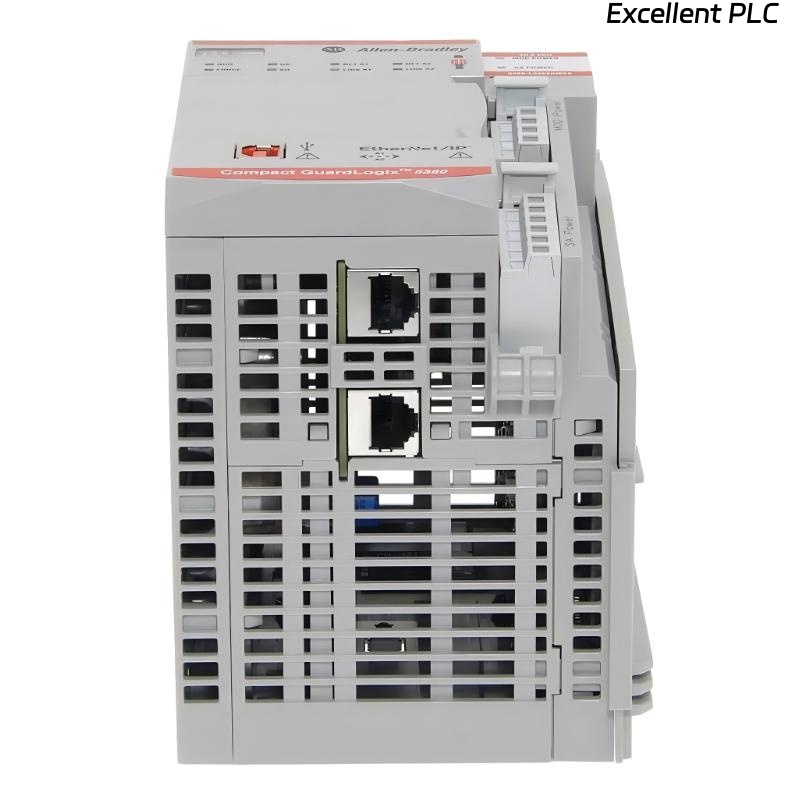

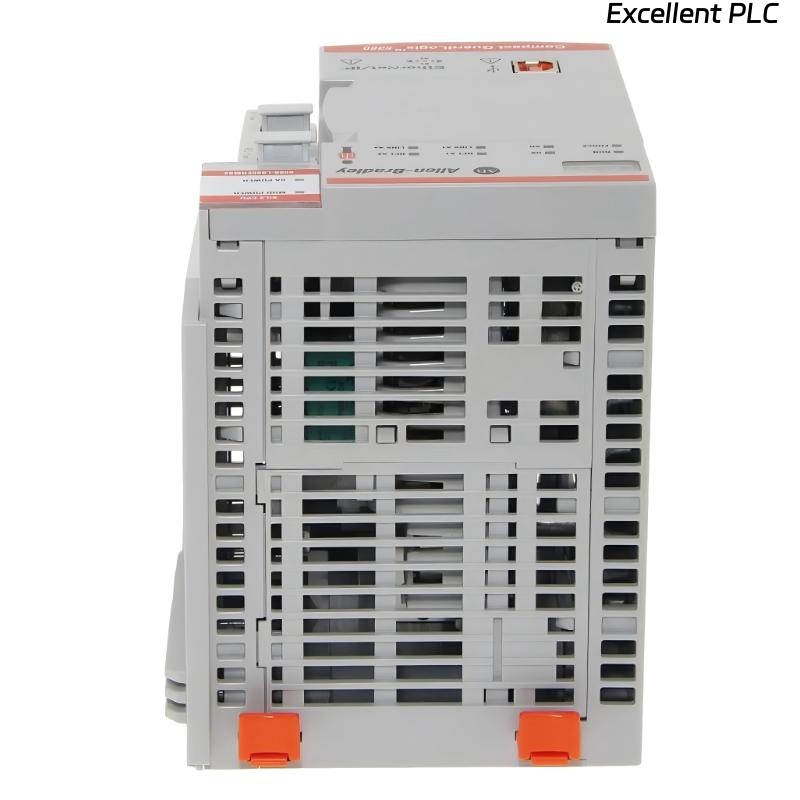

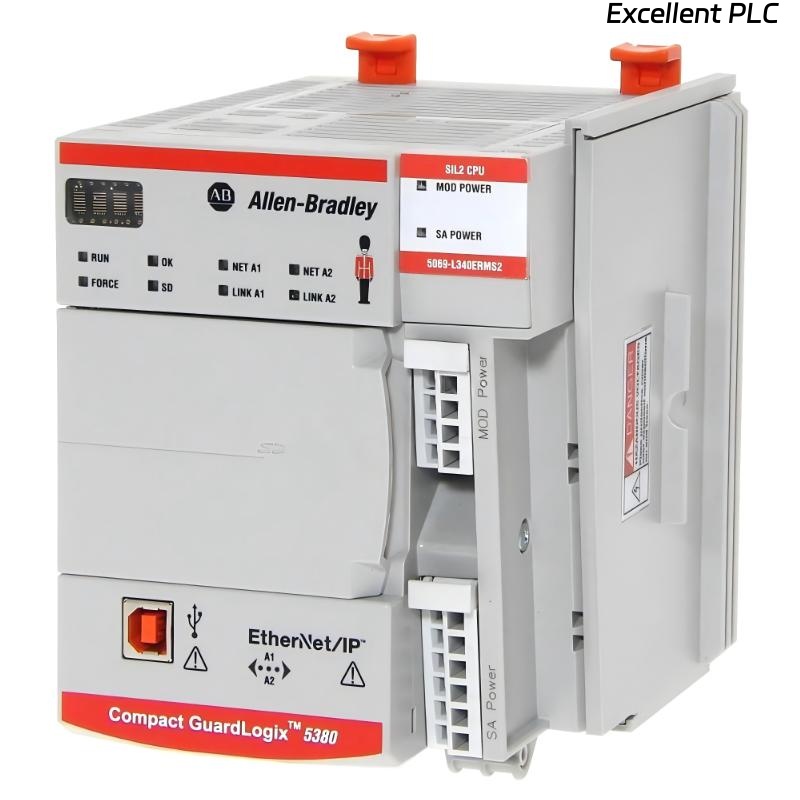

The Allen Bradley 5069-L340ERMS2 CompactLogix 5380 Safety Controller is a high-performance safety and motion controller designed for advanced industrial automation systems requiring integrated control, safety, and motion functionality. As part of the CompactLogix 5380 family, this model combines powerful processing, scalable architecture, and certified safety features into a single platform.
With a safety rating of SIL2 and PLd, the controller ensures reliable protection for personnel and equipment while maintaining high system performance. It is equipped with 4.0 MB of standard memory and 2.0 MB of dedicated safety memory, allowing clear separation of standard and safety tasks, which enhances system integrity and simplifies validation.
In addition to safety capabilities, the controller supports up to 20 axes of integrated motion, making it ideal for applications requiring synchronized motion and safety coordination. It also supports up to 31 local I/O modules and an impressive 90 EtherNet/IP nodes, enabling seamless integration into large-scale distributed automation systems. Its compact DIN rail mounting design ensures efficient installation in control panels.
Product Specifications
| Parameter | Description |
|---|---|
| Model | 5069-L340ERMS2 |
| Series | CompactLogix 5380 |
| Controller Type | Safety Motion Controller (Standard + Safety + Motion) |
| Safety Rating | SIL2 / PLd |
| Standard User Memory | 4.0 MB |
| Safety Memory | 2.0 MB |
| Integrated Motion | Up to 20 Axes |
| Communication Ports | Dual EtherNet/IP |
| Maximum EtherNet/IP Nodes | Up to 90 Nodes |
| Local I/O Expansion | Up to 31 Modules |
| Power Supply Voltage | 18–32 VDC |
| Mounting Type | DIN Rail Mount |
| Isolation | Integrated System Isolation |
| Dimensions | 143.97 x 101.7 x 136.81 mm |
| Weight | 0.768 kg |
Applications
• Safety-Critical Motion Systems requiring both functional safety and precise multi-axis control
• Packaging and Converting Machines with synchronized motion and safety interlocks
• Robotics and Automated Assembly Lines where motion and safety must be tightly integrated
• Large Distributed Automation Systems utilizing extensive EtherNet/IP networks
• OEM Machine Building for high-end equipment with integrated safety and motion
Advantages
• Integrated Safety, Motion, and Control reduces system complexity and hardware footprint
• Certified Safety Performance with SIL2 / PLd compliance
• High Memory Capacity with dedicated standard and safety memory for efficient program management
• Advanced Motion Capability supporting up to 20 axes
• Exceptional Network Scalability with up to 90 EtherNet/IP nodes
• Flexible System Expansion supporting up to 31 local I/O modules
• Compact and Robust Design for reliable industrial operation
